GNSS Receiver: A Complete Guide to Types, Accuracy and Selection

A GNSS receiver is the complete positioning engine that turns raw satellite signals into usable position, velocity, heading and time data. Unlike a module, which embeds inside a host product, a receiver is often the product itself — a survey rover, a UAV flight computer, an autonomous-vehicle sensor or a base station. Because receivers bundle antenna input, processing power, correction handling and output interfaces, their specifications read differently from modules and their selection follows different rules. This guide explains what a GNSS receiver does, how receiver classes differ, and where the JUMPSTAR GNSS receiver line fits, closing with three compared models and a selection checklist.

What Is a GNSS Receiver and How Is It Different from a Module?

A GNSS receiver acquires, tracks and decodes satellite signals and computes navigation solutions. The distinction between receiver and module is mostly one of packaging and intended use: modules are soldered onto a host board, while receivers are complete, often self-contained units with antenna connectors, power management, storage and communication links. Many high-end receivers are effectively a module plus a robust enclosure, a display or telemetry radio, and firmware tuned for a profession — surveying, marine, aviation or autonomous driving.

The practical consequence for buyers: receivers make performance easy to deploy but harder to customize, while modules trade deployment convenience for design freedom. The relationship between the two is clarified in the article GNSS module versus GNSS receiver module.

GNSS Receiver Classes: From Tracking to Millimeter-Level RTK

Standard tracking receivers output meter-level positions for telematics and fleet applications. RTK receivers apply corrections for centimeter-level results in surveying and machine control. Dual-antenna receivers measure heading and attitude from the phase difference between two antennas, which is essential for vessel, vehicle and robot orientation. Inertial-aided receivers fuse GNSS with IMU data to bridge signal outages. The most capable products combine several of these: RTK plus dual-antenna heading plus IMU in one unit.

The class you need is determined by the question your system must answer. "Where am I?" needs a tracking or RTK receiver. "Where am I and which way am I facing?" needs dual-antenna or inertial fusion. "Where am I, which way am I facing, and what is my attitude?" needs the top tier. Choosing the class first prevents both overspending and costly retrofits. A technical deep dive into receiver accuracy and channels is provided in RTK GNSS receivers explained.

Six GNSS Receiver Specifications That Matter

• Channel count. Hundreds of hardware channels let a receiver track every visible satellite across all constellations, which directly improves fix availability in partial-sky environments. High-end receivers reach 700–800 channels.
• Update rate. 10–20 Hz suits mapping and guidance; 50–100 Hz suits control loops and high-dynamic platforms where latency below 10 ms is required.
• RTK accuracy and initialization. Fixed-solution accuracy, typically 0.6–2 cm plus a ppm term, and time-to-fix govern surveying throughput and machine efficiency.
• Heading and attitude. Dual-antenna receivers output heading with sub-degree accuracy from a short baseline, replacing expensive inertial systems for orientation.
• Anti-jamming and anti-spoofing. Modern receivers detect and suppress interference and false signals — a growing requirement for autonomous systems and security-sensitive fleets.
• IMU integration. Inertial aiding maintains position through tunnels, under bridges and in urban canyons where GNSS alone loses fix.

Three JUMPSTAR GNSS Receiver Options Compared

JUMPSTAR's receiver family targets the high-performance tiers: RTK millimeter-level accuracy, dual-antenna heading and inertial fusion. Three products illustrate the range.

JS-AP55: High-Rate RTK Receiver with Anti-Jamming

The JS-AP55 is a multi-band, multi-constellation receiver supporting single or dual antennas with RTK millimeter-level accuracy. Its 448 hardware channels drive over two million valid correlators, it updates at up to 100 Hz with sub-10 ms latency, and it ships with advanced anti-jamming technologies — AIM+, IONO+, APME+ and RAIM+ — for operation in interference-heavy environments. Full-band coverage extends to GPS, BeiDou, GLONASS, Galileo, QZSS, NavIC and SBAS.

For autonomous vehicles, robots and UAVs, the combination of 100 Hz output, dual-antenna capability and jamming resilience makes the JS-AP55 a control-loop-grade receiver rather than a navigation aid.

JS-CK15-3: Dual-Antenna Heading with Built-In IMU

The JS-CK15-3 fuses dual-antenna heading measurement with a built-in IMU, delivering RTK millimeter-level accuracy at 8 mm + 1 ppm horizontal and 15 mm + 1 ppm vertical. It supports full-frequency multi-constellation signals, outputs positions at up to 50 Hz and IMU data at 100 Hz, and maintains navigation during GNSS outages through inertial dead reckoning.

The combination suits UAVs and robots that must keep a stable heading through maneuvers and brief signal blockages — crop-dusting drones between tree lines, inspection robots under structures — where a plain RTK receiver would lose orientation.

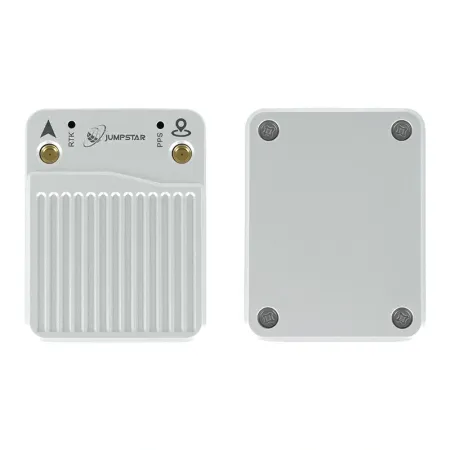

JS-BSK43H-AH: Dual-Antenna Heading and Attitude Receiver

The JS-BSK43H-AH outputs heading and pitch or heading and roll from a short dual-antenna baseline, tracking 789 hardware channels simultaneously with RTK accuracy of 0.6 cm + 0.5 ppm horizontal and 1 cm + 1 ppm vertical. Fixed latency below 10 ms and a 20 Hz maximum update rate keep it responsive for dynamic control.

The heading-and-attitude output removes the need for a separate inertial unit in many platforms, cutting cost and integration risk for autonomous driving development rigs, marine systems and vehicle testing.

How to Choose the Right GNSS Receiver

1. Define the output the system truly needs. Position-only, heading-only, or position-plus-heading-plus-attitude? Each step up the capability ladder changes cost and complexity, and most projects over-specify.

2. Match update rate to the control loop. A 10 Hz receiver drives a mapping rover comfortably; a 100 Hz receiver with 10 ms latency is required where the receiver output feeds a stabilization or autonomy controller directly.

3. Evaluate the environment for jamming and spoofing. Urban fleets, ports and security-sensitive sites need receivers with detection and filtering. Port operations, for example, benefit from the robustness described in how RTK receivers improve smart port operations.

4. Decide whether inertial aiding is worth it. If the platform regularly passes under bridges, through tunnels or inside structures, IMU fusion prevents total outage — but it adds calibration and integration effort. A dual-antenna receiver can solve the orientation problem without an IMU where the baseline is feasible.

5. Verify correction and interface compatibility. RTCM3 input, NTRIP support, output formats (NMEA, binary), and the physical interfaces (serial, CAN, Ethernet) must match the host system. Confirm the correction source's coverage for the deployment region, as discussed in RTK versus PPK correction methods.

GNSS Receiver Applications Across Industries

In agriculture, receivers drive autosteer and variable-rate application, where a 2 cm guidance line translates directly into seed and chemical savings over thousands of hectares. The receiver must hold RTK fix through dust, vibration and partial sky occlusion from tall crops, and dual-antenna or IMU-aided models keep the implement pointed true when the cab obstructs a baseline. As farm machinery becomes more autonomous, the same receivers graduate from guidance sensors to safety-critical components, which pushes anti-jamming and integrity monitoring up the priority list.

In UAV operations, the receiver rides the most dynamic platform in GNSS: aggressive bank angles, rapid altitude changes and missions that thread between buildings and tree lines. High update rates and sub-10 ms latency let flight controllers close the loop around the position feed, while dual-antenna heading keeps the aircraft's orientation known during GPS-shadowed turns. Mapping crews increasingly pair RTK receivers with PPK post-processing to recover centimeter accuracy even when the live correction link drops mid-flight.

In autonomous vehicles, robotics and marine systems, the receiver becomes part of a fused sensor stack with lidar, cameras and inertial units. What these platforms need from the GNSS receiver is not only accuracy but integrity: a clean, trustworthy position that the fusion layer can weight against other sensors, plus heading and attitude to align the vehicle frame. Ports, container terminals and mining sites add a final requirement — robustness against the radio interference that heavy machinery and dense metal structures generate, which is where anti-jamming features and channel-rich tracking earn their keep.

One more dimension deserves attention in receiver selection: the total cost of ownership across a fleet. Receivers live in harsh environments — dust, vibration, temperature swings and humidity — and field service time often dominates hardware cost. Units with robust housings, self-test diagnostics and straightforward firmware updating reduce downtime, while standardized interfaces keep spares interchangeable across platforms. Equally important is supplier continuity: a receiver whose firmware, corrections handling and connector ecosystem your team has already learned is worth more than a marginal accuracy improvement from an unfamiliar vendor, because integration risk multiplies across every unit deployed.

Frequently Asked Questions

What is a GNSS receiver used for?
A GNSS receiver computes position, velocity, time and — in dual-antenna models — heading and attitude from satellite signals. It is the core of survey rovers, UAV flight systems, autonomous vehicles, marine navigation and base stations.

What is the difference between a GNSS receiver and a GNSS module?
Packaging and purpose. A module is a component you embed on your board; a receiver is a complete unit, often with antenna connectors, storage and communication links, that you deploy as-is. The article module versus receiver details the trade-offs.

How accurate is a GNSS receiver?
Standard receivers reach 1.5–3 m; RTK receivers reach 0.6–2 cm plus a baseline term; dual-frequency and multi-constellation reception improves both speed and reliability of reaching those figures.

What does a dual-antenna GNSS receiver do?
It measures the carrier-phase difference between two antennas to compute heading (and with a suitable baseline, pitch or roll) with sub-degree accuracy, without a gyroscope — ideal for vessels, vehicles, robots and autonomous driving test rigs.

Can a GNSS receiver work in tunnels or cities?
Alone, no — GNSS requires sky visibility. Receivers with built-in IMU fusion (like the JS-CK15-3) maintain position and heading through short outages by dead reckoning, and high-sensitivity receivers with many channels hold fixes in deep urban canyons where basic receivers drop out.

Key Takeaways

• A GNSS receiver is a complete positioning engine — the difference from a module is packaging and deployment, not fundamental technology.
• Receiver classes map to system questions: position, heading, or full attitude, with RTK, dual-antenna and IMU fusion as the capability levers.
• Channel count, update rate, accuracy, heading capability, anti-jamming and inertial aiding are the six specifications that define receiver value.
• JUMPSTAR covers the high tier: JS-AP55 for high-rate anti-jamming RTK, JS-CK15-3 for dual-antenna plus IMU, and JS-BSK43H-AH for dual-antenna heading and attitude.
• Match output needs, update rate, environment and correction plan before comparing price tags.
