Jumpstar JS-AP55 Multi-Band Multi-Constellation GNSS Receiver – Single/Dual Antenna, RTK Millimeter-Level, Anti-Jamming for UAV, Robot & Autonomous Driving
Full-Constellation Full-Band Reception
Supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS all signals.
448 Hardware Channels
Tracks all visible satellites simultaneously with >2 million valid correlators.
100Hz High Update Rate
Ultra-low latency <10ms for high-dynamic applications.
Advanced Anti-Jamming
AIM+/IONO+/APME+/RAIM+ for robust performance in complex environments.
Millimeter-Level RTK
Horizontal accuracy 0.6cm + 1ppm, dual-antenna heading down to 0.15°.
Single/Dual Antenna Optional
AP55 (single) for positioning; AP55H (dual) for heading & attitude.
Ultra-Compact Size
55.2×55.2×9.1mm, built-in TCXO, LNA & 32GB TF card slot.
Rich Protocols
Supports NMEA 0183, SBF, RINEX, RTCM, CMR/CMR+ & OSNMA anti-spoofing.

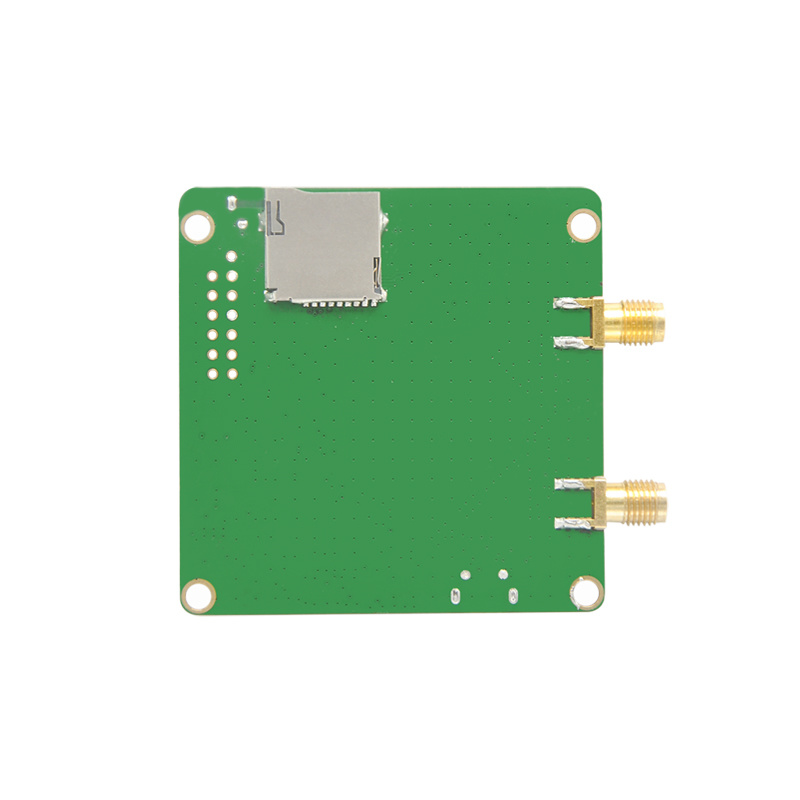

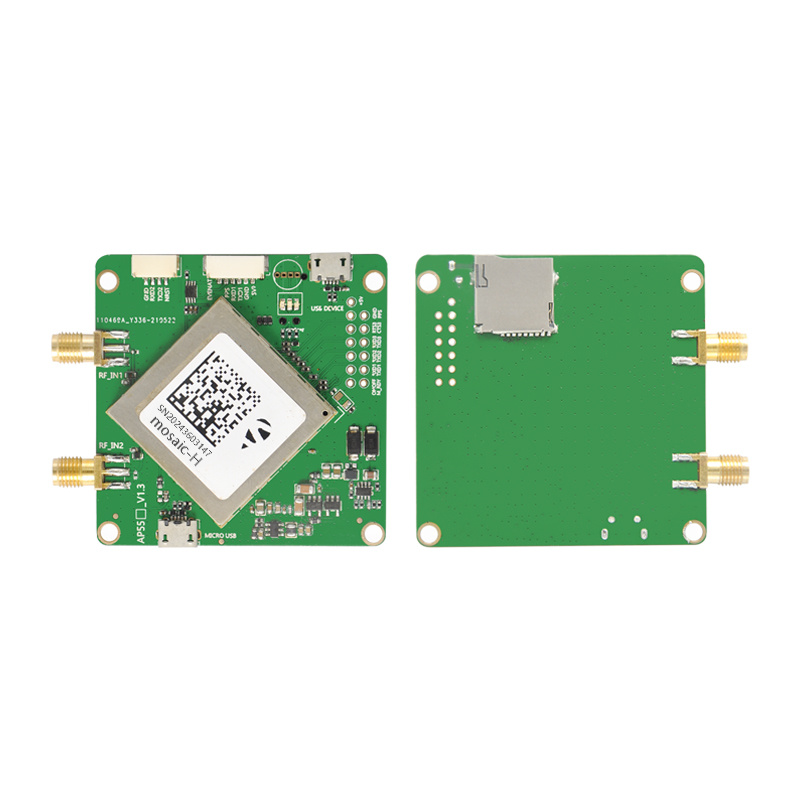

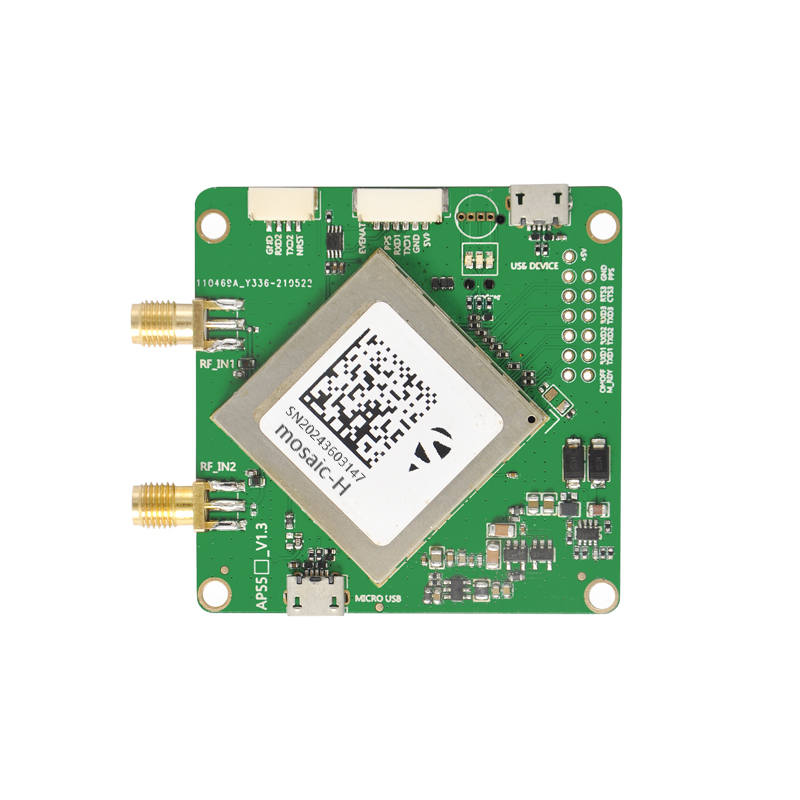

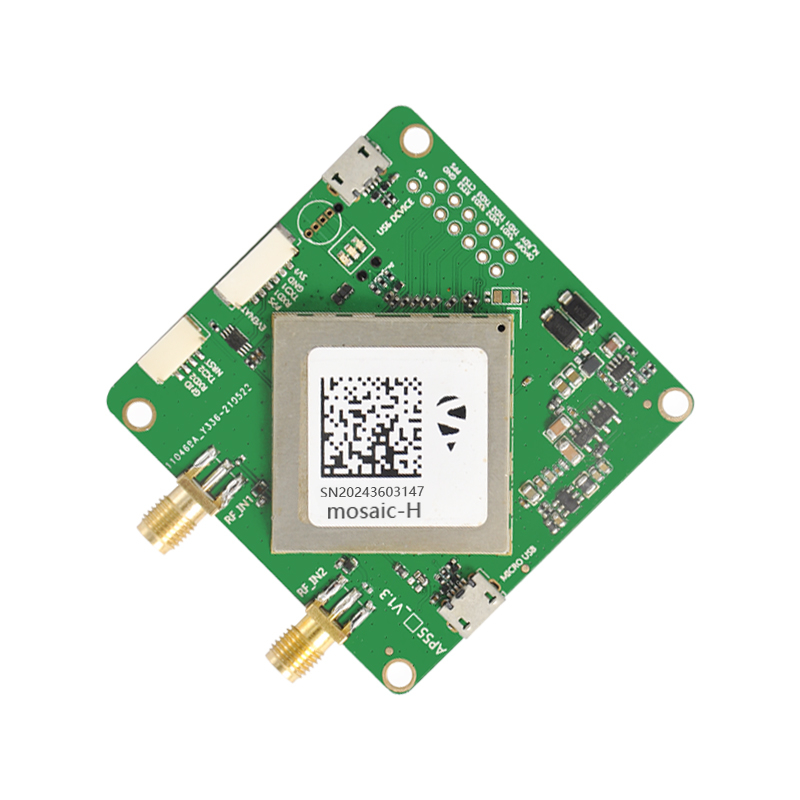

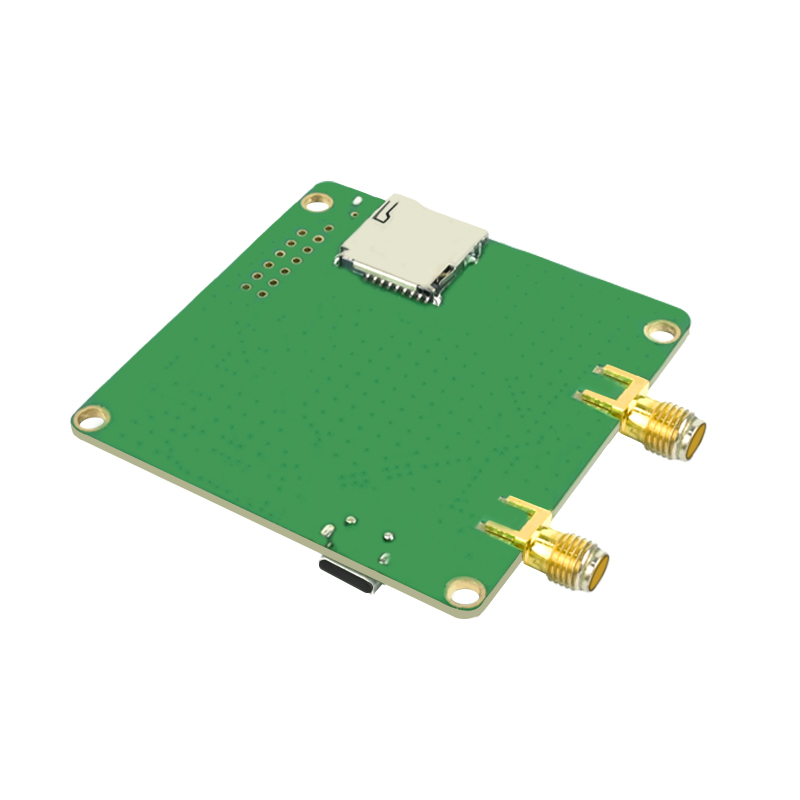

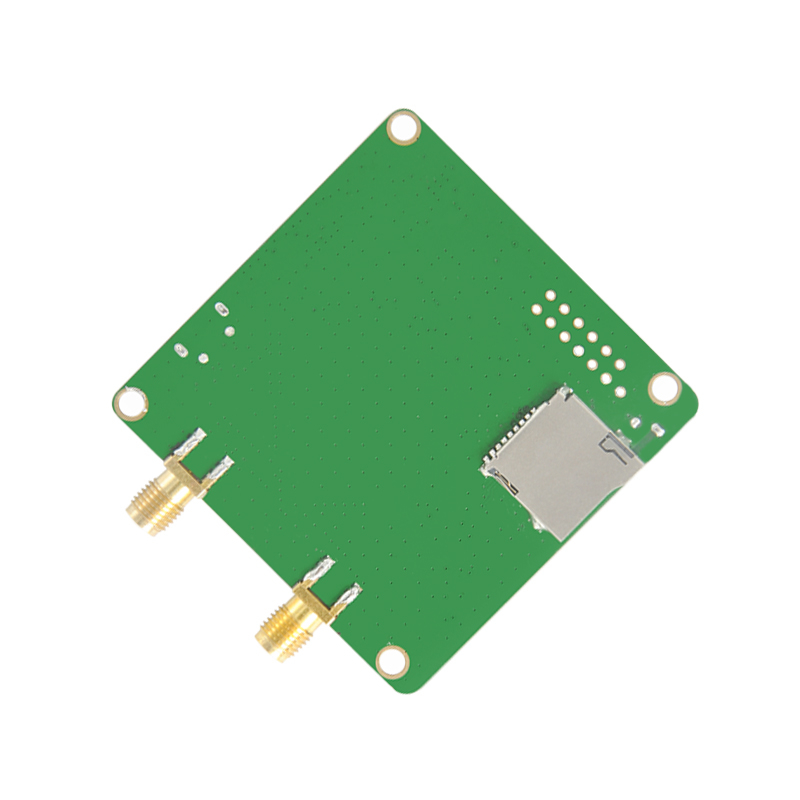

Jumpstar JS-AP55
Multi-Band Multi-Constellation GNSS Receiver
The JS-AP55 is a high-performance multi-band, multi-constellation satellite receiver with rich data interfaces. It provides two versions: single-antenna (AP55) for high-precision positioning and dual-antenna (AP55H) for accurate heading & attitude output.
With 448 hardware channels and over 2 million valid correlators, it tracks all visible GNSS signals at the same time. It features ultra-low latency (<10ms), 100Hz default update rate, and exclusive anti-jamming, ionospheric suppression and multipath mitigation technologies, ensuring stable signal tracking under high-frequency vibration and rapid movement.
Built-in TCXO, LNA and TF card slot (up to 32GB), it is the ideal core positioning module for UAVs, intelligent robots, precision control, autonomous driving and other high-end applications.
Key Features & Benefits
-
Superior Channel & Processing Capacity 448 hardware channels + >2 million valid correlators, enabling simultaneous tracking of all global navigation satellite signals.
-
Full GNSS Constellation Compatibility Covers GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS full-frequency signals for worldwide positioning.
-
High-Dynamic & Low-Latency Performance Default navigation/measurement update rate: 100Hz; ultra-low latency <10ms; stable tracking in high-vibration and high-speed motion scenarios.
-
Professional Anti-Interference Suite AIM+ interference detection & suppression, IONO+ ionospheric scintillation suppression, Lock+ tracking robustness, APME+ multipath suppression, RAIM+ receiver autonomous integrity monitoring.
-
Ultra-High Precision Positioning & Heading RTK horizontal accuracy: 0.6cm + 1ppm; dual-antenna heading accuracy: 0.15°@1m baseline; supports OSNMA anti-spoofing.
-
Single/Dual Antenna Flexibility AP55 (single antenna): standard high-precision positioning; AP55H (dual antennas): professional heading and attitude measurement.
-
Miniature & Integrated Design Compact size: 55.2×55.2×9.1mm±0.3mm; built-in TCXO, LNA and TF card slot (max 32GB); perfect for space-limited embedded devices.
Technical Specifications
GNSS Performance
| Product Type | Multi-Band Multi-Constellation GNSS Receiver (Single/Dual Antenna Optional) |
| Model Versions | AP55 (Single Antenna); AP55H (Dual Antenna) |
| Hardware Channels | 448 |
| Valid Correlators | >2,000,000 |
| Supported Signals | GPS: L1C/A, L1C, L1PY, L2C, L2P, L5; BDS: B1I, B1C, B2a, B2I, B3I; GLONASS: L1CA, L2CA, L2P, L3 CDMA; Galileo: E1, E5a, E5b, E5 AltBoc, E6; QZSS: L1C/A, L1C, L2C, L5, L6; NavIC: L5; SBAS: EGNOS, WAAS, GAGAN, MSAS, SDCM (L1/L5) |
| Update Rate | Positioning: 100Hz (max); Heading (dual antenna): 50Hz (max); Observation: 100Hz (max) |
| Latency | <10 milliseconds |
| Sensitivity | Tracking: 20dB-Hz; Acquisition: 33dB-Hz |
| Time Accuracy | xPPS: <9ns; Event: <20ns |
| Positioning Time | Cold Start: 45s; Warm Start: ≤20s |
| RTK Accuracy | Horizontal: 0.6cm + 1ppm; Velocity: 0.03m/s |
| Heading Accuracy (Dual Antenna) | 0.15° heading & 0.25° attitude @1m baseline; 0.03° heading & 0.05° attitude @5m baseline |
| Supported Protocols | NMEA 0183, SBF, RINEX, RTCM 2.X/3.X, CMR/CMR+, OSNMA |
Electrical & Mechanical
| Operating Voltage | 4.5~12.0V DC (Typical 5.0V) |
| Operating Current | Capture: 250~300mA@5V; Tracking: 240~280mA@5V |
| Antenna Power Supply | 70mA @3.3V |
| Dimensions | 55.2×55.2×9.1mm±0.3mm |
| Storage | TF card slot, max support 32GB |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -55℃ ~ +85℃ |
| Interfaces | 2×UART, Micro USB, PPS Output, EVENT Input, RF_IN1/RF_IN2 |
| ESD Protection | 2000V (HBM) |
| Height Limit | 18,000m |
| Speed Limit | 15m/s |
| RoHS | Compliant |
Typical Applications
Unmanned Aerial Vehicles (UAVs)
Aerial surveying, autonomous flight and precise positioning for drones
Intelligent Robots & Automated Guided Vehicles
Autonomous navigation for robots, AGVs and logistics automation
Surveying & Mapping Measurement
Professional land surveying, GIS data collection and geodetic measurement
Handheld High-Precision GPS Terminals
Portable devices requiring centimeter-level accuracy in field operations
Personal Protection & Position Tracking
Real-time location tracking for first responders and field personnel
Geographic Surveying
Geographic data collection, terrain mapping and environmental monitoring
Intelligent Logistics Scheduling
Asset tracking, warehouse automation and supply chain visibility
Precision Agriculture
Automated guidance, precision farming and field mapping
Automotive & In-Vehicle Positioning Devices
High-precision navigation for vehicles, fleet management and telematics
Autonomous Driving & Intelligent Driving
High-precision positioning for ADAS, autonomous vehicles and V2X applications
Resources & Downloads
JS-AP55 Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and pad layout (55.2×55.2×9.1mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (55.2×55.2×9.1mm).
