JS-RK10-3
JS-RK10-3
High Precision RTK Modules

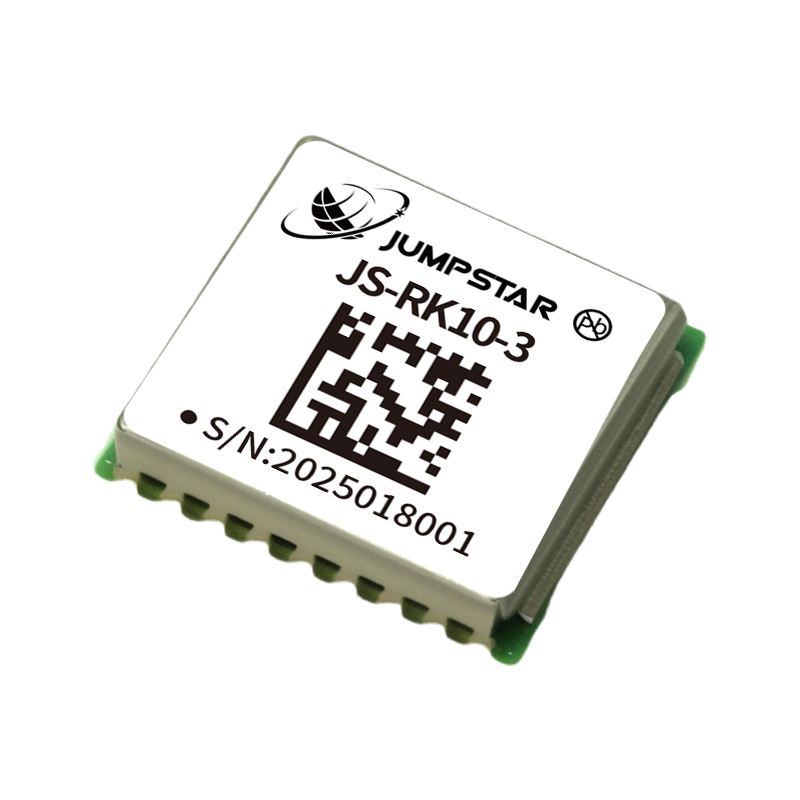

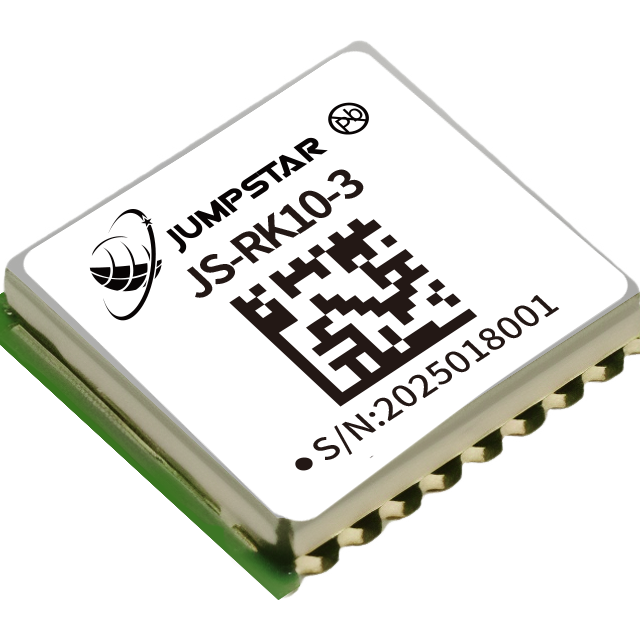

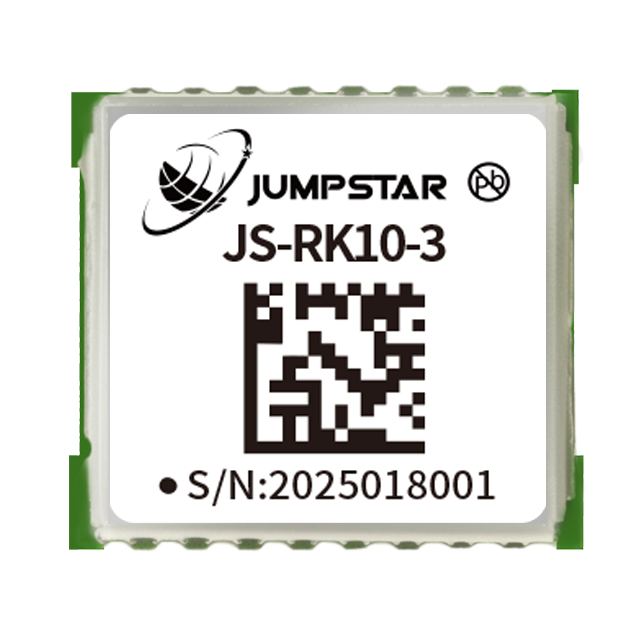

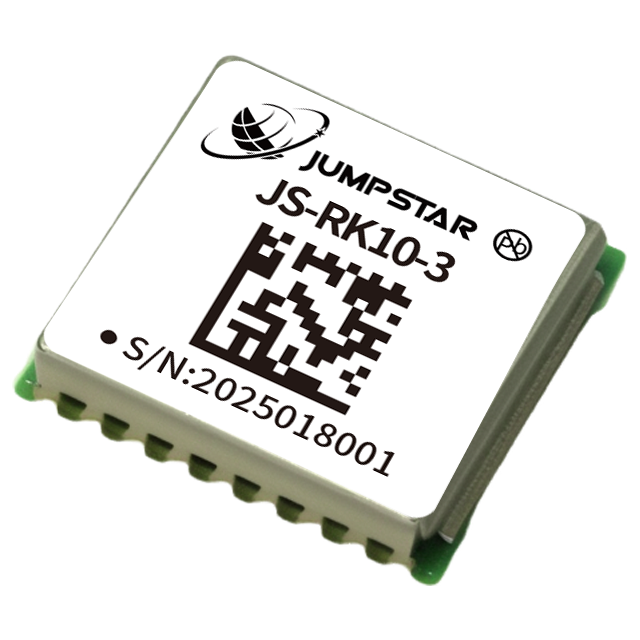

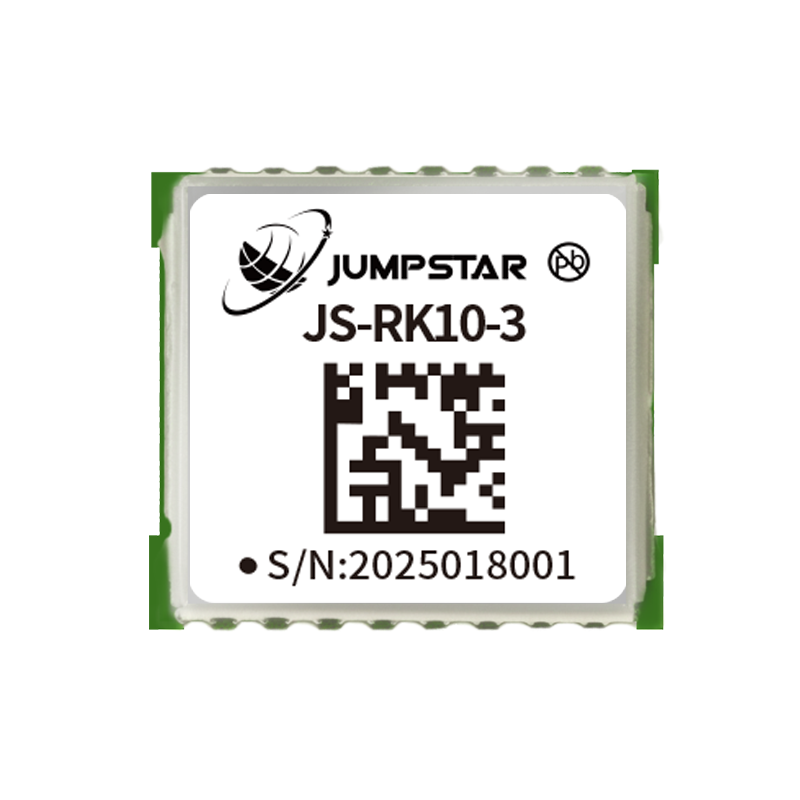

Jumpstar JS-RK10-3 High-Precision GNSS Module - 200 Tracking Channels, Centimeter-Level RTK Positioning
Centimeter-Level RTK Precision
Maintains centimeter-level positioning stability even in extreme environments like urban canyons.
Dual-Band Full-Constellation
Supports GPS L1/L5, BDS B1I/B1C/B2I/B2B/B2A, GLONASS G1, Galileo E1/E5, QZSS L1/L5, IRNSS L5.
200 Tracking Channels
Dedicated search engine and 200 channels for fast, stable satellite acquisition.
Ultra-Low Power & Compact
Typical 20mA@3.3V, miniature 10.5×9.7×2.3mm LGA package for space-constrained designs.
Rich Protection & Interfaces
Built-in active antenna detection, overcurrent protection, UART, 1PPS, and I2C (customizable).
Dual-Band (L1+L5) GNSS High-Precision Positioning Module
JS-RK10-3 is a dual-band (L1/L5) GNSS high-precision positioning module characterized by high performance and low power consumption. It employs an advanced hardware and software integrated low-power design, achieving low power consumption without compromising performance.
It enables optimized multi-band and multi-mode signal tracking, while featuring an advanced anti-multipath and anti-interference RF front-end, and providing up to eight anti-single-tone interference filters for the L1/L5 bands, significantly improving actual positioning and TTFF performance.
The module supports multi-constellation joint calculation and maintains centimeter-level positioning stability even in extreme environments such as urban canyons and indoor-outdoor transition zones. It is suitable for applications such as drones, trackers, and automotive systems.
Key Features & Benefits
-
High-Performance SOC Based on high-performance SOC series, low power consumption, high performance.
-
200 Tracking Channels Dedicated search engine and 200 channels for fast, stable satellite acquisition.
-
Dual-Band Full-Constellation Supports GPS L1/L5, BDS B1I/B1C/B2I/B2B/B2A, GLONASS G1, Galileo E1/E5, QZSS L1/L5, IRNSS L5.
-
Intelligent Anti-Interference 8 anti-single-tone filters for L1/L5, multipath detection and compensation.
-
Ultra-Low Power & Compact Size Typical 20mA@3.3V, 10.5×9.7×2.3mm LGA package, suitable for SMT.
-
Antenna Detection & Protection Supports open/short circuit detection, overcurrent protection, status via NMEA.
-
Industrial-Grade Reliability -40℃~+85℃ operating temperature, 2000V HBM ESD protection.
Technical Specifications
GNSS Performance
| Receiver Type | Dual-band (L1+L5) GNSS high-precision positioning module |
| Supported Constellations & Bands | GPS: L1/L5; BDS: B1I/B1C/B2I/B2B/B2A; GLONASS: G1; Galileo: E1/E5; QZSS: L1/L5; IRNSS: L5 |
| Tracking Channels | 200 + dedicated search engine |
| Sensitivity | Tracking & Nav: -165dBm; Reacq: -159dBm; Hot Start: -159dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start: ≤28s (≥-130dBm, ≥12 SVs); Hot Start: ≤1s |
| Positioning Accuracy (CEP) | Standalone: ≤1.0m (open sky, 24h static); RTK: Centimeter-level (with differential) |
| Update Rate | Up to 10Hz |
| Supported Protocols | NMEA 0183, RTCM3.X |
Electrical & Mechanical
| Power Supply (VCC) | 1.8V-3.6V (Typical 3.3V) |
| Average Current | 16~30mA @3.3V (Typical 20mA) |
| Backup Voltage (V_BACK) | 1.8V-3.6V (Typical 3.3V); Standby 14uA@3.3V |
| Digital I/O Voltage | 1.8V-3.6V |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 95% |
| ESD Protection (HBM) | 2000V |

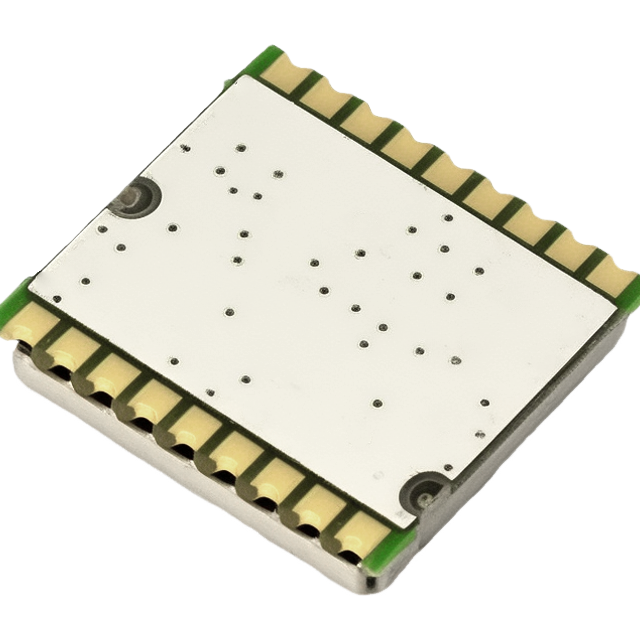

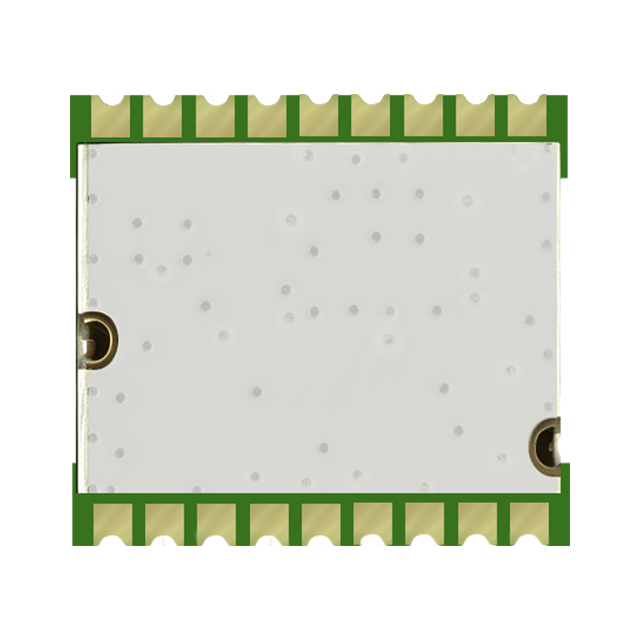

| Mechanical Dimensions | 10.5×9.7×2.3mm ±0.3mm (LGA package) |
| RoHS | Compliant |
Typical Applications
UAVs & Drones
Aerial surveying, autonomous flight and precise positioning
Automotive Applications
AVL, location-based services, navigation & fleet management
Smart Wearable Devices
Personal tracking, safety monitoring & IoT wearables
Intelligent Logistics
Asset tracking, scheduling and supply chain visibility
Personal Protection
Real-time location for field personnel and lone workers
AVL & LBS
Automatic vehicle location, telematics & location services
Smart Handhelds
High-precision positioning for mobile data collection
More Applications
Custom integration for other high-precision GNSS systems
Resources & Downloads
JS-RK10-3 Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and LGA pad layout.
User Manual
Quick start guide, integration tips, and reflow profile.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (10.5×9.7×2.3mm).
