JS-RP26-U
Dead Reckoning (DR) Modules

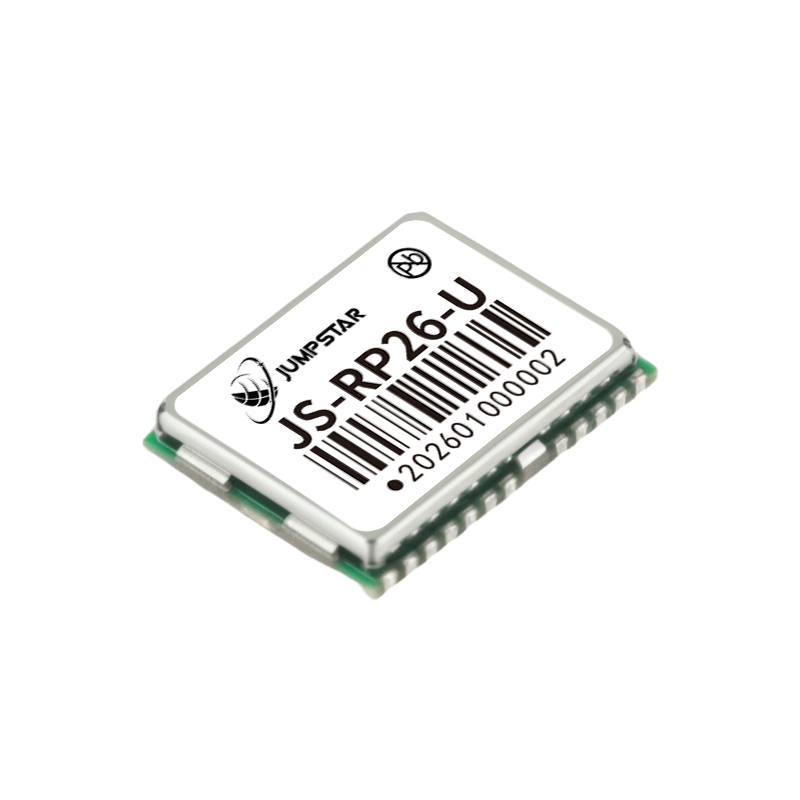

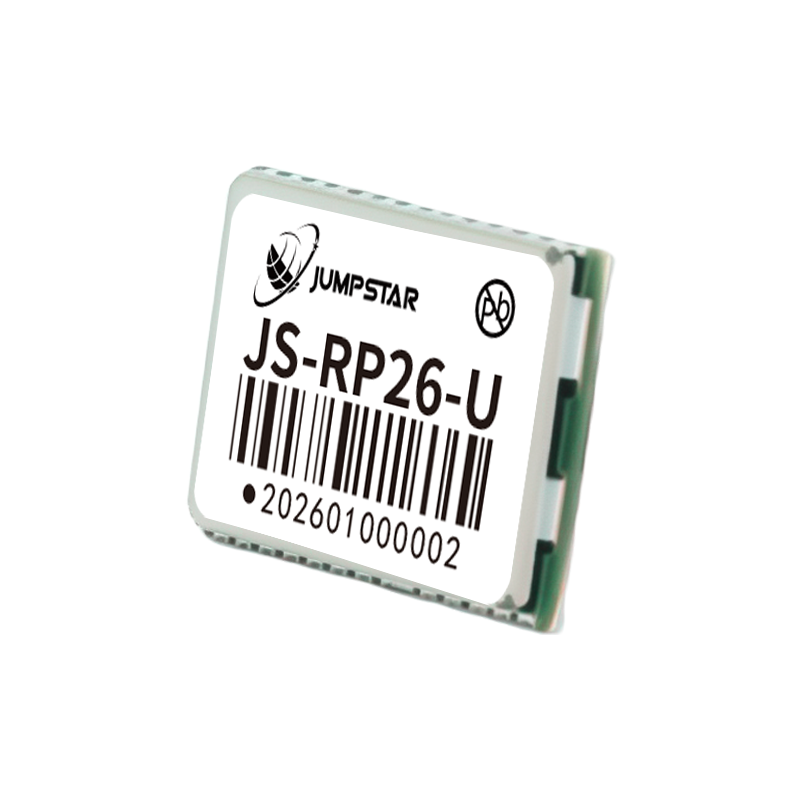

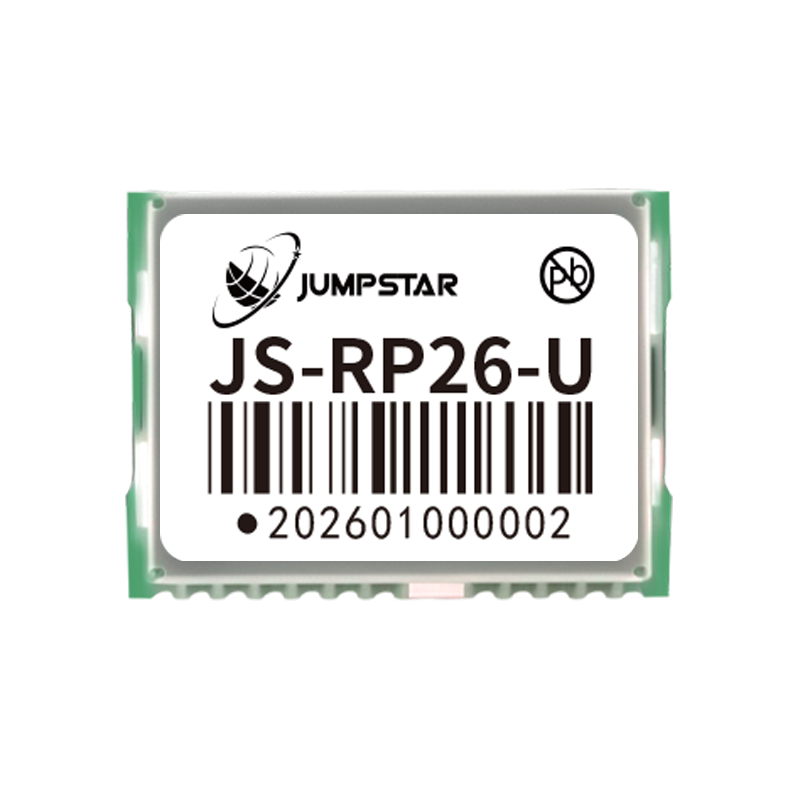

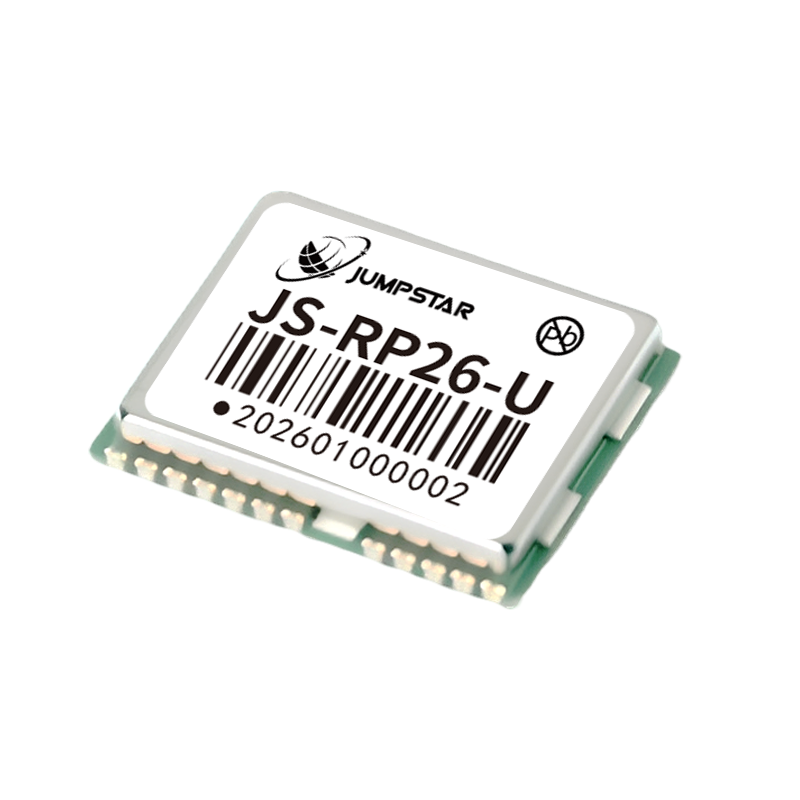

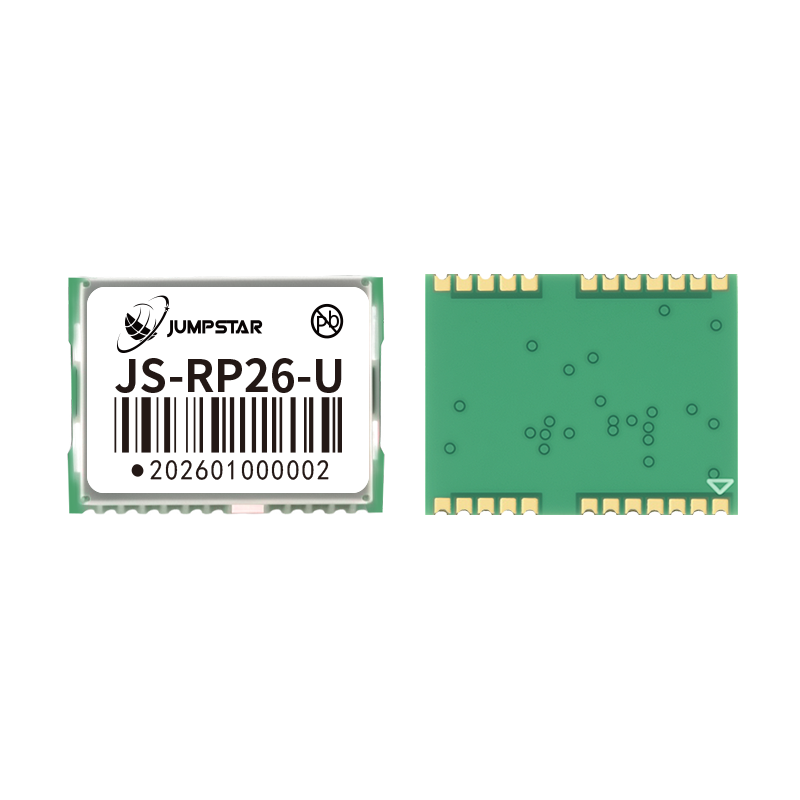

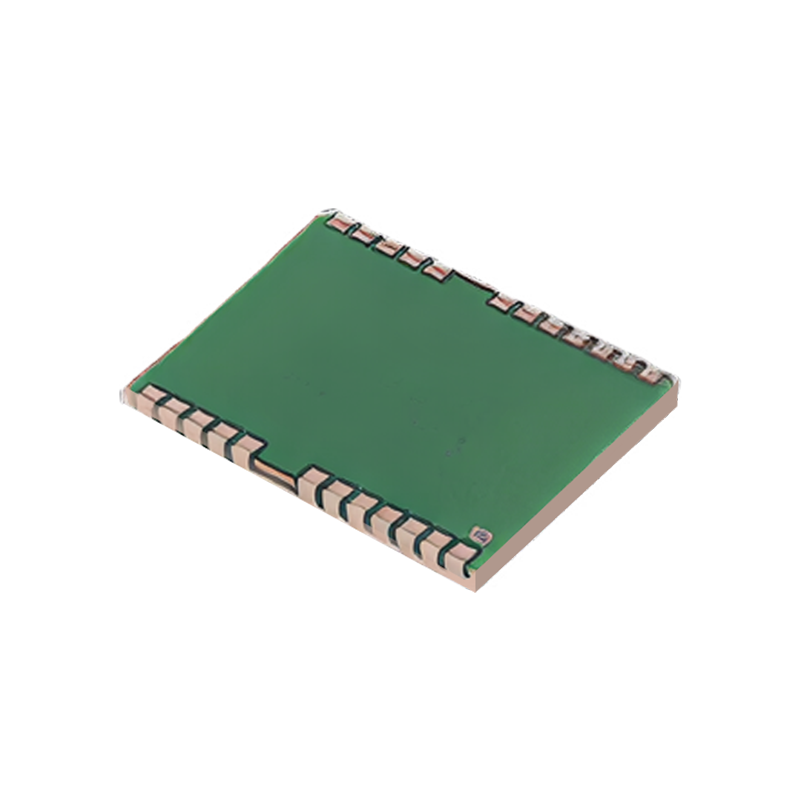

Jumpstar JS-RP26-U Single-frequency L1 GNSS+INS Integrated Navigation Module - Low-Power, Lightweight, 20Hz High-Speed Update Positioning Solution
Single-Band Full Constellation
Supports L1 band of GPS/BDS/GLONASS/Galileo/QZSS for global stable positioning.
Built-In Inertial Navigation
GNSS+INS combined navigation, 120s signal loss keeps error within 5%.
200 High-Speed Channels
Dedicated search engine for fast satellite capture and stable tracking.
20Hz Ultra-High Update
Max navigation update rate up to 20Hz for high-dynamic real-time positioning.
Ultra-Light & Compact
16.2×12.2×2.3mm size, weight <1.1g, perfect for space-constrained devices.
Single-Frequency L1 GNSS+INS Integrated Navigation Module
JS-RP26-U is a high-performance, low-power single-frequency (L1) GNSS module with built-in inertial navigation. It adopts hardware-software integrated low-power design to maintain high performance while reducing power consumption.
Equipped with an advanced anti-multipath & anti-interference RF front-end and 8 anti-single-tone interference filters for L1 band, it greatly improves actual positioning and first fix time. Supports GNSS+INS integrated navigation, AGPS, SBAS, differential positioning and adaptive installation.
It is widely used in rail transit, maritime navigation, drones, automotive navigation and emergency rescue scenarios.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
GNSS+INS Integrated Navigation Built-in inertial sensor, 120s satellite loss keeps positioning error ≤5%.
-
200 Tracking Channels Dedicated search engine for fast satellite acquisition and lock.
-
20Hz High-Speed Update Max update rate up to 20Hz for high-dynamic real-time positioning.
-
Strong Anti-Interference 8 anti-single-tone filters + multipath detection & compensation.
-
Antenna Safety Protection Antenna detection & overcurrent protection, status output via NMEA.
-
Adaptive Installation Automatic detection of installation axis and angle for easy vehicle deployment.
-
Ultra-Low Power Average 16~30mA@3.3V, standby 14uA for long battery life.
-
Rich Protocol Support NMEA 0183, RTCM 3.X standard protocols.
.png?imageMogr2/format/webp)
Technical Specifications
GNSS & INS Performance
| Receiver Type | Single-frequency (L1) GNSS+INS integrated navigation module |
| Supported Constellations & Bands | GPS: L1; BDS: B1I/B1C; GLONASS: G1; Galileo: E1; QZSS: L1 |
| Tracking Channels | 200 tracking channels + dedicated search engine |
| Sensitivity | Tracking: -165dBm; Reacq: -159dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start: 28s; Warm Start: 1s |
| Positioning Accuracy | Single-point: H 1.0m CEP; V 2.0m CEP |
| Speed Accuracy | 0.1m/s CEP (50%@30m/s dynamic) |
| Inertial Navigation | GNSS loss within 120s: error ≤5% |
| Operational Limits | Dynamics≤4g; Altitude≤20000m; Velocity≤500m/s |
| Max Update Rate | 20Hz (Default: 1Hz) |
| Supported Protocols | NMEA 0183(ASCII); RTCM3.X |
Interfaces & Power
| Baud Rate | 115200~921600bps (Default: 115200bps) |
| Antenna Function | Active antenna detection + overcurrent protection; Gain ≤30dB |
| Power Supply | VCC: 2.0~3.6V (Typical:3.3V); Backup: 1.8~3.6V |
| Operating Current | Average: 16~30mA@3.3V; Standby: 14uA@3.3V |
| Digital I/O Voltage | 1.8~3.6V |
| Operating Temperature | -40℃ ~ +85℃ |
| Humidity | 95% |
| Mechanical Dimensions | 16.2×12.2×2.3mm±0.3mm; Weight<1.1g |
| Main Interfaces | UART(TX/RX), 1PPS, RF_IN, VCC_RF, RESET_N, I2C(internal IMU) |
| Compliance | RoHS compliant |
Typical Applications
Rail Transit Intelligent Positioning
Train positioning, track monitoring & rail infrastructure
Automotive Navigation & Tracking
Vehicle navigation, fleet management & telematics
Maritime Navigation & Fleet
Vessel positioning, fleet management & maritime safety
UAV & Drone Navigation
High-dynamic navigation for drones and UAVs
Emergency Rescue & Protection
Personal safety devices, emergency response & rescue tracking
Intelligent Logistics & Asset Tracking
Logistics dispatching, asset tracking & supply chain visibility
AVL & Location-Based Services
Automatic vehicle location, LBS & telematics services
Portable Positioning Devices
Handheld trackers, wearables & portable GNSS receivers
Resources & Downloads
JS-RP26-U Datasheet
Complete specifications, INS parameters, electrical and mechanical details
Protocol Documentation
NMEA 0183, RTCM3.X protocol definitions
User Manual
Quick start guide, INS configuration, and low-power optimization
3D CAD Model
STEP, IGES and STL formats for mechanical integration (16.2×12.2×2.3mm)
