JS-UP26F-1
Standard Precision Modules
Jumpstar JS-UP26F-1 L1 Full-Constellation GNSS Positioning Module - Ultra-High Sensitivity, Low Power, Compact FLASH-Embedded Positioning Solution
L1 Full-Constellation Support
Simultaneous reception of GPS, BDS, GLONASS, Galileo, QZSS, SBAS for global stable positioning.
Ultra-High Sensitivity
Tracking sensitivity up to -166dBm, reliable positioning in urban canyons & weak-signal environments.
High-Speed Update
10Hz max navigation rate (single constellation up to 18Hz) for real-time dynamic positioning.
Integrated Components
Built-in TCXO, LNA, SAW, RTC + FLASH storage for stable & flexible application.
Ultra-Compact Size
16.0×12.2×2.4mm, ideal for space-constrained battery-powered devices.

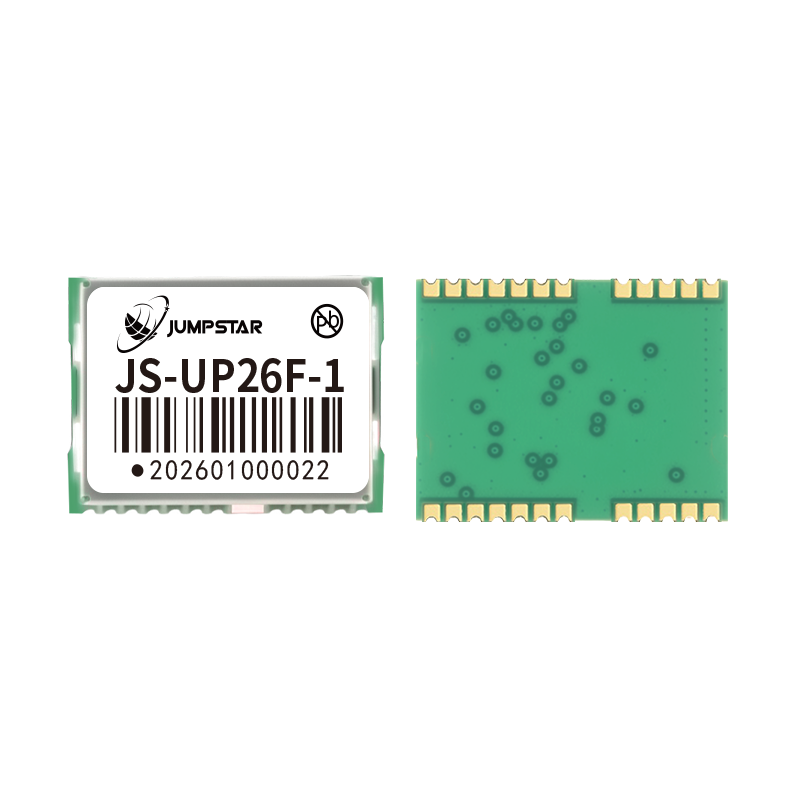

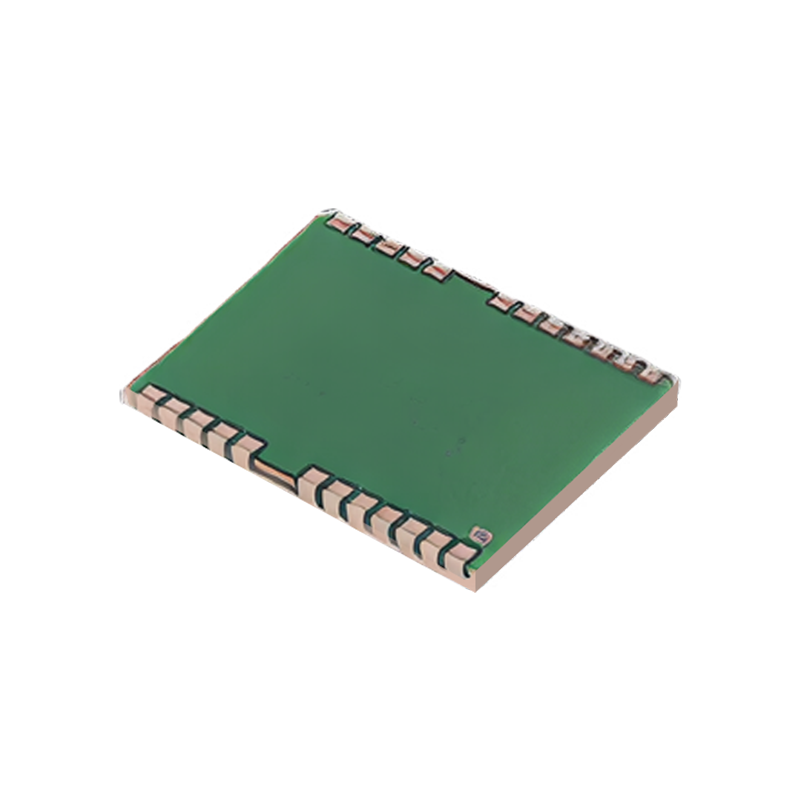

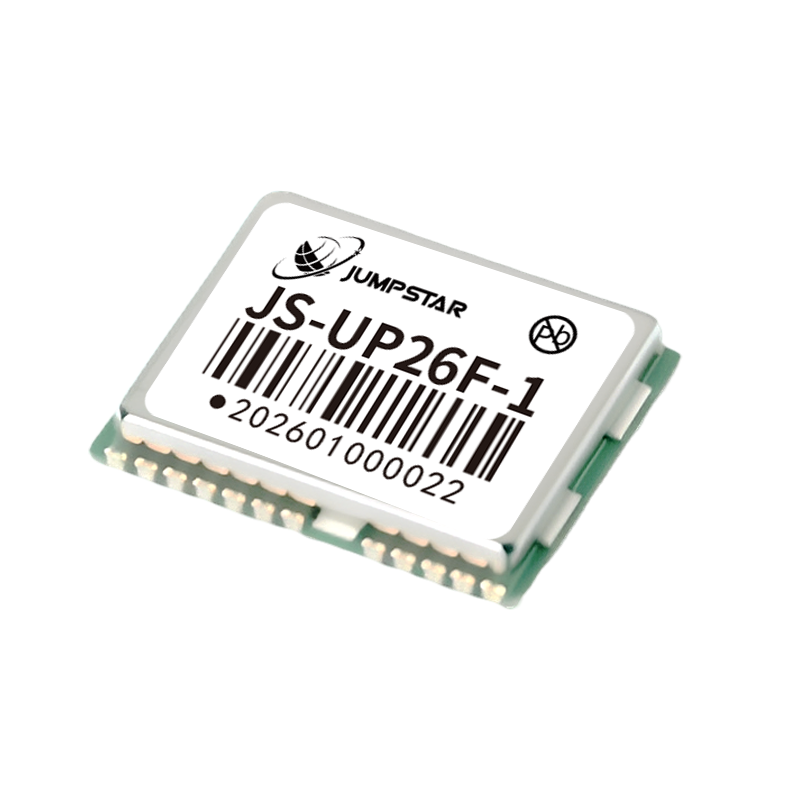

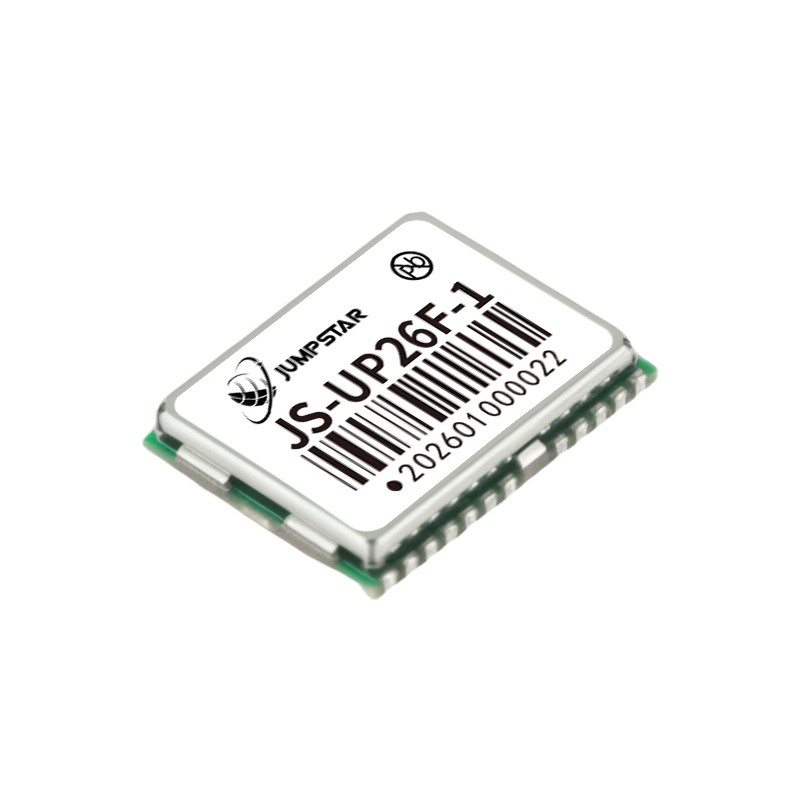

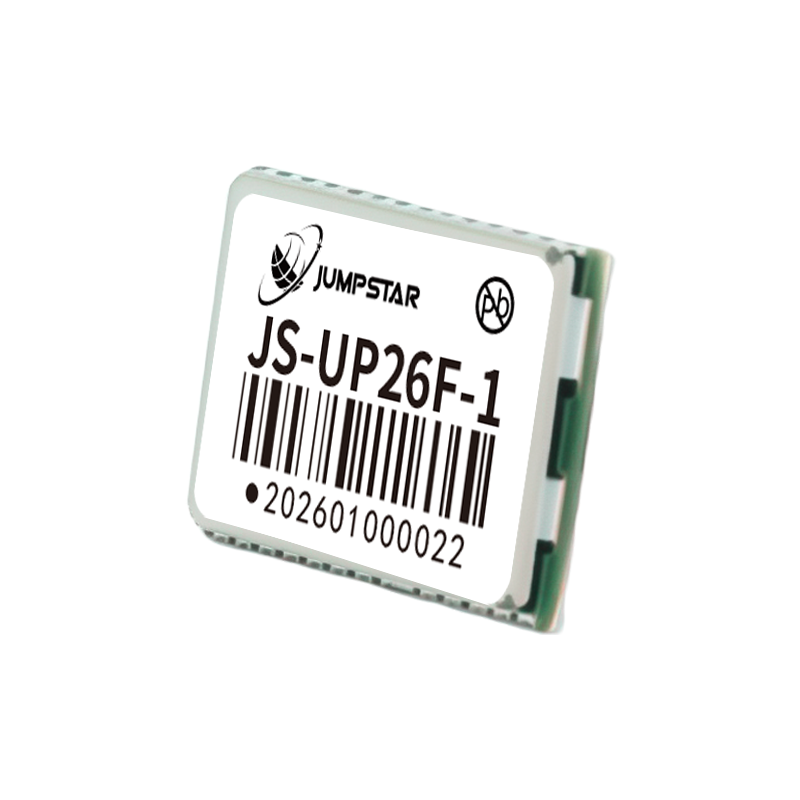

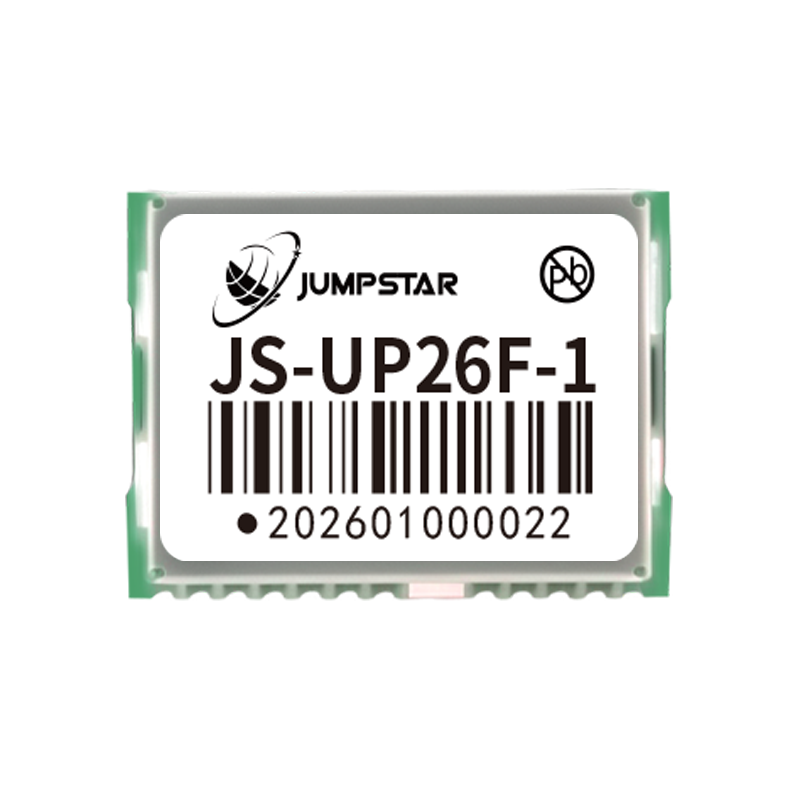

Jumpstar JS-UP26F-1
L1 Full-Constellation GNSS Positioning Module
JS-UP26F-1 is a high-performance L1-band GNSS module based on a standard precision GNSS platform, equipped with onboard FLASH storage for configuration retention. It delivers exceptional RF sensitivity and fast acquisition, with optimized tracking for non-line-of-sight & small-antenna scenarios.
Adopting ultra-low-power continuous tracking design, it ensures long battery life for asset trackers and portable devices. Integrated with LNA & SAW filter for maximum passive antenna sensitivity, it supports 4-system concurrent reception and maintains reliable positioning in challenging environments.
L1 full constellation, -166dBm tracking sensitivity, 10Hz update rate (18Hz single constellation), onboard FLASH, and ultra-compact 16.0×12.2×2.4mm size make JS-UP26F-1 ideal for battery-powered tracking and portable positioning applications.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
High-Performance GNSS SOC Professional positioning engine with strong signal processing capability.
-
FLASH Onboard Built-in flash for parameter storage & configuration persistence (UP26F-1 exclusive).
-
Ultra-High Sensitivity Tracking -166dBm, cold start -148dBm for extreme weak-signal adaptation.
-
High-Speed Output 10Hz configurable update (single constellation up to 18Hz) for high-dynamic applications.
-
All-In-One Integration TCXO + LNA + SAW + RTC, simplifies peripheral circuit design.
-
Dual Protocol Support NMEA 0183 (multi-version) & UBX binary protocol for flexible docking.
-
Industrial-Grade Reliability -40℃ to 85℃ operating temperature, adapting to harsh environments.
.png?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Receiver Type | L1 multi-mode GNSS module with FLASH (JS-UP26F-1) |
| Supported Constellations & Bands | GPS/QZSS L1C/A; BDS B1I/B1C; GLONASS L1OF; Galileo E1B/C; SBAS(EGNOS/GAGAN/MSAS/WAAS) |
| Sensitivity | Tracking & Navigation: -166dBm; Reacquisition: -160dBm; Hot Start: -160dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start:29s; Hot Start:1s (all satellites ≥-130dBm) |
| Positioning Accuracy (CEP 50%) | Autonomous:2.0m; SBAS:1.5m (24h static, >6SVs) |
| Time Accuracy | PPS RMS:30ns; 99%:60ns; PPS frequency:0.25Hz~10MHz configurable |
| Velocity & Heading Accuracy | Velocity:0.05m/s; Dynamic heading:0.3deg |
| Operational Limits | Dynamics ≤4g; Altitude ≤80000m; Velocity ≤500m/s |
| Baud Rate | 9600~921600bps (Default:38400bps) |
| Max Update Rate | 10Hz (configurable); Single constellation:18Hz |
| Supported Protocols | NMEA 0183(v2.1/2.3/4.0/4.10/4.11); UBX(binary proprietary) |
Electrical & Mechanical
| Antenna Type | Passive/active antenna; Active gain:15~30dB |
| Main Interfaces | UART(TX/RX), PPS, EXTINT, RESET_N, RF_IN, VCC_RF, VBAT, VCC, GND |
| Power Supply Voltage | VCC:2.6~3.6V (Typical:3.3V); Backup:1.8~3.6V |
| Operating Current | Acquisition:25~30mA@3.3V; Tracking:23~28mA@3.3V; Backup:28uA@3.3V |
| Digital I/O Voltage | 2.6~3.6V |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 95% |
| Mechanical Dimensions | 16.0mm × 12.2mm × 2.4mm ±0.3mm |
| Compliance | RoHS compliant |
Typical Applications
UAV & Drone Navigation
Autonomous flight & waypoint navigation
Automotive Electronics & Car Tracking
In-vehicle navigation & fleet tracking
AVL & Location-Based Services
Fleet tracking & location-based applications
Maritime Navigation & Fleet Management
Ship positioning & maritime dispatch
Handheld GPS & PDA Devices
Portable navigation & field data collection
Intelligent Logistics & Asset Tracking
Real-time cargo tracking & fleet optimization
Personal Protective & Wearable Devices
Ultra-low power safety tracking
Intelligent Robots & Portable Trackers
Autonomous navigation & personal tracking
Resources & Downloads
JS-UP26F-1 Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and product layout (16.0×12.2×2.4mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (16.0×12.2×2.4mm).
