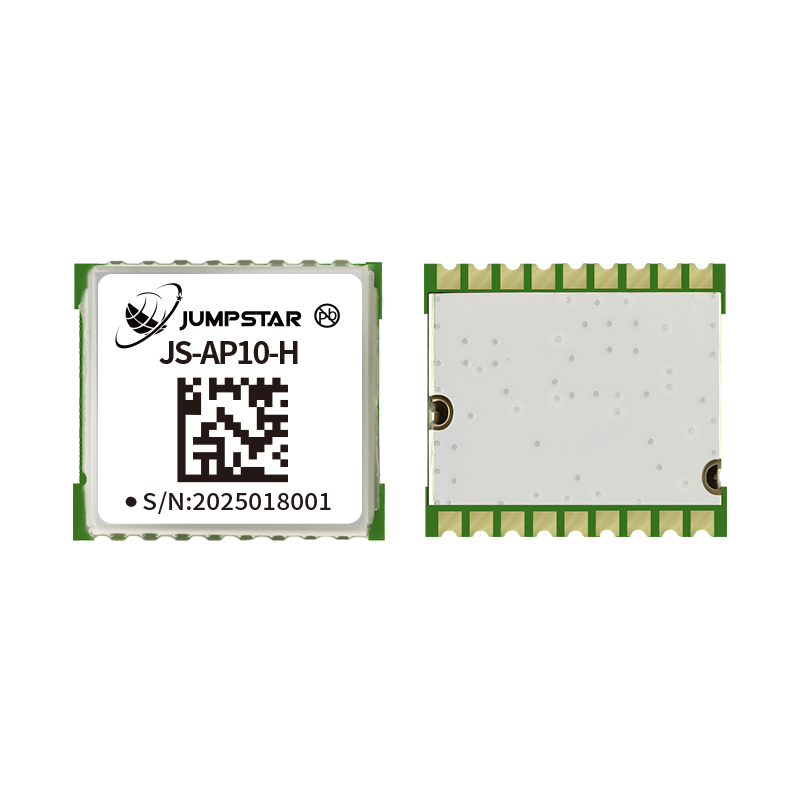

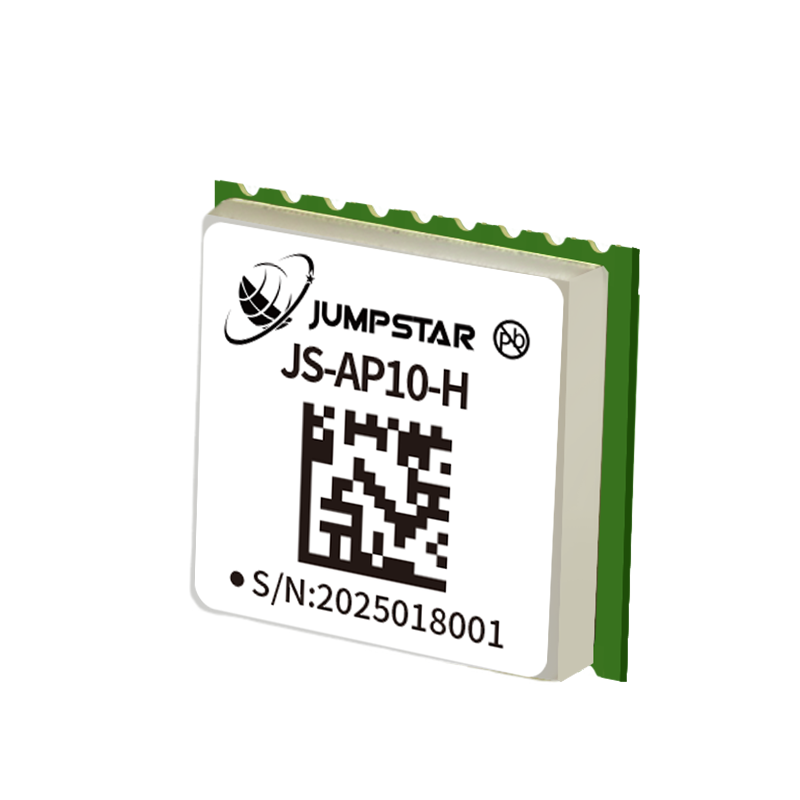

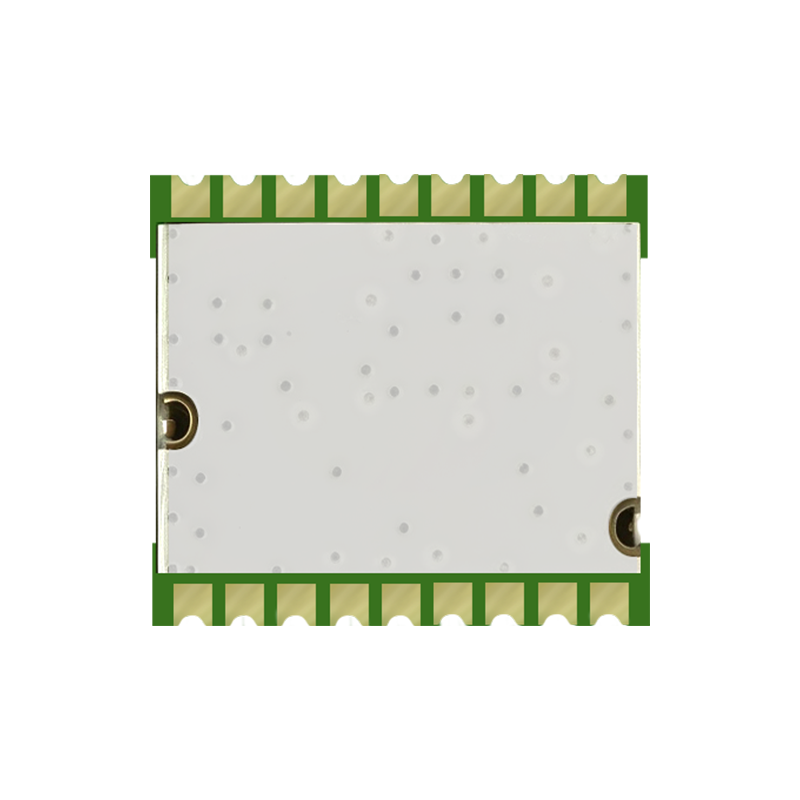

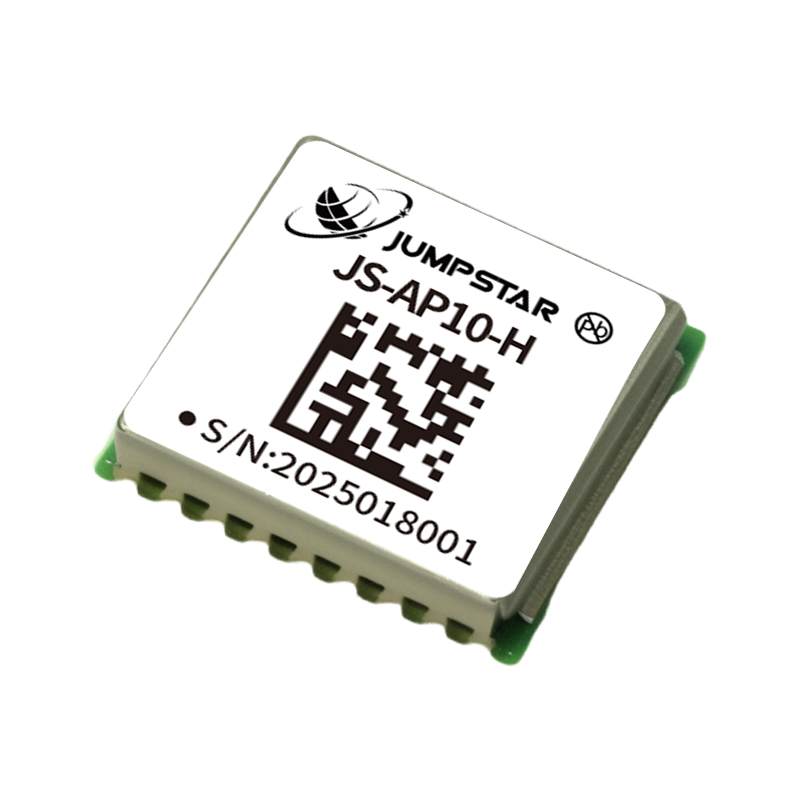

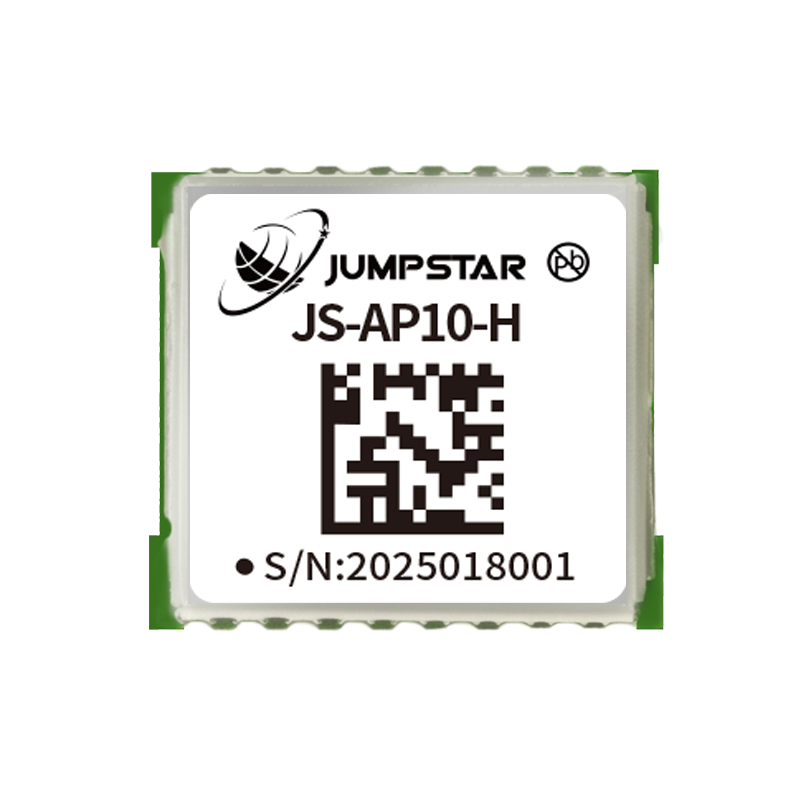

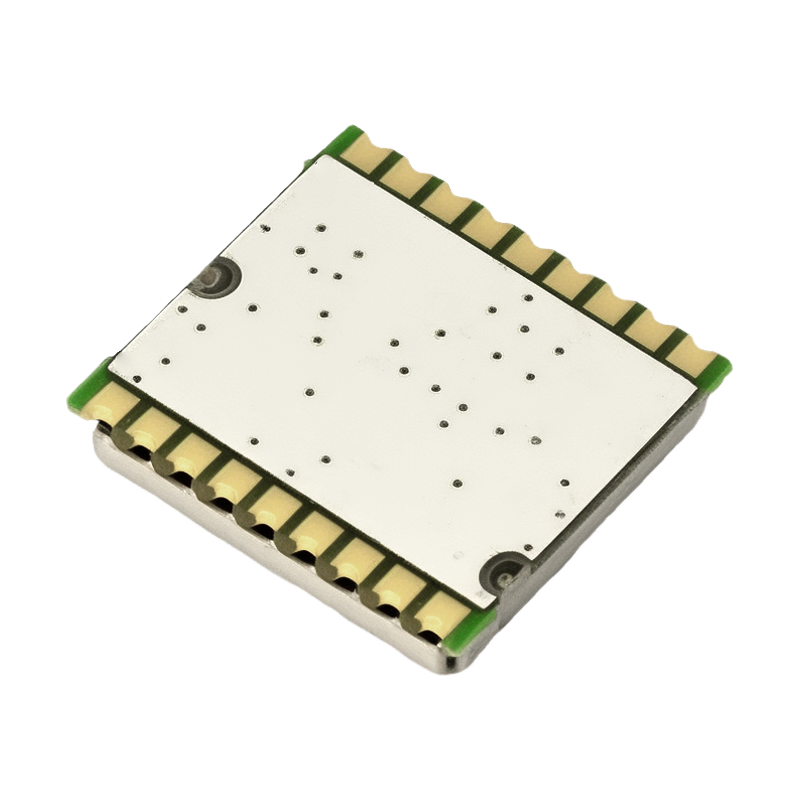

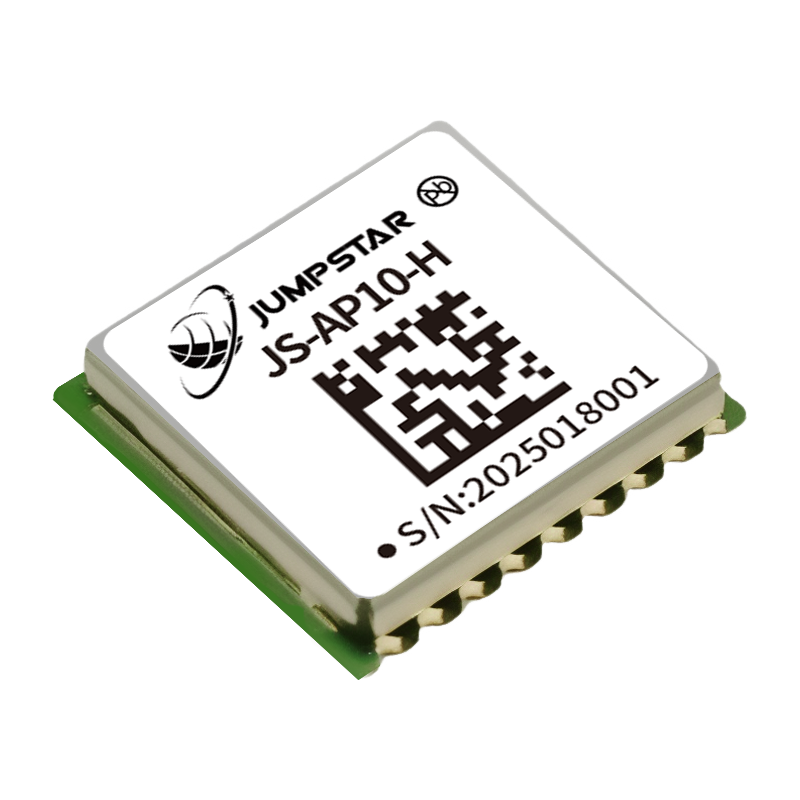

JS-AP10-H
Standard Precision Modules
Jumpstar JS-AP10-H Single-Frequency Multi-Mode GNSS Positioning Module - Ultra-Compact, Low Power, Sub-Meter High Accuracy
Sub-Meter Positioning Accuracy
D-GNSS accuracy up to 1.0m CEP, meeting high-precision positioning demands without ground enhancement calibration.
Multi-GNSS Concurrent Tracking
Simultaneously supports GPS, BDS, Galileo, SBAS, QZSS for stable global signal reception.
Ultra-Compact Size
10.5×9.7×2.3mm miniature package, perfect for space-constrained embedded devices.
Ultra-Low Power Consumption
Tracking current only 20mA@3.3V, backup current as low as 12uA for long battery life.
High Sensitivity & Anti-Interference
Tracking sensitivity up to -162dBm, strong resistance to interference and multipath effects.
Jumpstar JS-AP10-H
Single-Frequency Multi-Mode GNSS Positioning Module
The JS-AP10-H is a single-frequency multi-mode low-power & cost-effective GNSS positioning module, integrating multi-band multi-system GNSS RF baseband. It adopts a new architecture to achieve sub-meter positioning accuracy without ground enhancement station calibration, with ultra-high sensitivity, strong anti-interference and anti-multipath performance.
Built with high-performance GNSS single chip, integrated TCXO, LNA, SAW and RTC, it supports AGPS and wide voltage input, widely used in UAVs, automotive electronics, logistics tracking, handheld devices and intelligent robots.
Sub-meter accuracy, multi-GNSS concurrent tracking, ultra-compact size, and ultra-low power consumption make JS-AP10-H an ideal embedded positioning solution.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
High-Performance GNSS Chip Professional single-chip platform ensures stable and reliable positioning operation.
-
10Hz High-Speed Update Max navigation update rate up to 10Hz (default 1Hz) for real-time dynamic positioning.
-
AGPS Supported Accelerates cold start positioning speed to 28s, greatly improving positioning efficiency.
-
Wide Voltage Power Supply 1.8V-3.6V wide-range input, adapting to diverse battery-powered devices.
-
Ultra-Low Power & Ultra-Compact 10.5×9.7×2.3mm; tracking 20mA@3.3V, backup 12uA for long battery life.
-
Flexible Antenna Compatibility Supports both passive and active antennas (recommended gain 15-30dB) for easy integration.
-
Industrial-Grade Reliability -40℃ to 85℃ operating temperature, suitable for harsh outdoor environments.
.png?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Receiver Type | Single-frequency multi-mode GNSS positioning module |
| Supported Constellations & Bands | GPS L1C/A; BDS B1I/B1C; Galileo E1B/C; SBAS L1C/A; QZSS L1C/A |
| Sensitivity | Tracking & Navigation: -162dBm; Reacquisition: -159dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start:28s; Hot Start:1s (all satellites ≥-130dBm) |
| Positioning Accuracy (CEP 50%) | GNSS:2.5m; SBAS:2.0m; D-GNSS:1.0m (open sky, 24h static, >6SVs) |
| Time Accuracy | 1PPS:25ns RMS |
| Velocity Accuracy | GNSS:0.1m/s; SBAS/D-GNSS:0.05m/s |
| Operational Limits | Dynamics ≤4g; Altitude 18000m; Velocity 515m/s |
| Baud Rate | 9600~460800bps (Default:9600bps) |
| Max Update Rate | 10Hz (Default:1Hz) |
| Supported Protocols | NMEA 0183 V4.00/V4.10 (Input/Output, ASCII) |
Electrical & Mechanical
| Antenna Compatibility | Passive & Active Antenna; Active Antenna: Gain 15~30dB, Noise Figure ≤1.5dB |
| Power Supply Voltage | VCC:1.8V~3.6V (Typical:3.3V); Backup:1.6V~3.6V (Typical:3.3V) |
| Operating Current | Acquisition:20~24mA@3.3V; Tracking:18~22mA@3.3V; Backup:12uA@3.3V |
| Digital IO Voltage | 1.8V~3.6V |
| Operating/Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 95% |
| Mechanical Dimensions | 10.5mm × 9.7mm × 2.3mm ±0.3mm |
| Pin Interfaces | GND, TXD, RXD, 1PPS, V_backup, VCC, RESET, RF_IN, VCC_RF |
| Compliance | RoHS compliant |
Typical Applications
UAVs
Flight control and positioning navigation
Automotive Application
Car navigation and vehicle tracking
AVL & Location-Based Services
Automatic vehicle location and management
Marine Navigation & Fleet Management
Ship positioning and maritime dispatch
Handheld GPS Receiver
Portable positioning and surveying devices
Intelligent Logistics Scheduling
Asset tracking and logistics management
Personnel Protection
Field staff safety monitoring and positioning
PDA & Pocket PC
Mobile intelligent terminal positioning
Intelligent Robot
Autonomous navigation and movement control
Resources & Downloads
JS-AP10-H Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and product layout (10.5×9.7×2.3mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (10.5×9.7×2.3mm).
