JS-ATP30-M
Standard Precision Modules
Jumpstar JS-ATP30-M Multi-Mode Dual-Band (L1+L5) GNSS Positioning Module - High Sensitivity, Low Power, Multi-Interface Integrated Positioning Solution
Dual-Band L1+L5 & Full Constellation
Simultaneously supports GPS, BDS, GLONASS, Galileo, QZSS and SBAS for global stable signal reception.
Ultra-High Sensitivity
Tracking sensitivity up to -165dBm, reliable positioning in weak-signal and complex electromagnetic environments.
135 High-Speed Channels
Standard 135 channels(L1:75+L5:60), wearable mode 72 channels for flexible scenario adaptation.
Meter-Level High Precision
Horizontal accuracy 1.0m(L1+L5), 2.5m(L1), meeting high-precision positioning demands.
Multi-Interface Optional
Supports UART/USB/RS232 three versions, compatible with diverse system integration.
Jumpstar JS-ATP30-M
Multi-Mode Dual-Band (L1+L5) GNSS Positioning Module

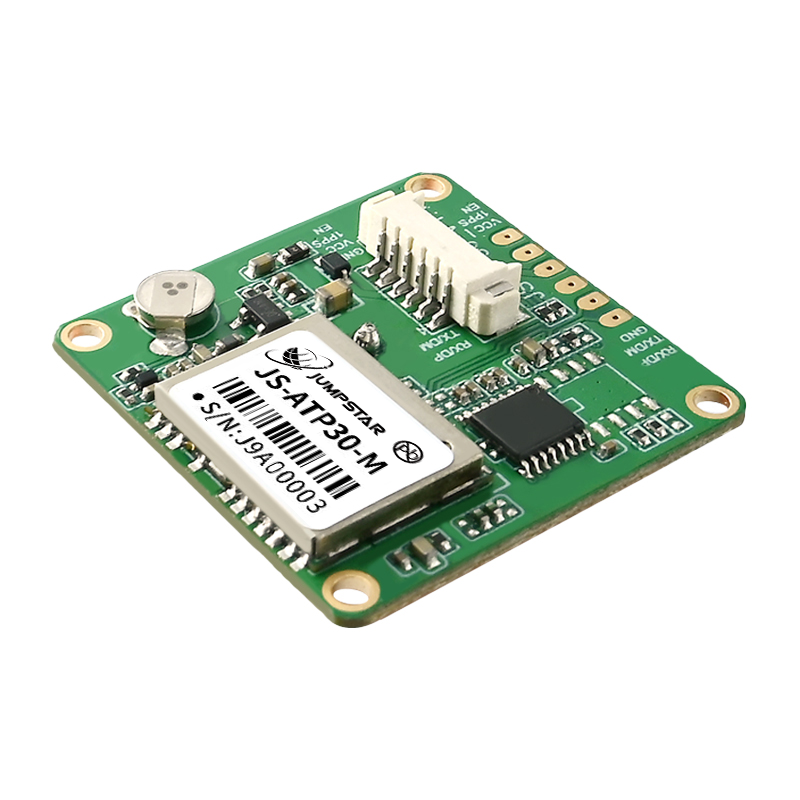

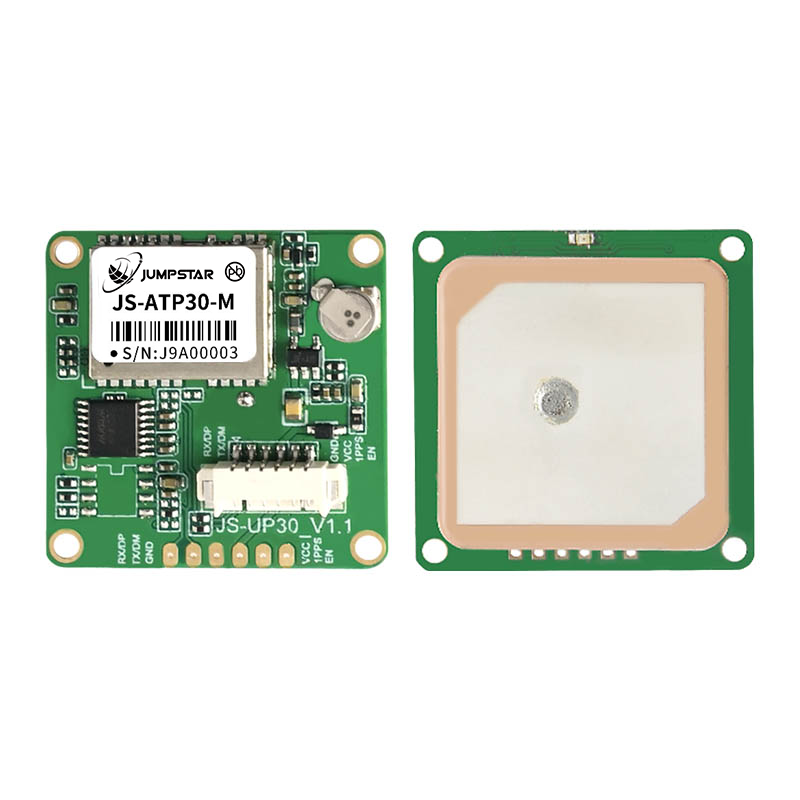

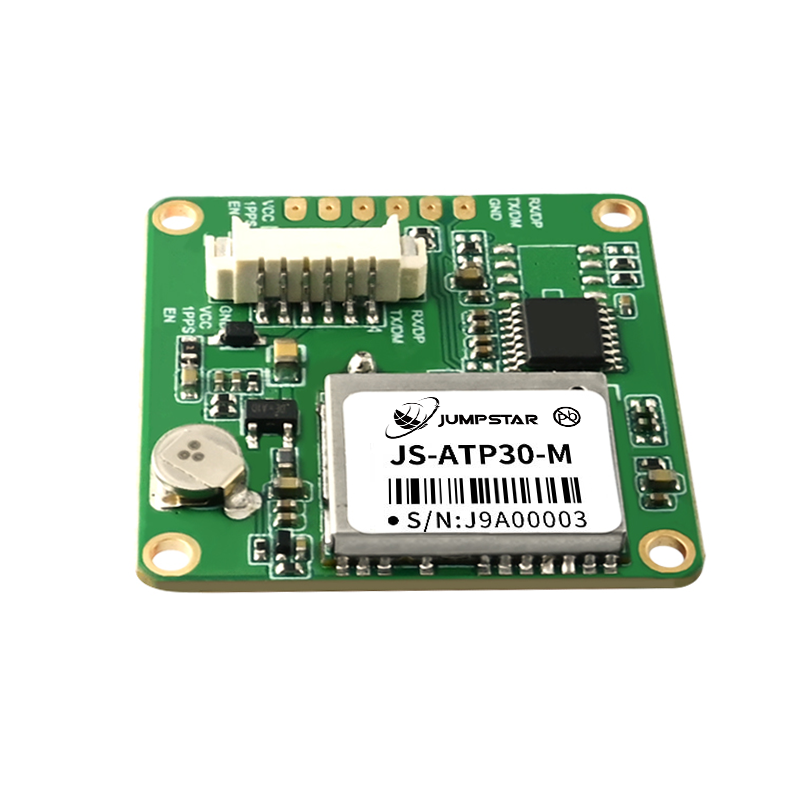

The JS-ATP30-M is a low-power, cost-effective multi-mode dual-band (L1+L5) GNSS positioning module built on a high-performance SOC position engine. It adopts professional interference suppression and indoor/outdoor multipath detection & compensation technology to ensure stable positioning in challenging signal environments.
Integrated with TCXO, LNA, SAW and RTC, it supports AGPS and 1PPS high-precision timing output. With three optional interfaces (UART/USB/RS232) and compact industrial-grade design, it is widely used in automotive electronics, maritime navigation, intelligent logistics, robots, wearable devices and emergency rescue scenarios.
Dual-band L1+L5, 135 channels, 1.0m horizontal accuracy, and 12-tone active anti-interference make JS-ATP30-M an ideal high-precision embedded positioning solution.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
High-Performance GNSS SOC Professional dual-band positioning platform delivers stable and efficient operation.
-
Dual-Mode Channel Configuration 135 channels(standard) / 72 channels(wearable) for fast satellite acquisition and tracking.
-
10Hz High-Speed Update Max navigation update rate up to 10Hz (default 1Hz) for real-time dynamic positioning.
-
AGPS Fast Positioning Cold start in 24s, hot start in 1s, greatly improving positioning efficiency.
-
Active Anti-Interference & 1PPS Timing 12 multi-tone active interference cancellers; time pulse accuracy up to 10ns.
-
Multi-Interface Optional & Wide Voltage UART/USB/RS232 versions; 2.8V-5.5V wide-range power supply.
-
Industrial-Grade Reliability -40℃ to 85℃ operating temperature, suitable for harsh outdoor environments.
.png?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Receiver Type | Multi-mode dual-band (L1+L5) GNSS positioning module |
| Supported Constellations & Bands | GPS:L1CA/L5; BDS:B1I/B2a; GLONASS:L1OF; Galileo:E1B/E1C/E5a; QZSS:L1CA/L1SAIF/L5; SBAS(WAAS/EGNOS/MSAS/GAGAN) |
| Tracking Channels | Standard:135 channels(L1:75, L5:60); Wearable:72 channels(L1:42, L5:30) |
| Sensitivity | Tracking & Navigation:-165dBm; Cold Start Acquisition:-148dBm |
| Time to First Fix | Cold Start:24s; Hot Start:1s (all satellites ≥-130dBm) |
| Positioning Accuracy(CEP 50%) | Horizontal:1.0m(L1+L5)/2.5m(L1); Vertical:2.25m (open sky, 24h static, >6SVs) |
| Time Accuracy | 1PPS:10ns |
| Velocity Accuracy | GNSS:0.1m/s; SBAS:0.05m/s (50%@30m/s dynamic operation) |
| Operational Limits | Acceleration≤4g; Altitude≤10000m; Velocity≤100m/s |
| Baud Rate | 4800-921600bps (Default:115200bps) |
| Max Update Rate | 10Hz (Default:1Hz) |
| Supported Protocols | NMEA 0183 V3.01/V4.10 (Input/Output, ASCII) |
Electrical & Mechanical

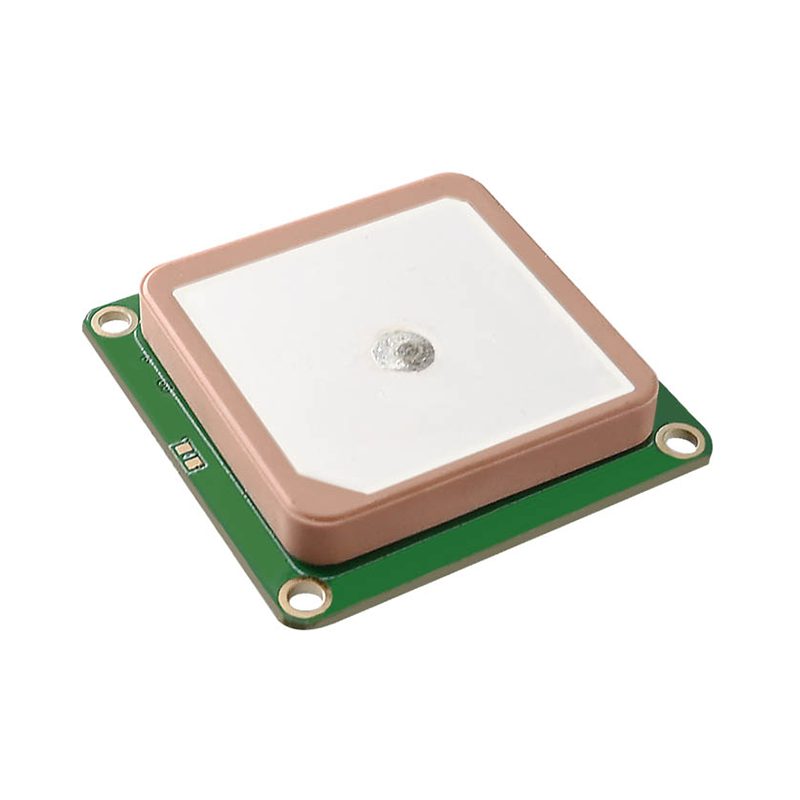

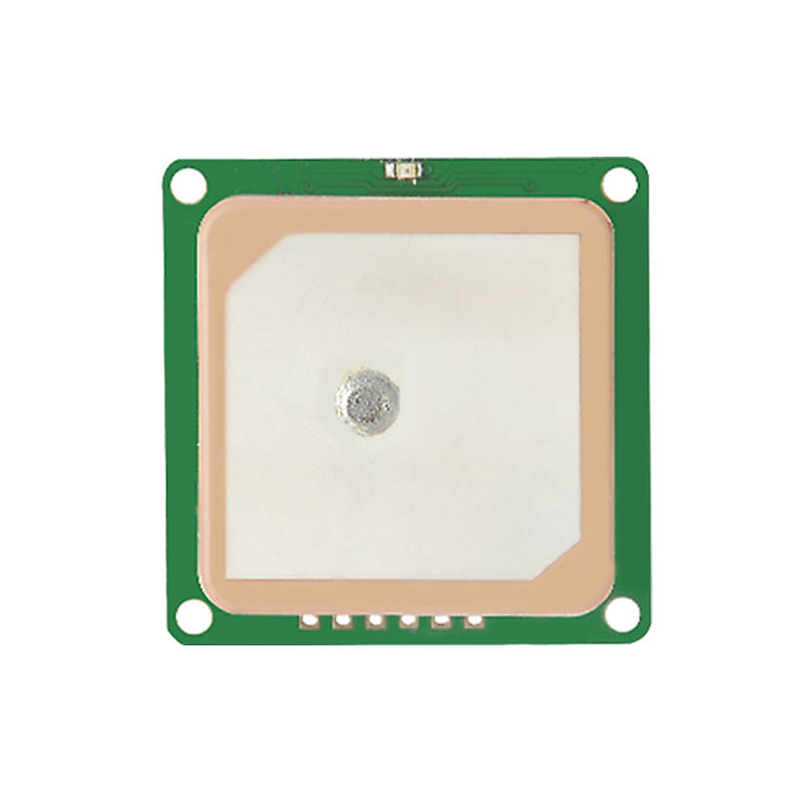

| Antenna Type | Built-in dual-band passive antenna: L5(25.0×25.0×4.0mm)+L1(18.0×18.0×4.0mm) |
| Interface Versions | UART:JS-ATP30-M; USB:JS-ATP30B-M; RS232:JS-ATP30R-M |
| Power Supply Voltage | VCC:2.8V~5.5V (Typical:5.0V) |
| Operating Current | Acquisition:32~38mA@5.0V; Tracking:32~36mA@5.0V; Backup:11uA@3.3V |
| Digital I/O Voltage | 2.8V~3.3V |
| Operating Temperature | -40℃ ~ +85℃ (without farad capacitor) |
| Storage Temperature | -40℃ ~ +85℃ |
| Farad Capacitor Temperature | -25℃ ~ +60℃ (hot start unavailable outside this range) |
| Humidity | 95% |
| Mechanical Dimensions | 30.0mm × 30.0mm × 12.5mm ±0.3mm |

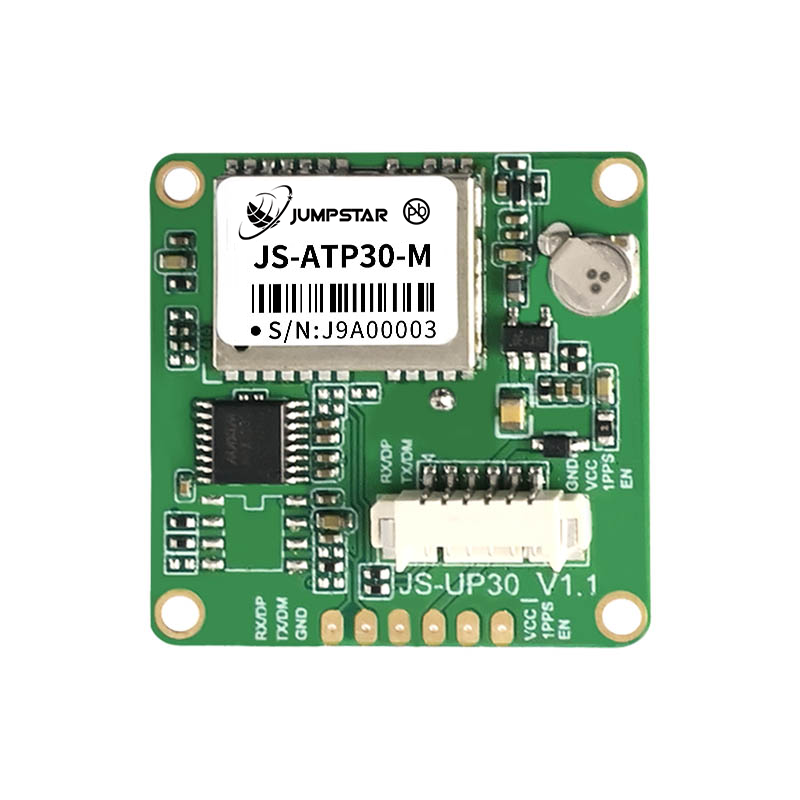

| Pin Interfaces | RXD/DP, TXD/DM, GND, VCC, 1PPS, EN |
| Compliance | RoHS compliant |
Typical Applications
Automotive Applications
Car navigation and vehicle-mounted positioning
Maritime Navigation & Fleet Management
Ship positioning and maritime dispatch
Intelligent Logistics Dispatching
Asset tracking and logistics management
Ground Vehicle Tracking & Urban Intelligent Traffic
Commercial vehicle monitoring
Intelligent Robots
Autonomous navigation and movement control
Wearable Devices
Portable positioning and safety tracking products
Personal Travel & Wilderness Adventures
Outdoor positioning and navigation
Emergency Rescue
Disaster relief real-time positioning and navigation
Resources & Downloads
JS-ATP30-M Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and product layout (30×30×12.5mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (30×30×12.5mm).
