Jumpstar JS-ATP36-M Multi-Mode Dual-Band (L1+L5) GNSS Positioning Module - High Sensitivity, Low Power, Integrated Antenna & LED Indicator
Dual-Band L1+L5 & Full Constellation
Simultaneously supports GPS, BDS, GLONASS, Galileo, QZSS and SBAS for global stable positioning.
Ultra-High Sensitivity
Tracking sensitivity up to -165dBm, reliable positioning in weak-signal and complex environments.
135 High-Speed Channels
Standard 135 channels(L1:75+L5:60), wearable mode 72 channels for flexible adaptation.
Meter-Level High Precision
Horizontal accuracy 1.0m(L1+L5), 2.5m(L1), meeting professional positioning demands.
Rich Interfaces & Indicator
UART+I2C standard, optional RS232; POWER/PPS LED for real-time working status display.

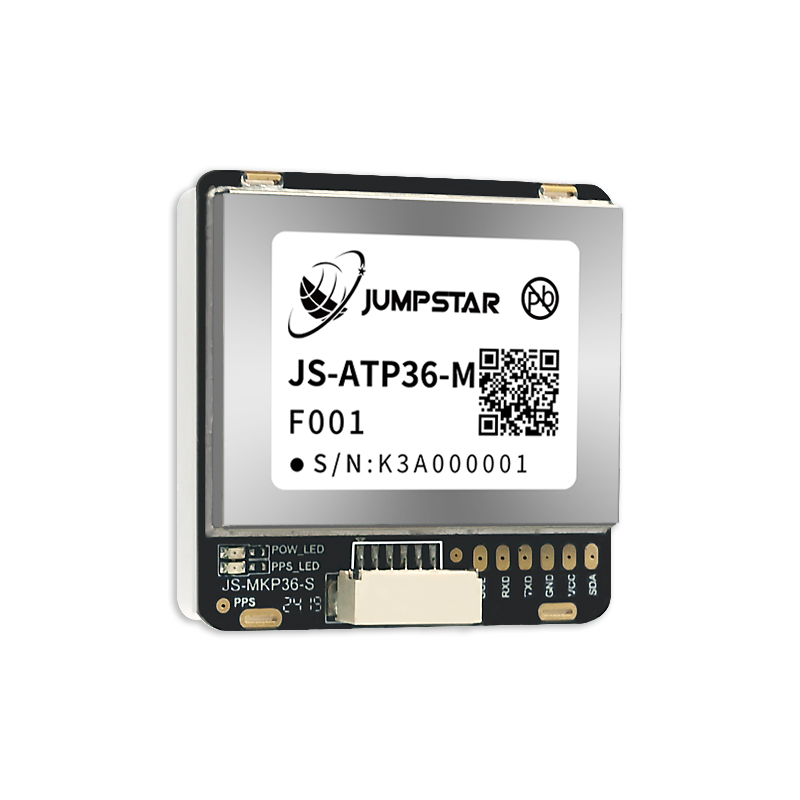

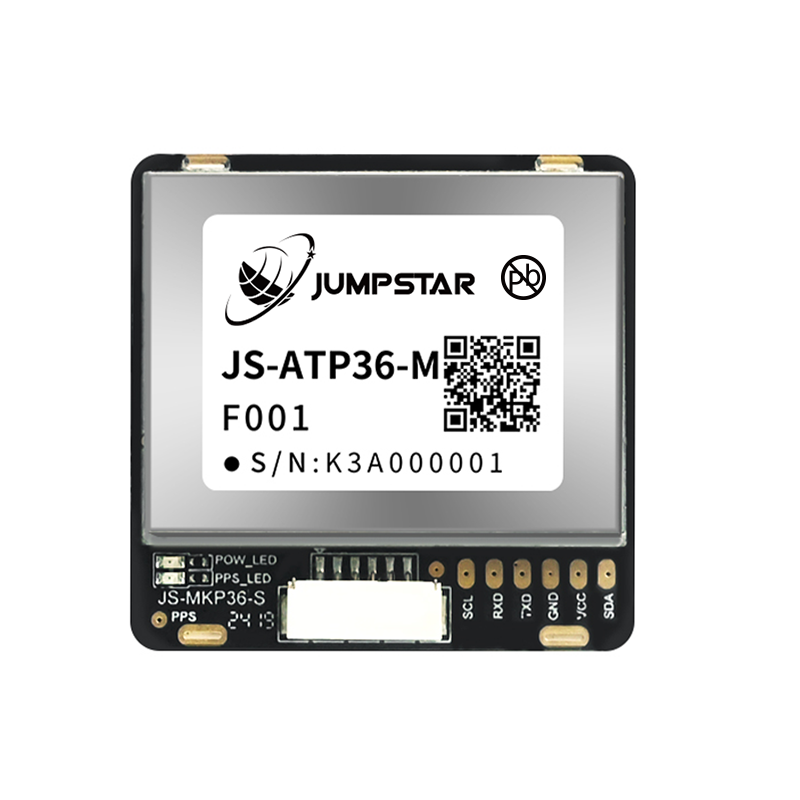

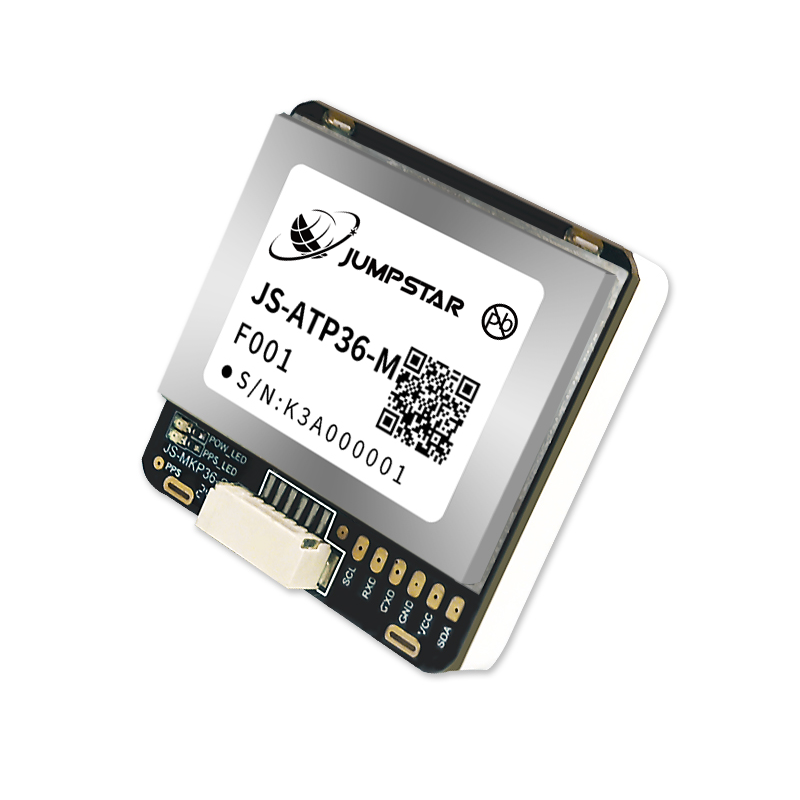

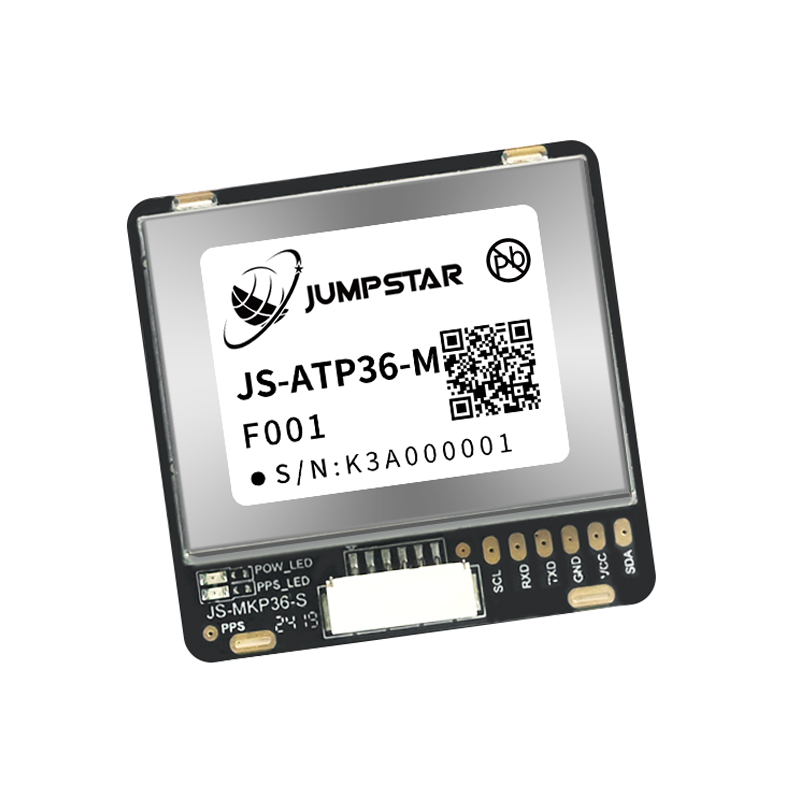

Jumpstar JS-ATP36-M
Multi-Mode Dual-Band (L1+L5) GNSS Positioning Module
The JS-ATP36-M is a low-power, cost-effective multi-mode dual-band (L1+L5) GNSS positioning module built on a high-performance SOC position engine. It adopts interference suppression and indoor/outdoor multipath detection & compensation technology to ensure stable positioning in challenging signal environments.
Integrated with TCXO, LNA, SAW, RTC and dual-band passive antenna, it supports AGPS, 1PPS high-precision timing and dual communication interfaces (UART+I2C). With LED working status indicator and optional RS232 version, it is widely used in automotive, maritime navigation, intelligent logistics, robots, wearable devices and emergency rescue.
Dual-band L1+L5, 135 channels, 1.0m horizontal accuracy, and industrial-grade reliability make JS-ATP36-M an ideal embedded positioning solution for complex environments.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
High-Performance GNSS SOC Professional dual-band positioning platform for stable and efficient operation.
-
Dual-Mode Channel Configuration 135 channels(standard) / 72 channels(wearable) for fast satellite acquisition.
-
10Hz High-Speed Update Max navigation update rate up to 10Hz (default 1Hz) for real-time dynamic positioning.
-
AGPS Fast Positioning Cold start in 24s, hot start in 1s, greatly improving positioning efficiency.
-
Integrated Dual-Band Antenna & 1PPS Built-in L1+L5 passive antenna; time pulse accuracy up to 10ns.
-
Multi-Interface Optional & LED Indicator UART+I2C standard, optional RS232; POWER/PPS LEDs for status display.
-
Industrial-Grade Reliability -40℃ to 85℃ operating temperature, suitable for harsh outdoor environments.
.png?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Receiver Type | Multi-mode dual-band (L1+L5) GNSS positioning module |
| Supported Constellations & Bands | GPS:L1CA/L5; BDS:B1I/B2a; GLONASS:L1OF; Galileo:E1B/E1C/E5a; QZSS:L1CA/L1SAIF/L5; SBAS(WAAS/EGNOS/MSAS/GAGAN) |
| Tracking Channels | Standard:135 channels(L1:75, L5:60); Wearable:72 channels(L1:42, L5:30) |
| Sensitivity | Tracking & Navigation:-165dBm; Cold Start Acquisition:-148dBm |
| Time to First Fix | Cold Start:24s; Hot Start:1s (all satellites ≥-130dBm) |
| Positioning Accuracy(CEP 50%) | Horizontal:1.0m(L1+L5)/2.5m(L1); Vertical:2.25m (open sky, 24h static, >6SVs) |
| Time Accuracy | 1PPS:10ns |
| Velocity Accuracy | 0.05m/s (50%@30m/s dynamic operation) |
| Operational Limits | Acceleration≤4g; Altitude≤10000m; Velocity≤100m/s |
| Baud Rate | 4800-921600bps (Default:115200bps) |
| Max Update Rate | 10Hz (Default:1Hz) |
| Supported Protocols | NMEA 0183 V3.01/V4.10 (Input/Output, ASCII) |
Electrical & Mechanical

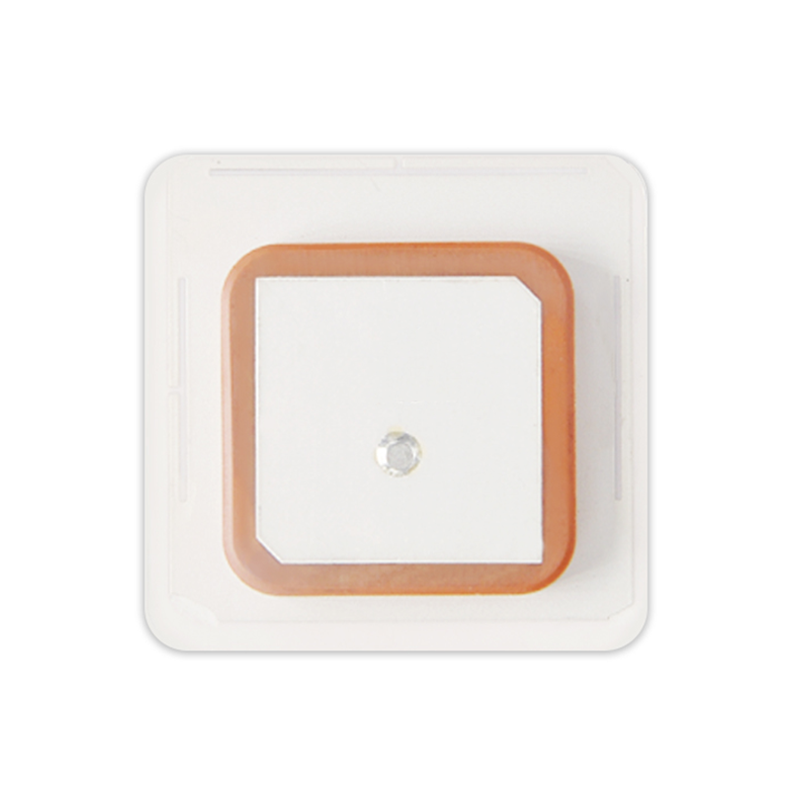

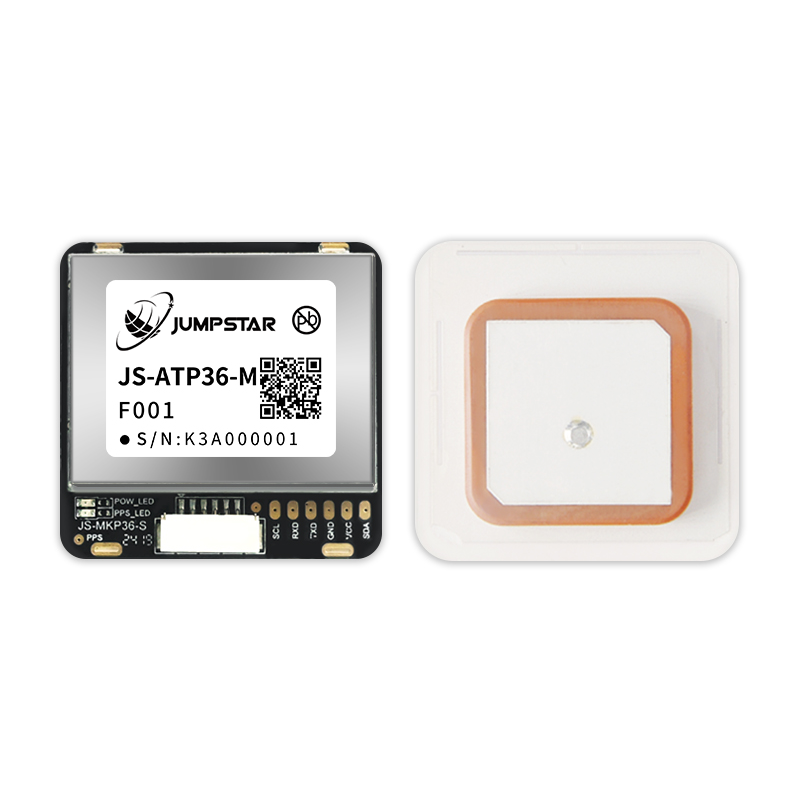

| Antenna Type | Built-in dual-band passive antenna: L5(36.0×36.0×3.0mm)+L1(25.0×25.0×4.0mm) |
| Interface Versions | TTL(UART+I2C):JS-ATP36-M; RS232:JS-ATP36R-M |
| LED Indicator | POWER: Always on after power-on; PPS: Flashes once per second(3D positioning) |
| Power Supply Voltage | VCC:2.8V~5.5V (Typical:5.0V) |
| Operating Current | Acquisition:36~42mA@5.0V; Tracking:35~40mA@5.0V; Backup:101uA@3.3V |
| Digital I/O Voltage | 2.8V~3.3V |
| Operating Temperature | -40℃ ~ +85℃ (without farad capacitor) |
| Storage Temperature | -40℃ ~ +85℃ |
| Farad Capacitor Temperature | -25℃ ~ +60℃ (hot start unavailable outside this range) |
| Humidity | 95% |
| Mechanical Dimensions | 36.0mm × 36.2mm × 12.5mm ±0.3mm |
| Pin Interfaces | SCL, RXD, TXD, GND, VCC, SDA |
| Compliance | RoHS compliant |
Typical Applications
Automotive Applications
Car navigation and vehicle-mounted positioning
Maritime Navigation & Fleet Management
Ship positioning and maritime dispatch
Intelligent Logistics Dispatching
Asset tracking and logistics management
Ground Vehicle Tracking & Urban Intelligent Traffic
Commercial vehicle monitoring
Intelligent Robots
Autonomous navigation and movement control
Wearable Devices
Portable positioning and safety tracking products
Personal Travel & Wilderness Adventures
Outdoor positioning and navigation
Emergency Rescue
Disaster relief real-time positioning and navigation
Resources & Downloads
JS-ATP36-M Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and product layout (36×36.2×12.5mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (36×36.2×12.5mm).
