Jumpstar JS-AUP36FG-9 Multi-GNSS L1 Positioning Module - Ultra-High Sensitivity, Low Power, Integrated Antenna & CAN/UART Optional
L1 Full Constellation Support
Simultaneously receives GPS, BDS, GLONASS, Galileo for stable global positioning.
Ultra-High Sensitivity
Tracking sensitivity up to -167dBm, reliable positioning in weak-signal & complex environments.
49-Channel High-Speed Tracking
49 acquisition + 49 tracking channels for fast satellite capture.
Rich Interface Options
Default UART, optional CAN/USB/RS232 to meet diverse integration demands.

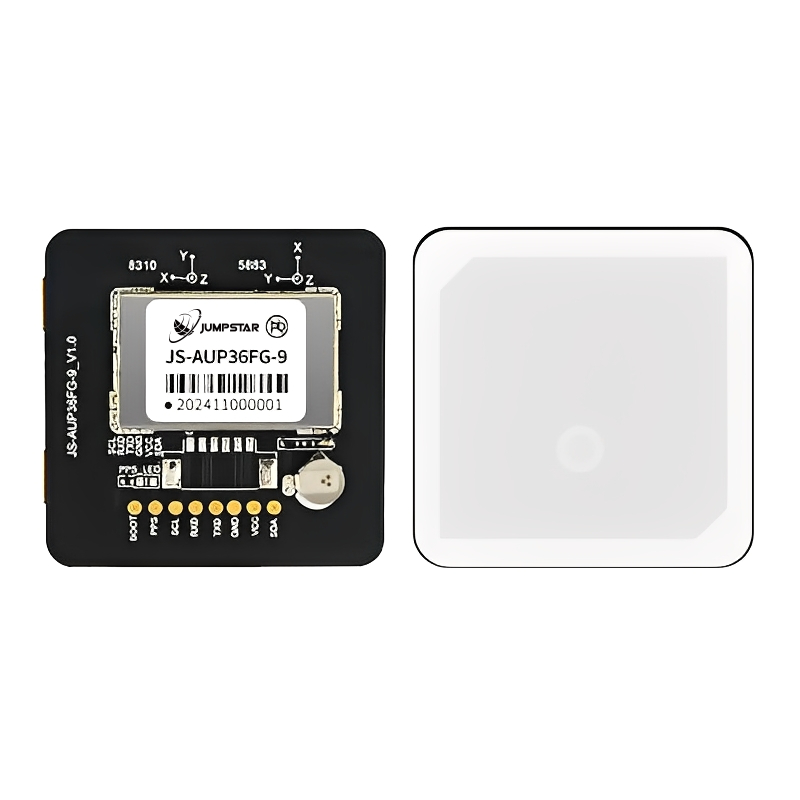

Compact Integrated Design
36.0×36.0×8.5mm size, built-in high-gain antenna & full functional components.

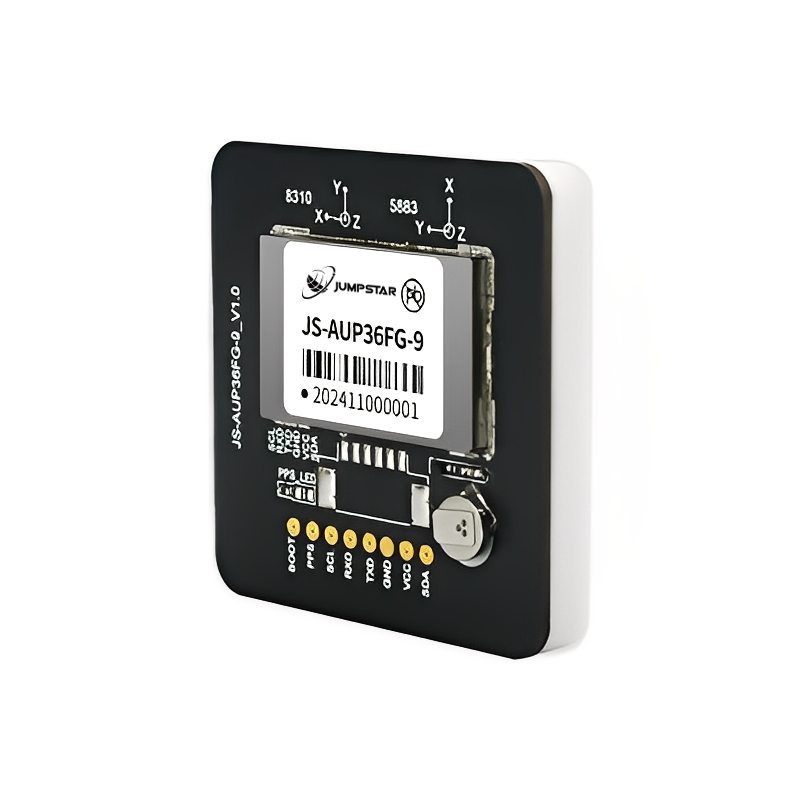

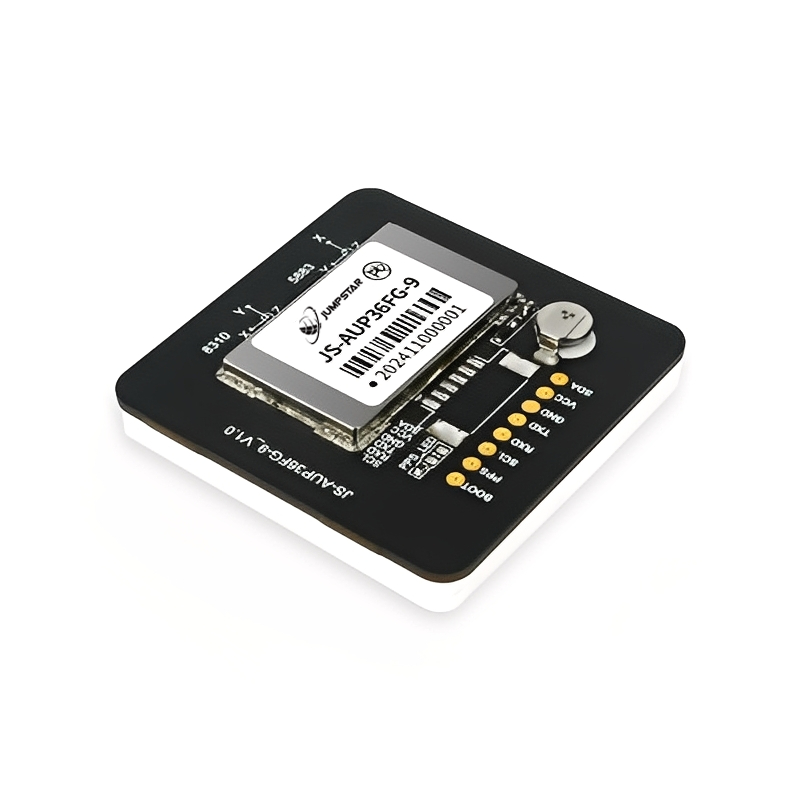

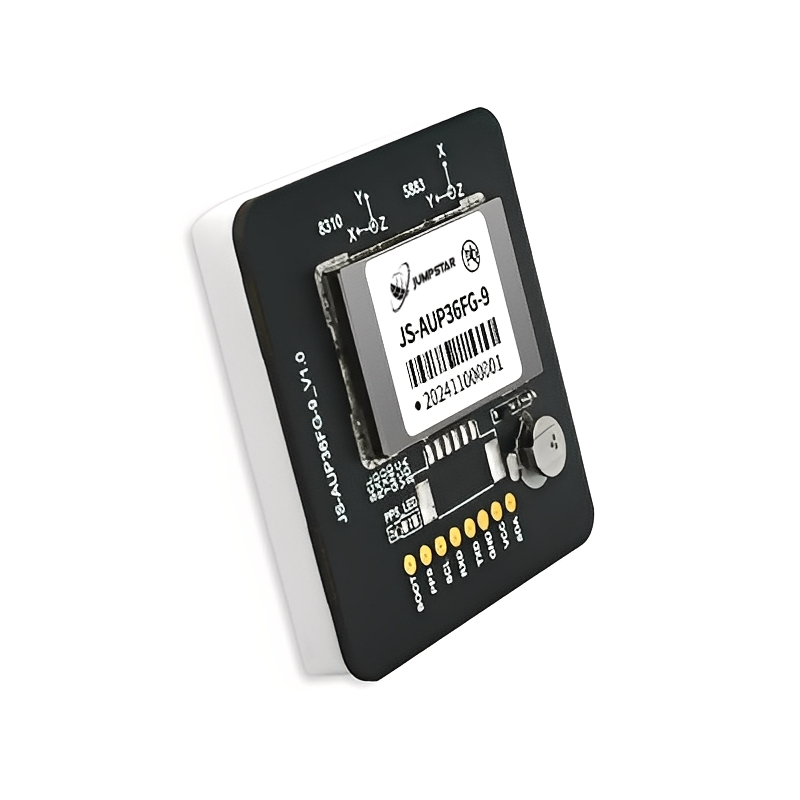

Jumpstar JS-AUP36FG-9
Multi-GNSS L1 Positioning Module
The JS-AUP36FG-9 is a low-power, cost-effective multi-GNSS L1 positioning module built on a high-performance SOC positioning engine. It supports concurrent reception of four major global satellite systems, with professional interference suppression technology to ensure stable positioning in challenging signal environments.
Integrated with TCXO, LNA, SAW, RTC and high-gain antenna, it features intelligent power control and wide voltage input. With configurable IO and multiple interface options (UART/CAN/USB/RS232), it is widely used in handheld devices, automotive, UAV, timing, maritime and location-based service scenarios.
L1 full constellation, -167dBm tracking sensitivity, 10Hz update rate, 49-channel design, and industrial-grade reliability make JS-AUP36FG-9 a versatile GNSS solution.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
High-Performance GNSS SOC Professional positioning engine for stable and efficient operation.
-
Ultra-High Sensitivity Tracking -167dBm, reacquisition -163dBm for extreme weak-signal positioning.
-
49×49 Channel Design 49 acquisition + 49 tracking channels for fast satellite signal locking.
-
A-GNSS Fast Positioning Hot start in 1s, cold start in 26s for instant positioning response.
-
Integrated High-Gain Antenna Built-in passive antenna, no external antenna required for easy integration.
-
Rich Interface & Intelligent Power UART/CAN/USB/RS232 optional; intelligent power control for low consumption.
-
Industrial-Grade Reliability -40℃ to 85℃ operating temperature, adapting to harsh outdoor environments.
.png?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Receiver Type | Multi-GNSS L1 band positioning module |
| Supported Constellations & Bands | GPS L1C/A; BDS B1I; GLONASS L1OF; Galileo E1B/C; QZSS L1C/A; SBAS L1C/A |
| Channel Configuration | 49 acquisition channels + 49 tracking channels |
| Sensitivity | Tracking & Navigation: -167dBm; Reacquisition: -163dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start:26s; Hot Start:1s (all satellites ≥-130dBm) |
| Time Accuracy | 1PPS RMS:30ns |
| Velocity Accuracy | 0.05m/s (50%@30m/s dynamic operation) |
| Operational Limits | Dynamics ≤4g; Altitude ≤80000m; Velocity ≤500m/s |
| Baud Rate | 4800-921600bps |
| Max Update Rate | 10Hz (Default:1Hz) |
| Supported Protocols | NMEA 0183 V4.11 (Input/Output, ASCII) |
Electrical & Mechanical

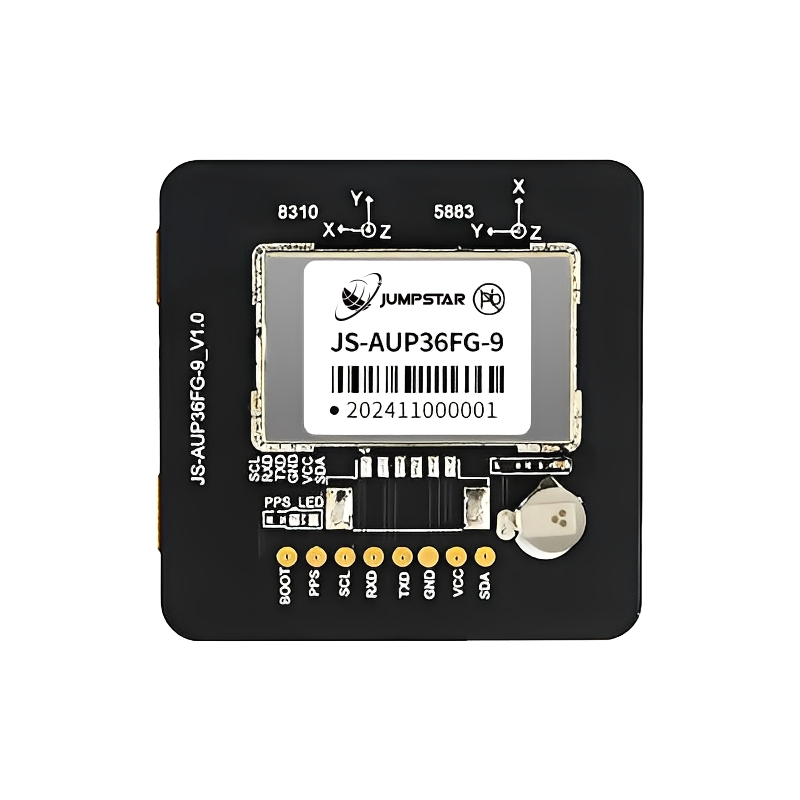

| Antenna Type | Integrated high-gain passive antenna (25.0×25.0×4.0mm) |
| Interfaces | Default: UART; Optional: CAN/USB/RS232; I2C(SCL/SDA) |
| Power Supply Voltage | VCC:3.3V~3.6V |
| Operating Current | Acquisition:44~51mA@5V; Backup:15uA@3.3V |
| Digital I/O Voltage | 3.3V |
| Operating Temperature | -40℃ ~ +85℃ (without farad capacitor) |
| Storage Temperature | -40℃ ~ +85℃ |
| Farad Capacitor Temperature | -20℃ ~ +60℃ (hot start unavailable outside this range) |
| Humidity | 95% |
| Mechanical Dimensions | 36.0mm × 36.0mm × 8.5mm ±0.3mm |
| Pin Interfaces | SCL, CANL/RXD, CANH/TXD, GND, VCC, SDA |
| Compliance | RoHS compliant |
Typical Applications
Handheld GPS Receiver & PDA Devices
Portable navigation & personal positioning
AVL & Location-Based Services (LBS)
Fleet tracking & asset location
Professional Timing Applications
High-precision 1PPS timing & synchronization
UAV & Drone Navigation
Autonomous flight & waypoint navigation
Automotive Electronics & Car Navigation
In-vehicle navigation & fleet tracking
Marine Navigation & Fleet Management
Ship positioning & maritime dispatch
Sports & Recreation Positioning Products
Outdoor sports & adventure tracking
Resources & Downloads
JS-AUP36FG-9 Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and product layout (36×36×8.5mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (36×36×8.5mm).
