JS-AUP56FG-9
Standard Precision Modules

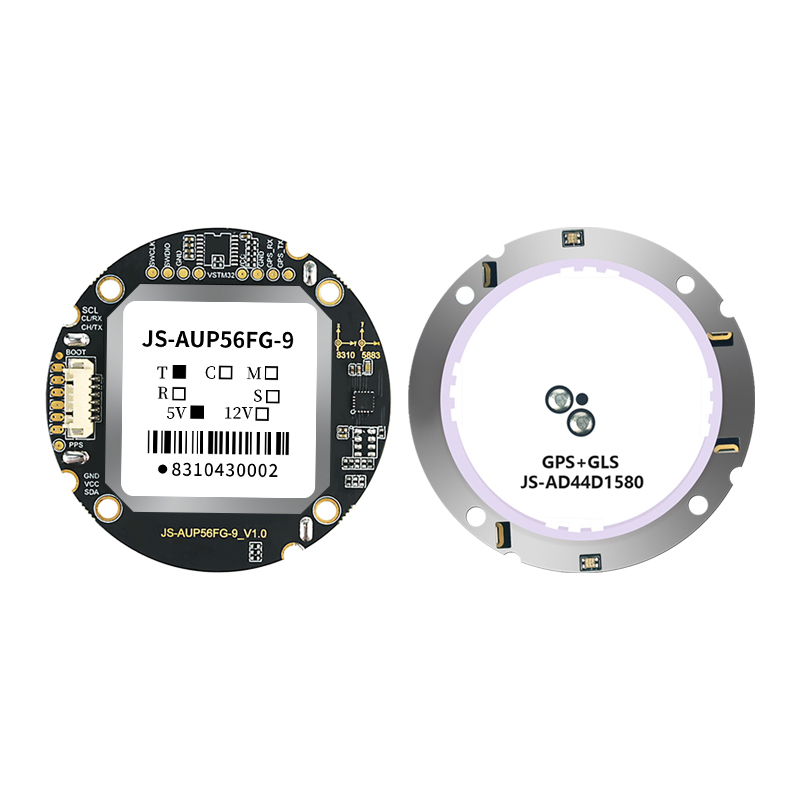

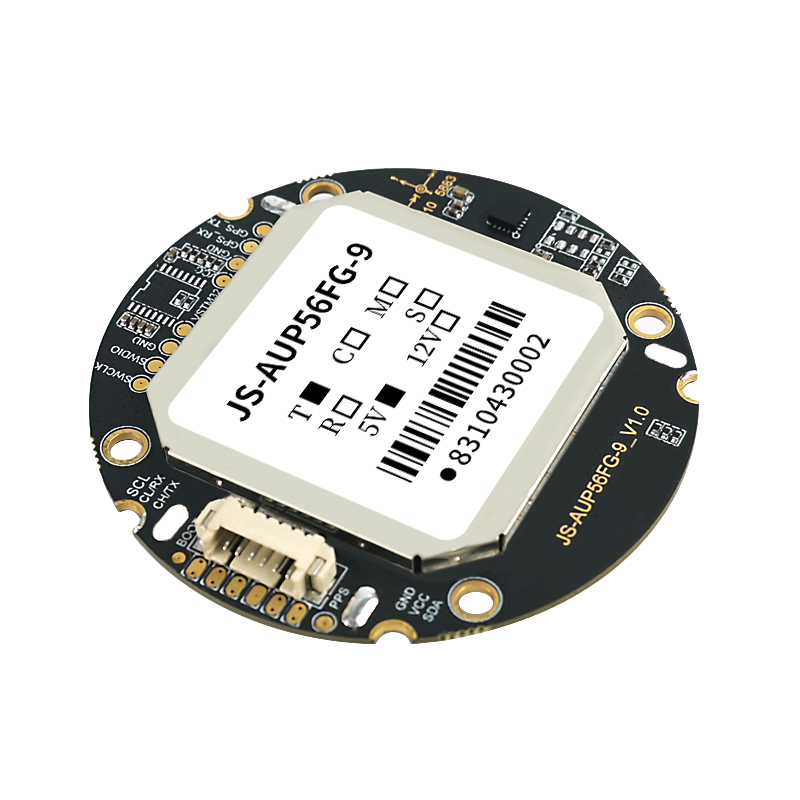

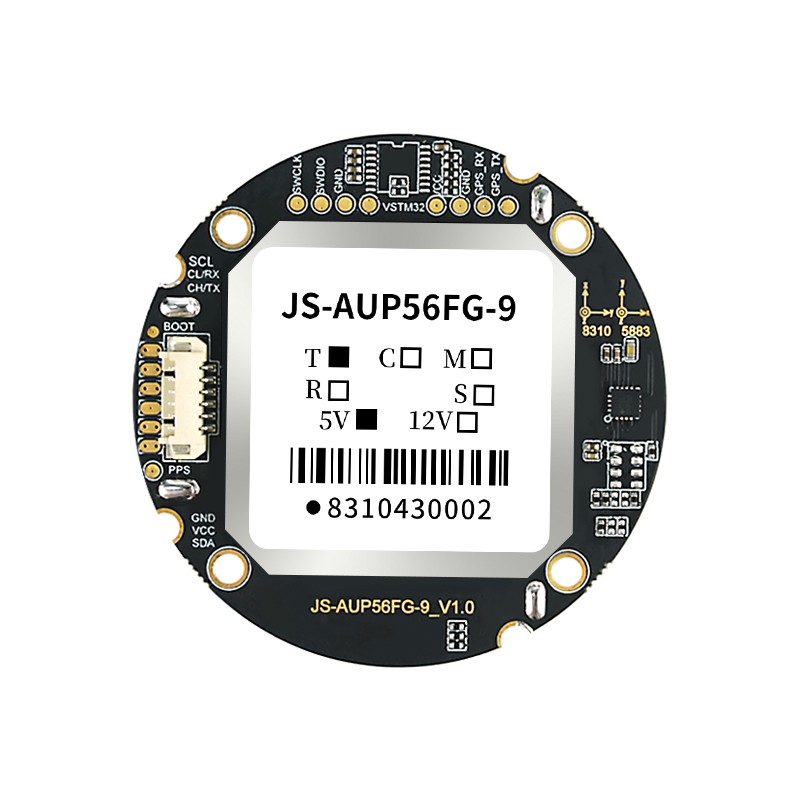

Jumpstar JS-AUP56FG-9 Multi-Mode L1 GNSS Positioning Module - 25Hz High-Speed Update, Wide Voltage Supply, Multi-Sensor Integrated Industrial Solution
L1 Full Constellation Support
Simultaneously receives GPS, BDS, GLONASS, Galileo, SBAS, QZSS for global stable positioning.
Ultra-High Sensitivity
Tracking sensitivity up to -167dBm, reliable positioning in urban canyons & weak-signal environments.
25Hz Ultra-High Update
Max navigation update rate up to 25Hz for high-dynamic real-time positioning.
Wide Voltage Input
4.5V~20V wide-range power supply, adapting to automotive & industrial power systems.
Multi-Sensor Integrated
Optional geomagnetic/barometer/MCU, rich interfaces (UART/CAN/RS232) for flexible integration.
Jumpstar JS-AUP56FG-9
Multi-Mode L1 GNSS Positioning Module
The JS-AUP56FG-9 is a high-precision L1-band GNSS positioning module built on a standard high-performance GNSS platform. It supports concurrent reception of 6 global satellite systems, with anti-interference & anti-spoofing detection and advanced filtering algorithms to ensure stable operation in complex electromagnetic environments.
Integrated with TCXO, LNA, SAW, RTC and high-gain passive antenna, it features intelligent power control and wide voltage input (4.5V~20V). With configurable IO pins, multiple interface options (UART/CAN/RS232) and optional sensors (geomagnetic/barometer/MCU), it is widely used in automotive, industrial tracking, UAV, timing, handheld devices and maritime navigation.
L1 full constellation, -167dBm tracking sensitivity, 25Hz ultra-high update rate, wide voltage input, and multi-sensor integration make JS-AUP56FG-9 ideal for high-dynamic industrial applications.
.jpg?imageMogr2/format/webp)
Key Features & Benefits
-
High-Performance GNSS SOC Professional positioning engine for stable high-dynamic operation.
-
Ultra-High Sensitivity Tracking -167dBm, reacquisition -160dBm for extreme weak-signal positioning.
-
25Hz High-Speed Update Max navigation update rate up to 25Hz for real-time dynamic control.
-
A-GNSS Fast Positioning Cold start in 24s, hot start in 2s for instant positioning response.
-
Wide Voltage & Multi-Interface 4.5V~20V power supply; UART/CAN/RS232 optional, configurable I/O pins.
-
Multi-Sensor Expansion Optional IST8310/VCM5883 geomagnetic, MS5611 barometer and MCU.
-
Industrial-Grade Reliability -40℃ to 85℃ operating temperature, circular compact φ56×9.3mm design.
.jpg?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Receiver Type | Multi-mode L1 band GNSS positioning module |
| Supported Constellations & Bands | GPS/QZSS L1C/A; BDS B1I; GLONASS L1OF; Galileo E1B/C; SBAS L1C/A |
| Sensitivity | Tracking & Navigation: -167dBm; Reacquisition: -160dBm; Hot Start: -159dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start:24s; Hot Start:2s (all satellites ≥-130dBm) |
| Positioning Accuracy (CEP 50%) | PVT horizontal: 2.0m (24h static, >6SVs) |
| Time Accuracy | 1PPS RMS:30ns; 99%:60ns; Frequency:0.25Hz~10MHz (configurable) |
| Velocity Accuracy | 0.05m/s (50%@30m/s dynamic operation) |
| Dynamic Heading Accuracy | 0.3deg |
| Operational Limits | Dynamics ≤4g; Altitude ≤80000m; Velocity ≤500m/s |
| Baud Rate | 4800-921600bps (Default:38400bps) |
| Max Update Rate | 25Hz |
| Supported Protocols | NMEA 0183 V4.10(ASCII); UBX(binary proprietary) |
Electrical & Mechanical

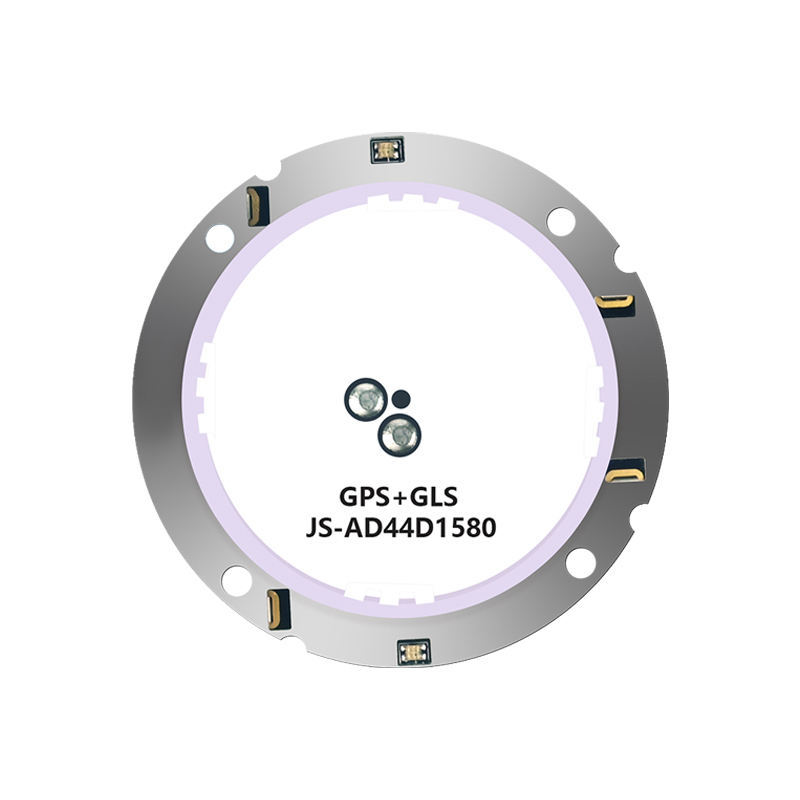

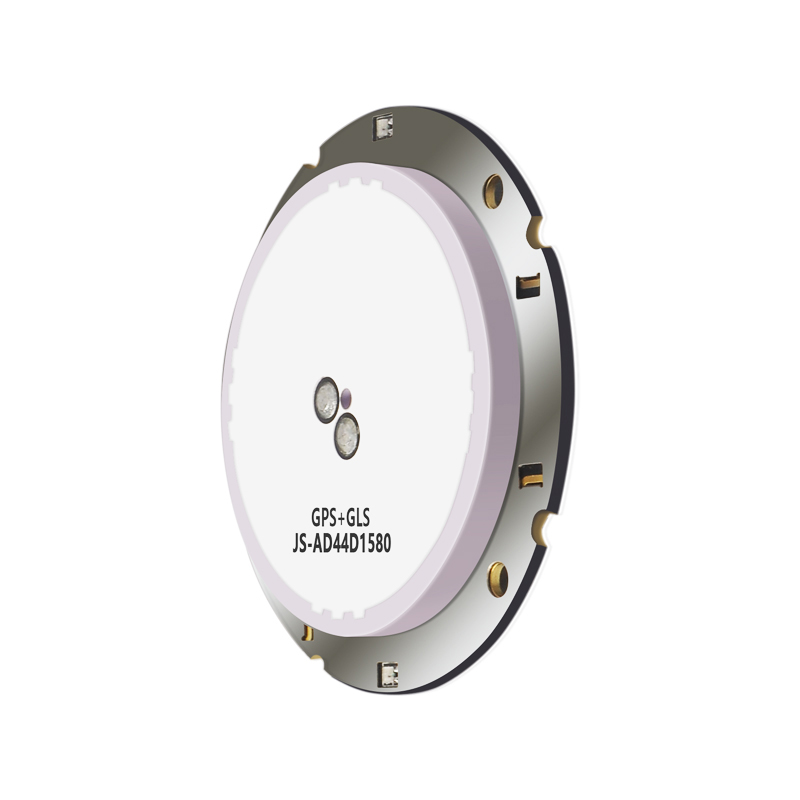

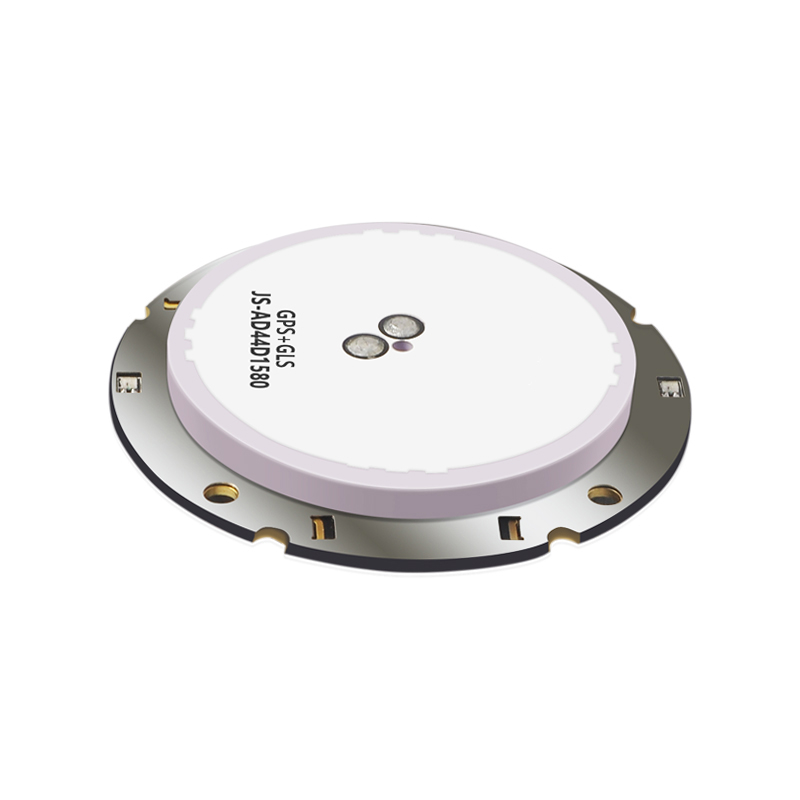

| Antenna Type | Built-in passive antenna (φ44×4mm default) |
| Interface Versions | C(CAN+MCU+Geomagnetic); T(UART+Geomagnetic); M(UART+MCU+Geomagnetic); S(UART+MCU+Geomagnetic+Barometer) |
| Power Supply Voltage | VCC:4.5V~20.0V (Typical:5.0V) |
| Operating Current | Acquisition:36~55mA@5.0V; Tracking:28~50mA@5.0V; Backup:36uA@5V |
| Digital I/O Voltage | 3.3V |
| Operating Temperature | -40℃ ~ +85℃ (without farad capacitor) |
| Storage Temperature | -40℃ ~ +85℃ |
| Farad Capacitor Temperature | -25℃ ~ +60℃ (hot start unavailable outside this range) |
| Humidity | 95% |
| Mechanical Dimensions | φ56.0mm × 9.3mm ±0.5mm |
| Pin Interfaces | SCL, CANL/RXD, CANH/TXD, GND, VCC, SDA |
| Compliance | RoHS compliant |
Typical Applications
Handheld GPS Receiver & PDA Devices
Portable navigation & personal positioning
AVL & Location-Based Services (LBS)
Fleet tracking & asset location
Professional Timing Applications
High-precision 1PPS timing & synchronization
UAV & Drone High-Dynamic Navigation
Autonomous flight & waypoint navigation
Automotive Electronics & Car Navigation
In-vehicle navigation & fleet tracking
Marine Navigation & Fleet Management
Ship positioning & maritime dispatch
Industrial Tracking & Telematics
Asset tracking & remote monitoring
Sports & Recreation Positioning Products
Outdoor sports & adventure tracking
Resources & Downloads
JS-AUP56FG-9 Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and product layout (φ56×9.3mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (φ56×9.3mm).
