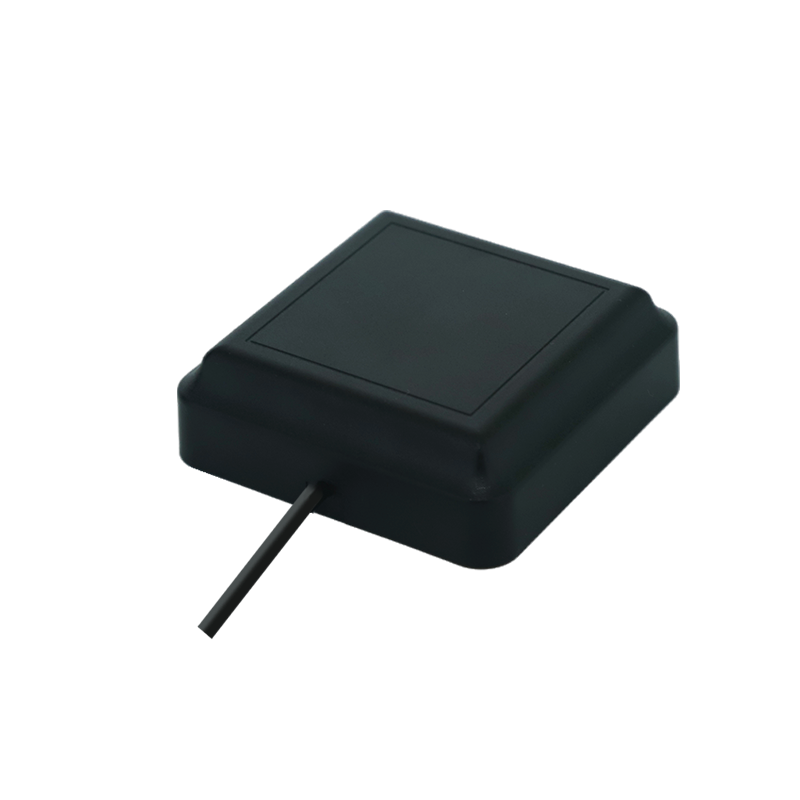

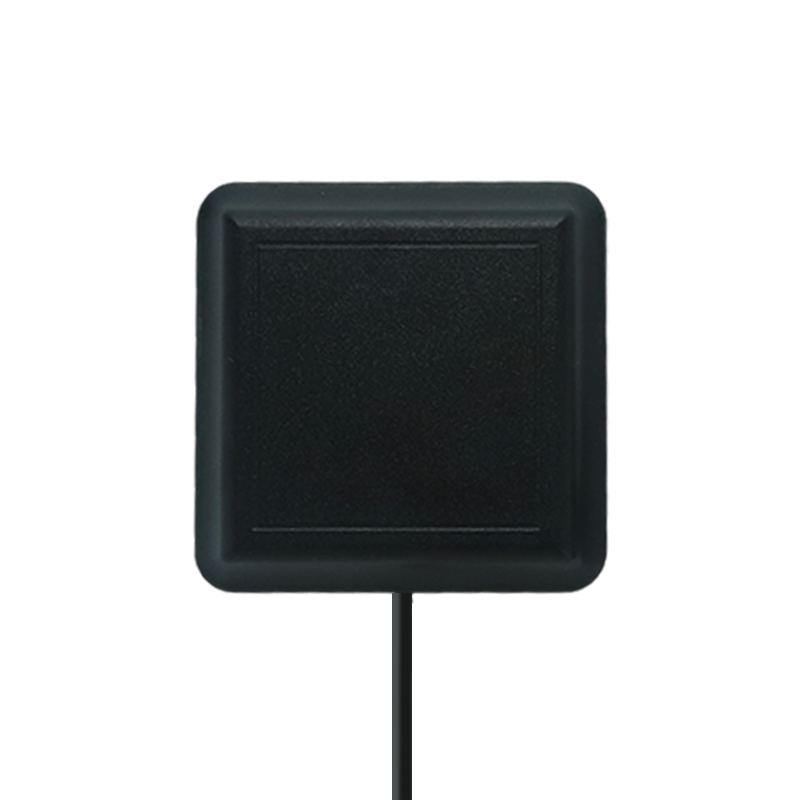

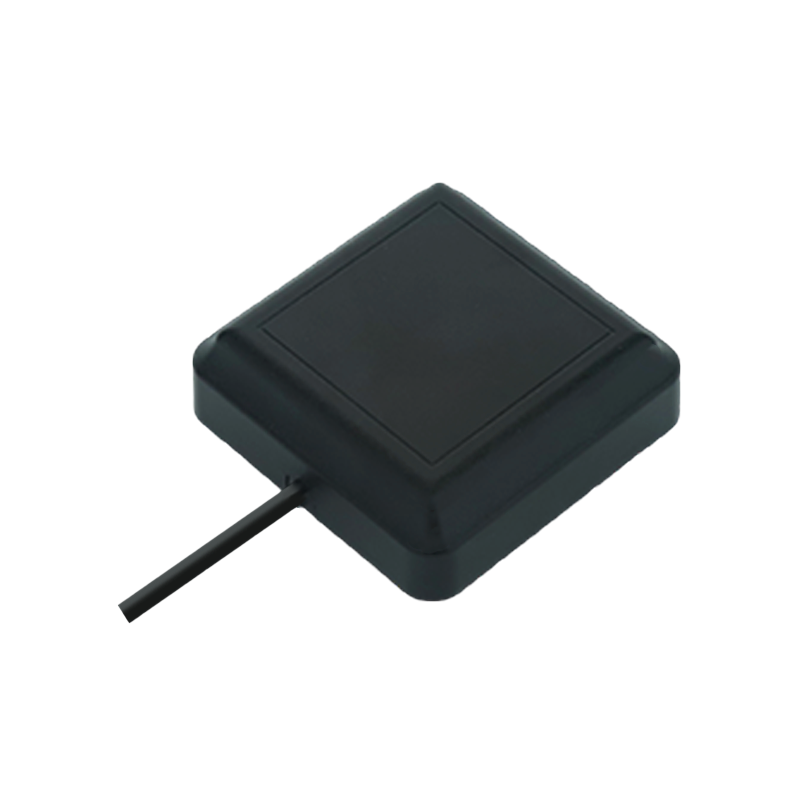

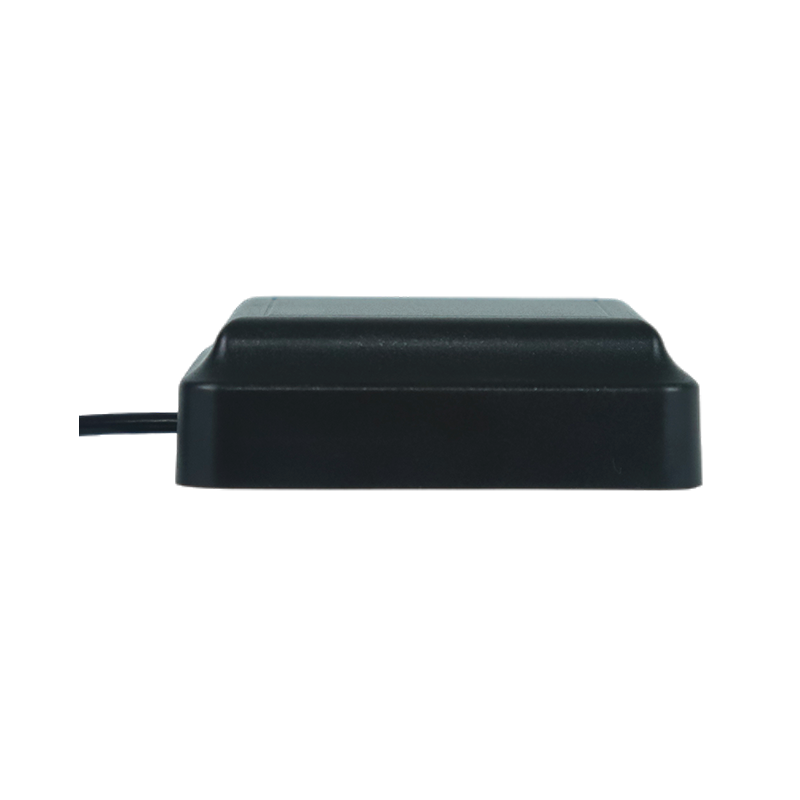

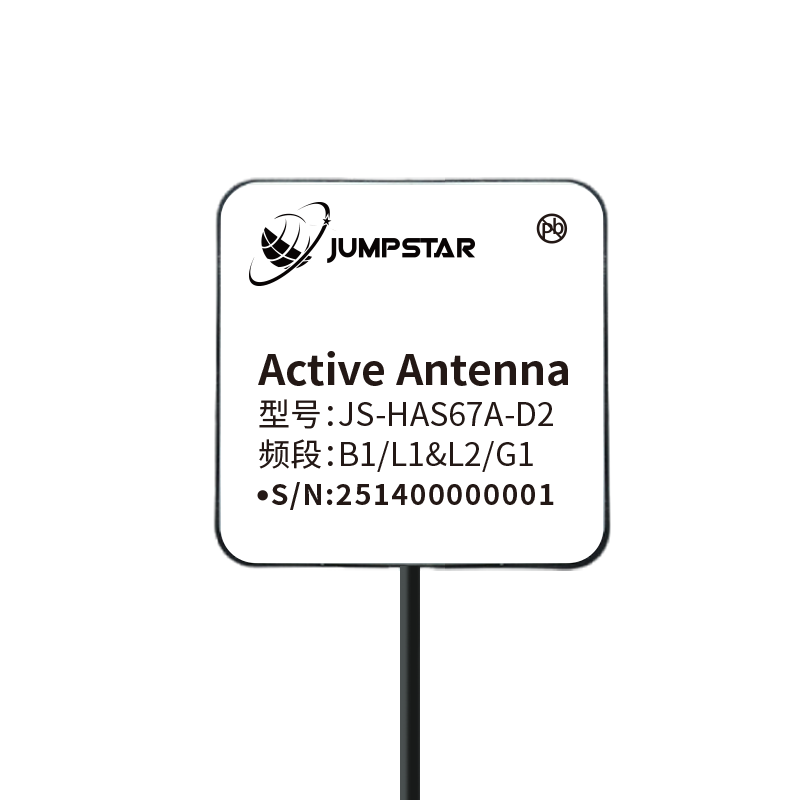

Jumpstar JS-HAS67A-D2 B1/L1&L2/G1 Dual-Band Ceramic Active GNSS Antenna – IPX7 Waterproof, Magnetic Mount, Miniature High-Performance Antenna for Multi-Constellation Positioning
Dual-Band Multi-Constellation
Supports B1/L1&L2/G1 frequency bands, compatible with BDS/GPS/GLONASS satellite signals.
Mini Ceramic Patch
Compact dielectric ceramic design, stable signal reception.
High-Performance LNA
28±3dB gain, ≤2.0dB noise figure for strong receiving capacity.
Ultra-Low Power
20±3mA @3.3V, ideal for battery-powered positioning devices.
IPX7 Waterproof
Rugged design for outdoor & harsh environment applications.
Magnetic Mount
Built-in neodymium iron boron magnet for quick & easy installation.

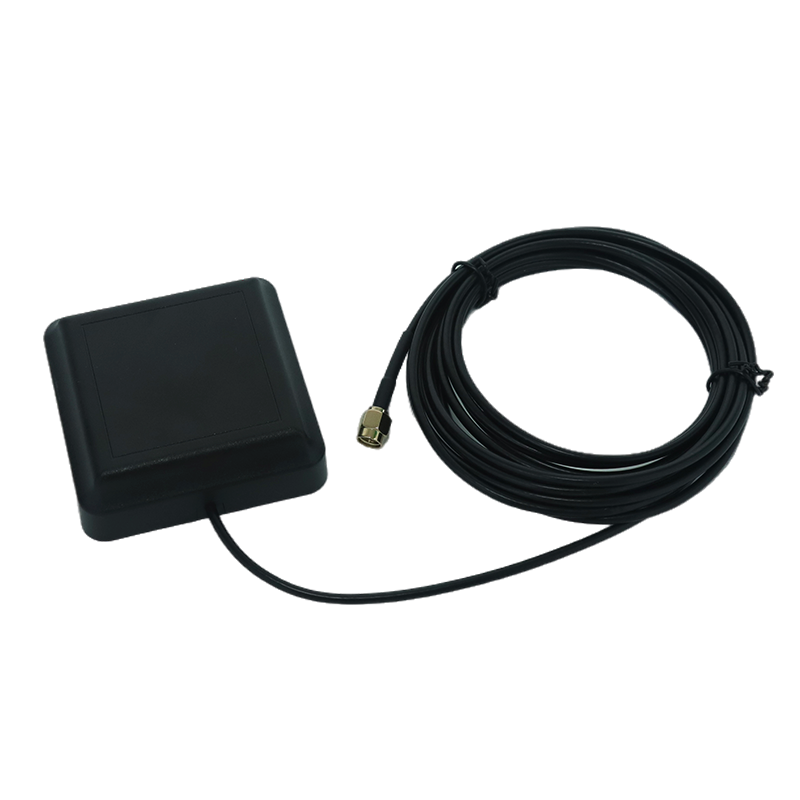

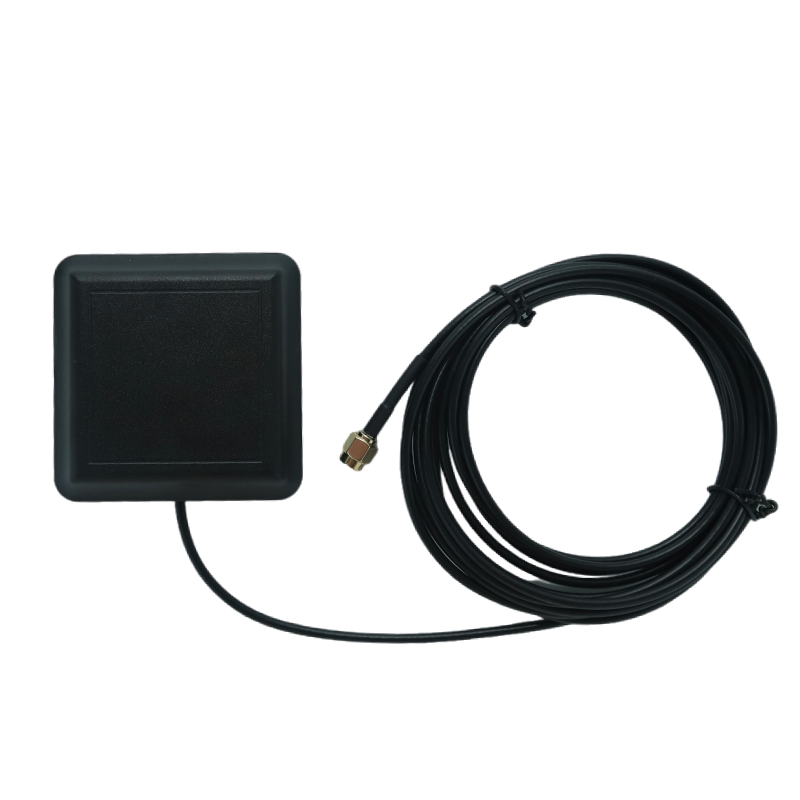

Dual-Band Ceramic Active GNSS Antenna
JS-HAS67A-D2 is a dual-band high-performance ceramic active GNSS antenna dedicated for multi-constellation satellite positioning. It supports B1/L1&L2/G1 frequency bands and is fully compatible with BDS, GPS and GLONASS systems.
Adopting high-quality dielectric ceramic patch and professional low-noise amplifier circuit, it delivers stable RF performance with low power consumption. With IPX7 waterproof rating and magnetic mounting design, it is widely used in portable positioning terminals, IoT devices, UAVs, vehicle-mounted equipment and other miniature high-precision positioning scenarios.
Industrial-grade reliability and plug-and-play connectivity make it an ideal choice for embedded GNSS solutions.
.png?imageMogr2/format/webp)
Key Features
-
Dual-Bard Multi-Constellation B1/L1&L2/G1 bands, supports BDS/GPS/GLONASS synchronous reception.
-
Miniature Ceramic Patch L1:25×25×4mm; L2:33×33×4mm, dielectric ceramic for stable reception.
-
High-Quality LNA Circuit 28±3dB gain, ≤2.0dB NF, VSWR≤2.0 for strong anti-interference.
-
Low Power Consumption 3-5V wide voltage, 20±3mA @3.3V for battery-powered devices.
-
IPX7 Waterproof & Reliable IPX7 protection, industrial-grade wide temp, anti-vibration for harsh outdoors.
-

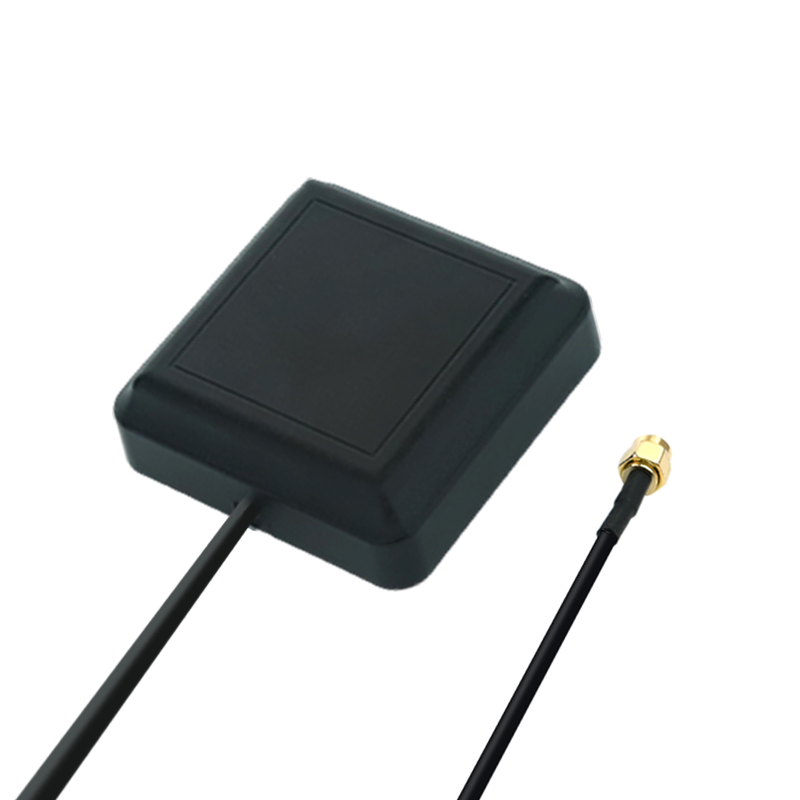

Convenient Magnetic Mount Built-in neodymium magnet, no complicated fixing, plug-and-play SMA-J3.
.png?imageMogr2/format/webp)
Technical Specifications
Antenna RF Performance
| Antenna Type | B1/L1&L2/G1 Dual-Band Ceramic Active GNSS Antenna |
| Ceramic Patch | L1:25×25×4mm; L2:33×33×4mm (Dielectric Ceramic) |
| Operating Frequency | B1:1561.098±2.046MHz; L1:1575.42±1.023MHz; L2:1227.60±10.23MHz; G1:1602.5625±4MHz |
| Impedance | 50Ω |
| Polarization | RHCP (Right-Hand Circular Polarization) |
| VSWR | ≤2.0 |
| Max Gain | 3dBic(B1/L1/G1); 2.5dBic(L2) (55×55 test base plate) |
| LNA Gain | 28±3dB |
| Noise Figure | ≤2.0dB |
| Operating Voltage | 3~5V DC |
Mechanical & Environment
| Operating Current | 20±3mA @3.3V |
| Connector | SMA-J3 |
| RF Cable | RG174 (L=3000±100mm) |
| Dimensions | 67±0.5mm × 67±0.5mm × 21.5±0.5mm |
| Mounting | Neodymium Iron Boron Magnetic Mount |
| Protection Rating | IPX7 |
| Materials | Antenna: Dielectric Ceramic; PCB: FR4; Shielding: Tinplate |
| Operating Temperature | -40℃ ~ +80℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Vibration | Sine sweep 1g(0-p), 10~55~10Hz per axis |
Typical Applications
Portable Handheld Terminals
Handheld positioning devices & portable GNSS systems
IoT Smart Nodes
Wireless sensor networks & smart asset tracking
Miniature UAV Navigation
Drone positioning & autonomous flight control
Vehicle-Mounted Equipment
Automotive navigation & fleet management systems
Battery-Powered Devices
Long-life mobile devices & remote sensors
Industrial & Embedded
Industrial control & embedded positioning modules
Outdoor Harsh Environments
IPX7 waterproof for extreme weather & marine applications
More Applications
Custom integration for other multi-constellation GNSS systems
Resources & Downloads
JS-HAS67A-D2 Datasheet
Complete specifications, gain pattern, mechanical drawing and electrical parameters
Mechanical Drawing
2D/3D mechanical dimensions and magnetic base layout
Gain Pattern
Radiation pattern, axial ratio and VSWR curves
3D CAD Model
STEP, IGES and STL formats for mechanical integration
Frequently Bought Together
.png)
JS-YAC155N
Jumpstar JS-YAC155N Integrated Communication & Navigation High-Precision Built-in Survey Antenna – 3-in-1 GNSS+4G+BT, Ultra-Compact for Surveying, UAV & Infrastructure Monitoring
.png)
JS-YAC130N
Jumpstar JS-YAC130N Integrated Communication & Navigation High-Precision Survey Antenna – 3-in-1 GNSS+4G+BT, Compact Built-In Design for Surveying & Monitoring
.png)
JS-PAS51A-D5

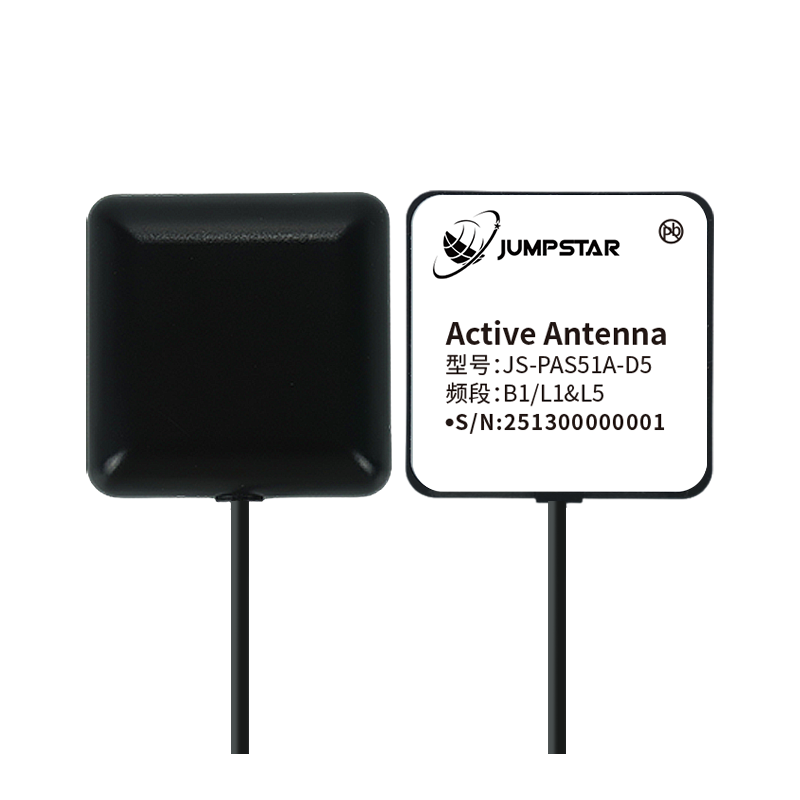

Jumpstar JS-PAS51A-D5 High-Performance Vehicle-Mounted External Active GNSS Antenna – Tri-Band B1/L1/L5, IPX7 Waterproof, Magnetic Mount for Automotive & Mobile Positioning
