JS-YAC130N
Vehicle & Fleet Antennas
Jumpstar JS-YAC130N Integrated Communication & Navigation High-Precision Survey Antenna – 3-in-1 GNSS+4G+BT, Compact Built-In Design for Surveying & Monitoring
3-in-1 Integrated Design
GNSS positioning + 4G communication + 2.4G Bluetooth all-in-one.
Full-Constellation GNSS
Covers GPS/GLONASS/BDS/Galileo/QZSS L1+L2 full bands.
High-Precision Performance
Stable phase center, ≥5.5dB GNSS peak gain.
Ultra-Compact Size
Ø130×15mm slim built-in profile for easy integration.
Industrial-Grade Reliability
-40℃~+85℃, anti-vibration & strong anti-interference.
Wide Voltage Input
3.3~12V DC, low current ≤50mA@5V.
Integrated Communication & Navigation High-Precision Survey Antenna

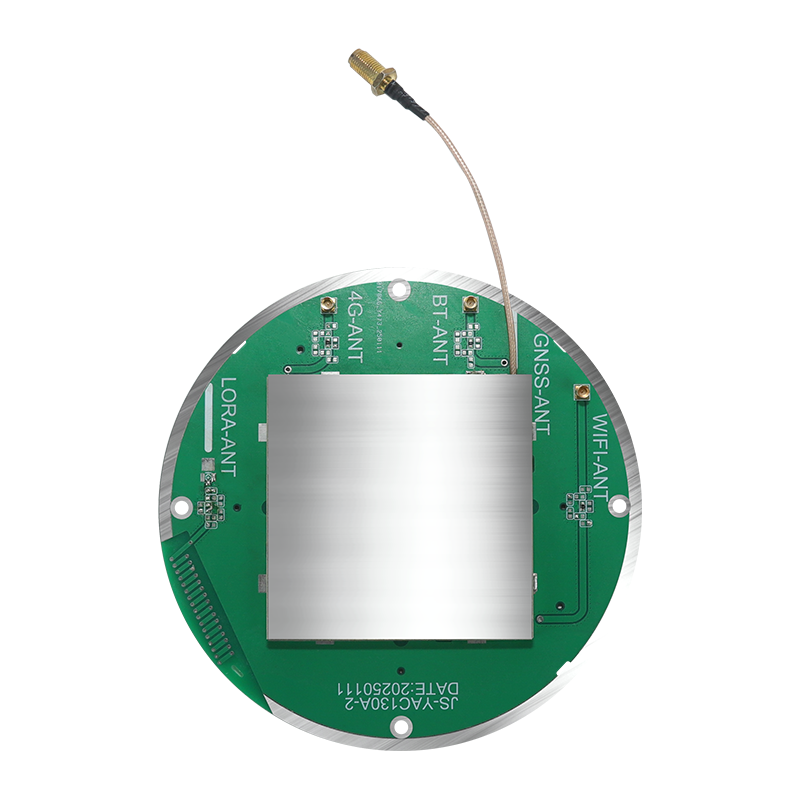

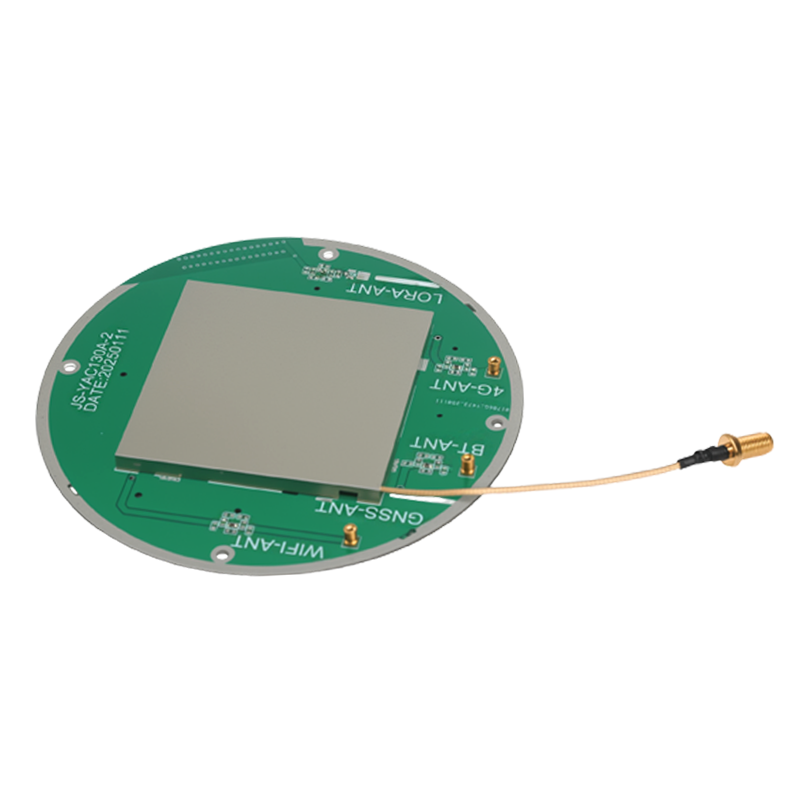

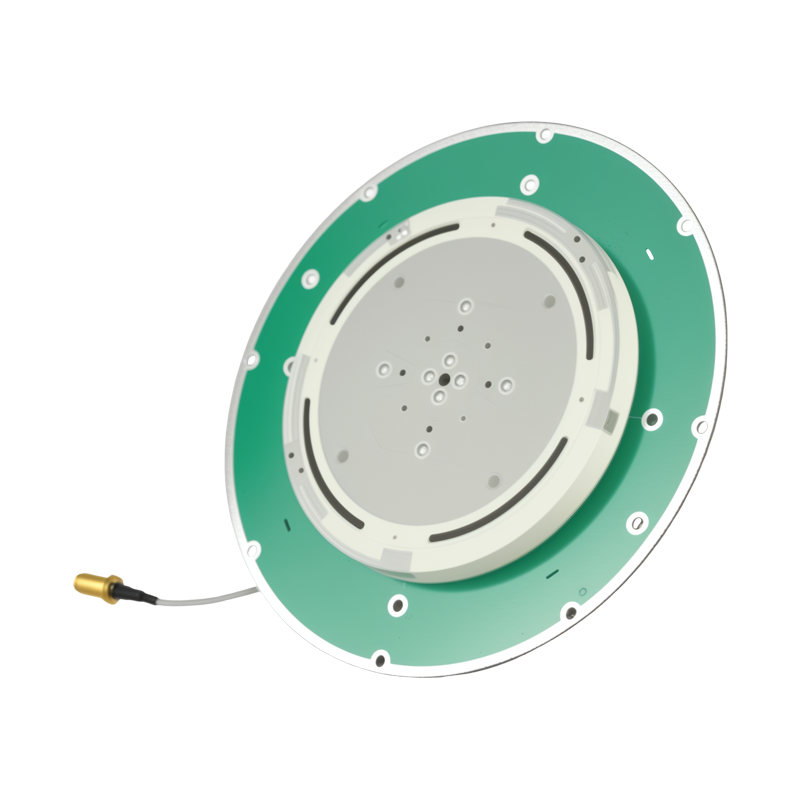

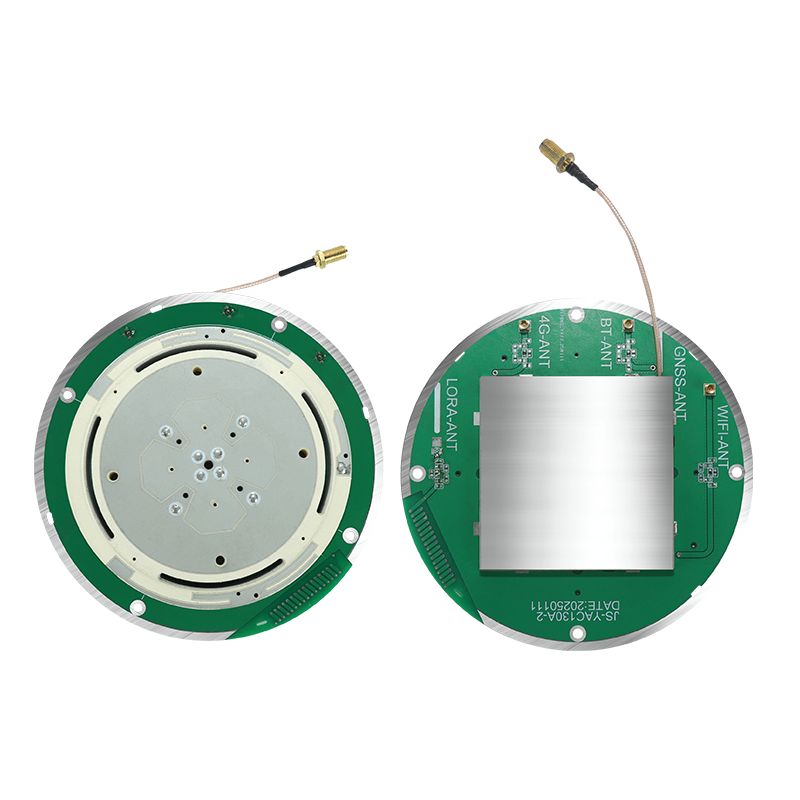

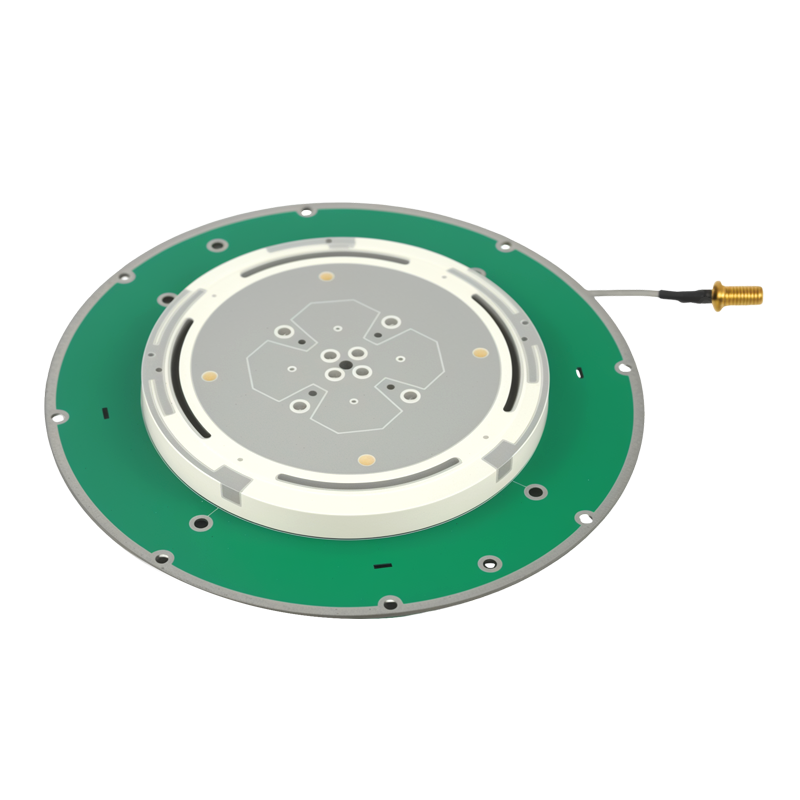

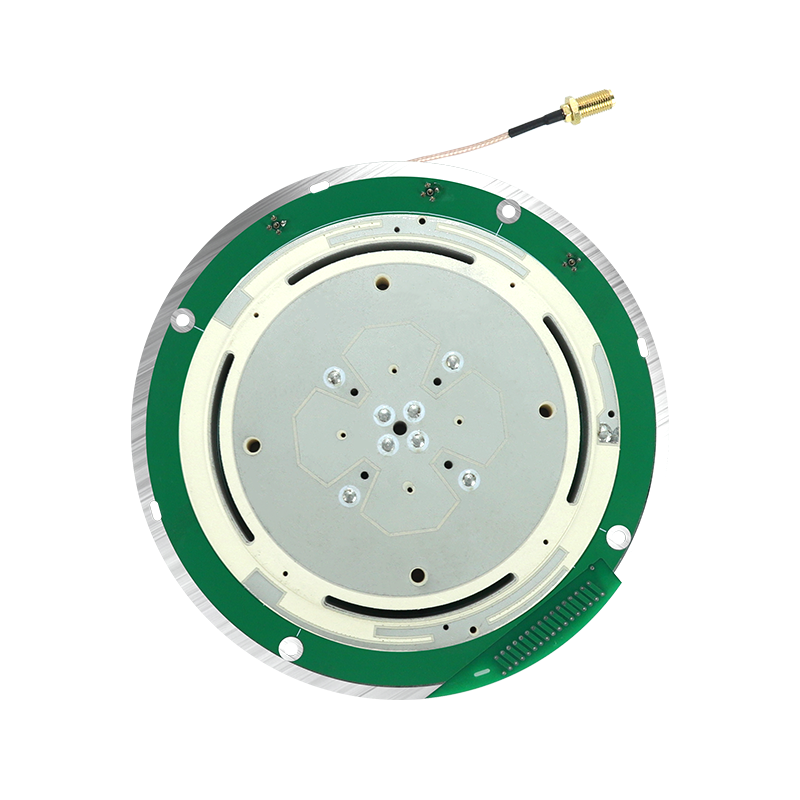

JS-YAC130N is an integrated high-precision built-in survey antenna that combines GNSS navigation, 4G cellular communication and Bluetooth functions into one compact unit. It fully supports L1+L2 band signals of GPS, GLONASS, BDS, Galileo and QZSS, enabling efficient multi-system satellite reception.
With high antenna gain, wide beam pattern, stable phase center and excellent low-elevation signal capture capability, it ensures fast satellite locking and stable high-quality GNSS output even in complex obstructed environments.
The all-in-one communication-navigation design greatly improves device connectivity and data transmission efficiency, making it the ideal choice for high-precision surveying, monitoring, smart agriculture and engineering applications.
.png?imageMogr2/format/webp)
Key Features
-
Communication + Navigation Integration 3-in-1 design integrates GNSS, 4G and Bluetooth, simplifying equipment structure.
-
Full-Constellation GNSS BDS B1I/B2I, GPS L1/L2, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS L1/L2.
-
High-Precision RF Performance GNSS peak gain ≥5.5dB, highly stable phase center, wide beam for accurate measurement.
-
Ultra-Slim Built-In Structure Ø130×15mm low-profile, lightweight for embedded integration.
-
Professional LNA Circuit 35±2dB gain, ≤3.0dB NF, VSWR≤2.0, ±2dB in-band flatness.
-
Harsh Environment Adaptability -40℃~+85℃, strong anti-interference, anti-vibration for outdoor use.
-
Wide Power Compatibility 3.3~12V DC, ≤50mA@5V for flexible power supply.
.png?imageMogr2/format/webp)
Technical Specifications
Antenna RF Performance
| Antenna Type | Integrated Communication & Navigation High-Precision Survey Antenna |
| Supported Signals | GNSS: BDS B1I/B2I, GPS L1/L2, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS L1/L2 (1165-1268MHz; 1550-1630MHz) 4G: 824~960MHz, 1710~2690MHz BT: 2.4G |
| Peak Gain | GNSS ≥5.5dB; 4G ≥0.5dB; BT ≥0.5dB |
| Impedance | 50Ω |
| Horizontal Coverage | 360° |
| Output VSWR | ≤2.0 |
| LNA Gain | 35±2dB |
| Noise Figure | ≤3.0dB (per-filter) |
| In-Band Flatness | ±2dB |
| Operating Voltage | 3.3~12V DC |
Mechanical & Environment
| Operating Current | ≤50mA (@5V) |
| Dimensions | Ø130×15mm |
| RF Connectors | GNSS: MCX-C-JW1.5 (RG178 cable) 4G: MMCX-C-JW1.5 (RG178 cable) |
| Materials | Radome: PPO; PCB: FR4; Shielding-Can: Tinplate |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Vibration | Sine sweep 1g(0-p), 10~55~10Hz per axis |
Typical Applications
Geodetic Surveying
Land surveying & high-precision geodetic measurement
Marine & Channel Survey
Hydrographic survey, dredging & channel mapping
Road Construction & Engineering
Roadworks, construction site surveying & engineering
Landslide & Seismic Monitoring
Geohazard early warning & seismic deformation monitoring
Port Container Operations
Automated container handling & port logistics
Smart Precision Agriculture
Automated farm machinery guidance & crop management
Driving Tests & Training
Driver's license testing & driving training systems
More Applications
Custom integration for other communication-navigation systems
Resources & Downloads
JS-YAC130N Datasheet
Complete specifications, gain pattern, mechanical drawing and electrical parameters
Mechanical Drawing
2D/3D mechanical dimensions and built-in mounting layout
Gain Pattern
Radiation pattern, axial ratio and VSWR curves
3D CAD Model
STEP, IGES and STL formats for mechanical integration
