JS-RP10-2
Standard Precision Modules

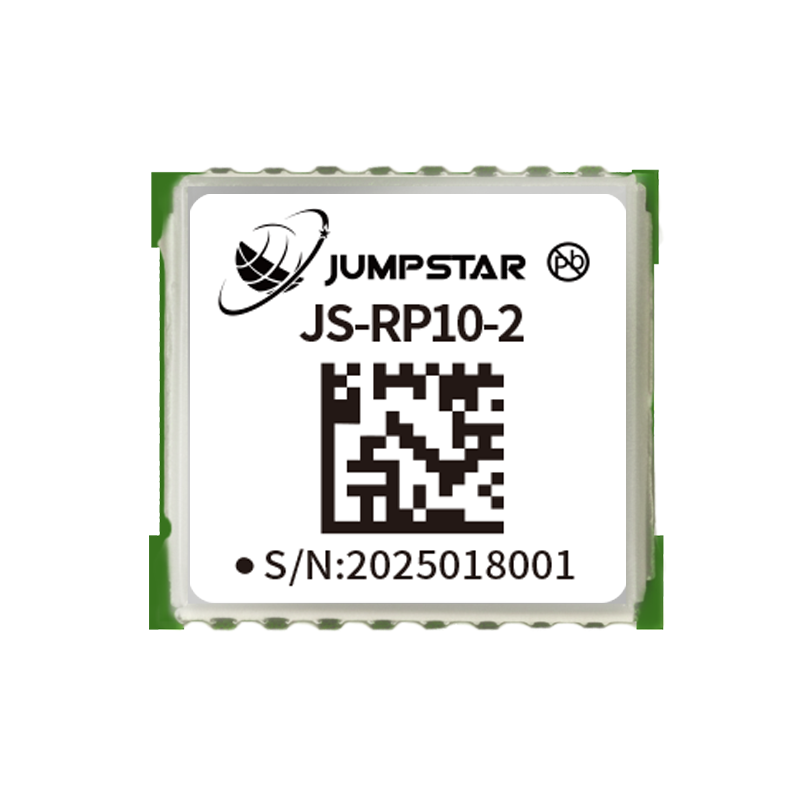

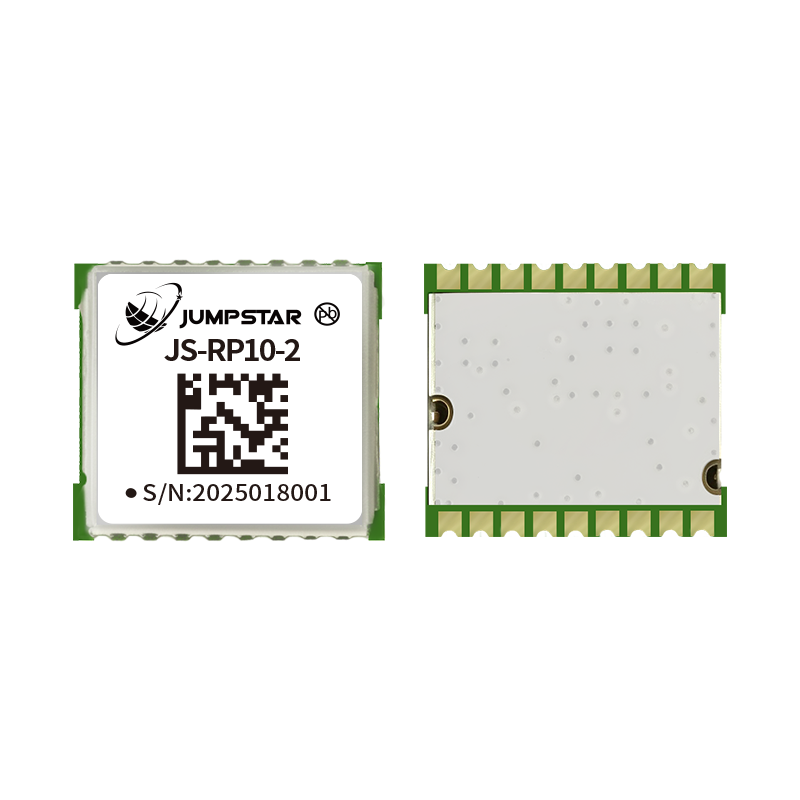

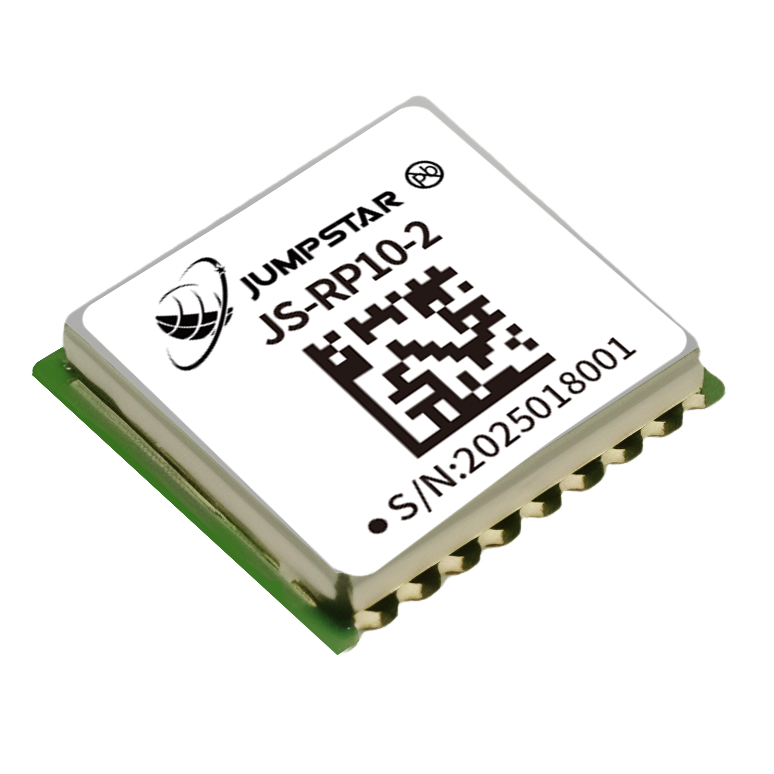

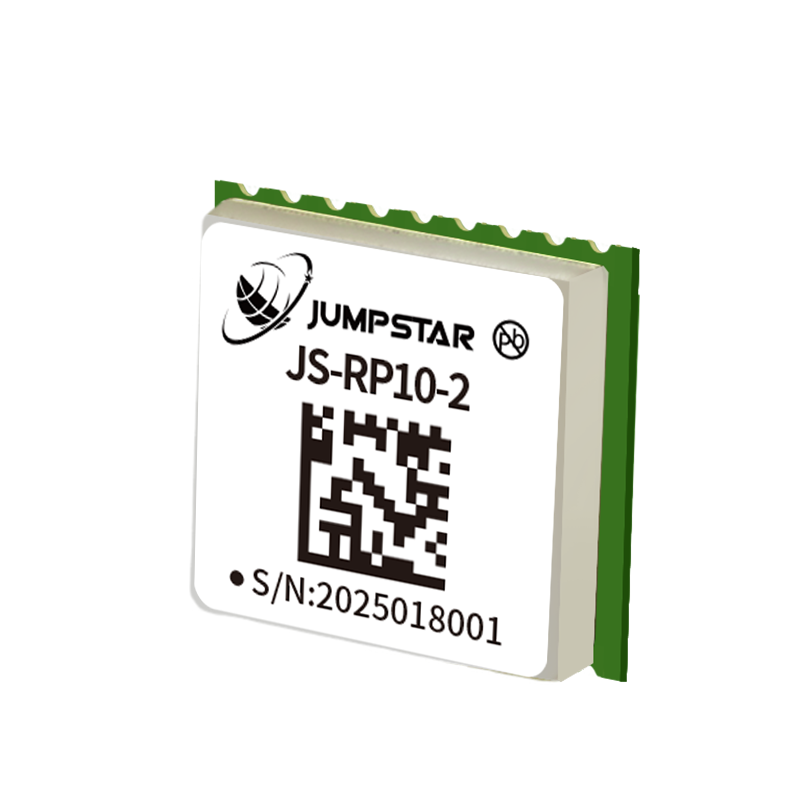

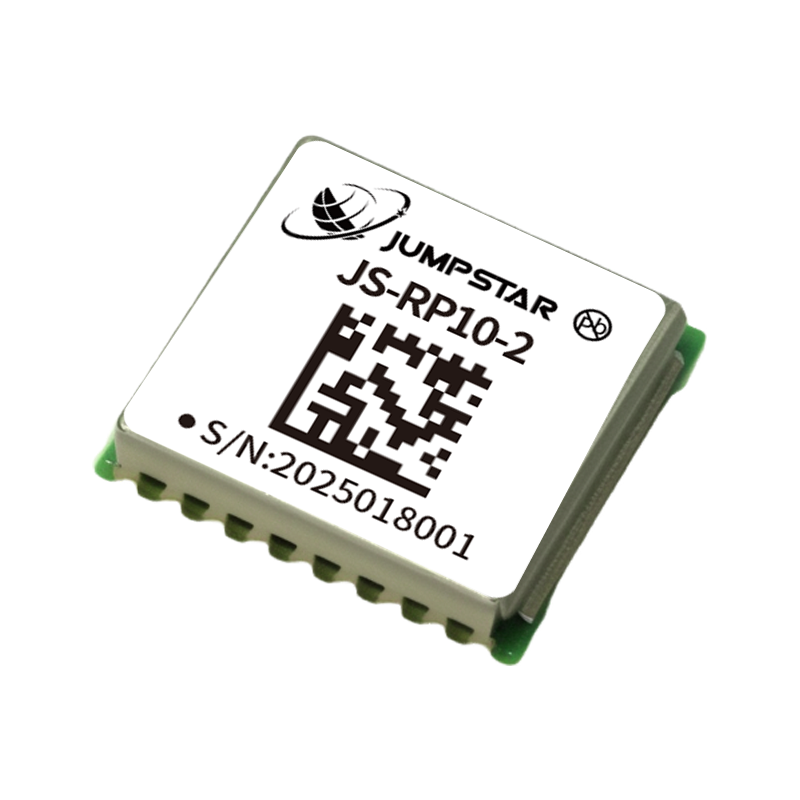

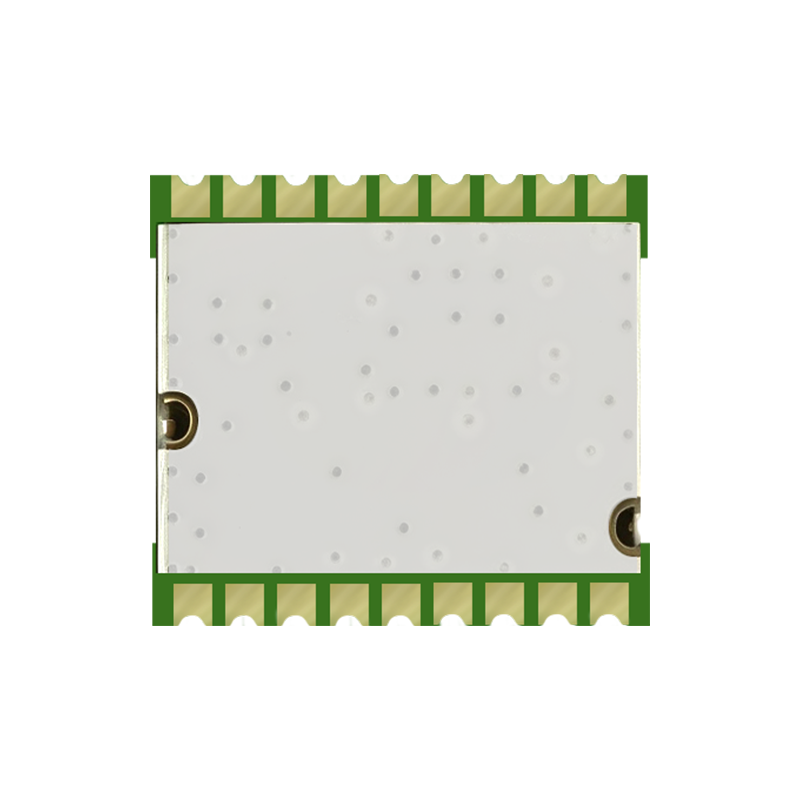

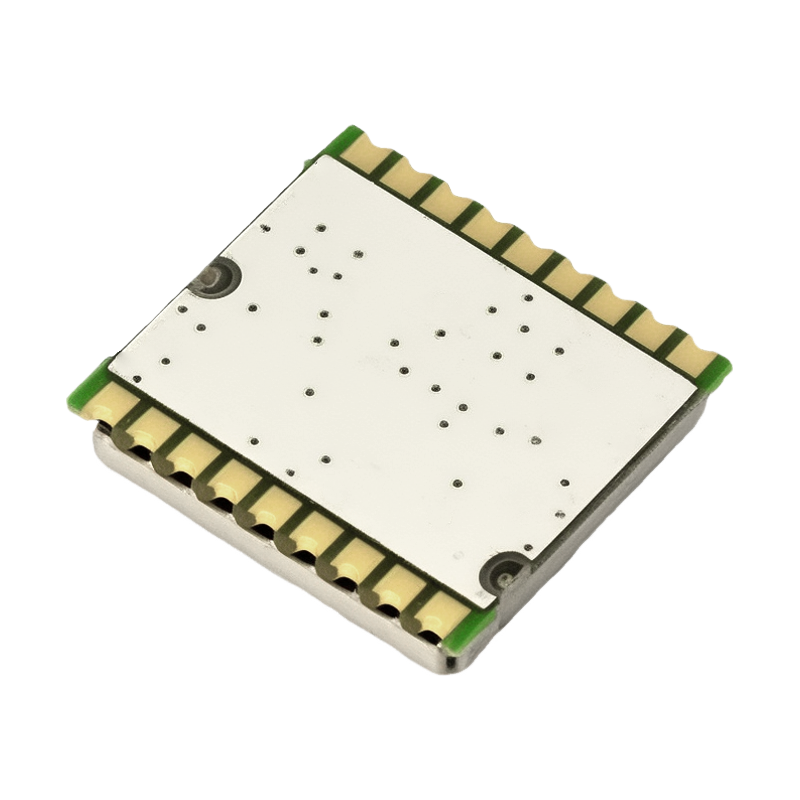

Jumpstar JS-RP10-2 Dual-Band L1+L5 GNSS Positioning Module - Ultra-Low Power, Ultra-Compact Size, High-Precision Wearable & Embedded Solution
Dual-Band Full Constellation
Supports L1+L5 full constellation signals (GPS/BDS/GLONASS/Galileo/QZSS/IRNSS) for global high-precision positioning.
Ultra-Low Power Consumption
Advanced low-power design, typical operating current only 20mA@3.3V, standby 15uA, perfect for wearable devices.
Ultra-Compact Package
10.5×9.7×2.3mm mini size, ideal for space-constrained embedded applications.
200 High-Speed Channels
200 tracking channels + dedicated search engine for fast satellite capture.
Anti-Interference & Protection
Built-in 8 anti-single-tone filters, active antenna detection & overcurrent protection.
Jumpstar JS-RP10-2
Dual-Band L1+L5 GNSS Positioning Module
The JS-RP10-2 is a high-performance, low-power dual-band (L1+L5) GNSS positioning module. It adopts advanced hardware-software integrated low-power design without compromising performance, realizing optimized multi-band & multi-mode signal tracking. Equipped with an advanced anti-multipath & anti-interference RF front-end, it provides up to 8 anti-single-tone interference filters for L1/L5 bands, greatly improving actual positioning and TTFF performance.
It supports standard NMEA 0183 and RTCM 3.X protocols, with active antenna status detection and overcurrent protection, widely used in wearable devices, trackers, handheld terminals, automotive navigation, UAVs and shared mobility.
Dual-band L1+L5, 1.0m horizontal accuracy, ultra-low power 20mA, ultra-compact 10.5×9.7×2.3mm, and industrial-grade reliability make JS-RP10-2 ideal for wearable and embedded high-precision applications.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
High-Performance SOC Platform Professional dual-band positioning engine for stable and efficient operation.
-
Ultra-Low Power Design Typical operating current 20mA@3.3V, standby 15uA, long battery life.
-
200 Tracking Channels Equipped with dedicated search engine for fast satellite acquisition.
-
10Hz High-Speed Update Max navigation update rate up to 10Hz (default 1Hz) for real-time dynamic positioning.
-
Dual-Band Full Constellation Supports L1+L5 dual-band of all major satellite systems for higher precision.
-
Strong Anti-Interference 8 anti-single-tone filters, anti-multipath & anti-interference RF front-end.
-
Antenna Safety Protection Active antenna detection + overcurrent protection, status via NMEA.
.png?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Receiver Type | Dual-band (L1+L5) multi-mode GNSS positioning module |
| Supported Constellations & Bands | GPS:L1/L5; BDS:B1I/B1C/B2I/B2B/B2A; GLONASS:G1; Galileo:E1/E5; QZSS:L1/L5; IRNSS:L5 |
| Tracking Channels | 200 tracking channels + dedicated search engine |
| Sensitivity | Tracking & Navigation:-165dBm; Reacquisition:-159dBm; Hot Start:-159dBm; Cold Start:-148dBm |
| Time to First Fix | Cold Start:28s; Warm Start:1s |
| Positioning Accuracy (CEP 50%) | Single-point horizontal:1.0m; Vertical:2.0m (open sky, 24h static) |
| Velocity Accuracy | 0.1m/s CEP (50%@30m/s dynamic operation) |
| Operational Limits | Dynamics≤4g; Altitude≤20000m; Velocity≤500m/s |
| Baud Rate | 115200~921600bps (Default:115200bps) |
| Max Update Rate | 10Hz (Default:1Hz) |
| Supported Protocols | NMEA 0183(ASCII); RTCM 3.X(Input/Output) |
Electrical & Mechanical
| Antenna Function | Active antenna detection + overcurrent protection; Antenna status output via NMEA |
| Power Supply Voltage | VCC:1.8~3.6V (Typical:3.3V); Backup:1.8~3.6V (Typical:3.3V) |
| Operating Current | Average:16~30mA@3.3V; Standby:15uA@3.3V |
| Digital I/O Voltage | 1.8~3.6V |
| ESD Tolerance | 2000V (HBM) |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 95% |
| Mechanical Dimensions | 10.5mm × 9.7mm × 2.3mm ±0.3mm |
| Main Interfaces | UART(TX/RX), 1PPS, RF_IN, VCC_RF, RESET, I2C(SCL/SDA, custom) |
| Compliance | RoHS compliant |
Typical Applications
Smart Wearable Devices & Personal Trackers
Low-power high-precision positioning for watches & tags
Automotive Navigation & Car Tracking
In-vehicle navigation & fleet tracking
UAV & Drone Positioning
Autonomous flight & waypoint navigation
Intelligent Logistics & Asset Tracking
Real-time cargo tracking & fleet optimization
Handheld GPS Terminals & Tablets
Portable navigation & field data collection
Shared Bicycles & Shared Mobility
IoT tracking & fleet management
AVL & Location-Based Services (LBS)
Fleet tracking & location-based applications
Maritime Navigation & Fleet Management
Ship positioning & maritime dispatch
Resources & Downloads
JS-RP10-2 Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and product layout (10.5×9.7×2.3mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (10.5×9.7×2.3mm).
