Jumpstar JS-TP10-2 Multi-Mode Single-Frequency GNSS Positioning Module - Ultra-Compact Size, Low Power, Strong Anti-Interference Micro Positioning Solution
Single-Band Full Constellation
Simultaneous reception of GPS, BDS, GLONASS, Galileo, QZSS, SBAS for global stable positioning.
Ultra-High Sensitivity
Tracking sensitivity up to -165dBm, reliable positioning in weak-signal and complex environments.
47 High-Speed Channels
Fast satellite signal acquisition and locking for efficient positioning.
10Hz High-Speed Update
Max navigation update rate up to 10Hz for real-time dynamic positioning.
Ultra-Compact Design
10.5×9.7×2.3mm mini size, perfect for space-constrained embedded devices.

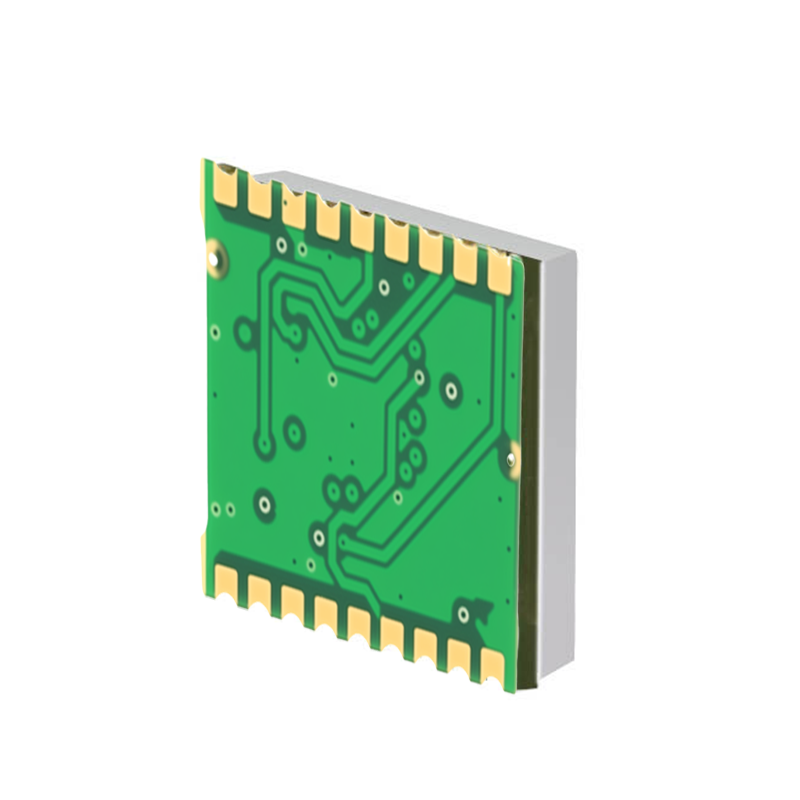

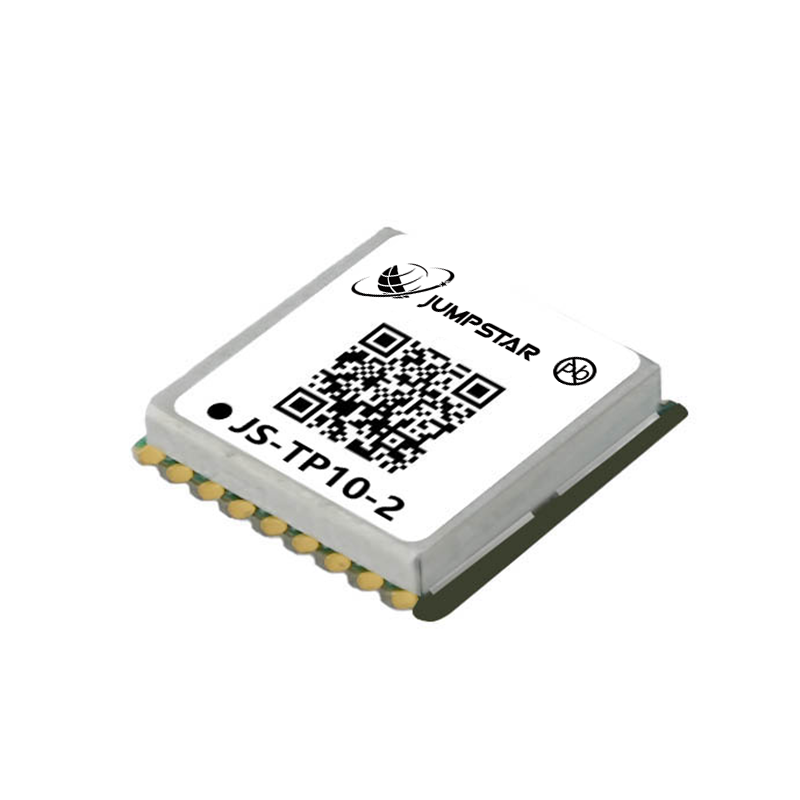

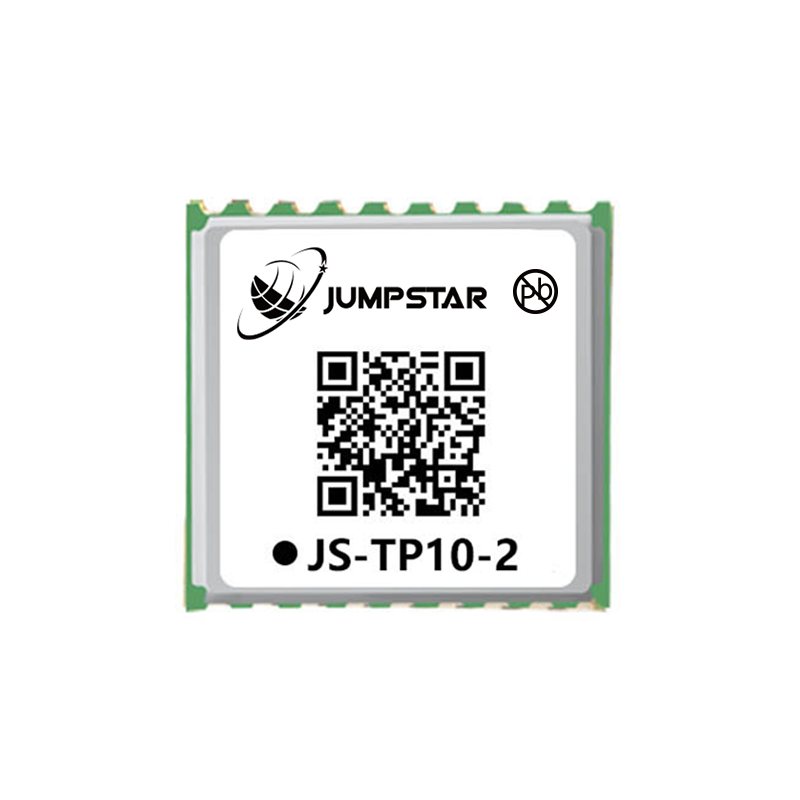

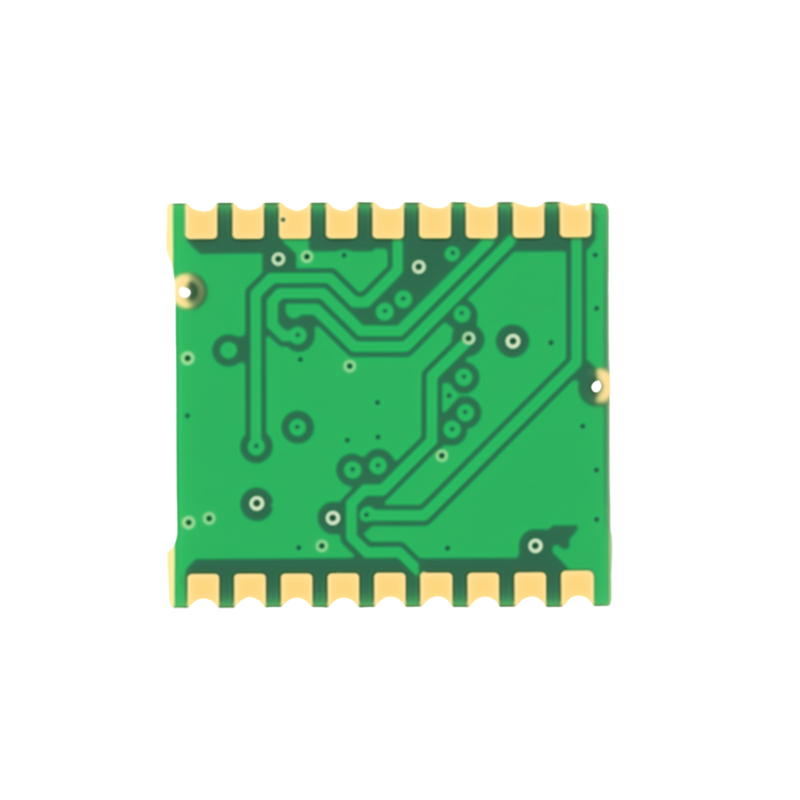

Jumpstar JS-TP10-2

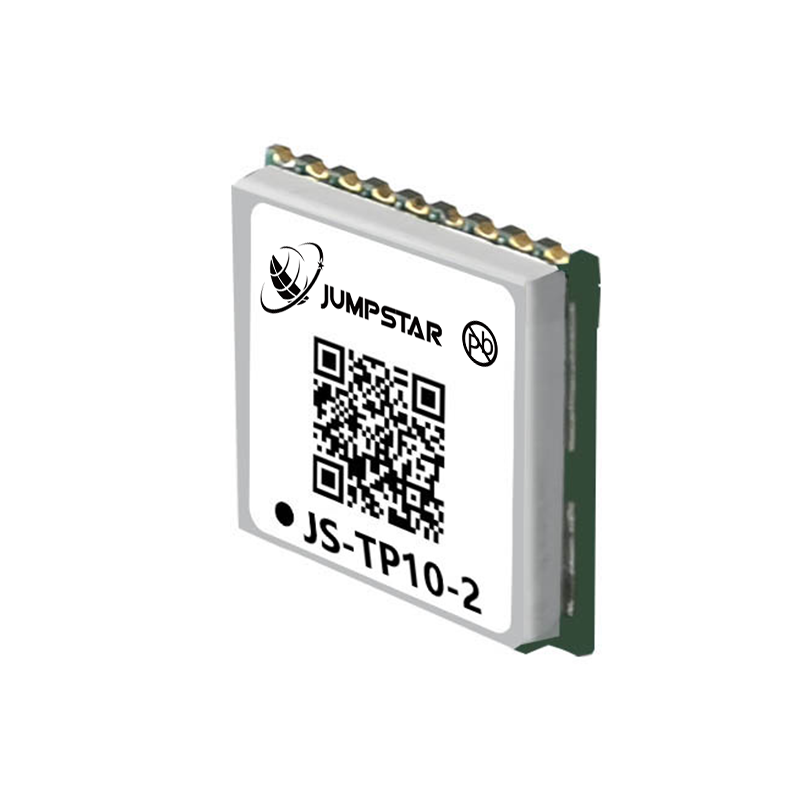

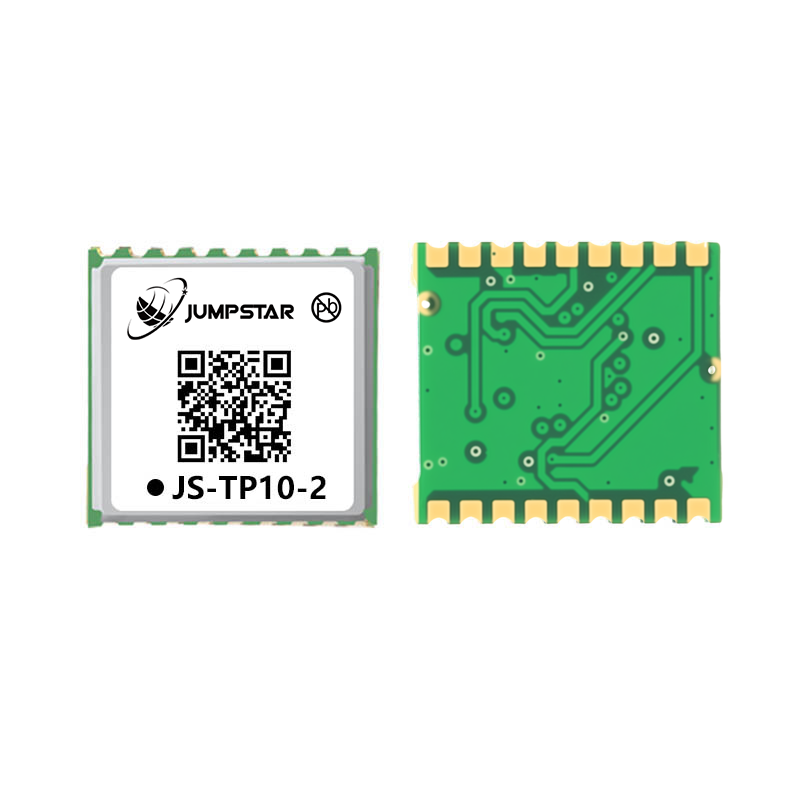

Multi-Mode Single-Frequency GNSS Positioning Module
The JS-TP10-2 is a low-power, cost-effective multi-mode single-frequency GNSS positioning module built on a high-performance SOC positioning engine. It supports concurrent reception of six global satellite systems, equipped with 12 multi-tone active interference cancellers and indoor/outdoor multipath detection & compensation technology to ensure stable positioning in challenging signal environments.
Integrated with TCXO, SAW and RTC, it supports AGPS, standard NMEA 0183 protocol and 1PPS high-precision timing. With ultra-compact size, it is widely used in automotive, maritime, logistics, drones, robots and emergency rescue scenarios.
Single-band full constellation, -165dBm tracking sensitivity, 47 channels, 10Hz update rate, and ultra-compact 10.5×9.7×2.3mm design make JS-TP10-2 an ideal micro positioning solution.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
High-Performance GNSS SOC Professional positioning engine for stable and efficient operation.
-
Ultra-High Sensitivity Tracking -165dBm, cold start -148dBm for extreme weak-signal adaptation.
-
47 Channel Configuration Fast satellite signal capture and tracking for quick positioning.
-
10Hz High-Speed Update Max navigation update rate up to 10Hz (default 1Hz) for real-time data output.
-
Strong Anti-Interference 12 multi-tone active interference cancellers + multipath detection & compensation.
-
Full Constellation Support Compatible with all mainstream GNSS systems for global coverage.
-
Industrial-Grade Reliability -40℃ to 85℃ operating temperature, suitable for harsh environments.
.png?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Receiver Type | Multi-mode single-frequency GNSS positioning module |
| Supported Constellations & Bands | GPS/QZSS L1C/A; BDS B1I/B1C; GLONASS L1; Galileo E1; SBAS(WAAS/EGNOS/MSAS/GAGAN) |
| Tracking Channels | 47 channels |
| Sensitivity | Tracking & Navigation: -165dBm; Reacquisition: -148dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start:24s; Hot Start:1s (all satellites ≥-130dBm) |
| Positioning Accuracy (CEP 50%) | Horizontal:2.0m; Vertical:3.75m (open sky, 24h static) |
| Time Accuracy | 1PPS:10ns; Time pulse frequency:1Hz |
| Speed Accuracy | GNSS:0.1m/s; SBAS:0.05m/s |
| Operational Limits | Acceleration≤4g; Altitude≤10000m; Speed≤100m/s |
| Baud Rate | 4800-921600bps (Default:115200bps) |
| Max Update Rate | 10Hz (Default:1Hz) |
| Supported Protocols | NMEA 0183 V3.01/V4.10 (Input/Output, ASCII) |
Electrical & Mechanical
| Antenna Type | Supports passive/active antenna; Active gain:15~30dB |
| Pin Interfaces | TXD/RXD(UART), PPS, VCC/VBACK(Power), RESET, RF_IN, VCC_RF, SDA/SCL(I2C) |
| Power Supply Voltage | VCC:2.8~3.6V (Typical:3.3V); Backup:1.62~3.63V |
| Operating Current | Acquisition:31~38mA@3.3V; Tracking:30~35mA@3.3V; Backup:11uA@3.3V |
| Digital I/O Voltage | 2.8~3.3V |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +105℃ |
| Humidity | 95% |
| Mechanical Dimensions | 10.5mm × 9.7mm × 2.3mm ±0.3mm |
| Compliance | RoHS compliant |
Typical Applications
Automotive Applications & Car Navigation
In-vehicle navigation & fleet tracking
Maritime Navigation & Fleet Management
Ship positioning & maritime dispatch
Intelligent Logistics & Asset Tracking
Real-time cargo tracking & fleet optimization
Formation UAVs & Drones
Group flight coordination & swarm navigation
Intelligent Robots & Autonomous Equipment
Autonomous navigation & motion control
Ground Vehicle Tracking & Urban Traffic
Commercial vehicle monitoring & intelligent transport
Emergency Rescue & Disaster Relief
Real-time location & safety tracking
Personal Travel & Wilderness Adventures
Outdoor positioning & navigation
