P-Box-X10
Surveying RTK Rovers
Jumpstar P-Box-X10 Multi-Constellation Triple-Frequency GNSS Receiver – 544 Channels, 100Hz Update, Dual-Antenna Heading & RTK High-Precision Module
544 Hardware Channels
Simultaneously track all visible satellite signals for full-coverage positioning.
Triple-Band Multi-Constellation
Supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS triple-frequency signals.
Dual-Antenna High-Precision Heading
Heading accuracy up to 0.03°@5m baseline, no magnetic sensor dependency.
100Hz Ultra-High Update Rate
Position & observation output at 100Hz, <10ms ultra-low latency.
AIM+ Multi-Layer Anti-Jamming
AIM+/IONO+/Lock+/APME+/RAIM+ for stable positioning in complex environments.
Rich Communication Interfaces

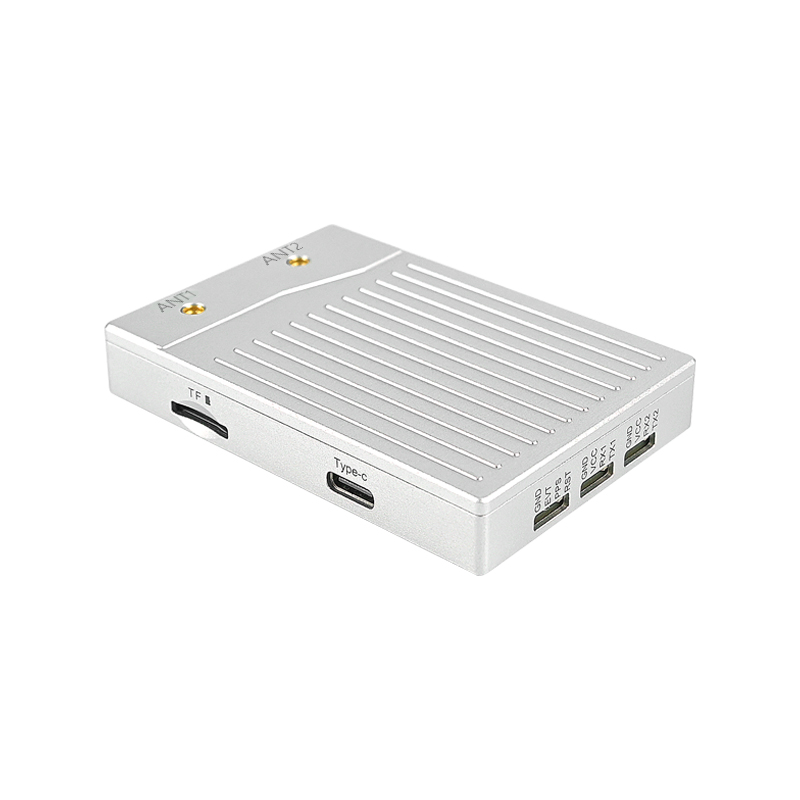

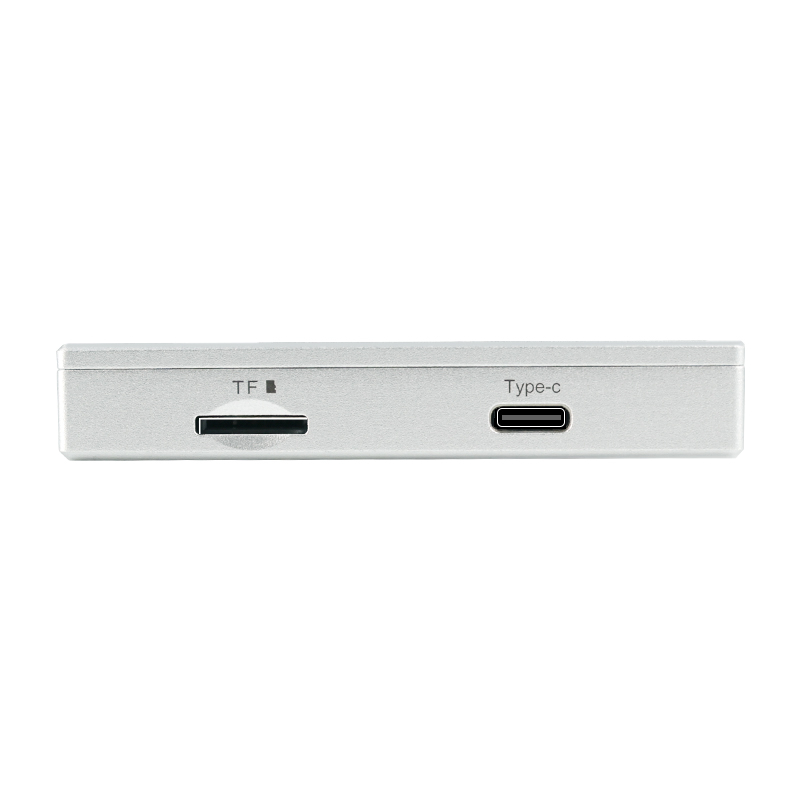

3×UART, Ethernet, Type-C, TF card slot for flexible integration.
High Integration Miniature Design
Built-in TCXO, LNA, 32GB TF card slot, compact 74×50×12.6mm size.
Base/Rover Dual-Mode
Flexible switching between base station and rover station modes.
Industrial-Grade Reliability
-40℃~+85℃ wide temperature, 4.5~12V wide voltage input.
Advanced Security
Supports OSNMA anti-spoofing, interference monitoring & spectrum measurement.
Jumpstar P-Box-X10
Multi-Constellation Triple-Frequency GNSS Receiver
The P-Box-X10 is a high-performance multi-frequency, multi-constellation GNSS receiver with 544 hardware channels and dual-antenna heading capability. It delivers centimeter-level RTK positioning and high-precision attitude output without relying on magnetic sensors, performing reliably under both static and dynamic conditions.
Equipped with industrial-grade AIM+ anti-jamming and anti-spoofing technology, it ensures stable operation in complex electromagnetic environments. It integrates TCXO, LNA and a 32GB TF card slot, and features rich interfaces including Ethernet, triple UART and Type-C. Supporting both base station and rover station modes, it is widely used in drones, precision agriculture, autonomous robots, autonomous driving and other high-precision positioning fields.
544 channels, triple-band, dual-antenna heading, 100Hz RTK, AIM+ anti-jamming, and rich interfaces make P-Box-X10 an ideal high-performance GNSS module.
.jpg?imageMogr2/format/webp)
Key Features & Benefits
-
Superior 544-Channel Signal Processing Adopts high-performance chips with over 2 million effective correlators; 544 hardware channels track all visible satellite signals simultaneously.
-
Triple-Band Full-Constellation Compatibility Supports triple-frequency signals of GPS, BDS, GLONASS, Galileo, QZSS, NavIC and SBAS for global coverage.
-
Dual-Antenna High-Precision Attitude Output Provides heading & pitch/roll information; heading accuracy 0.15°@1m baseline, 0.03°@5m baseline (RMS).
-
High-Speed & Low-Latency Performance Max 100Hz position/observation update rate; <10ms ultra-low latency; stable signal tracking under high vibration and rapid movement.
-
Multi-Dimensional Anti-Jamming & Anti-Spoofing AIM+ interference suppression; IONO+ ionospheric scintillation mitigation; APME+ multipath suppression; OSNMA anti-spoofing; RAIM+ integrity monitoring.
-

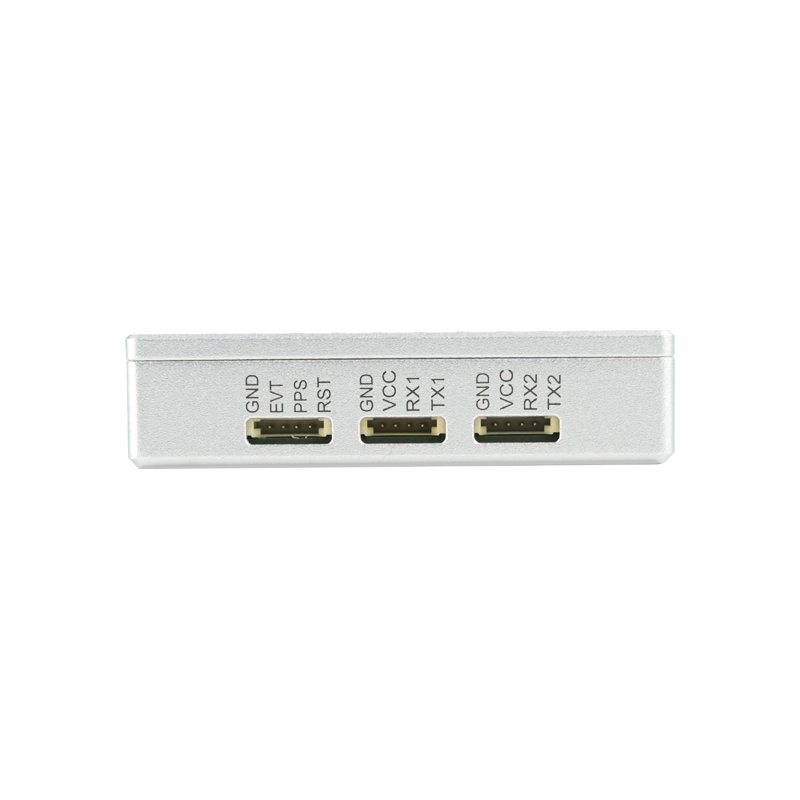

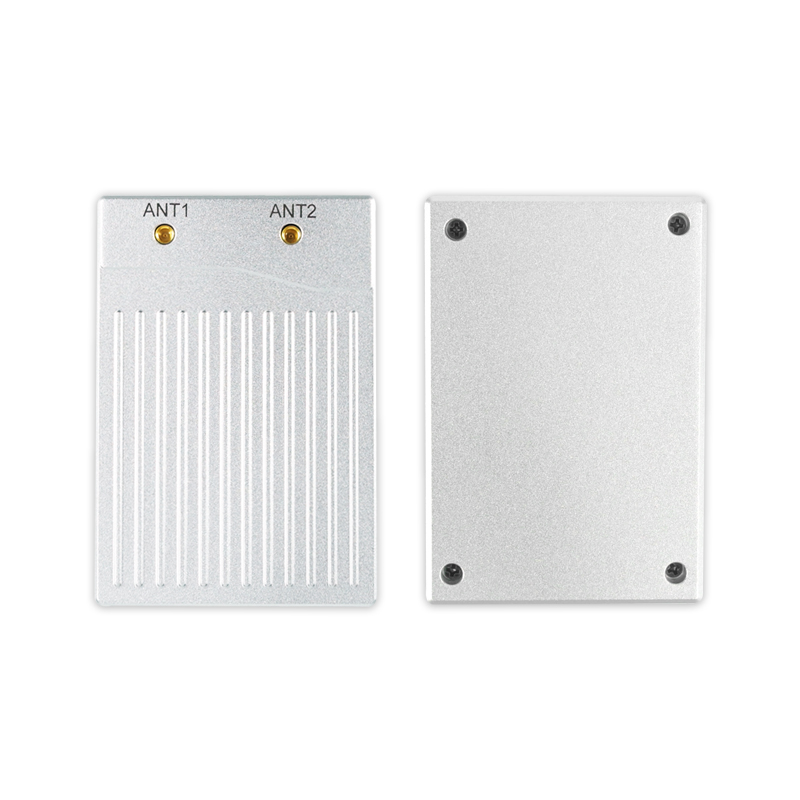

Rich & Flexible Interfaces Equipped with 3×UART, Ethernet, Type-C, 1PPS, EVENT, dual RF antenna ports and TF card slot.
-
Industrial-Grade Environmental Adaptability Operating temperature -40℃~+85℃; wide voltage input 4.5~12V; 2000V ESD protection for harsh environments.
.jpg?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Product Type | Multi-Constellation Triple-Frequency GNSS Receiver (Dual-Antenna) |
| Hardware Channels | 544 channels |
| Supported GNSS Signals | GPS: L1 C/A, L1C, L2C, L2P(Y), L5; BDS: B1I, B1C, B2a, B2I, B3I; GLONASS: L1 C/A, L2C/A, L3, L2P; Galileo: E1, E5a, E5b; QZSS, NavIC, SBAS triple-frequency |
| Sensitivity | Tracking: 20 dB-Hz; Acquisition: 33 dB-Hz |
| Time to First Fix | Cold start; Warm start; Reacquisition ≤1s |
| Positioning Accuracy | RTK Horizontal: 0.6cm+0.5ppm; Standalone: 1.2m; Velocity: 0.03m/s |
| Heading/Attitude Accuracy | 0.15° heading & 0.25° attitude @1m baseline; 0.03° heading & 0.05° attitude @5m baseline (RMS) |
| Timing Accuracy | xPPS: 5ns; Event: <20ns |
| Data Update Rate | Position/Observation: 100Hz; Default: 1Hz |
| Transmission Delay | 99.9% <10ms |
| Supported Protocols | NMEA 0183 v3.01/v4.0, SBF, RTCM 2.x/3.x, RINEX 2.x/3.x, CMR v2.0, CMR+ |
Electrical & Mechanical

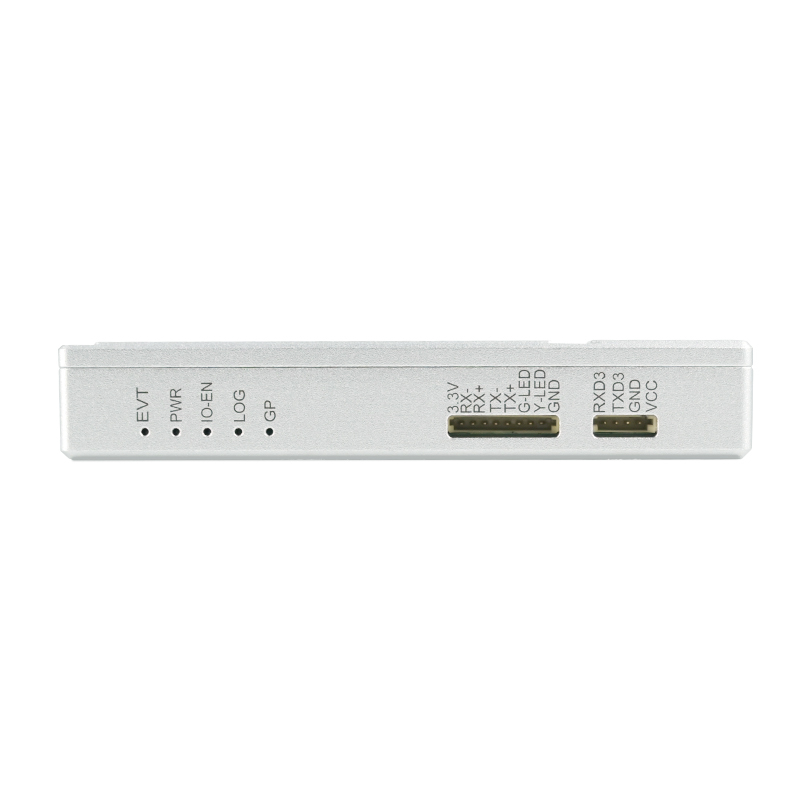

| Interfaces | 3×UART, Ethernet, Type-C, 1PPS, EVENT, ANT1/ANT2, TF card slot |
| Operating Voltage | 4.5~12.0V DC (3.3V also supported) |
| Operating Current | Capture: 320~420mA@5V; Tracking: 310~360mA@5V |

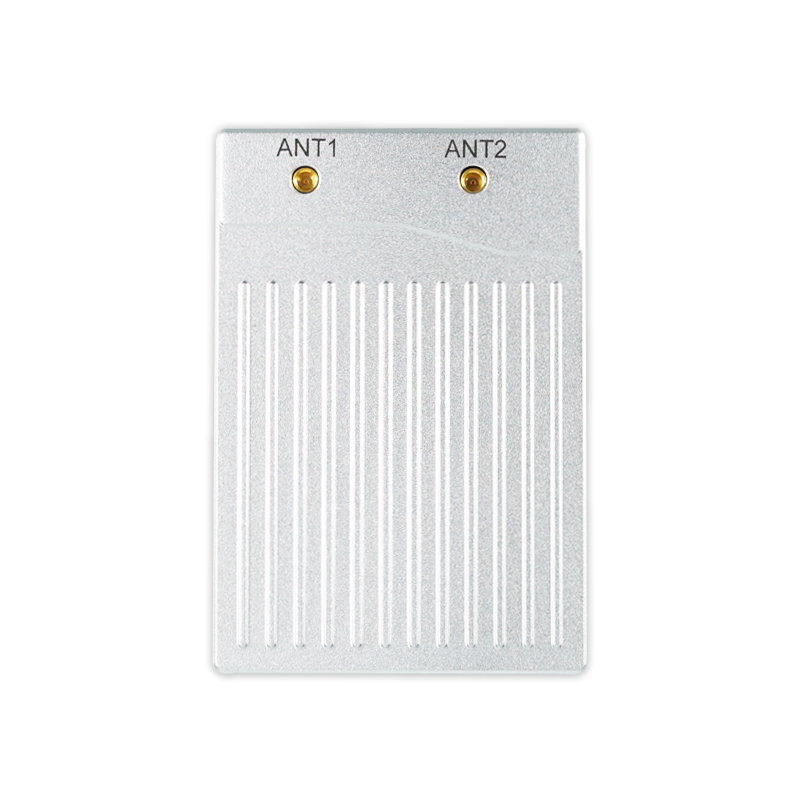

| Antenna | Dual RF ports; Bias voltage: 3.0~5.5V; Max antenna current: 150mA@5V |
| Dimensions | 74×50×12.6mm ±0.3mm |
| Weight | 67.50g ±0.02g |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -55℃~+85℃ |
| Humidity | 5%~95% non-condensing |
| Special Functions | AIM+ anti-jamming, OSNMA anti-spoofing, IONO+ mitigation, APME+ multipath suppression, TF logging, dual-antenna heading |
Typical Applications
Unmanned Aerial Vehicles (UAVs)
High-precision positioning and heading for drones, aerial surveying and mapping
Precision Agriculture & Positioning Services
Automated guidance, precision farming and field mapping with heading
Geodetic Surveying & Mapping
Professional land surveying, GIS data collection and geodetic measurement
Driving Test & Vehicle Calibration
Vehicle tracking with heading for driving schools and vehicle testing
Intelligent Logistics Scheduling
Asset tracking, warehouse automation and supply chain visibility
Autonomous Robots & AGVs
Autonomous navigation for robots, AGVs with precise heading control
Vehicle-Mounted Positioning Equipment
High-precision navigation and heading for vehicles, fleet management
Geographic Surveying & Monitoring
Environmental monitoring, land surveying and geographic data collection
Precision Industrial Control
High-precision control and automation with real-time heading feedback
Autonomous Driving & Assisted Driving
High-precision positioning and heading for ADAS and autonomous vehicles
Resources & Downloads
P-Box-X10 Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and pad layout (74×50×12.6mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (74×50×12.6mm).
