P-Box-X6_Pro S
Surveying RTK Rovers
Jumpstar P-Box-X6_Pro S Multi-Constellation Multi-Frequency GNSS Receiver – Built-in 4G, 448 Channels, RTK Centimeter-Level Positioning & Heading Module
448 Hardware Channels
Simultaneously track all visible satellite signals for full-coverage positioning.
Built-in 4G Module
Global full-network compatible, embedded RTK NTRIP account for RTCM data transmission.
Ultra-High Update Rate
100Hz measurement output, <10ms ultra-low latency for high-dynamic scenarios.
Multi-Layer Anti-Jamming
AIM+/IONO+/Lock+/APME+/RAIM+ for stable positioning in complex environments.
Centimeter-Level RTK Accuracy
Horizontal 0.6cm±0.5ppm, vertical 1cm+1ppm high precision.
Single/Dual Antenna Versions
S1 (single-antenna positioning); S2 (dual-antenna high-precision heading).
High Integration
Built-in TCXO, LNA, 32GB TF card slot, compact embedded design.
Full Protocol Support
NMEA 0183, SBF, RINEX, RTCM 3.x, CMR/CMR+ standard protocols.
Industrial-Grade Reliability
-40℃~+85℃ wide temperature, 4.5~12V wide voltage input.
Advanced Security
Supports OSNMA anti-deception, interference monitoring & spectrum measurement.

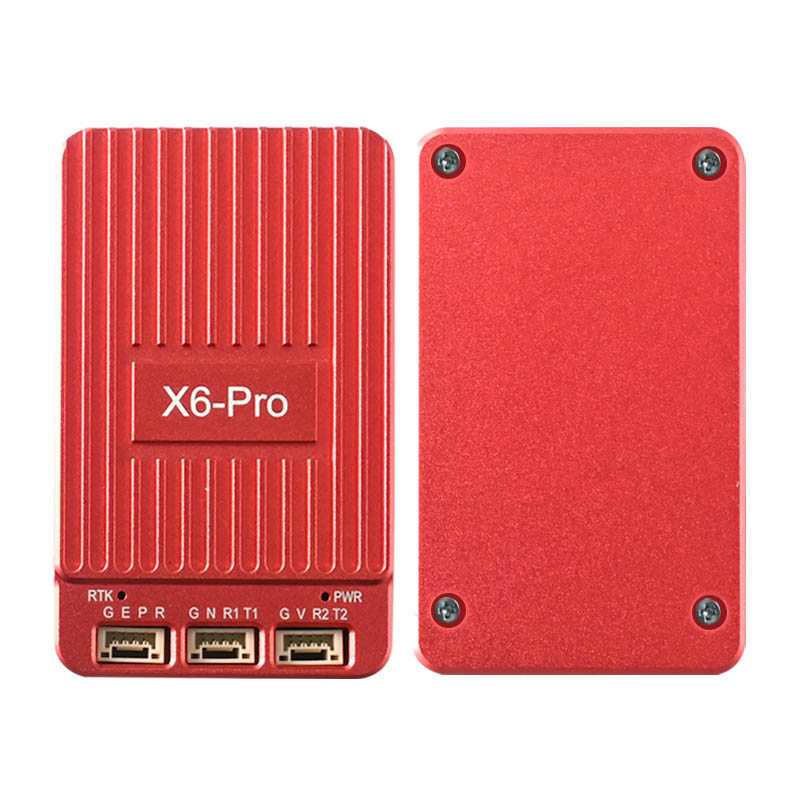

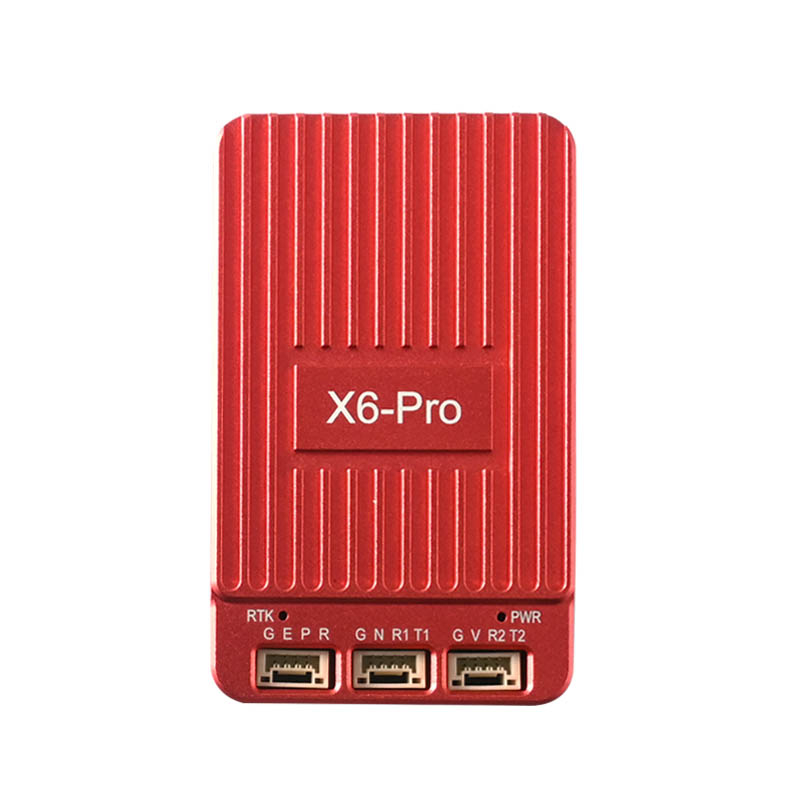

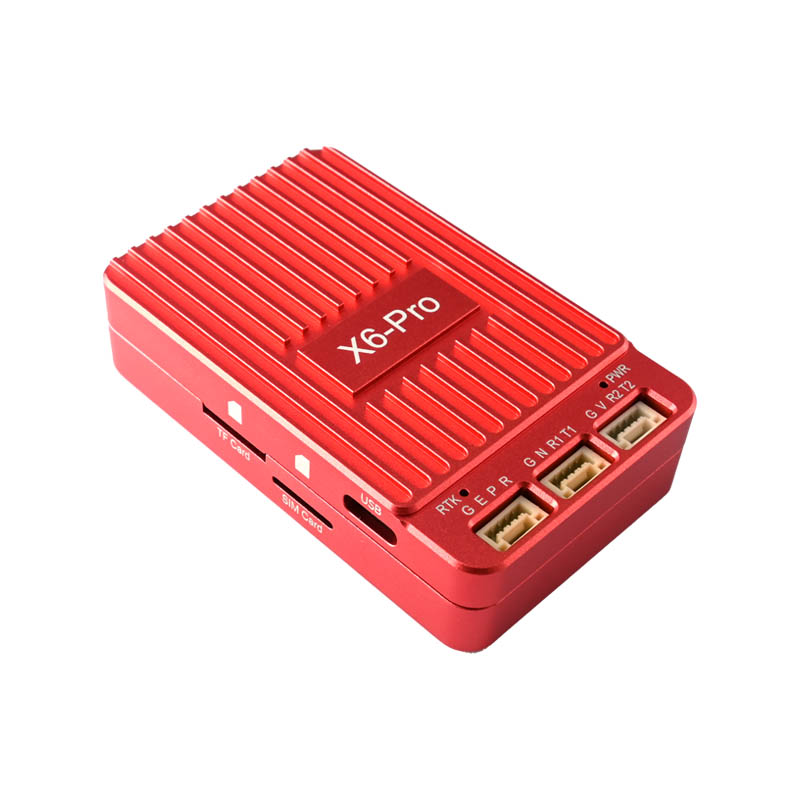

Jumpstar P-Box-X6_Pro S
Multi-Constellation Multi-Frequency GNSS Receiver
The P-Box-X6_Pro S is an innovative multi-frequency, multi-constellation GNSS receiver with rich data interfaces and a built-in 4G module for RTCM differential data transmission. It is equipped with 448 hardware channels to track all global navigation satellite system signals, and adopts unique AIM+ anti-jamming technology for excellent performance in complex electromagnetic environments.
It supports two versions (S1 single-antenna, S2 dual-antenna) and provides centimeter-level RTK positioning and high-precision heading output. With high integration, compact size and industrial-grade performance, it is widely used in drones, autonomous robots, precision control, autonomous driving and other high-precision positioning fields.
448 channels, built-in 4G, 100Hz RTK, AIM+ anti-jamming, and dual-antenna heading options make P-Box-X6_Pro S an ideal high-performance GNSS module.
.jpg?imageMogr2/format/webp)
Key Features & Benefits
-
Superior Signal Processing Capacity Adopts high-performance chips with 448 hardware channels, tracking all visible satellite signals simultaneously for faster and more stable positioning.
-
Built-in 4G Full-Network Communication Integrates global 4G module, supports embedded RTK account configuration, and realizes wireless RTCM differential data transmission via SMS.
-
High-Speed & Low-Latency Performance 100Hz position/measurement update rate; <10ms ultra-low latency; smoothly tracks signals under high-frequency vibration and rapid movement.
-
Multi-Dimensional Anti-Jamming Technology AIM+ interference detection & suppression; IONO+ ionospheric scintillation suppression; APME+ multipath suppression; RAIM+ receiver integrity monitoring.
-
Ultra-High Precision Positioning & Heading RTK horizontal accuracy 0.6cm±0.5ppm; dual-antenna heading accuracy up to 0.03°@5m baseline; initialization time <7s.
-

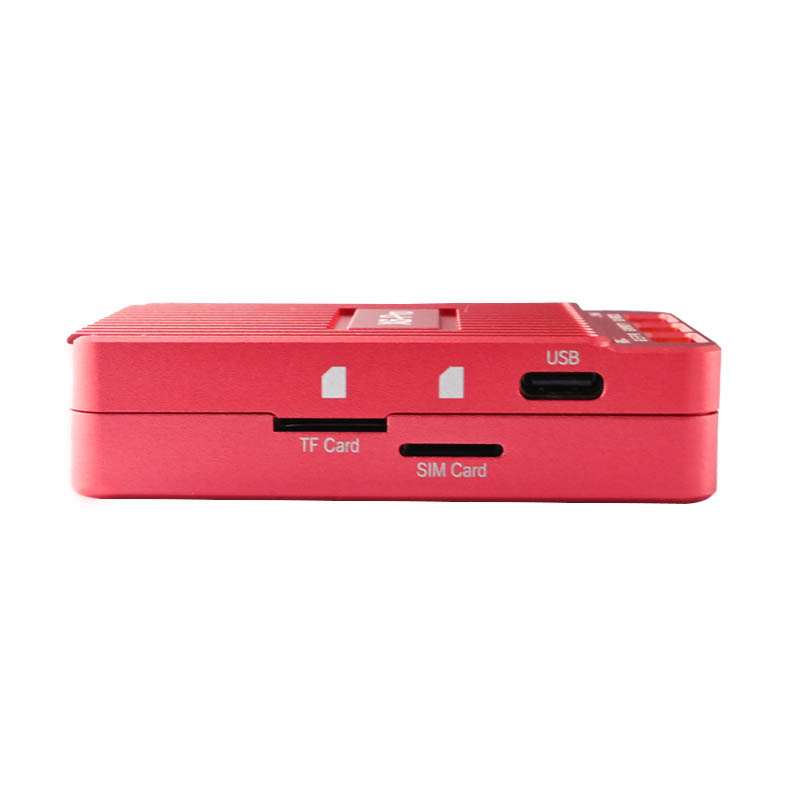

Highly Integrated Compact Design Built-in TCXO, LNA and 32GB TF card slot; size 68.4×41.8×17.3mm, suitable for space-constrained integration.
-
Industrial-Grade Environmental Adaptability Operating temperature -40℃~+85℃; wide voltage input 4.5~12V; electrostatic protection 2000V for harsh environments.
.jpg?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Product Type | Multi-Constellation Multi-Frequency GNSS Receiver (S1: Single Antenna; S2: Dual Antenna) | |
| Hardware Channels | 448 channels | |
| Supported GNSS Signals | GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS multi-frequency signals | GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS multi-frequency signals |
| Sensitivity | Tracking & navigation: 20 dB-Hz; Acquisition: 33 dB-Hz | |
| Time to First Fix | Cold start <45s; Warm start <20s; Recapture 1s | |
| Positioning Accuracy | RTK: Horizontal 0.6cm±0.5ppm, Vertical 1cm+1ppm; Standalone: 1.2m | |
| Heading/Attitude Accuracy (S2) | 0.15° heading & 0.25° attitude @1m baseline; 0.03° heading & 0.05° attitude @5m baseline | |
| Data Update Rate | Position/Measurement: 100Hz; RTK+Attitude: 20Hz | |
| Time Accuracy | xPPS output: 5ns; Event accuracy: <20ns | |
| Speed Accuracy | 0.03m/s | |
| Supported Protocols | NMEA 0183, SBF, RINEX, RTCM 2.x/3.x, CMR v2.0, CMR+ |
Electrical & Mechanical
| 4G Module | EG25-G, global full-band, LTE-FDD/TDD, UMTS, GSM |
| Operating Voltage | 4.5~12.0V DC (Typical 5V) |
| Operating Current | Capture: 220~1500mA@5V; Tracking: 220~1500mA@5V |

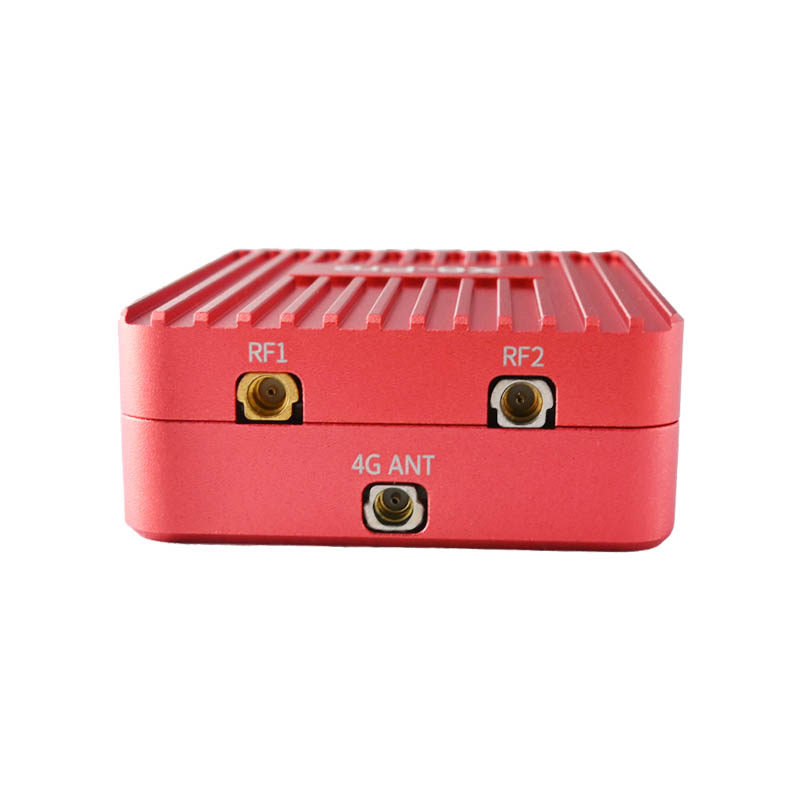

| Interfaces | 2×UART, USB, RF1/RF2, 4G ANT, 1PPS, EVENT, RESET |
| Antenna | Pre-amplification: 15~50dB; Bias voltage: 3.0~5.5V |
| Dimensions | 68.4×41.8×17.3mm ±0.3mm |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -45℃~+85℃ |
| Special Functions | 4G RTCM transmission, OSNMA anti-deception, TF card logging, anti-jamming, heading output |
Typical Applications
Unmanned Aerial Vehicles (UAVs)
High-precision positioning and heading for drones, aerial surveying
Geodetic surveying and mapping
Professional land surveying, GIS data collection and geodetic measurement
Vehicle-mounted high-precision positioning
High-precision navigation for vehicles, fleet management and telematics
Intelligent logistics scheduling & smart city
Asset tracking, warehouse automation and supply chain visibility
High-precision personnel positioning
Real-time location tracking for first responders and field personnel
Intelligent construction & engineering monitoring
Precision monitoring for construction and infrastructure projects
Autonomous robots & AGVs
Autonomous navigation for robots, AGVs and logistics automation
Geological disaster monitoring
Landslide, subsidence and structural health monitoring with mm-level precision
Precision industrial control
High-precision control and automation in industrial environments
Autonomous driving & assisted driving
High-precision positioning and heading for ADAS and autonomous vehicles
Resources & Downloads
P-Box-X6_Pro S Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and pad layout (68.4×41.8×17.3mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (68.4×41.8×17.3mm).
