JS-168AP-H Multi-GNSS L1 Positioning Module – Cost-Effective, Low-Power, Dual-Mode GNSS Module with High Sensitivity, Fast Acquisition, and Robust Interference Suppression.
High-Performance GNSS SOC
Build on high performance GNSS SOC with ARM Cortex-M4F processor and cache controller.
Multi-Constellation Tracking
Receive GPS+BDS/GLONASS+Galileo at the same time, supports A-GNSS.
112 High-Speed Channels
88 acquisition channels + 24 tracking channels for fast satellite signal capture.
Integrated Design & Protection
Integrated TCXO, LNA, SAW, RTC; antenna short circuit protection and open circuit detection.
Wide Application Compatibility
Supports NMEA 0183 V4.0/V4.1, up to 5Hz update rate, compact size 50.2×39.2×19.2mm.

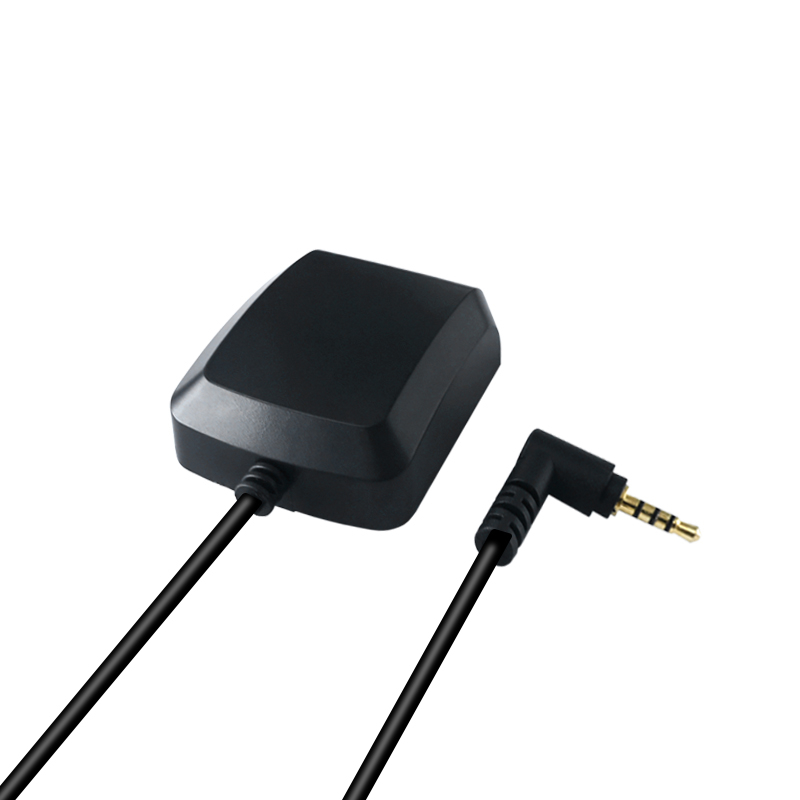

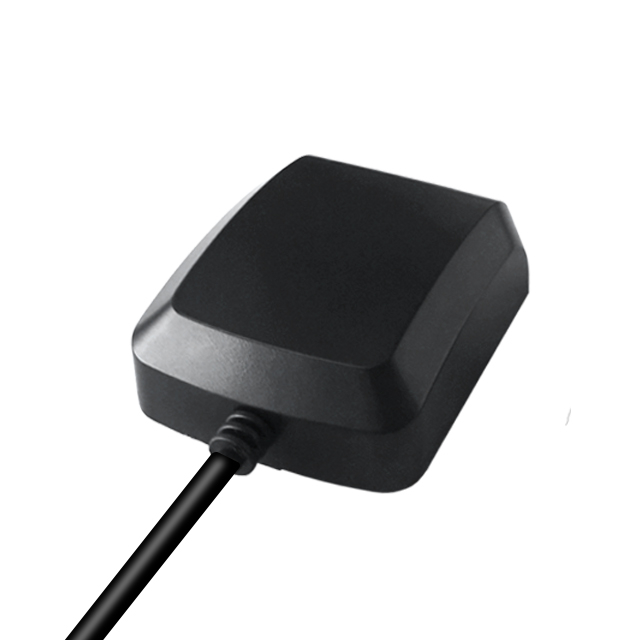

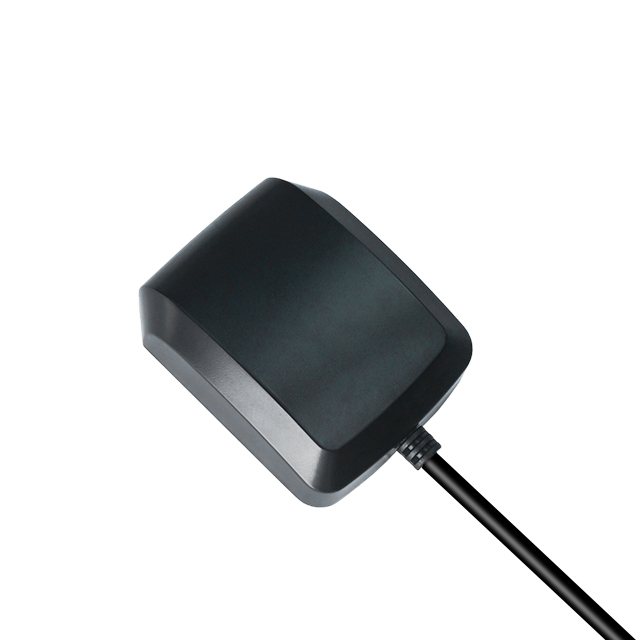

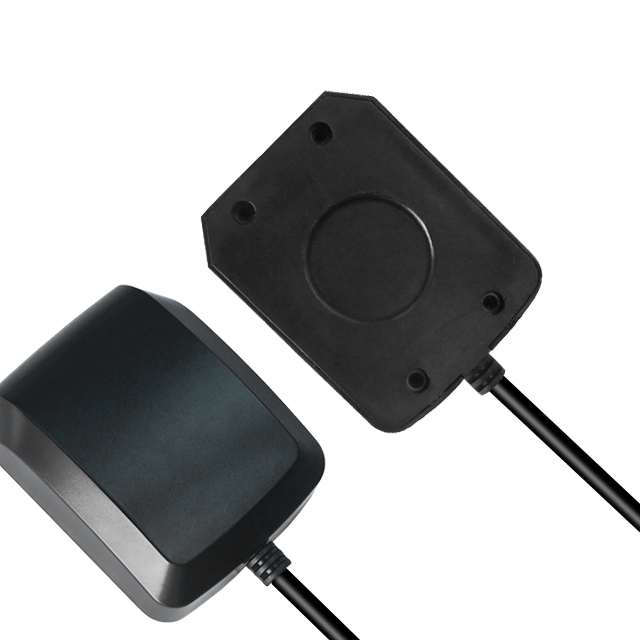

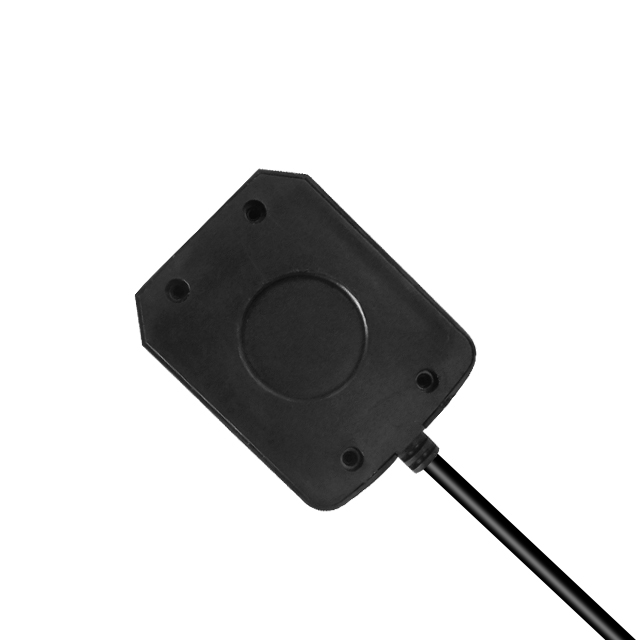

Jumpstar JS-168AP-H
Multi-GNSS Positioning Module
The JS-168AP-H uses dual mode solution, low power consumption, low cost, the JS-168AP-H are multi-GNSS (BDS, GPS, GLONASS, Galileo QZSS and SBAS) positioning module developed to meet the requirements of an extensive range of applications and end-products.
SOC based on the high performance position engine, these receivers provide exceptional sensitivity and acquisition times and interference suppression measures enable reliable positioning even in difficult signal conditions.
With 88 acquisition channels, 24 tracking channels, up to 5Hz navigation update rate, integrated TCXO/LNA/SAW/RTC, and compact size 50.2×39.2×19.2mm, JS-168AP-H is widely used in UAV, automotive application, marine navigation, intelligent robot and logistics scheduling.
Key Features & Benefits
-
High-Performance GNSS SOC Build on high performance GNSS SOC with ARM Cortex-M4F processor and cache controller.
-
112 High-Speed Channels 88 acquisition channels + 24 tracking channels for fast satellite signal capture.
-
Intelligent Interference Detection Intelligent interference detection and suppression for reliable positioning in difficult signal conditions.
-
Multi-Constellation Tracking Receive GPS+BDS/GLONASS+Galileo at the same time, supports A-GNSS.
-
All-In-One Integration Integrated TCXO, LNA, SAW, RTC; antenna short circuit protection and open circuit detection.
-
5Hz High-Speed Update Up to 5Hz navigation update rate (default 1Hz) for real-time dynamic positioning.
-
Compact & Space-Saving Compact size 50.2mm × 39.2mm × 19.2mm±0.3mm suitable for space-sensitive application.
-
Standard Protocol Support Support standard NMEA 0183 V4.0/V4.1 protocol for easy integration.
Technical Specifications
GNSS Performance
| Receiver Type | Multi-GNSS (BDS, GPS, GLONASS, Galileo, QZSS, SBAS) positioning module |
| Supported Constellations | GPS+BDS+GLONASS+Galileo+QZSS+SBAS (L1 band) |
| Channel Configuration | 88 acquisition channels + 24 tracking channels |
| Max Update Rate | Up to 5Hz (default 1Hz) |
| Supported Protocols | NMEA 0183 V4.0/V4.1 (Input/Output, ASCII) |
| A-GNSS Support | Supported |
Electrical & Mechanical
| Antenna Type | Passive antenna (25×25×4mm) |
| Pin Interfaces | VCC, DM, DP, GND (customizable) |
| Power Supply Voltage | 3.3V ~ 5.5V (Typical 5.0V) |
| Operating Current | Acquisition: 17~27mA@5V; Tracking: 12~24mA@5V |
| Backup Battery Current | 15µA @ 3.3V |
| Digital I/O Voltage | 3.3V |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 95% |
| Mechanical Dimensions | 50.2mm × 39.2mm × 19.2mm ±0.3mm |
| Compliance | RoHS compliant |
Typical Applications
UAV
Positioning & Navigation
Personnel Protective
Positioning & Navigation
Automotive Application
Positioning & Navigation
Car Navigation and Tracking
Positioning & Navigation
Marine Navigation, Fleet Management
Positioning & Navigation
Intelligent Robot
Positioning & Navigation
Intelligent Logistics Scheduling
Positioning & Navigation
