JS-N80UP-9
UAV / Helical Antennas

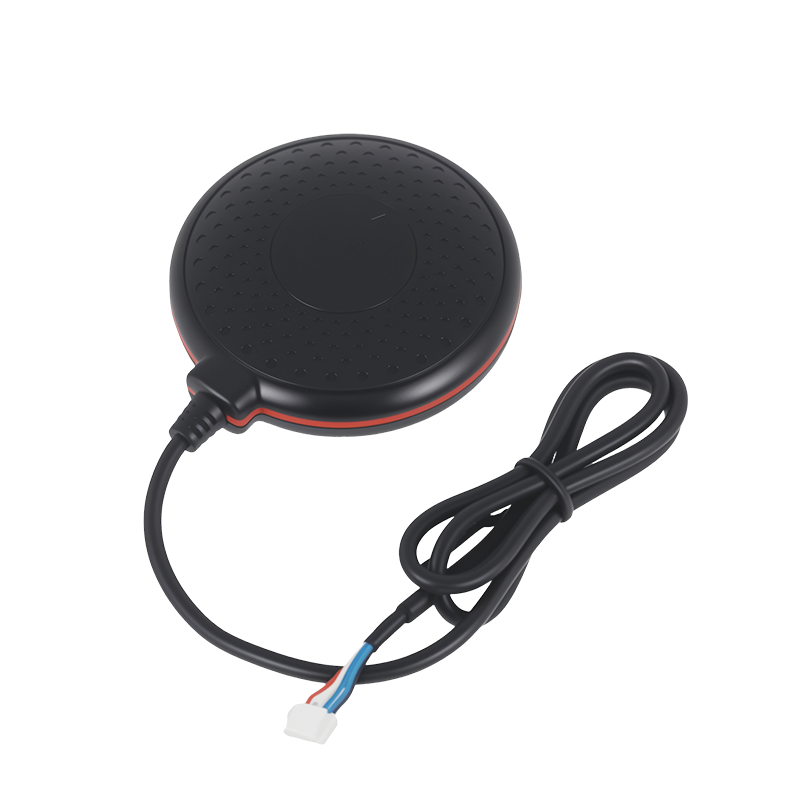

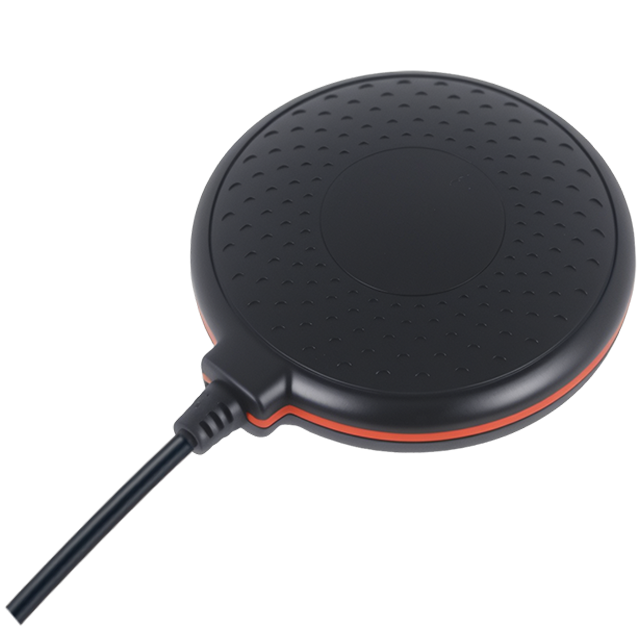

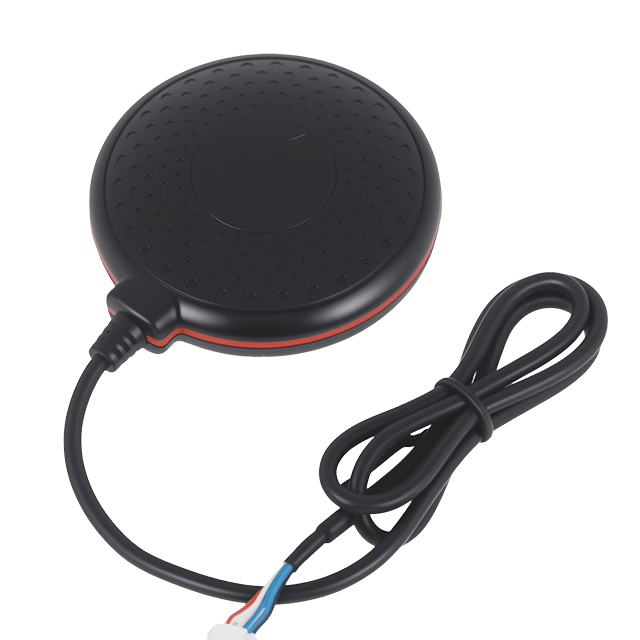

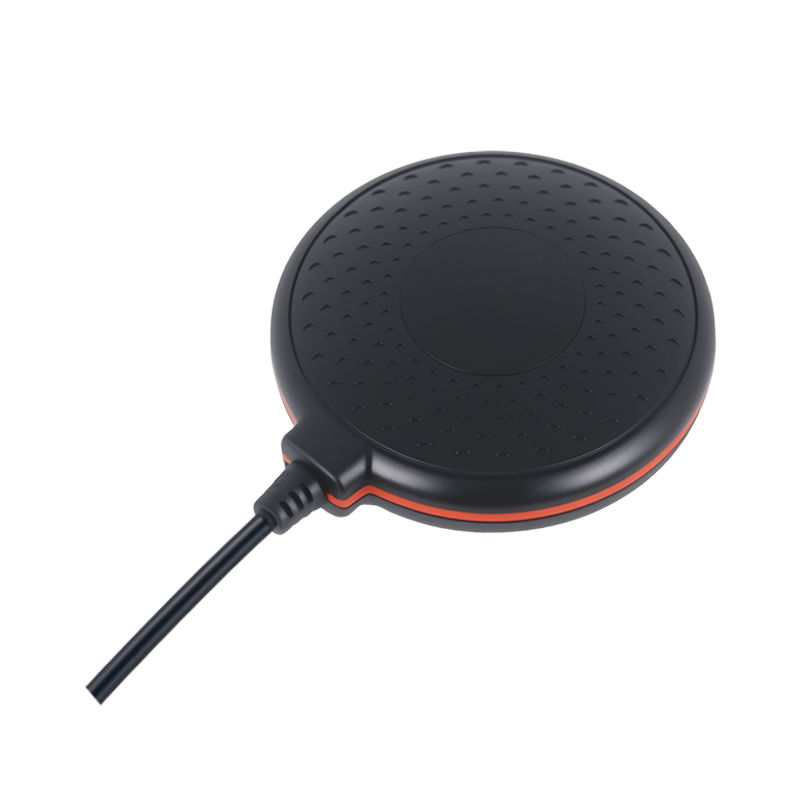

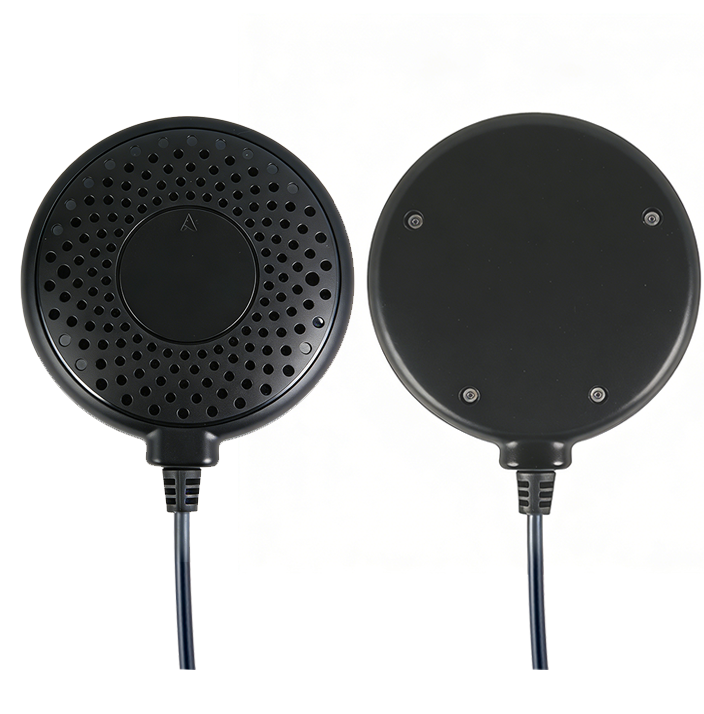

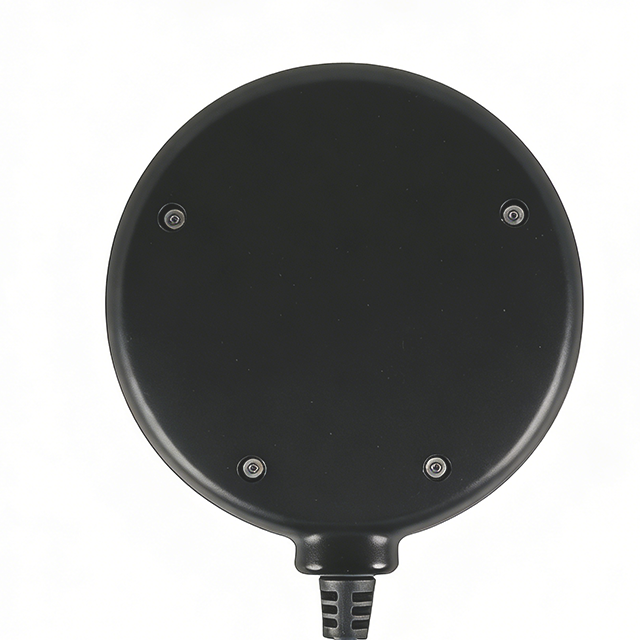

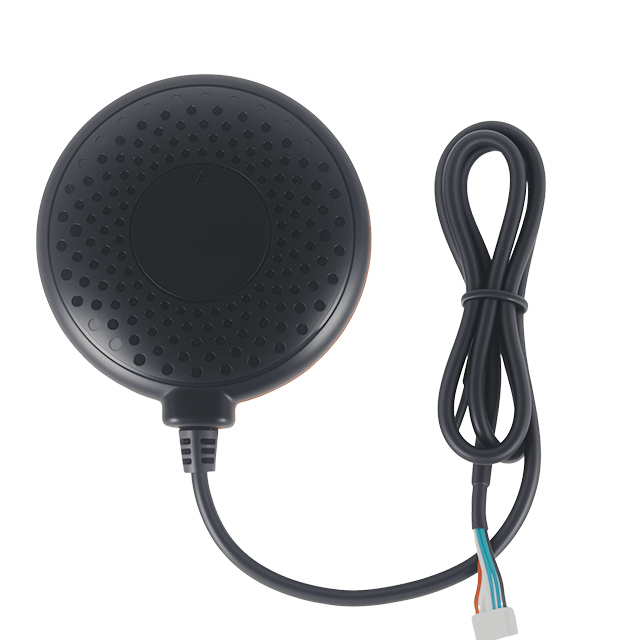

JS-N80UP-9 Multi-GNSS L1 Receiver – 25Hz Update, High Sensitivity, Multi-Interface (UART/CAN/RS232), Compass Support.
High-Performance GNSS SOC
Build on high performance GNSS SOC series for superior sensitivity and acquisition time.
Multi-Constellation Support
Supports GPS, BDS, GLONASS, Galileo, SBAS, QZSS; supports A-GNSS.
Ultra-High Sensitivity & 25Hz Update
Cold start -148dBm, tracking -167dBm; max navigation update rate up to 25Hz.
Integrated Design & Smart Power Control
Integrated TCXO, LNA, SAW, RTC; low power with intelligent power control, wide voltage range.
Compact Size & Rich Interfaces
Compact φ71mm×15mm±0.5mm; UART/CAN/RS232 optional, optional magnetometer/barometer/MCU.
Jumpstar JS-N80UP-9
GNSS Receiver
The JS-N80UP-9 receiver uses a standard precision GNSS platform to provide superior sensitivity and acquisition time for all L1 GNSS systems. The receivers come in different models and can be used for automotive and industrial tracking applications such as navigation, telematics and drones.
Supports up to 4 GNSS concurrent receive mode solutions with low power consumption and low cost. The large number of visible satellites allows the receiver to select the best signal. This maximizes positioning accuracy, especially in challenging conditions like canyons deep in the city.
Support for detecting interference and spoofing events and reporting them to the host, enabling the system to react to such events. Advanced filtering algorithms mitigate the effects of RF interference and interference, enabling the product to work properly.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
High-Performance GNSS SOC Build on high performance GNSS SOC series for superior sensitivity and acquisition time.
-
Multi-Constellation Support Supports GPS, BDS, GLONASS, Galileo, SBAS, QZSS; supports A-GNSS.
-
Ultra-High Sensitivity & 25Hz Update Cold start -148dBm, tracking -167dBm; max navigation update rate up to 25Hz.
-
Integrated Design & Smart Power Control Integrated TCXO, LNA, SAW, RTC; low power with intelligent power control, wide voltage range.
-
Compact Size & Integrated Antenna Compact φ71mm×15mm±0.5mm, integrated high-gain antenna, suitable for space-sensitive applications.
-
Rich Interface Options UART, CAN, RS232 optional; can be equipped with magnetometer, barometer, MCU, etc.
-
Protocol Support Supports NMEA 0183 V4.10 and UBX protocols.
.png?imageMogr2/format/webp)
Technical Specifications
GNSS Performance
| Receiver Type | Multi-GNSS (GPS/QZSS L1C/A, GLONASS L1OF, BDS B1I, Galileo E1-B/C, SBAS L1C/A) receiver |
| Supported Constellations | GPS, BDS, GLONASS, Galileo, SBAS, QZSS (up to 4 concurrent) |
| Sensitivity | Tracking & Navigation: -167dBm; Reacquisition: -160dBm; Hot Start: -159dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start: 24s; Hot Start: 2s |
| Horizontal Position Accuracy | PVT: 2.0m CEP (24h static, ≥6 SVs) |
| Time Pulse Signal Accuracy | RMS: 30ns; 99%: 60ns; Frequency: 0.25Hz~10MHz (configurable) |
| Velocity Accuracy | 0.05 m/s |
| Operational Limits | Dynamics ≤4g; Altitude 80000m; Velocity 500m/s |
| Dynamic Heading Accuracy | 0.3 deg |
| Baud Rate | 4800 ~ 921600bps (Default: 38400bps) |
| Max Update Rate | 25Hz |
| Supported Protocols | NMEA 0183 V4.10, UBX (binary, u-blox proprietary) |
| Interference Detection | Supports interference and spoofing detection/reporting |
Electrical & Mechanical
| Antenna Type | Passive antenna (φ44×4mm, default) |
| Pin Interfaces | GND, CANH/TXD, CANL/RXD, SDA, SCL, VCC (Main Supply) |
| Power Supply Voltage | 4.5V ~ 20.0V (Typical: 5.0V) |
| Operating Current | Acquisition: 36~55mA@5V; Tracking: 28~50mA@5V |
| Backup Battery | 0.07F |
| Backup Battery Current | 36µA @ 3.3V |
| Digital I/O Voltage | 3.3V |
| Storage Temperature | -40°C ~ +85°C |
| Operating Temperature | -40°C ~ +85°C (without Farad capacitor) |
| Farad Capacitor Temp. | -25°C ~ +60°C (hot start not available outside this range) |
| Humidity | 95% |
| Mechanical Dimensions | φ71mm × 15mm ±0.5mm |
| Compliance | RoHS compliant |
Typical Applications
Precision Agriculture
Positioning & Navigation
Automotive Application
Positioning & Navigation
Driving Test
Positioning & Navigation
Car Navigation and Tracking
Positioning & Navigation
AVL & Location-Based Services
Positioning & Navigation
Sports and Recreation
Positioning & Navigation
Timing Application
Positioning & Navigation
Marine Navigation, Fleet Management
Positioning & Navigation
