JS-N27UP36-9 Multi-GNSS L1 Module – Low Power, 25Hz Update, High Sensitivity (-167dBm), Integrated Antenna, Active/Passive Support.
High-Performance GNSS SOC
Build on high performance AUP36FG-9 with exceptional sensitivity and acquisition times.
98-Channel Multi-Constellation
49 acquisition + 49 tracking channels, supports GPS, BDS, GLONASS, Galileo.
Ultra-High Sensitivity & 25Hz Update
Cold start -148dBm, tracking -167dBm; navigation update rate up to 25Hz.
Integrated Design & Smart Power Control
Integrated TCXO, LNA, SAW, RTC; low power with intelligent power control, supports A-GNSS.
Compact Size & Rich Interfaces
Compact 52.0×52.0×14mm±0.3mm, integrated high-gain antenna, UART/CAN optional, supports NMEA 0183 & UBX.

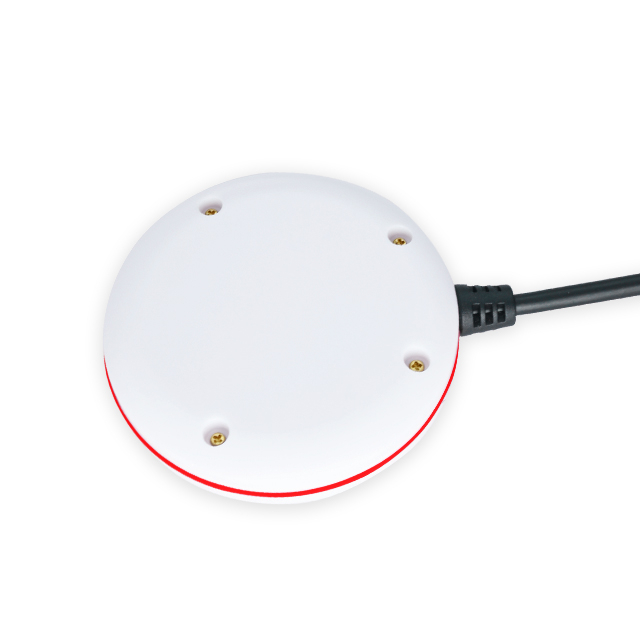

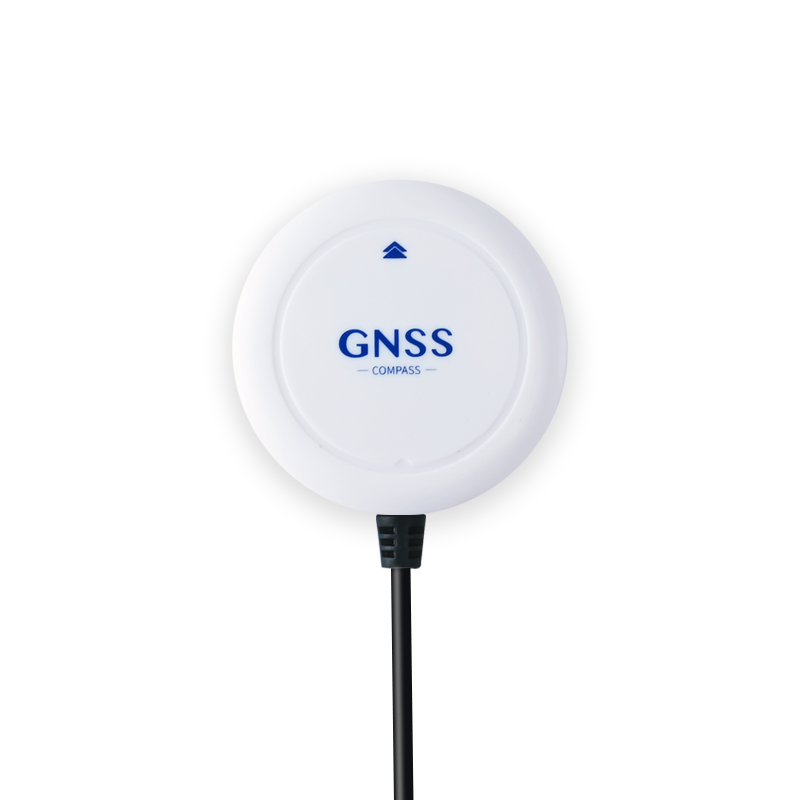

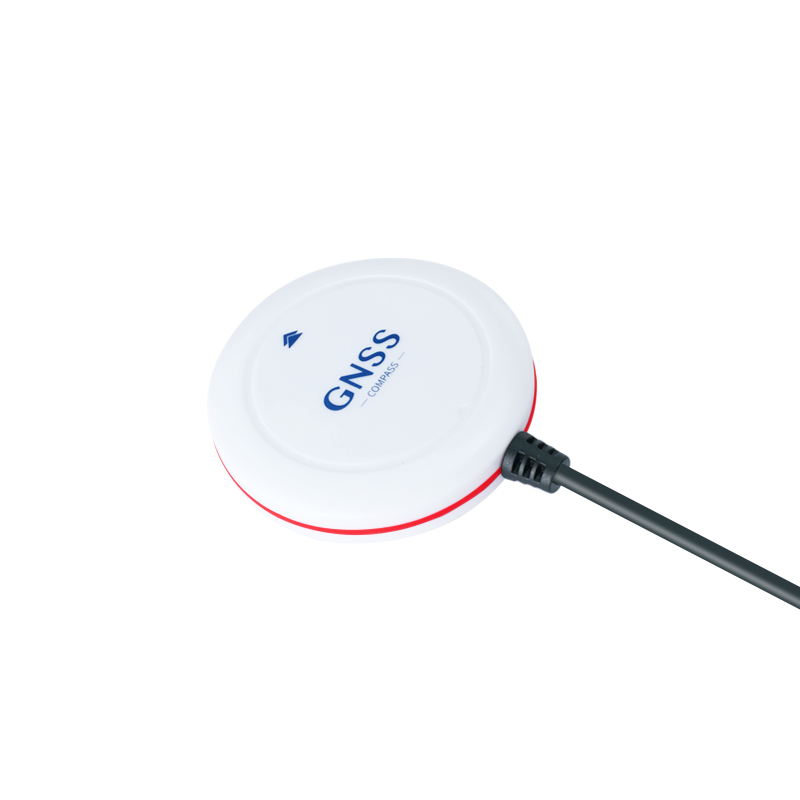

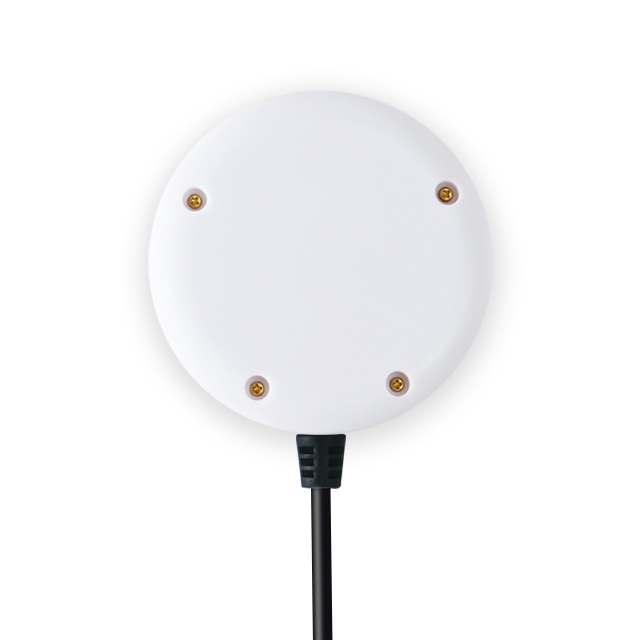

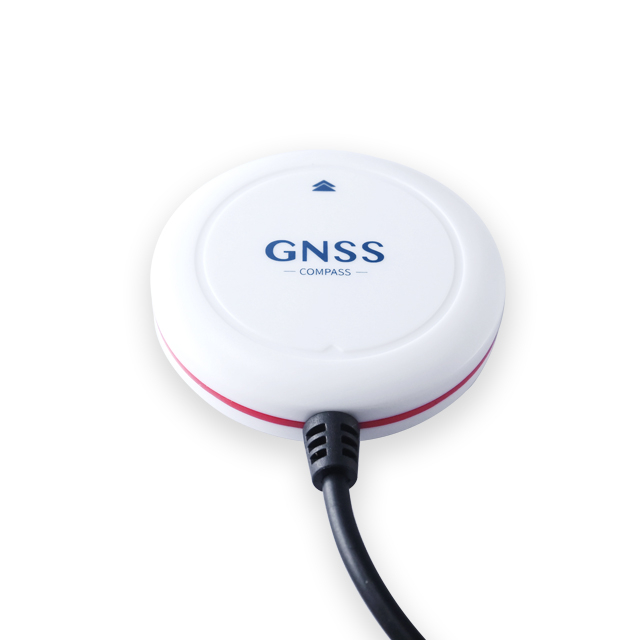

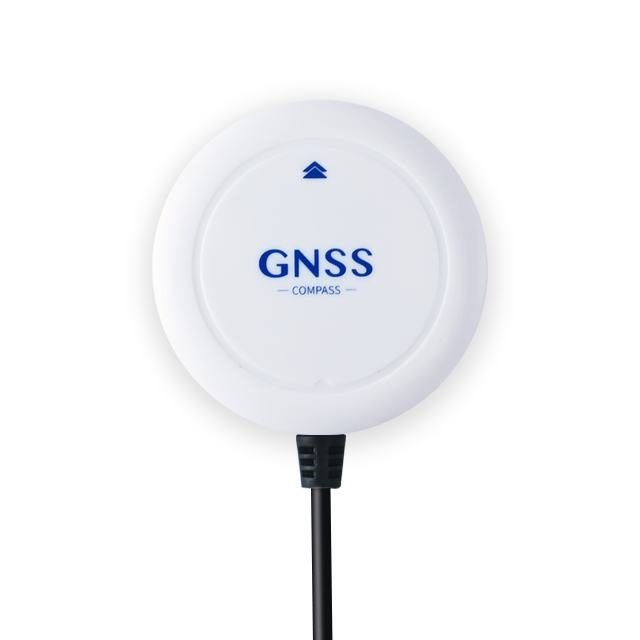

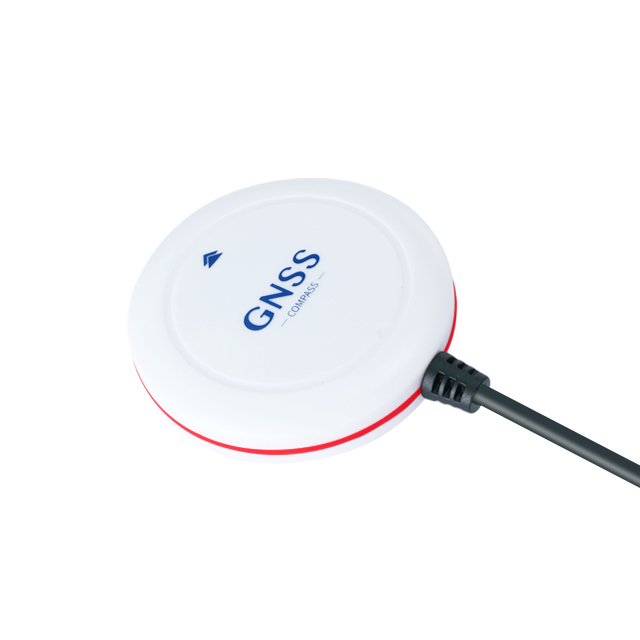

Jumpstar JS-N27UP36-9
Multi-GNSS Positioning Module
Featuring a multi mode solution, low power consumption and low costs, the JS-N27UP36-9 are multi-GNSS (GPS, BDS, GLONASS, Galileo) positioning Module developed to meet the requirements of an extensive range of applications and end-products.
Based on the high performance SOC position engine, these receivers provide exceptional sensitivity and acquisition times and interference suppression measures enable reliable positioning even in difficult signal conditions.
With 49 acquisition / 49 tracking channels, -167dBm tracking sensitivity, up to 10Hz update rate (default 5Hz), integrated TCXO/LNA/SAW/RTC, integrated high-gain antenna, intelligent power control, and compact size 52.0×52.0×14mm, JS-N27UP36-9 is widely used in handheld GPS, automotive, UAV, marine navigation, timing, and AVL applications.
Key Features & Benefits
-
High-Performance GNSS SOC Build on high performance GNSS SOC series for exceptional sensitivity and acquisition times.
-
98-Channel Multi-Constellation 49 acquisition + 49 tracking channels, supports GPS, BDS, GLONASS, Galileo.
-
Ultra-High Sensitivity Cold start -148dBm, tracking -167dBm for extreme weak-signal positioning.
-
Up to 10Hz Update Rate Max navigation update rate 10Hz (default 5Hz) for real-time dynamic positioning.
-
Integrated Design & A-GNSS Integrated TCXO, LNA, SAW, RTC; configurable I/O, supports A-GNSS.
-
Low Power & Integrated Antenna Low power with intelligent power control, integrated high-gain antenna, wide voltage supply.
-
Compact Size & Rich Interfaces Compact 52.0×52.0×14mm±0.3mm, UART/CAN optional, supports NMEA 0183 V4.11 & UBX.
Typical Applications
Handheld GPS Receiver Application
Positioning & Navigation
Automotive Application
Positioning & Navigation
Ideal for PDA, Pocket PC
Positioning & Navigation
Car Navigation and Tracking
Positioning & Navigation
AVL & Location-Based Services
Positioning & Navigation
Sports and Recreation
Positioning & Navigation
Timing Application
Positioning & Navigation
Marine Navigation, Fleet Management
Positioning & Navigation
