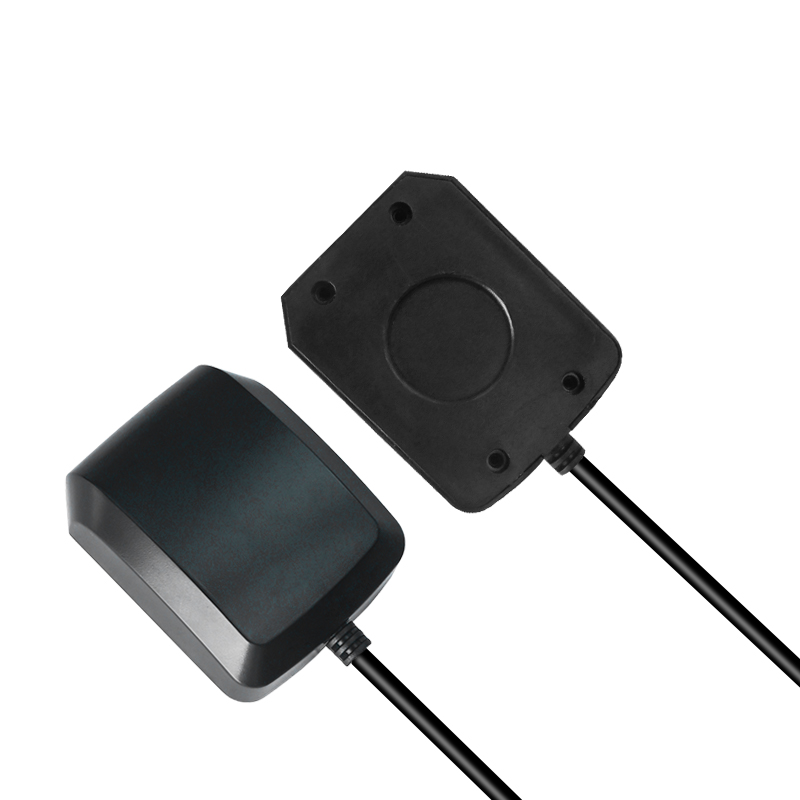

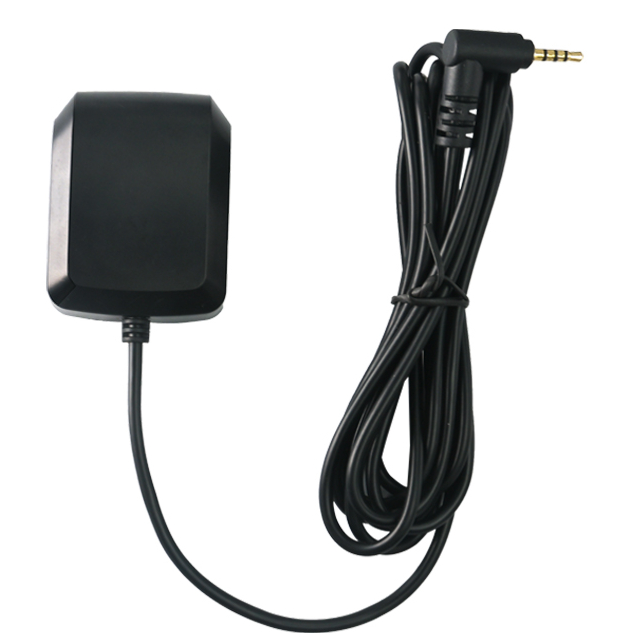

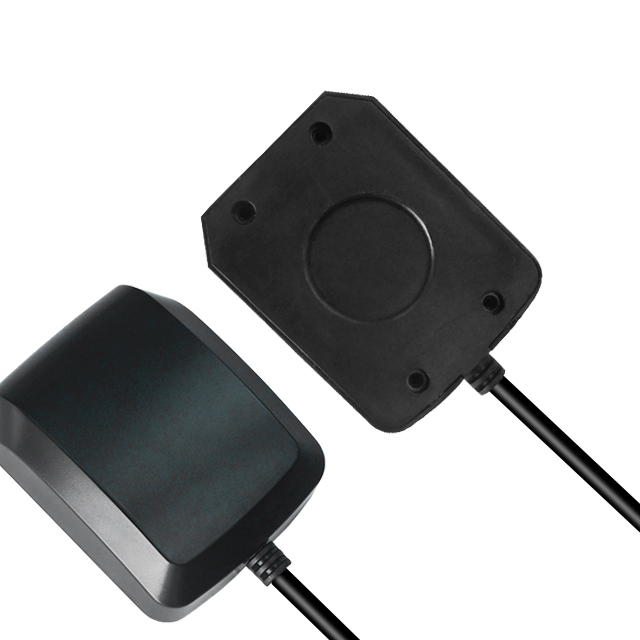

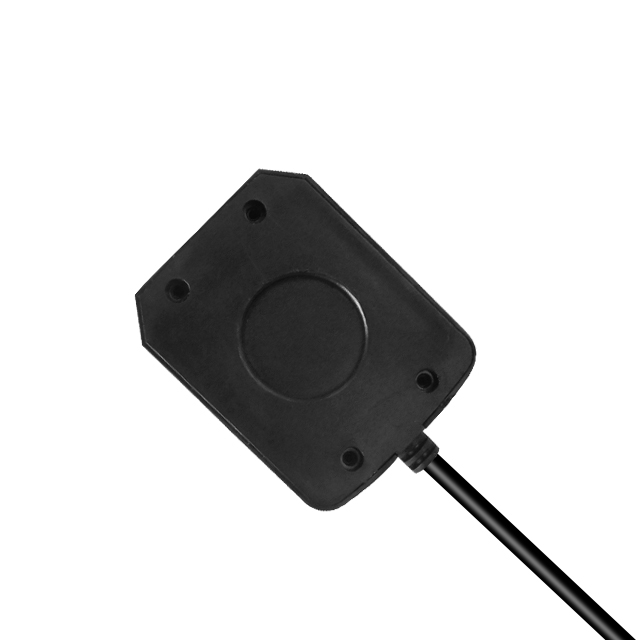

JS-168BAP-H Multi-GNSS L1 Positioning Module – Low-Power, Dual-Mode GNSS Module with 10Hz Update, High Sensitivity, and Passive Antenna Support.
Any Three Constellation Combinations
Support simultaneous reception of GPS+BDS/GLONASS+Galileo any three constellation combinations.
112 High-Speed Channels
88 acquisition-channel / 24 tracking for fast satellite signal capture.
10Hz High-Speed Update
Up to 10Hz navigation update rate (default 1Hz) for real-time dynamic positioning.
Integrated Design & Low Power
Integrated TCXO, LNA, SAW, RTC, ARM Cortex-M4F processor, low power consumption.
Compact & Space-Saving
Compact size 45.6mm × 38.2mm × 15.0mm±0.3mm suitable for space-sensitive application.
Jumpstar JS-168BAP-H
Multi-GNSS Positioning Module
The JS-168BAP-H uses dual mode solution, low power consumption, low cost, the JS-168BAP-H are multi GNSS (GPS, BDS, Galileo and GLONASS) positioning module developed to meet the requirements of an extensive range of applications and end-products.
Based on the high performance SOC series position engine, these receivers provide exceptional sensitivity and acquisition times and interference suppression measures enable reliable positioning even in difficult signal conditions.
With 88 acquisition channels, 24 tracking channels, up to 10Hz navigation update rate, integrated TCXO/LNA/SAW/RTC, ARM Cortex-M4F processor, and compact size 45.6×38.2×15.0mm, JS-168BAP-H is widely used in UAV, automotive application, marine navigation, intelligent robot and logistics scheduling.
Key Features & Benefits
-
High-Performance GNSS SOC Build on high performance GNSS SOC series with ARM Cortex-M4F processor and cache controller.
-
112 High-Speed Channels 88 acquisition channels + 24 tracking channels for fast satellite signal capture.
-
Intelligent Interference Detection Intelligent interference detection and suppression for reliable positioning in difficult signal conditions.
-
Any Three Constellation Combinations Support simultaneous reception of GPS+BDS/GLONASS+Galileo any three constellation combinations.
-
All-In-One Integration Integrated TCXO, LNA, SAW, RTC, low power consumption, supports AGPS.
-
10Hz High-Speed Update Up to 10Hz navigation update rate (default 1Hz) for real-time dynamic positioning.
-
Compact & Space-Saving Compact size 45.6mm × 38.2mm × 15.0mm±0.3mm suitable for space-sensitive application.
-
Standard Protocol Support Support standard NMEA 0183 V4.0/V4.1 protocol for easy integration.
Technical Specifications
GNSS Performance
| Receiver Type | Multi-GNSS (GPS, BDS, QZSS, SBAS) positioning module |
| Supported Constellations | GPS L1C/A, BDS B1I, QZSS L1C/A, SBAS L1C/A |
| Channel Configuration | 72 acquisition channels + 24 tracking channels |
| Sensitivity | Tracking & Navigation: -162dBm; Reacquisition: -159dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start: 28s; Hot Start: 1s |
| Horizontal Position Accuracy | Autonomous: 2.5m CEP; SBAS: 2.0m CEP |
| Time Pulse Signal Accuracy | RMS: 25ns; Frequency: 1Hz |
| Velocity Accuracy | GNSS: 0.1m/s; SBAS: 0.05m/s |
| Operational Limits | Dynamics ≤ 4g; Altitude ≤ 18000m; Velocity ≤ 515m/s |
| Baud Rate | 9600-460800bps (Default: 9600bps) |
| Max Update Rate | 5Hz (Default: 1Hz) |
| Supported Protocols | NMEA 0183 V4.0 (Input/Output, ASCII) |
| A-GNSS Support | Supported |
Electrical & Mechanical
| Antenna Type | Passive antenna (25×25×4mm) |
| Pin Interfaces | VCC (Power), TX (Data Output), GND (Ground) |
| Power Supply Voltage | 3.3V ~ 5.5V (Typical: 5.0V) |
| Operating Current | Acquisition: 50~59mA@5V; Tracking: 45~54mA@5V |
| Backup Battery | 0.07F |
| Backup Battery Current | 11µA @ 3.3V |
| Digital I/O Voltage | 3.3V ~ 5.5V |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 95% |
| Mechanical Dimensions | 45.6mm × 38.2mm × 15.0mm ±0.3mm |
| Compliance | RoHS compliant |
Typical Applications
UAV
Positioning & Navigation
Automotive Application
Positioning & Navigation
AVL & Location-Based Services
Positioning & Navigation
Marine Navigation, Fleet Management
Positioning & Navigation
Handheld GPS Receiver Application
Positioning & Navigation
Intelligent Logistics Scheduling
Positioning & Navigation
Personnel Protective
Positioning & Navigation
Car Navigation and Tracking
Positioning & Navigation
Resources & Downloads
JS-168BAP-A Datasheet
Complete specifications, pinout, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and product layout (45.6×38.2×15.0mm).
User Manual
Quick start guide, integration tips, and configuration protocols.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (45.6×38.2×15.0mm).
