JS-168BTP-2 Multi-GNSS L1 G-Mouse Receiver – Integrated Antenna, Low Power, 10Hz Update, High-Sensitivity Positioning Solution.
High-Performance GNSS SOC
Based on high-performance GNSS SOC series for exceptional sensitivity and acquisition times.
Multi-Constellation Support
Supports GPS, BDS, GLONASS, Galileo, QZSS and SBAS, supports AGPS.
10Hz High-Speed Update
Navigation update rate up to 10Hz (default 1Hz) for real-time dynamic positioning.
Integrated Design & Anti-Interference
Integrated TCXO, LNA, SAW, RTC; 12 multi-tone active interference cancellers; supports PPS output.
Compact & Protocol Support
Compact size 50.2mm × 39.2mm × 19.2mm±0.3mm; supports NMEA 0183 V3.01/V4.10.

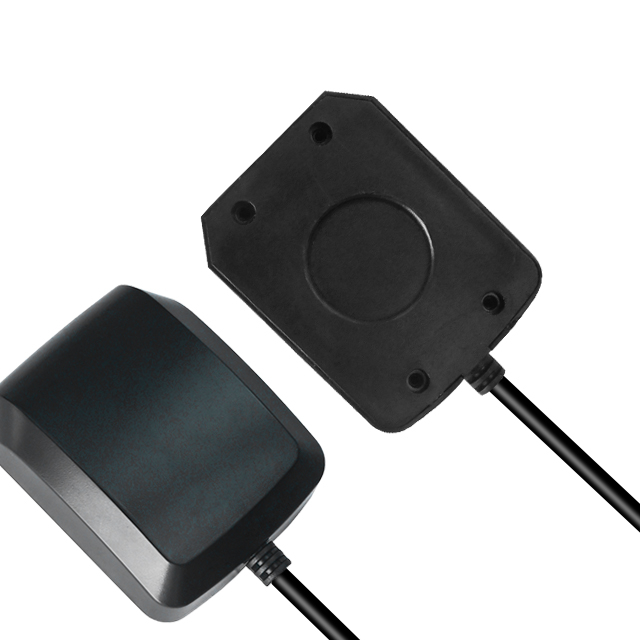

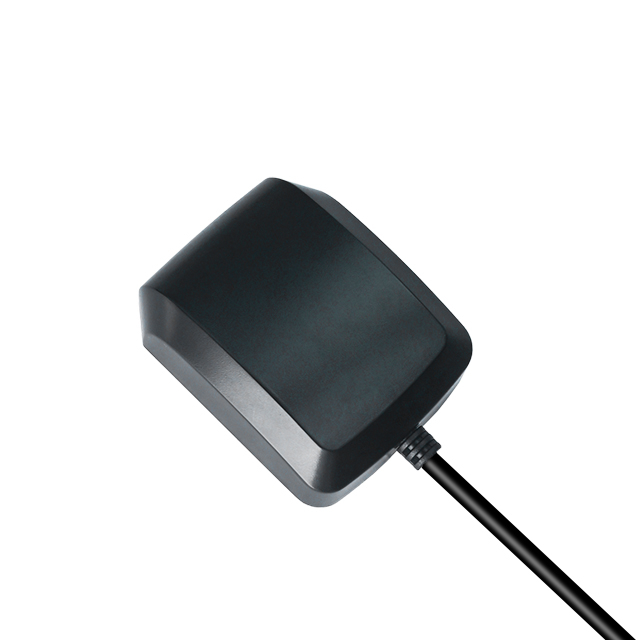

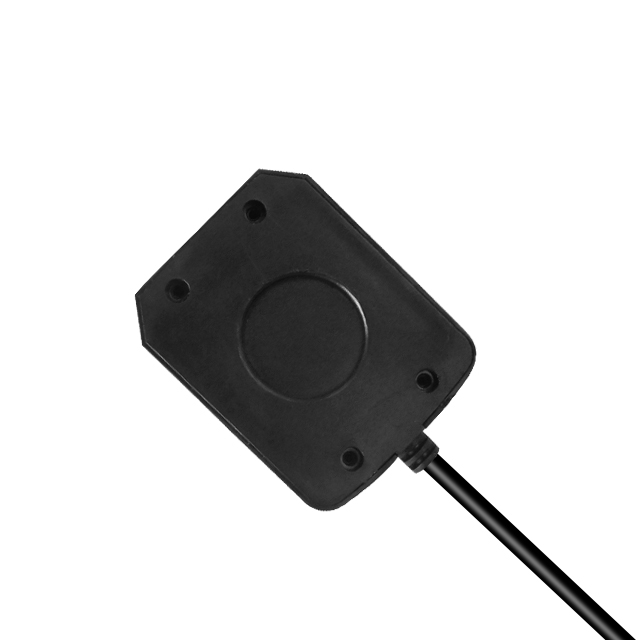

Jumpstar JS-168BTP-2
Standard Precision G-Mouse GNSS Receiver
The JS-168BTP-2 is a general-purpose precision positioning product that integrates an antenna and positioning module, employing a multi-mode single-frequency solution that supports several major constellations—GPS, BDS, GLONASS, Galileo, QZSS, and SBAS.
Based on a high-performance SOC position engine, this positioning module offers excellent sensitivity and acquisition time, features interference suppression measures, and can achieve reliable positioning even under difficult signal conditions.
This product is characterized by low power consumption, low cost, and high cost-effectiveness, and can be widely used in applications requiring meter-level positioning accuracy, such as shared mobility, outdoor sports positioning, park personnel/vehicle positioning, and logistics scheduling and tracking equipment.
Key Features & Benefits
-
High-Performance GNSS SOC Based on high-performance GNSS SOC series for exceptional sensitivity and acquisition times.
-
Multi-Constellation Support Supports GPS, BDS, GLONASS, Galileo, QZSS and SBAS, supports AGPS.
-
10Hz High-Speed Update Navigation update rate up to 10Hz (default 1Hz) for real-time dynamic positioning.
-
Advanced Anti-Interference Integrated 12 multi-tone active interference cancellers; indoor and outdoor multipath detection and compensation.
-
All-In-One Integration Integrated TCXO, LNA, SAW, and RTC; supports PPS output.
-
Compact & Space-Saving Compact size 50.2mm × 39.2mm × 19.2mm ±0.3mm suitable for space-sensitive applications.
-
Standard Protocol Support Supports standard NMEA 0183 V3.01/V4.10 protocol for easy integration.
Technical Specifications
GNSS Performance
| Receiver Type | General-purpose precision G-Mouse GNSS receiver with integrated antenna |
| Supported Constellations | GPS/QZSS L1C/L1C/A, GLONASS L1, BDS B1I/B1C, Galileo E1, SBAS (WAAS/EGNOS/MSAS/GAGAN) |
| Sensitivity | Tracking & Navigation: -165dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start: 24s; Warm Start: 1s |
| GNSS Positioning Accuracy | Horizontal: 2m; Vertical: 3.75m (CEP 50%) |
| Time Pulse Signal Accuracy | 1PPS: 10ns; Frequency: 1Hz |
| Speed Accuracy | GNSS: 0.1m/s; SBAS: 0.05m/s |
| Operational Limits | Acceleration: 4g; Altitude: 10,000m; Velocity: 100m/s |
| Baud Rate | 4800-921600bps (Default: 115200bps) |
| Max Update Rate | 10Hz (Default: 1Hz) |
| Supported Protocols | NMEA 0183 V3.01/V4.10 (Input/Output, ASCII) |
| A-GNSS / PPS Support | Supports AGPS and PPS output |
Electrical & Mechanical
| Antenna Type | Passive antenna (25.0×25.0×4.0mm) |
| Pin Interfaces | VCC (Power), TXD (Data Output), GND (Ground) |
| Power Supply Voltage | 3.3V ~ 5.0V (Typical: 5.0V) |
| Operating Current | Acquisition: 31~38mA@5V; Tracking: 30~35mA@5V |
| Backup Battery | 0.07F |
| Backup Battery Current | 11µA @ 3.3V |
| Digital I/O Voltage | 3.3V |
| Storage Temperature | -40°C ~ +85°C |
| Operating Temperature | -40°C ~ +85°C (without supercapacitor) |
| Farad Capacitor Temp. | -25°C ~ +60°C (hot start not available outside this range) |
| Humidity | 95% |
| Mechanical Dimensions | 50.2mm × 39.2mm × 19.2mm ±0.3mm |
| Compliance | RoHS compliant |
Typical Applications
Automotive Applications
Positioning & Navigation
Personnel Protection
Positioning & Navigation
Intelligent Logistics Scheduling
Positioning & Navigation
Ground Vehicle Tracking
Positioning & Navigation
Intelligent Robots
Positioning & Navigation
Urban Intelligent Traffic Management
Positioning & Navigation
Solo Travel & Wilderness Adventure
Positioning & Navigation
Emergency Lifesaving
Positioning & Navigation
