JS-168BWP-R Multi-GNSS L1 G-Mouse Receiver – Low Power, 5Hz Update, Dual-Mode GPS+BDS/GLONASS, Passive Antenna Support.
High-Performance GNSS SOC
Based on high-performance GNSS SOC series for exceptional sensitivity and signal acquisition speed.
210 Multi-Constellation Channels
Supports up to 210 PRN channels, 72 acquisition + 24 tracking, supports GPS+BDS or GPS+GLONASS.
High Sensitivity & 5Hz Update
Cold start -148dBm, tracking -162dBm; navigation update rate up to 5Hz (default 1Hz).
Integrated Design & AGPS Support
Integrated TCXO, LNA, SAW filter, and RTC; supports AGPS (Assisted GPS).
Compact Size & NMEA Protocol
Compact size 50.2mm × 39.2mm × 19.2mm±0.3mm; supports standard NMEA 0183 V4.0 with backward compatibility.

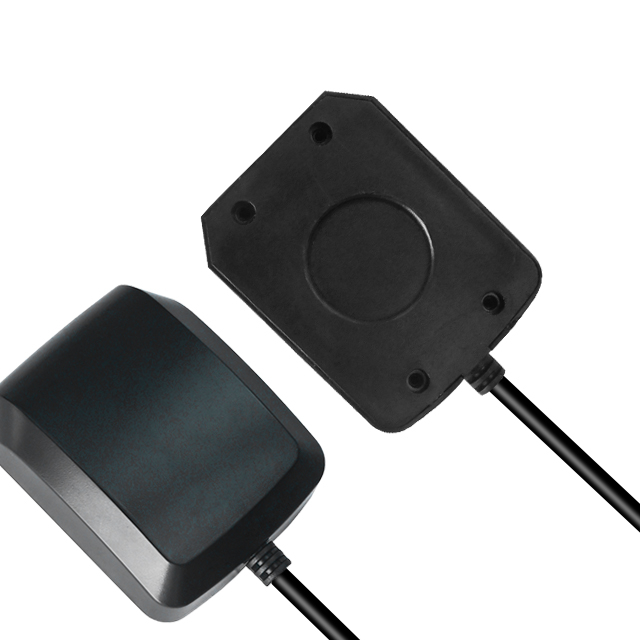

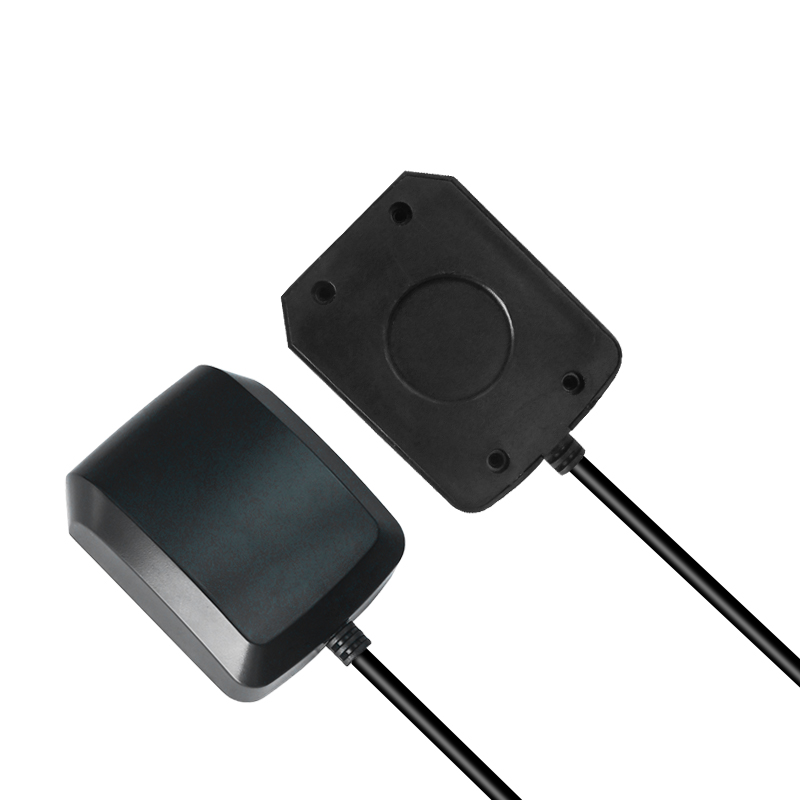

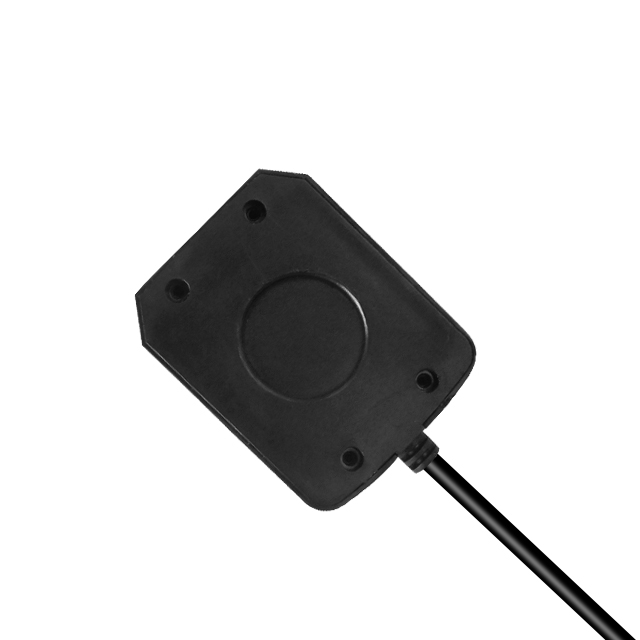

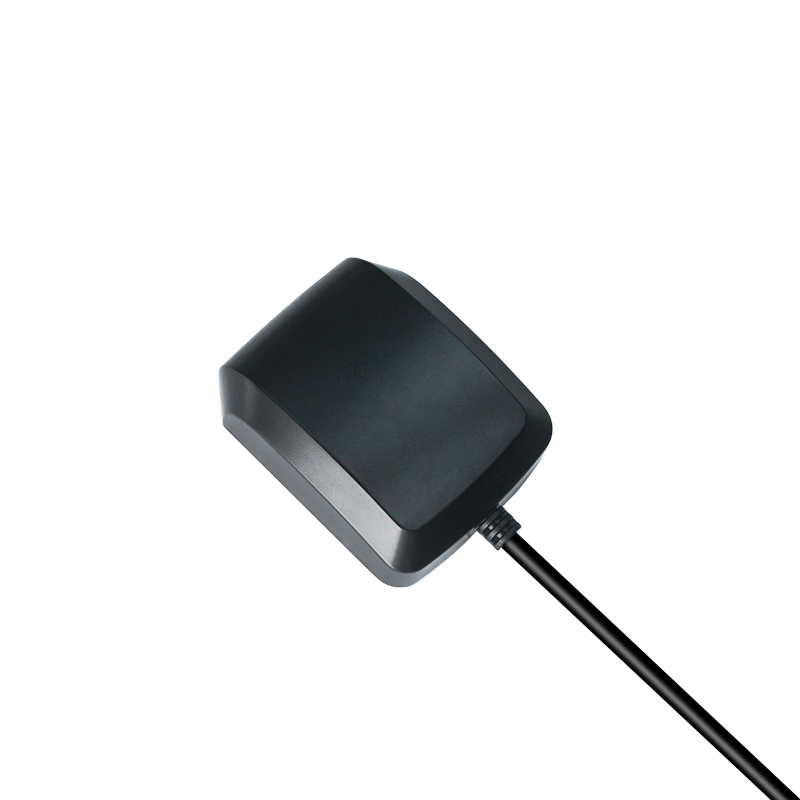

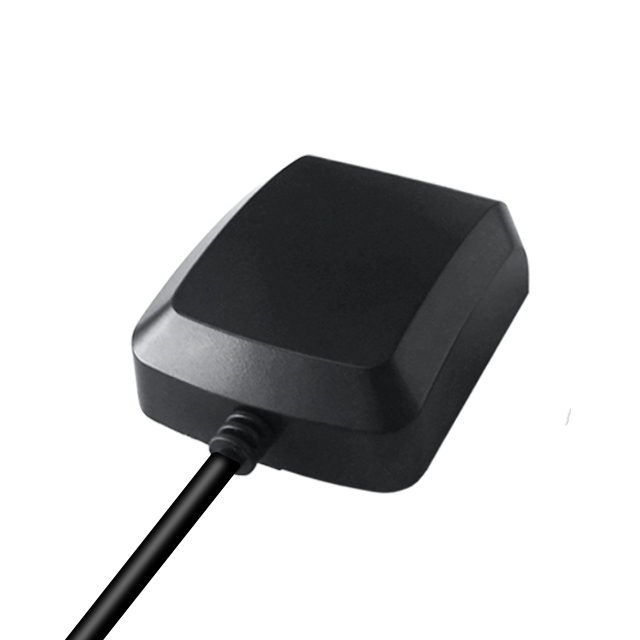

Jumpstar JS-168BWP-R
Standard Precision G-Mouse GNSS Receiver
The JS-168BWP-R utilizes a multi-mode single-frequency solution, featuring low power consumption and low cost. It is a positioning module for multiple satellite navigation systems (GPS, BDS, GLONASS), designed to meet the requirements of various applications and end products needing positioning.
Based on a high-performance chip SOC positioning engine, this module offers outstanding sensitivity and signal acquisition speed. It also incorporates anti-interference measures, enabling reliable positioning even in challenging signal environments.
With 72 acquisition channels, 24 tracking channels, up to 210 PRN channels, -162dBm tracking sensitivity, 5Hz update rate, integrated TCXO/LNA/SAW/RTC, and compact size 50.2×39.2×19.2mm, JS-168BWP-R is widely used in automotive navigation, marine fleet management, personnel location, logistics dispatch, and outdoor sports positioning.
Key Features & Benefits
-
High-Performance GNSS SOC Based on high-performance GNSS SOC series for outstanding sensitivity and signal acquisition speed.
-
210 Multi-Constellation Channels Supports up to 210 PRN channels, 72 acquisition + 24 tracking; supports GPS+BDS or GPS+GLONASS.
-
High Sensitivity & 5Hz Update Cold start -148dBm, tracking -162dBm; navigation update rate up to 5Hz (default 1Hz).
-
AGPS & Integrated Design Supports AGPS (Assisted GPS); integrated TCXO, LNA, SAW filter, and RTC.
-
Compact & Space-Saving Compact size 50.2mm × 39.2mm × 19.2mm ±0.3mm, suitable for space-sensitive applications.
-
NMEA Protocol Support Supports standard NMEA 0183 V4.0 protocol with backward compatibility.
Technical Specifications
GNSS Performance
| Receiver Type | Standard Precision G-Mouse GNSS Receiver with integrated antenna |
| Supported Constellations | GPS L1C/A, GLONASS L1, BDS B1I, Galileo E1B/C, QZSS L1C/A, SBAS L1C/A |
| Channel Configuration | Up to 210 PRN channels, 72 acquisition + 24 tracking |
| Sensitivity | Tracking & Navigation: -162dBm; Re-acquisition: -156dBm; Cold Start: -148dBm |
| Time to First Fix | Cold Start: 36s; Warm Start: 35s; Hot Start: 1s |
| Horizontal Position Accuracy | Autonomous (Standalone) Mode: 2.5m CEP (24h static, ≥12 SVs) |
| PPS Accuracy | RMS <30ns; Update Rate: 1Hz |
| Velocity Accuracy | 0.1 m/s |
| Operational Limits | Max Acceleration ≤4g; Max Velocity ≤515m/s; Max Altitude 18000m |
| Baud Rate | 9600bps (Default: 9600bps) |
| Max Update Rate | 5Hz (Default: 1Hz) |
| Supported Protocols | NMEA 0183 V4.0 (Input/Output, ASCII) with backward compatibility |
| GNSS Configuration | GPS+BDS or GPS+GLONASS (ROM version) |
Electrical & Mechanical
| Antenna Type | Passive antenna (25.0×25.0×4.0mm) |
| Pin Interfaces | VCC (Power 3.3V-5V), TXD (Data Output), GND (Ground) |
| Supply Voltage | 3.3V ~ 5.0V (Typical: 5.0V) |
| Operating Current | Acquisition: 28~35mA@3.3V; Tracking: 25~33mA@3.3V |
| Backup Battery Voltage | 1.65V ~ 3.6V (Typical: 3.3V) |
| Backup Battery Current | 8µA @ 3.3V |
| Storage Temperature | -40°C ~ +85°C |
| Operating Temperature | -40°C ~ +85°C |
| Farad Capacitor Temp. | -25°C ~ +60°C |
| Humidity | 95% |
| Mechanical Dimensions | 50.2mm × 39.2mm × 19.2mm ±0.3mm |
| Compliance | RoHS compliant |
Typical Applications
Automotive Navigation Systems
Positioning & Navigation
Marine Navigation, Fleet Management
Positioning & Navigation
Personnel Location & Safety
Positioning & Navigation
Intelligent Logistics Dispatch
Positioning & Navigation
Vehicle Location & LBS
Positioning & Navigation
Outdoor Sports Positioning Equipment
Positioning & Navigation
Shared Electric Scooter/Bicycle Tracking
Positioning & Navigation
Pet Tracking and Location
Positioning & Navigation
