UAV / Helical Antennas

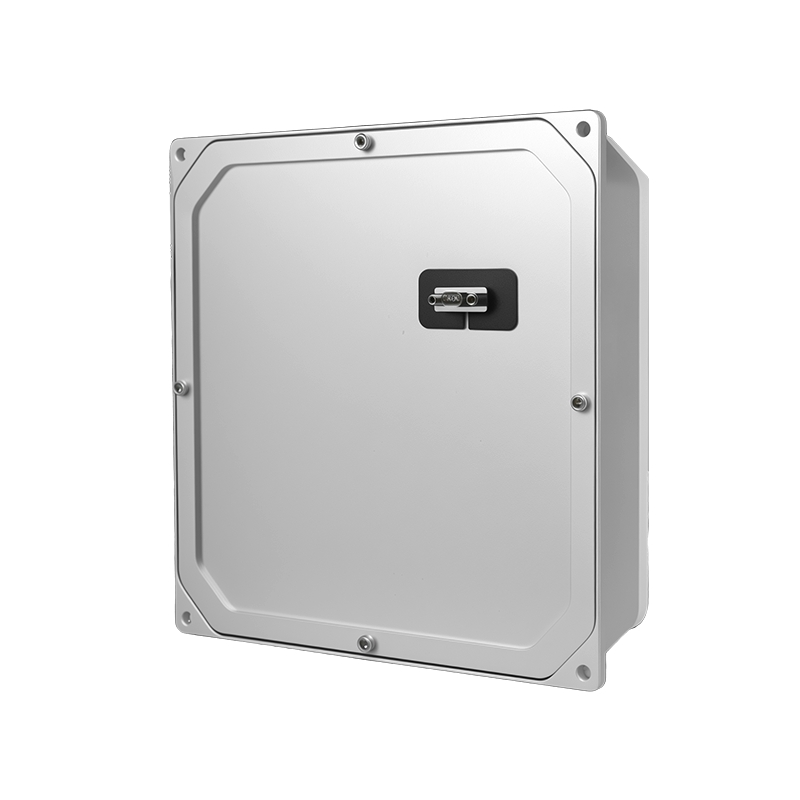

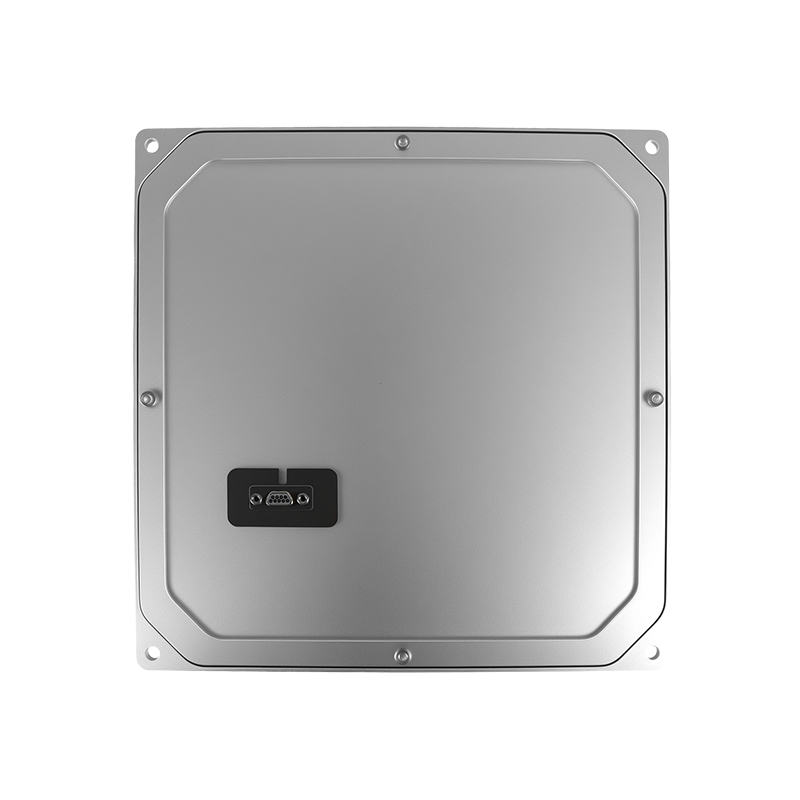

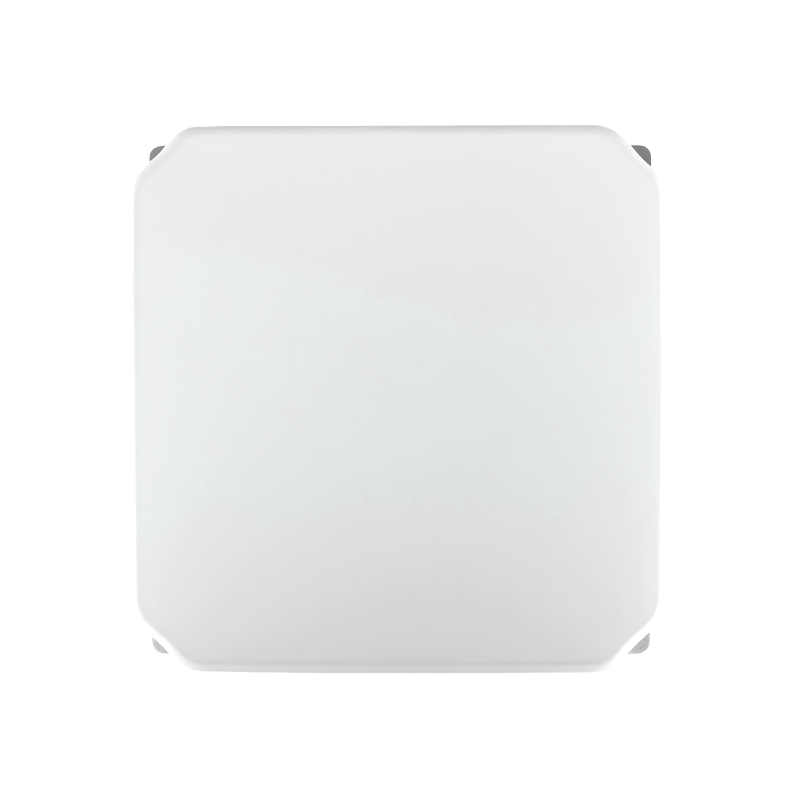

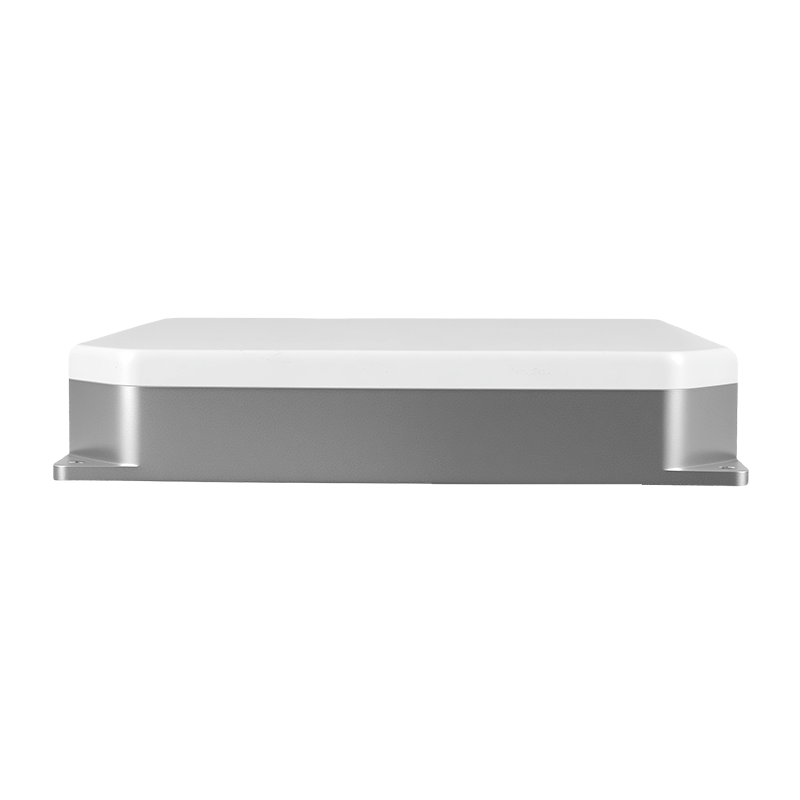

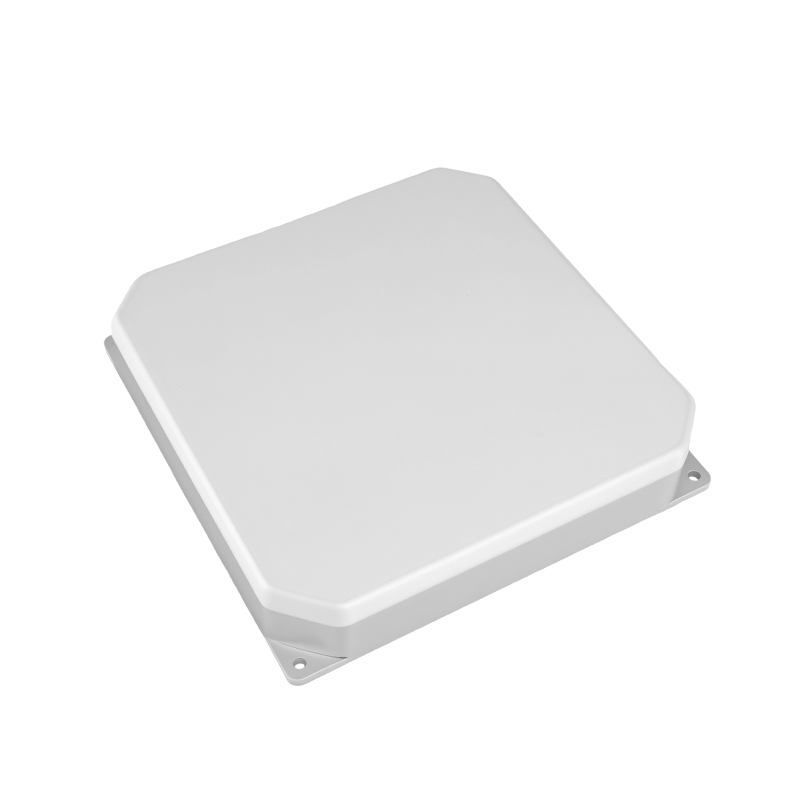

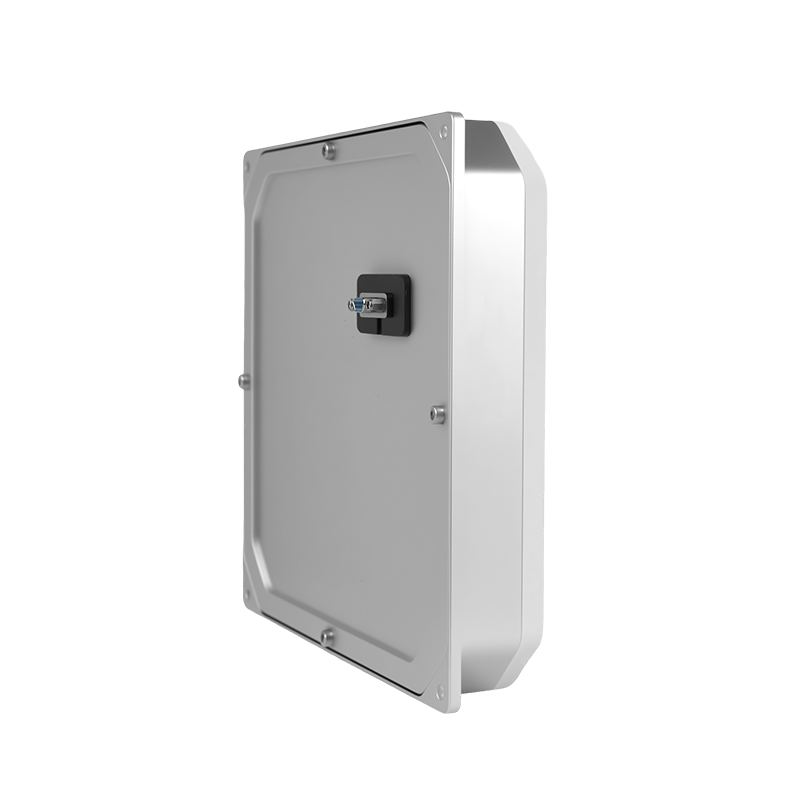

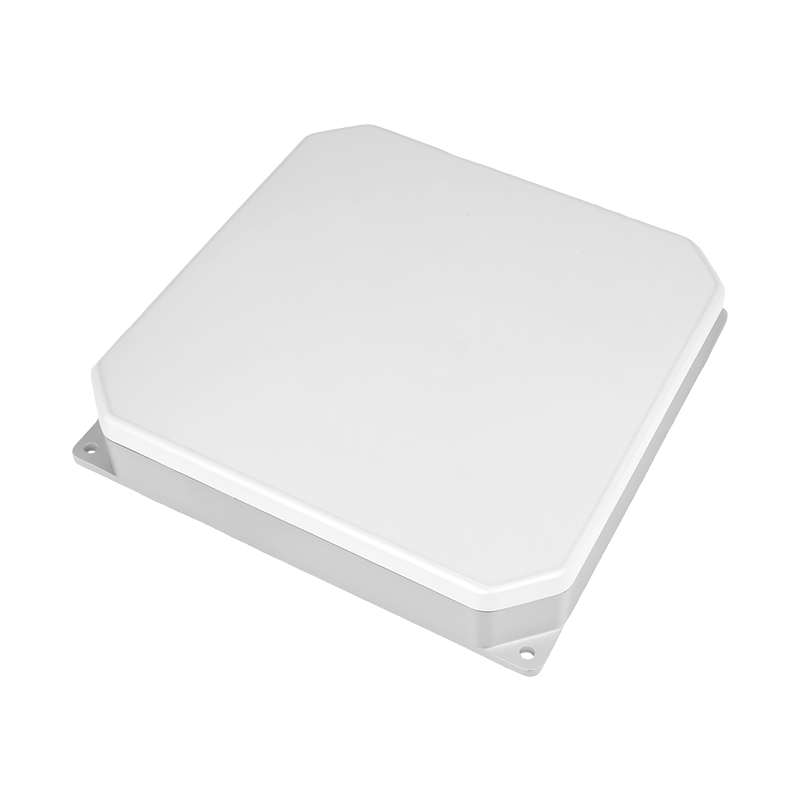

Jumpstar X168 Five-Array Anti-Jamming GNSS Receiver – Integrated Anti-Jamming Antenna, High Anti-Interference, Miniature for Airborne/Vehicle Applications
Five-Array High Anti-Jamming
115dB suppression for single interference, 95dB for three interferences.
Full-Constellation Full-Band
Covers GPS/BDS/GLONASS/Galileo all mainstream bands.
Ultra-Compact & Lightweight
168×168×32mm, ≤75g, high integration for easy installation.
Low Power Consumption
≤2W@5V, ideal for airborne/vehicle/portable devices.
Dual-Protocol Output
SBF + NMEA, compatible with mainstream flight controllers.
Industrial-Grade Wide Temp
-40℃~+70℃ for extreme harsh environments.
Five-Array Anti-Jamming GNSS Receiver
X168 is an integrated anti-jamming antenna receiver that combines an anti-jamming module and array antenna in one unit. It takes the dual advantages of anti-jamming processing and array antenna reception, featuring high integration, miniaturization, low power consumption and lightweight design.
Specially designed for airborne, vehicle-mounted and portable devices, it provides powerful anti-jamming protection for satellite positioning and communication in extreme scenarios, and fully meets the high-reliability anti-jamming requirements of various industrial applications.
With full-constellation full-band support, ultra-compact size (168×168×32mm) and weight ≤75g, it is an ideal choice for high-security anti-jamming positioning systems.
.png?imageMogr2/format/webp)
Key Features
-
Five-Array Professional Anti-Jamming 115dB anti-jamming (single interference), 95dB (three interferences), blocks GNSS interference signals.
-
Full-Band Global Constellation GPS(L1/L2/L5), BDS(B1/B2/B3), GLONASS(G1/G2), Galileo(E1/E5/E6).
-
Miniature & Lightweight 168×168×32mm, ≤75g, perfectly fits space-constrained airborne/vehicle equipment.
-
High-Sensitivity RF Low noise figure RF front-end, excellent sensitivity in weak-signal environments.
-
Dual Protocol Output TX1: NMEA, TX2: SBF, plug-and-play with FC1P, V10 and mainstream flight controllers.
-
Industrial-Grade Stability -40℃~+70℃, ≤2W low power consumption, reliable for long-term outdoor/airborne use.
.png?imageMogr2/format/webp)
Technical Specifications
Anti-Jamming Performance
| Product Type | Five-Array Anti-Jamming GNSS Receiver (Integrated Antenna) |
| Receive Frequency Bands | GPS: L1/L2/L5; BDS: B1/B2/B3; GLONASS: G1/G2; Galileo: E1/E5/E6 |
| Anti-Jamming Bands | Consistent with receive frequency bands |
| Anti-Jamming Capability | 115dB (Single interference); 95dB (Three interferences) |
| Anti-Jamming Components | Five-component anti-jamming device |
| RF Front-End | Low noise figure, high receiving sensitivity |
| Operating Voltage | 5V DC |
Mechanical & Interface
| Rated Power Consumption | ≤2W (Indoor temperature) |
| Output Interface | J30J-9TP (Matching plug: J30J-9ZKL) |
| Protocol Output | TX1: NMEA; TX2: SBF |
| Dimensions | 168×168×32mm (Excluding connector) |
| Weight | ≤75g |
| Operating Temperature | -40℃ ~ +70℃ |
| Pin Definition (J30J-9TP) | 1: VIN+ (5V Input); 2: GND; 3: TX2_SBF Output; 4: TX1_NMEA Output |
Typical Applications
IoT & Smart Terminals
IoT communication & smart terminal positioning
Airborne Equipment
UAVs, aircraft & airborne anti-jamming systems
Precision Engineering
Construction operations & precision machinery
Vehicle-Mounted Terminals
Vehicle positioning & anti-jamming navigation
Rail Transit
Rail transit vehicles & onboard systems
Marine Navigation
Marine navigation & communication systems
Portable Devices
Portable mobile positioning devices
High-Security Scenarios
Anti-jamming positioning for critical applications
Resources & Downloads
X168 Datasheet
Complete specifications, anti-jamming performance, mechanical drawing and pinout
Mechanical Drawing
2D/3D mechanical dimensions and mounting hole layout
User Manual
Quick start guide, wiring diagram, anti-jamming configuration
Protocol Specification
SBF and NMEA protocol definitions for flight controllers
