A07
A07
Vehicle GNSS Trackers
Jumpstar A07 4G Vehicle Positioning Terminal – Wide Voltage Waterproof Tracker with Remote Fuel/Power Cutoff & Intelligent Alarms
Ultra-Wide Voltage Input
DC 9V-98V, suitable for cars, trucks, buses, engineering vehicles.
4G Full Network Communication
LTE-FDD/TDD full bands, stable global connectivity.
Remote Fuel/Power Cutoff
One-click remote control via platform for vehicle security.
Multi-Alarm System
Vibration, overspeed, geofence, parking timeout, illegal ignition alarms.
Blind-Spot Data Retransmission
Auto-save & upload up to 1500 positioning records offline.

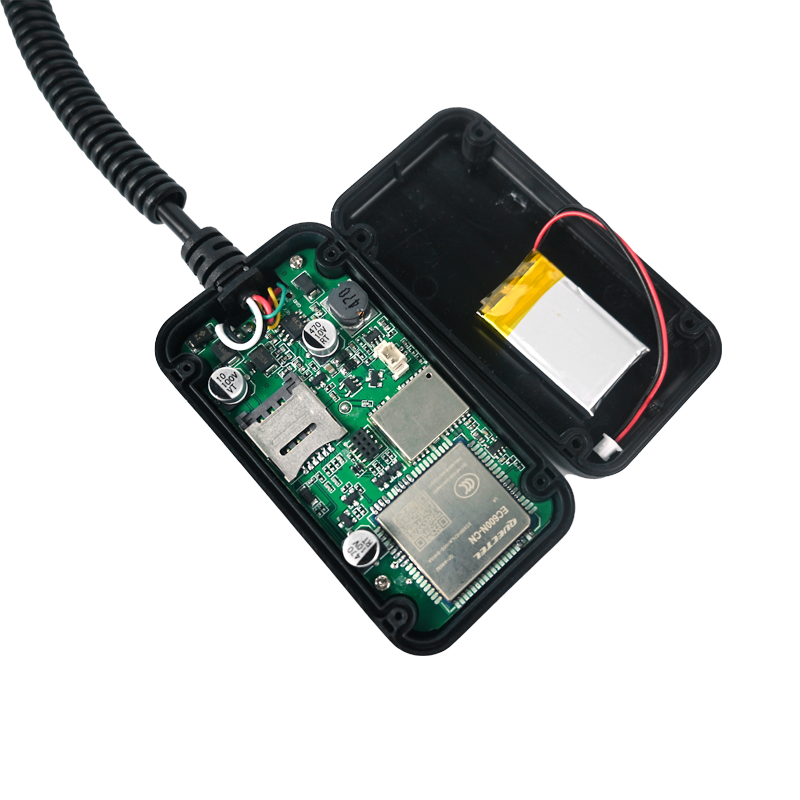

Built-in Backup Battery
350mAh emergency power supply, 2-hour continuous operation.
Waterproof & Compact
IP-rated waterproof design, 80×43×22mm for easy hidden installation.
Flexible Remote Management
SMS/Platform configuration, remote firmware upgrade.
High-Sensitivity GNSS
2.5m positioning accuracy, tracking -162dBm, cold start <30s.
Complete Fleet Functions
Real-time position, mileage stats, trajectory playback, route restriction.

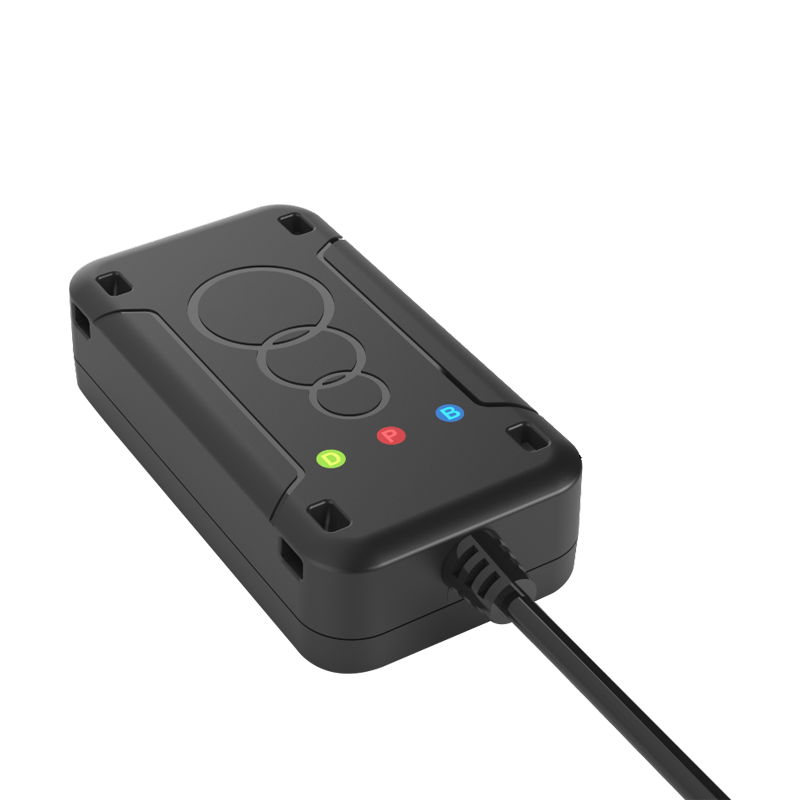

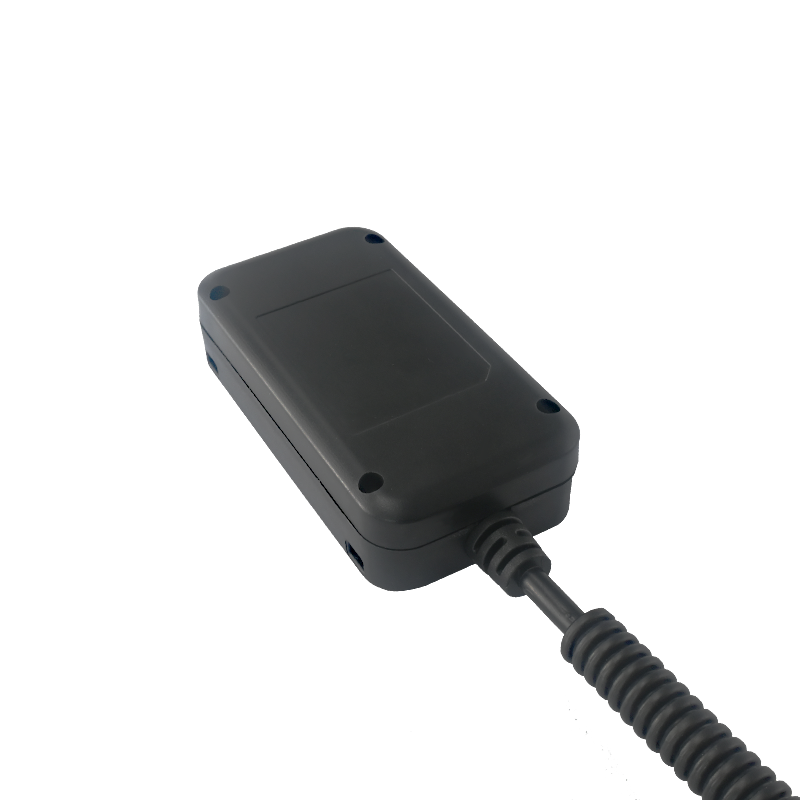

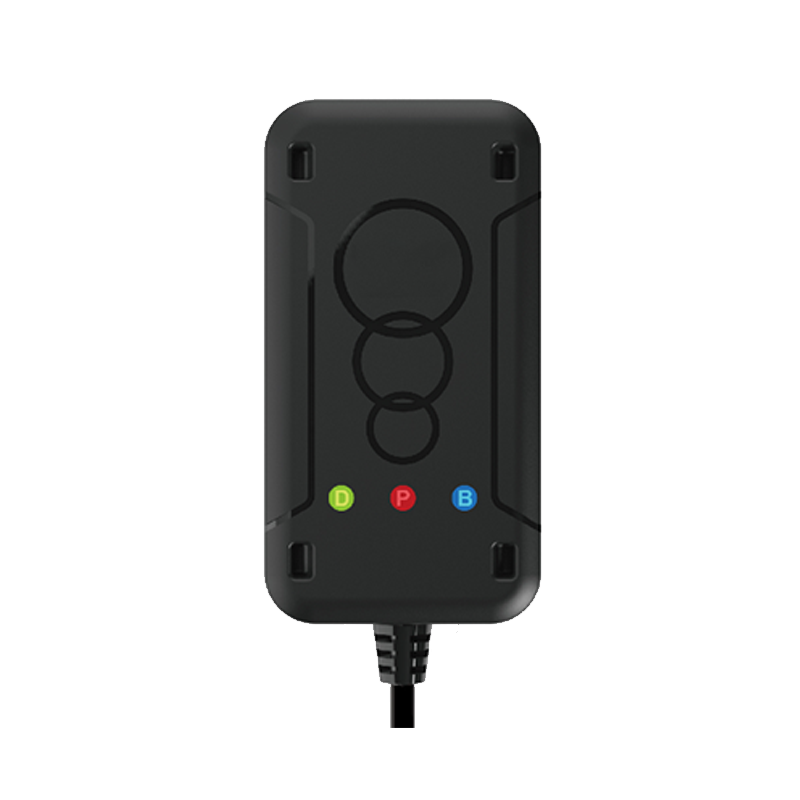

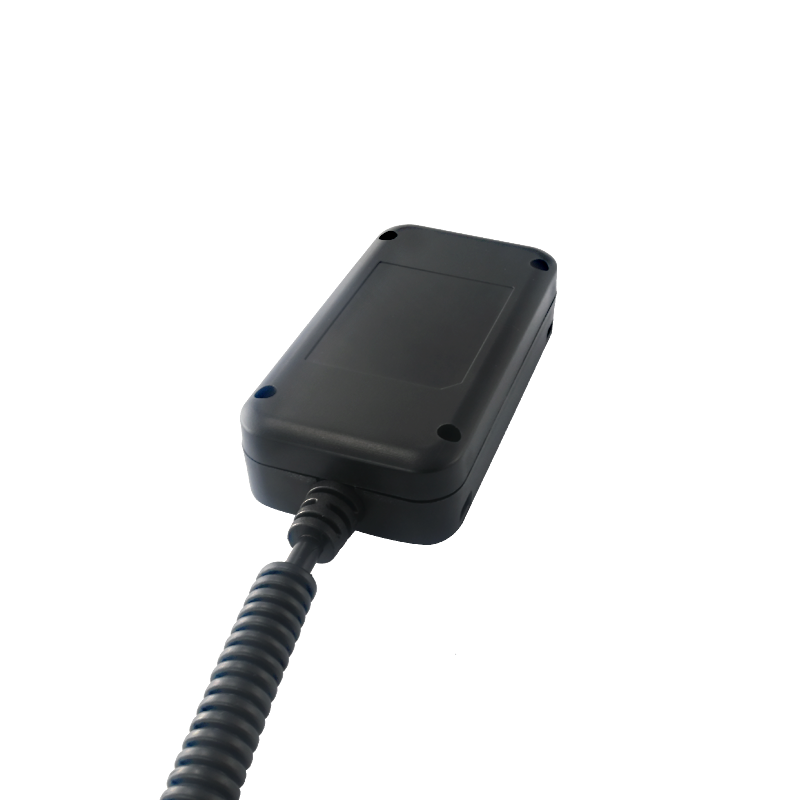

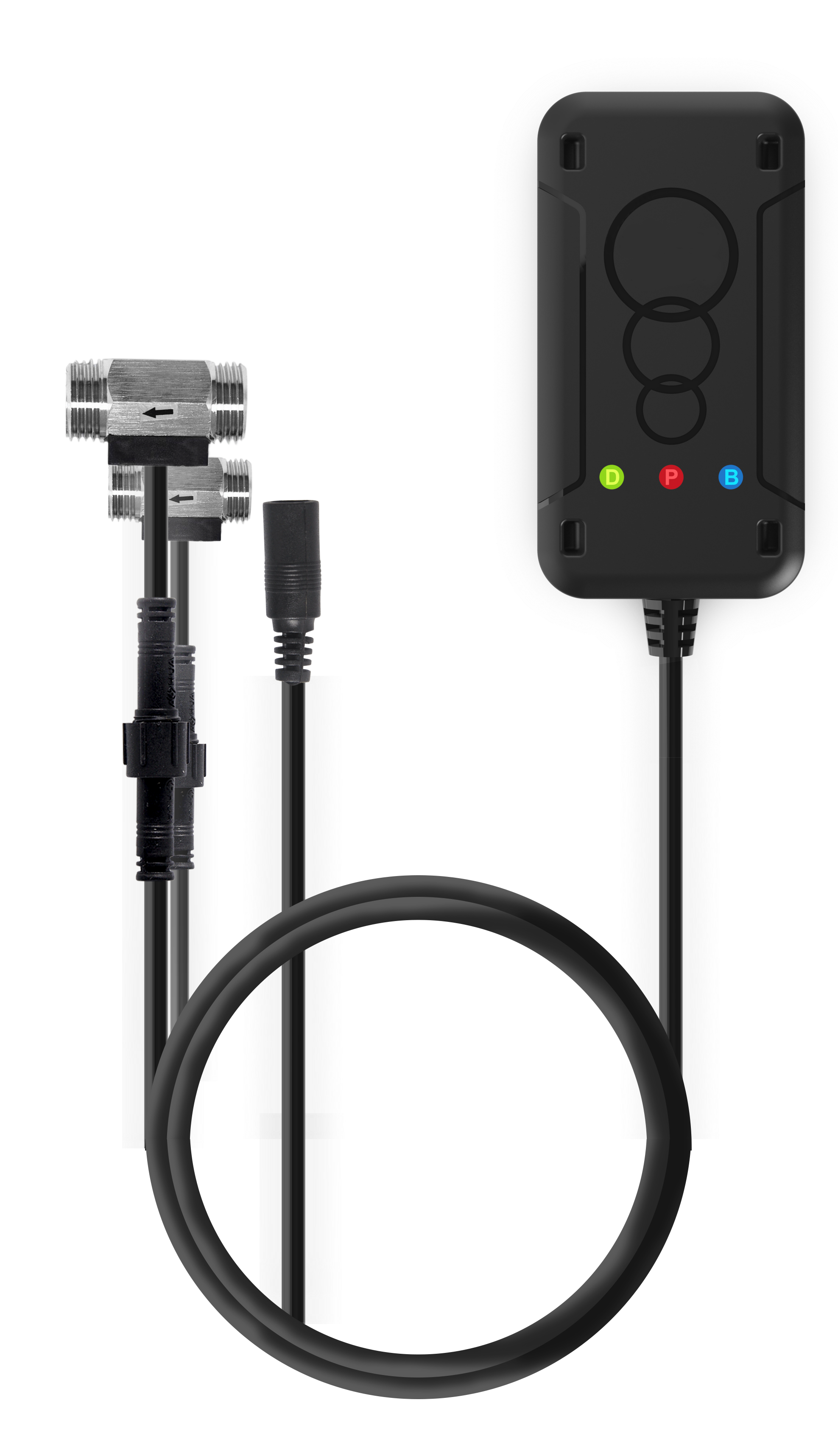

Jumpstar A07 4G Vehicle Positioning Terminal
Wide Voltage Waterproof Tracker with Remote Fuel/Power Cutoff
The A07 4G Vehicle Positioning Terminal is a new-generation waterproof vehicle tracker independently developed for mobile target monitoring. It adopts 4G full-network communication and high-sensitivity satellite positioning, supporting real-time tracking, trajectory playback, remote fuel/power cutoff, and multiple intelligent alarms.
With an ultra-wide voltage input (9V-98V) and built-in backup battery, it adapts to various vehicles including trucks, logistics vehicles, taxis, and coaches. It provides complete positioning monitoring, anti-theft, and operation management solutions for fleet and vehicle safety management.
9-98V wide voltage, 4G full network, remote fuel cutoff, multi-alarm, waterproof — A07 is the ultimate vehicle tracker.
Key Features & Benefits
-
Full-Vehicle Compatibility Ultra-wide voltage DC 9V-98V; built-in 350mAh backup battery for 2-hour emergency operation.
-
Remote Vehicle Control One-click remote fuel/power cutoff & recovery via platform; state-locking function for security.
-
Intelligent Alarm Protection Vibration, overspeed, geofence breach, parking timeout, illegal ignition, robbery alarms.
-
Stable Positioning & Data High-sensitivity GNSS; 2.5m accuracy; blind-spot storage (1500 records) & auto-retransmission.
-
Flexible Management & Maintenance Dual IP/port; SMS/platform remote parameter setting; remote firmware upgrade.
-
Compact & Waterproof Waterproof integrated design; small size 80×43×22mm for hidden installation.
-
Complete Fleet Functions Real-time position query, mileage statistics, trajectory playback, route restriction, report analysis.
Technical Specifications
Terminal & Communication
| Operating Voltage | DC 9V-98V |
| Operating Current | <60mA@12V |
| Backup Battery | 3.7V/350mAh, 2-hour endurance |
| Operating Temperature | -20℃~+70℃ |
| Operating Humidity | <95%RH |
| Dimensions | 80×43×22mm |
| LTE FDD | B1/B3/B5/B8 |
| LTE TDD | B34/B38/B39/B40/B41 |
| 4G Operating Current | ≤60mA |
| Communication Protocol | TCP/IP |
Positioning & Functions
| Positioning Accuracy | 2.5m CEP |
| Tracking Sensitivity | -162dBm |
| Acquisition Sensitivity | -147dBm |
| Cold Start Time | <30s |
| Hot Start Time | <1s |
| Speed Accuracy | 0.1m/s |
| Geofence Quantity | Max 50 rectangular fences |
| Offline Storage | Max 1500 positioning records |
| Configuration | SMS & platform remote setting |
Typical Applications
Truck & Logistics Fleet
Fleet positioning management, real-time tracking, route optimization.
Taxi & Ride-Hailing
Operation supervision, dispatch, passenger safety monitoring.
Coach & Passenger Vehicle
Safety monitoring, route adherence, passenger count management.
Engineering & Special Vehicles
Tracking for excavators, cranes, concrete mixers, and special equipment.
Marine & Vessel Tracking
Mobile target positioning for ships, boats, and watercraft.
Vehicle Anti-Theft & Security
Remote fuel/power cutoff, vibration alarm, geofence for theft protection.
Public Transport Management
Real-time bus location, schedule adherence, passenger info systems.
Car Rental & Leasing
Vehicle tracking, usage monitoring, geo-fence for rental management.
Emergency Service Vehicles
Ambulance, fire truck, police vehicle real-time location and dispatch.
Mining & Heavy Industry
Dump trucks, loaders, and mining vehicle tracking with wide voltage.
Resources & Downloads
A07 Datasheet
Complete specifications, 4G bands, alarm functions, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and mounting layout (80×43×22mm).
User Manual
Installation guide, configuration, remote control and alarm setup.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (80×43×22mm).
