Vehicle GNSS Trackers
Jumpstar A19 4G+2G Ultra-Long Standby Vehicle Tracker – 3-Year Battery Life, Light-Sensing Anti-Dismantle, Hidden GPS/BDS/LBS Locator
3-Year Ultra-Long Battery Life
4500/5000mAh cylindrical lithium battery, maintenance-free usage.
4G+2G Global Network
Full-band communication for Southeast Asia, Europe, Americas.
Triple-Mode Positioning
GPS + BDS + LBS base station hybrid positioning.
Ultra-Low Power Sleep
Standby current as low as 2μA, intelligent power saving.
Light-Sensing Anti-Dismantle
Tamper alarm & real-time platform notification.
Compact Hidden Design
87.5×57.2×47mm, easy for concealed vehicle installation.
Multi-Working Modes
Alarm/timing/car chase/week mode flexible switching.
Full Remote Management
SMS/APP/platform remote parameter configuration & status query.
Wide-Temperature Reliability
-25℃~+80℃ operating, -25℃~+85℃ storage.
Anti-Fake Base Station Protection
Built-in detection ensures secure & accurate data transmission.

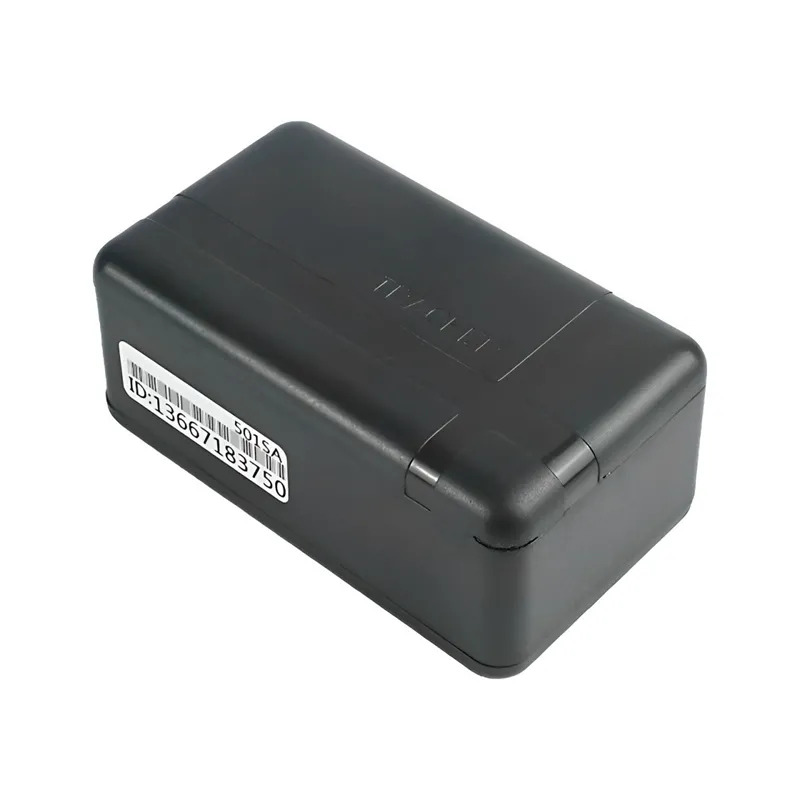

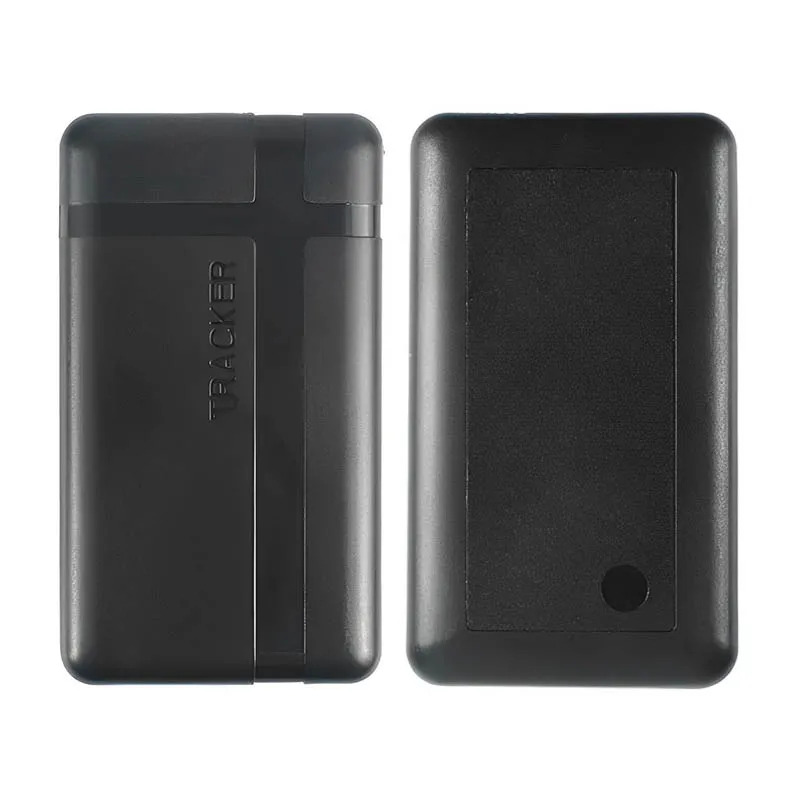

Jumpstar A19 4G+2G Ultra-Long Standby Tracker
3-Year Battery Life, Light-Sensing Anti-Dismantle, Hidden GPS/BDS/LBS Locator
The A19 is an ultra-long standby positioning terminal designed for hidden vehicle & asset tracking. It adopts 4G+2G hybrid communication and GPS+BDS+LBS triple-mode positioning, ensuring stable location tracking in global regions. Powered by a high-capacity cylindrical lithium-manganese battery, it delivers up to 3 years of continuous usage with an ultra-low sleep current of 2μA.
Equipped with light-sensing anti-dismantle alarm and multiple working modes, it supports remote configuration and status query. The compact, concealed structure makes it ideal for vehicle leasing, mortgage, asset supervision, logistics and valuables tracking scenarios.
3-year battery, 2μA standby, triple positioning, light-sensing anti-dismantle — A19 is the ultimate hidden tracker.
Key Features & Benefits
-
Ultra-Long Standby & Low Power 4500/5000mAh lithium battery; up to 3 years continuous operation; sleep current only 2μA.
-
Global Triple-Mode Positioning GPS+BDS satellite + LBS base station; GPS <10m, LBS <100m accuracy.
-
Full-Band Global Communication 4G Cat.1 + 2G GSM; configurable for Southeast Asia, Europe, North & South America.
-
Light-Sensing Anti-Dismantle Alarm Triggers alarm immediately when removed; real-time alert to platform; anti-theft & anti-unauthorized disassembly.
-
Flexible Working Modes Alarm clock mode, timing mode, car chase mode, week mode; customizable reporting intervals.
-
Full Remote Control Remote parameter setting, status query, abnormal data analysis via SMS, APP or cloud platform.
-
Wide-Temperature & Compact Design -25℃~+80℃ operation; 87.5×57.2×47mm concealed adhesive mounting.
-
Anti-Fake Base Station Protection Built-in detection ensures secure & accurate data transmission.
Technical Specifications
Communication & Positioning
| Communication Module | SIMCOM A7670 Series (regional bands optional) |
| Network Mode | 4G Cat.1 + 2G GSM |
| Southeast Asia Bands | LTE-FDD: B1/B3/B5/B8; LTE-TDD: B34/B38/B39/B40/B41 |
| Europe Bands | LTE-FDD: B1/B3/B5/B7/B8/B20; GSM: 900/1800MHz |
| Americas Bands | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66; GSM: 850/900/1800/1900MHz |
| Transmission Protocol | UDP/TCP |
| Positioning Mode | GPS + BDS + LBS base station |
| GPS Accuracy | <10m |
| LBS Accuracy | <100m |
| Sensitivity | Capture -143dB; Tracking -159dB |
| Time to First Fix | Cold start ≤38s; Hot start ≤2s |
Electrical & Physical
| Operating Voltage | DC 3V |
| Working Current | 75-100mA@3V |
| Standby Current | 2μA |
| Battery | 4500mAh / 5000mAh (optional) |
| Battery Life | Up to 3 years (1 report per day) |
| Operating Temperature | -25℃~+80℃ |
| Storage Temperature | -25℃~+85℃ |
| Dimensions | 87.5×57.2×47mm |
| Weight | ≈80g |
| Installation | Concealed adhesive mounting |
| Working Modes & Anti-Dismantle | Alarm clock / Timing / Car chase / Week mode; light-sensing tamper alarm |
Typical Applications
Vehicle Leasing & Mortgage
Hidden tracking for leased vehicles, repossession assistance, asset security.
Fixed Assets & Valuables
Supervision of expensive equipment, trailers, containers, and high-value assets.
Logistics & Freight Tracking
Real-time location for cargo containers, pallets, and trailers over long periods.
Car Fleet & Operation Management
Covert installation for fleet vehicles, usage monitoring, anti-theft protection.
Anti-Theft for Special Equipment
Construction machinery, generators, compressors — tamper alert & recovery.
Hidden Asset Positioning
Undercover tracking for investigation, insurance, and recovery operations.
Rental & Car Sharing
Long-term hidden tracking for car rental fleets, usage monitoring, and theft prevention.
Off-Grid & Long-Duration Monitoring
Remote assets with no external power, such as containers, trailers, marine buoys.
Public Transport & Security
Covert installation in buses, streetcars for anti-vandalism and location monitoring.
Personal Items & Luggage
Hidden tracker for high-value luggage, golf bags, musical instruments during travel.
Resources & Downloads
A19 Datasheet
Complete specifications, battery life, positioning modes, and configuration details.
Mechanical Drawing
2D/3D mechanical dimensions and mounting layout (87.5×57.2×47mm).
User Manual
Installation guide, working mode settings, anti-dismantle configuration.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (87.5×57.2×47mm).
