A10
A10
Vehicle GNSS Trackers
Jumpstar A10 4G Vehicle Positioning Terminal – Industrial-Grade Fleet Tracker with Remote Fuel Control & Multi-Alarm System
4G + GSM Dual-Mode Communication
Full LTE-FDD/TDD & GSM bands for stable global connectivity.
Wide Voltage Compatibility
DC 9V-36V input for cars, trucks, buses & special vehicles.
Remote Fuel Control
One-click fuel cut-off & recovery via platform for vehicle security.
Intelligent Alarm Suite
Overspeed, parking timeout, geofence, power outage & SOS alarms.
Blind-Spot Data Retransmission
Auto-save up to 1500 records & upload after signal recovery.
Built-in Backup Battery
3.6V/350mAh emergency power supply.
Ultra-Wide Temperature Range
-40℃~+85℃ for harsh operating environments.
Flexible Remote Management
SMS/platform configuration, remote firmware upgrade.
Multi-Constellation GNSS
GPS, BDS, QZSS, SBAS (L1 band) for global positioning.
Industrial-Grade Design
64×48×24mm compact size, rugged for cold-chain, airport, dangerous goods transport.

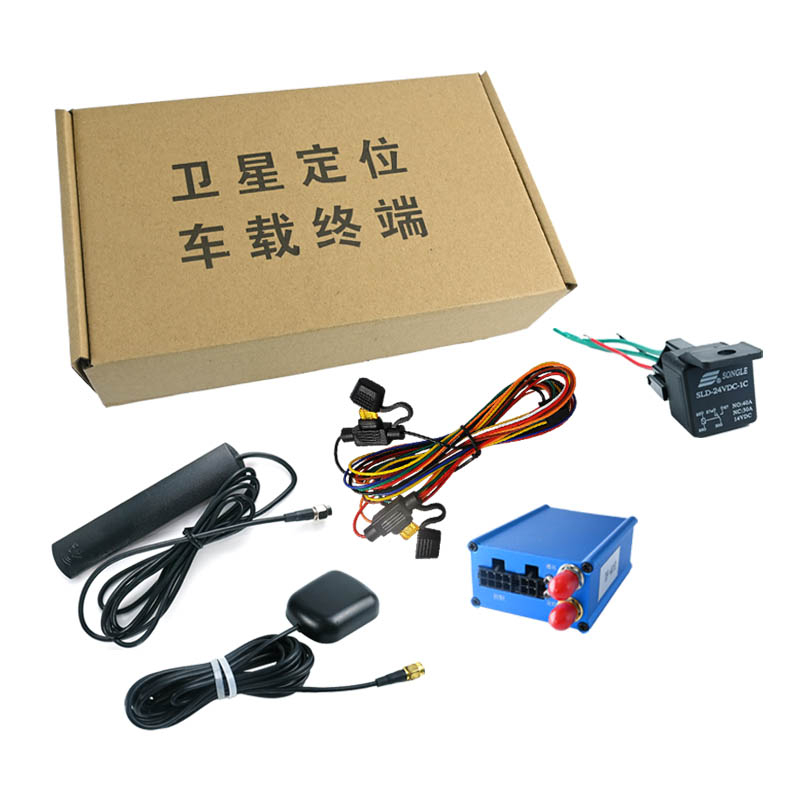

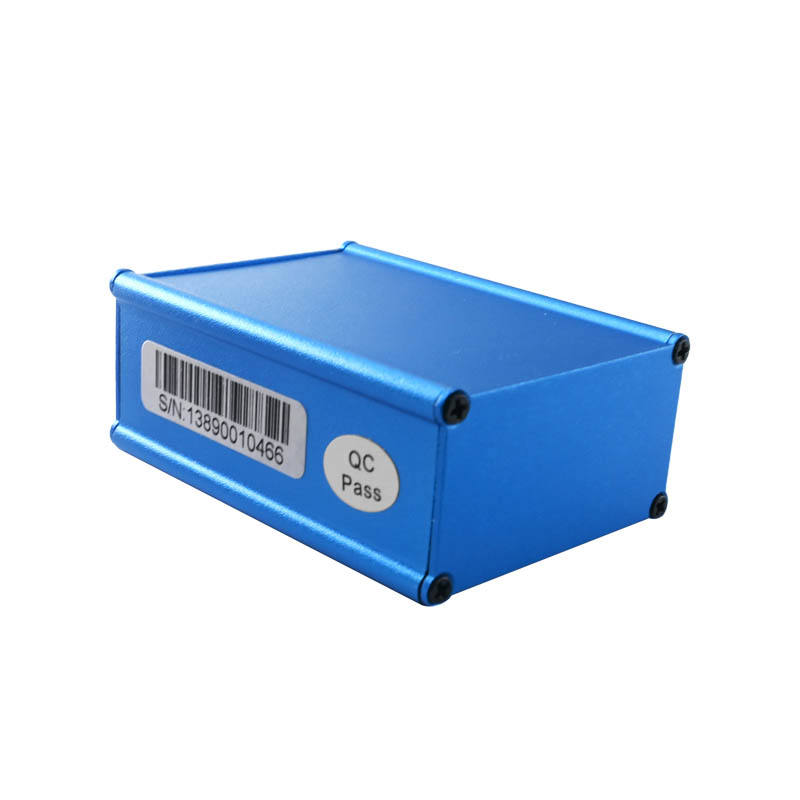

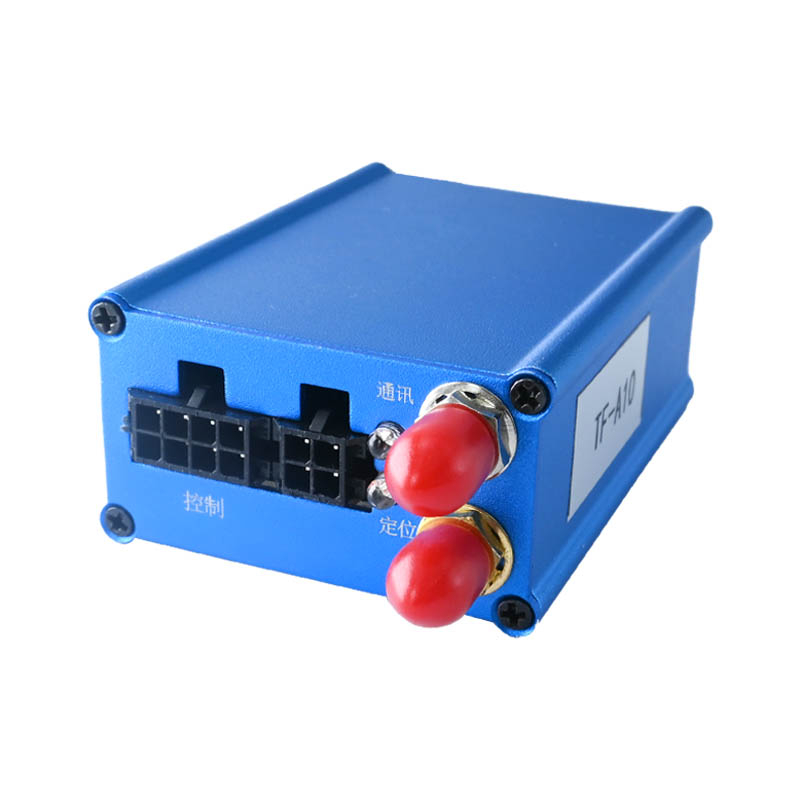

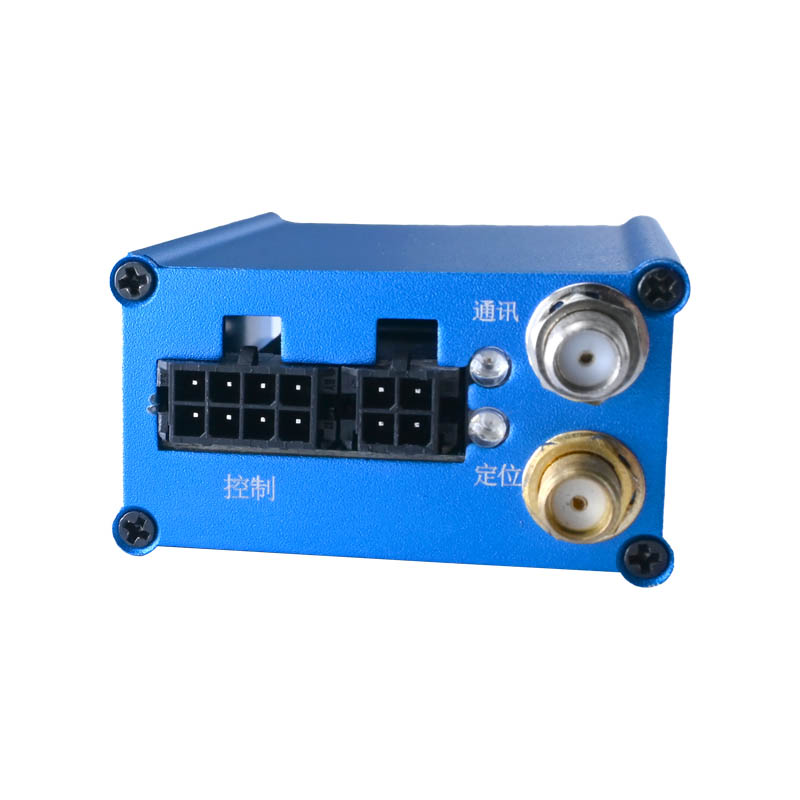

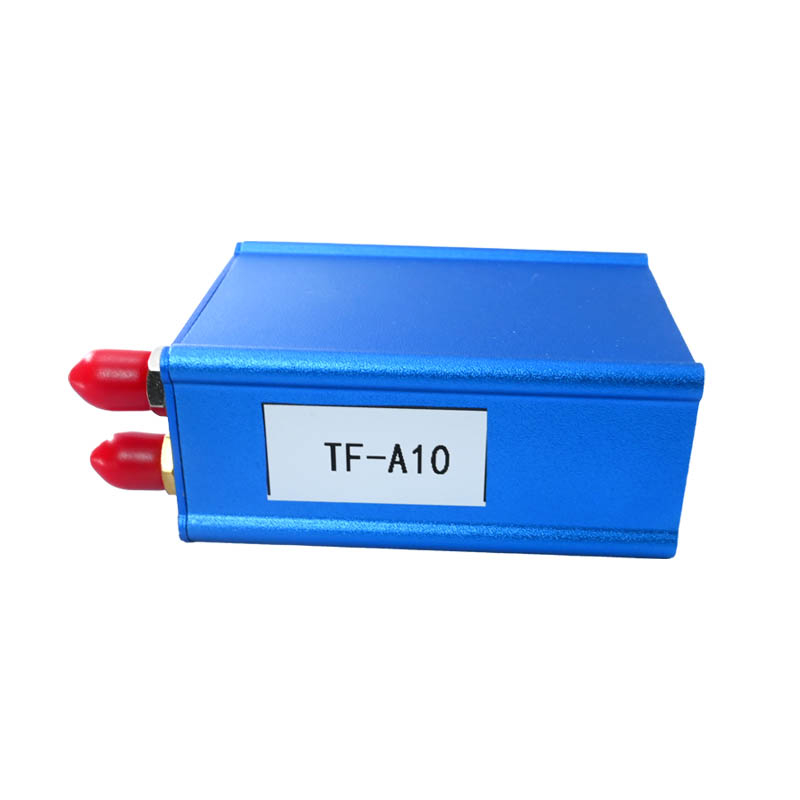

Jumpstar A10 4G Vehicle Positioning Terminal
Industrial-Grade Fleet Tracker with Remote Fuel Control & Multi-Alarm System
The A10 is a self-developed new-generation vehicle positioning terminal that integrates satellite positioning and 4G network communication. It provides a full-featured application system including positioning tracking, monitoring scheduling, trajectory analysis, alarm processing, anti-theft security, information release, operation management and statistical analysis.
It fully meets the mobile target monitoring and positioning requirements of various industries, and is widely used in cold-chain logistics, airport vehicles, inspection vehicles, car rental, public transport, long-distance passenger transport, dangerous goods transportation, shipping and other industrial scenarios.
4G+GSM dual-mode, 9-36V wide voltage, remote fuel control, multi-alarm, -40℃~+85℃ — A10 is the ultimate industrial fleet tracker.
Key Features & Benefits
-
Full-Function Query Service Real-time location, parameter status, device version query — returns position, speed, status, mileage and software version.
-
Flexible Parameter Configuration Timed positioning reporting, overspeed/parking timeout thresholds, 50 rectangular geofences, dual IP/ports, TCP heartbeat.
-
Remote Vehicle Control Remote restart, remote fuel cut-off/restoration, mileage initialization, dispatch info delivery, remote OTA firmware upgrade.
-
Comprehensive Alarm Protection Overspeed, parking timeout, antenna open circuit, main power outage, sensor abnormal, SOS/robbery, geofence entry/exit.
-
Reliable Data & Power Guarantee Stores 1500 positioning records in blind spots for auto-retransmission; built-in backup battery ensures continuous operation.
-
Ultra-Wide Temperature & Wide Voltage -40℃~+85℃ operating temperature, DC 9V-36V input — adapts to extreme cold, heat and all vehicle types.
-
Industrial-Grade Design & Applications Compact 64×48×24mm, ideal for cold-chain logistics, airport ground support, dangerous goods transport, shipping.
Technical Specifications
Terminal & Communication
| Operating Voltage | DC 9V-36V |
| Operating Current | <60mA@12V |
| Applicable Altitude | ≤5000m |
| Backup Battery | 3.6V/350mAh |
| Dimensions | 64×48×24mm |
| Operating Temperature | -40℃~+85℃ |
| LTE FDD | B1/B3/B5/B8 |
| LTE TDD | B34/B38/B39/B40/B41 |
| GSM | 900/1800MHz |
Positioning & Functions
| Supported Constellations | GPS, BDS, QZSS, SBAS (L1 band) |
| Positioning Accuracy | 2.5m |
| Speed Accuracy | 0.1m/s |
| Tracking Sensitivity | -162dBm |
| Acquisition Sensitivity | -147dBm |
| Cold Start Time | ≤30s |
| Warm Start Time | ≤1s |
| Geofence Quantity | Max 50 rectangular fences |
| Offline Storage | Max 1500 positioning records |
| Communication Modes | TCP, UDP |
Typical Applications
Cold-Chain Logistics
Temperature-controlled vehicle monitoring, route tracking, fuel control for refrigerated trucks.
Airport Ground Support
Tugs, baggage carts, fuel trucks — real-time tracking and dispatching.
Utility & Inspection Vehicles
Engineering inspection, road maintenance, utility fleet management.
Car & Equipment Rental
Rental fleet tracking, geofence, fuel monitoring, anti-theft for rental cars.
Public Transport & Coaches
Buses, long-distance coaches, school bus monitoring and schedule adherence.
Dangerous Goods Transport
Hazmat vehicle tracking, alarm for route deviation, emergency fuel cutoff.
Marine & Shipping
Vessel tracking, port operations, cargo ship monitoring with backup battery.
Taxi & Ride-Hailing
Fleet dispatch, passenger safety, overspeed alarm, SOS for drivers.
Mining & Construction
Heavy-duty vehicles, dump trucks, mining equipment tracking in extreme temperatures.
Emergency & Utility Vehicles
Ambulance, fire truck, police vehicle real-time location and dispatch with remote fuel control.
Resources & Downloads
A10 Datasheet
Complete specifications, 4G bands, alarm functions, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and mounting layout (64×48×24mm).
User Manual
Installation guide, configuration, remote fuel control, alarm setup.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (64×48×24mm).
