A12
Vehicle GNSS Trackers
Jumpstar A12 RTK High-Precision Vehicle-Mounted Positioning Terminal – 4G Cat.1, IMU Inertial Navigation, Dual-Antenna Attitude Output
Centimeter-Level RTK Positioning
2cm±1ppm high precision, full-band multi-constellation satellite tracking.
4G Cat.1 Stable Communication
Supports TCP/UDP, JT/T 808-2013 protocol for seamless fleet platform docking.
Built-in IMU Inertial Navigation
Maintains reliable positioning in GNSS signal-blind areas (tunnels, urban canyons).
Dual-Antenna Attitude Output
Provides accurate heading & pitch angle for vehicle navigation & control.
IP66 Industrial Protection
Aluminum alloy body, waterproof/dustproof for harsh working environments.
Rich Expansion Interfaces
RS232/CAN, TF card, TTS, relay, fuel level sensor & peripheral connection.
Wide Voltage Input
DC 9V-36V, compatible with all vehicle types; 350mAh backup battery.
Flexible Remote Management
SMS/platform configuration, FOTA upgrade, dual IP data transmission.
Multi-Constellation GNSS
GPS, BDS-2/3, GLONASS, Galileo, QZSS full-band support.
High-Speed Update Rate
1-10Hz configurable update rate for dynamic vehicle tracking.

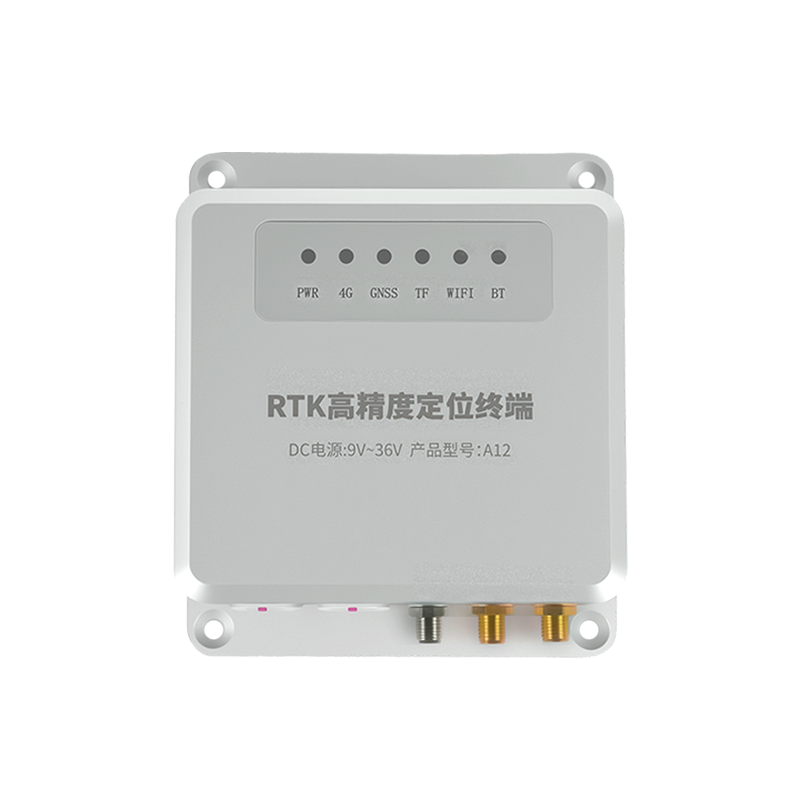

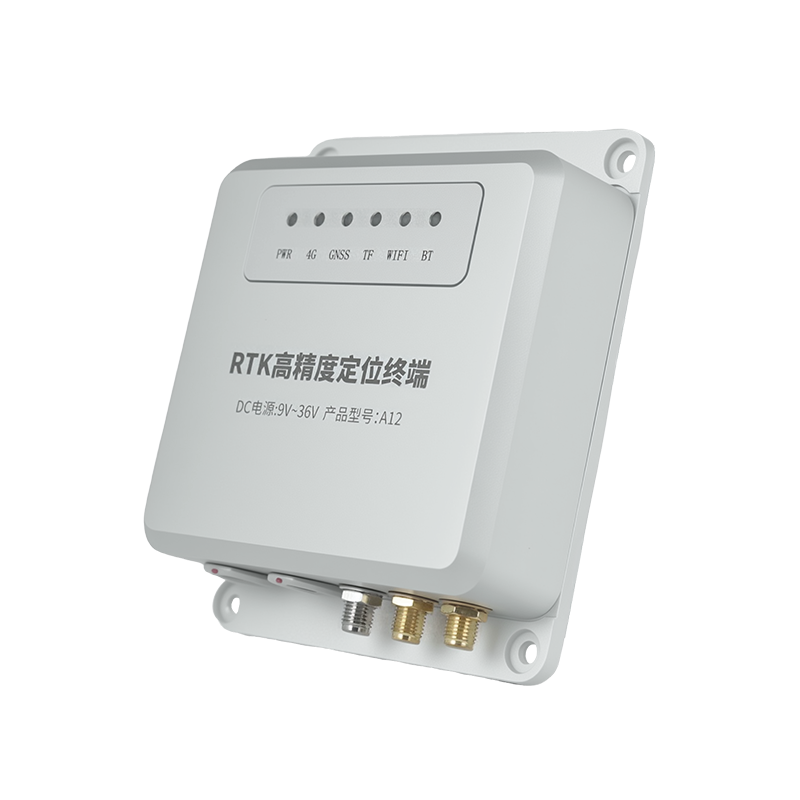

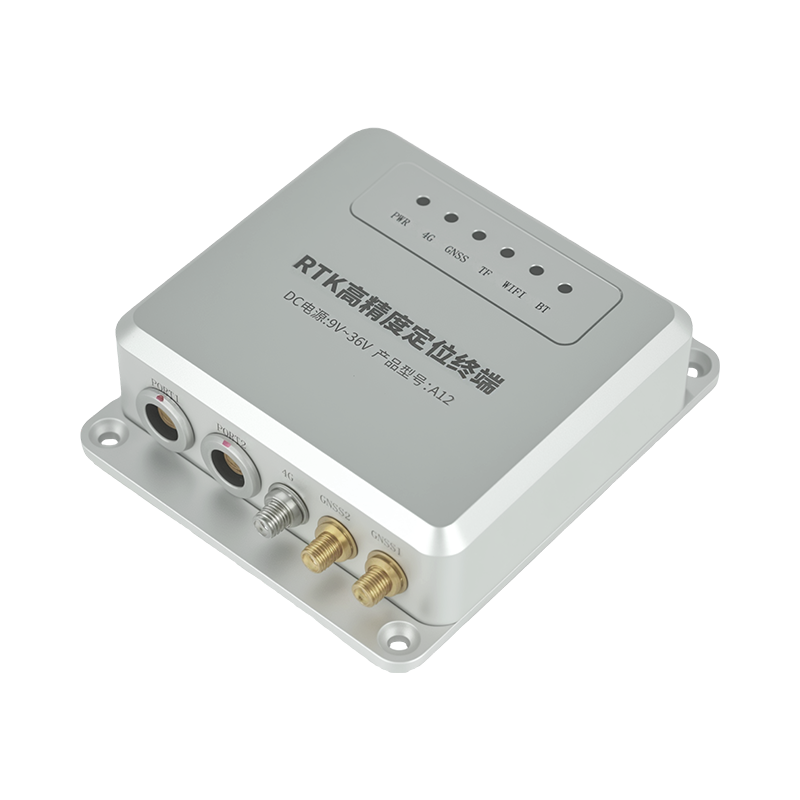

Jumpstar A12 RTK High-Precision Terminal
4G Cat.1, IMU Inertial Navigation, Dual-Antenna Attitude Output

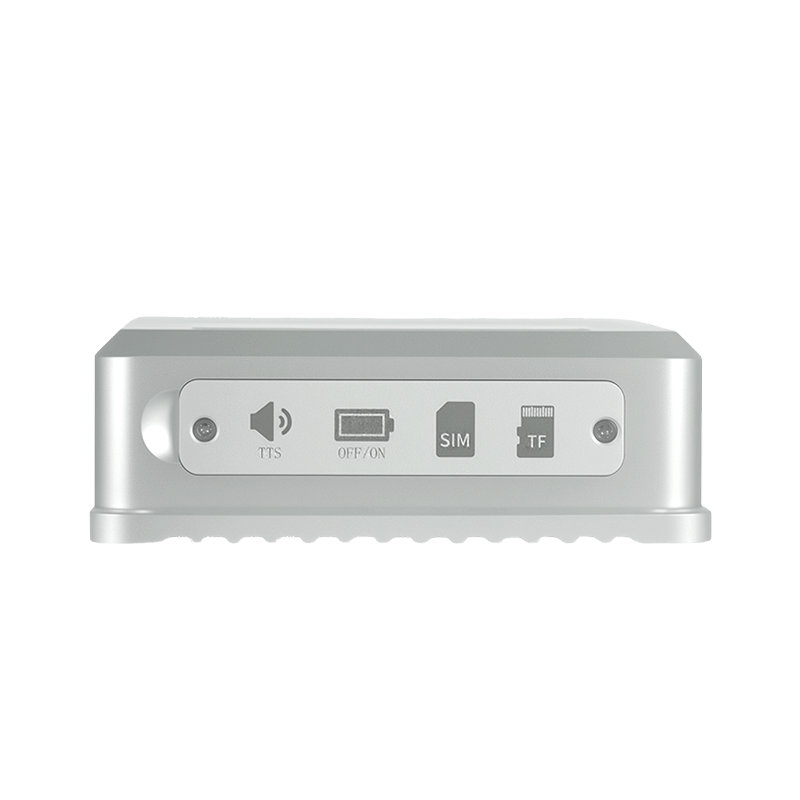

The A12 is a full-band RTK high-precision vehicle-mounted positioning terminal with a built-in TF card slot and SIM card slot. It supports connection to various peripherals such as digital fuel level sensors via the RS232 interface for data collection and uploading to the fleet management platform. It adopts dual-antenna positioning to output heading and pitch attitude information, and integrates an IMU inertial navigation unit to automatically calculate latitude and longitude data in environments without satellite signals.
It also supports remote vehicle power/fuel cut-off and restoration through an external relay. Widely used in intelligent transportation, IoV, intelligent driving, logistics, freight and long-distance transportation scenarios.
RTK 2cm±1ppm, IMU dead reckoning, dual-antenna heading, IP66, 4G Cat.1 — A12 is the ultimate high-precision vehicle terminal.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
Centimeter-Level High-Precision Positioning NTRIP protocol, full-band multi-constellation; RTK 2cm±1ppm; cold start ≤35s.
-
IMU Inertial Navigation Compensation Maintains cm-level for 3s, m-level for 10s after GNSS loss; perfect for tunnels, underground garages, urban canyons.
-
Dual-Antenna Attitude Output Heading (0.15/R)°, pitch (0.25/R)°; real-time vehicle attitude without additional sensors.
-
Stable 4G Cat.1 Communication TCP/UDP, JT/T 808-2013 industry protocol; compatible with mainstream vehicle supervision platforms.
-
Industrial-Grade Reliability IP66 waterproof/dustproof, aluminum alloy, -20℃~+75℃ for harsh vehicle environments.
-

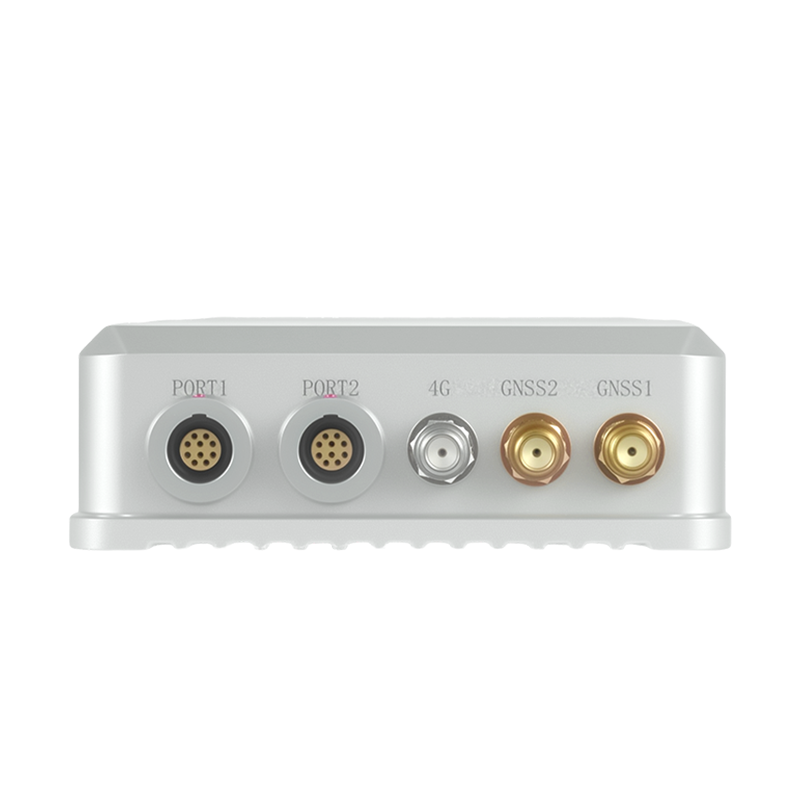

Rich Peripheral Expansion CAN, RS232, TTS, GPIO; supports external relays, fuel rods, temperature sensors, speakers.
-
Stable Power Supply Design DC 9V-36V wide voltage; 350mAh backup battery ensures ≤10min communication after power failure.
-
Convenient Remote Operation SMS/platform remote config, FOTA remote upgrade, dual IP simultaneous data transmission.
.png?imageMogr2/format/webp)
Technical Specifications
Communication & GNSS
| Network Standard | 4G Cat.1 |
| Communication Modes | TCP, UDP |
| Supported Protocol | JT/T 808-2013 |
| Wi-Fi/Bluetooth | Customizable |
| Supported Constellations | GPS, BDS-2/3, GLONASS, Galileo, QZSS full-band |
| RTK Accuracy | 2cm±1ppm |
| Velocity Accuracy | ≤0.02m/s (PDOP ≤4) |
| Sensitivity | Tracking -155dBm; Acquisition -138dBm |
| Update Rate | 1-10Hz (Default 1Hz) |
| Differential Data | RTCM3.0-3.3 |
IMU & Electrical
| Heading Accuracy | (0.15/R)° (R=baseline length in meters) |
| Pitch Accuracy | (0.25/R)° |
| Blind Area Positioning | 3s (centimeter-level), 10s (meter-level) |
| Input Voltage | DC 9V-36V |
| Operating Current | ≤300mA@12V |
| Backup Battery | 3.7V/350mAh |
| Backup Endurance | ≥10 minutes |
| Operating Temperature | -20℃~+75℃ |
| Storage Temperature | -40℃~+75℃ |
| Protection Level | IP66 |
| Dimensions | 108×92×30.5mm |
| Weight | 270g |
| Material | Aluminum Alloy |
Typical Applications
Intelligent Transportation Systems
Vehicle tracking, traffic flow monitoring, intersection management with cm-level accuracy.
Internet of Vehicles (IoV)
V2X communication, real-time vehicle data exchange, smart mobility solutions.
Intelligent & Assisted Driving
High-precision positioning for ADAS, autonomous vehicles, lane-level navigation.
Logistics & Freight Fleet
Real-time tracking, fuel monitoring, route optimization for trucks and cargo fleets.
Long-Distance Transport
Coach buses, inter-city freight, driver behavior monitoring, ETA prediction.
Engineering & Special Vehicles
Excavators, cranes, concrete pumps — attitude monitoring and high-precision positioning.
Dangerous Goods Transport
Hazmat vehicle tracking, emergency fuel cutoff, route compliance monitoring.
Vehicle-Mounted High-Precision Navigation
In-vehicle navigation systems, fleet dispatch, real-time traffic updates.
Public Transport & BRT
Bus rapid transit, schedule management, passenger information with high-precision ETA.
Agricultural Machinery Autopilot
Tractor guidance, sprayer control, precision farming with RTK cm-level accuracy.
Resources & Downloads
A12 Datasheet
Complete specifications, RTK/IMU performance, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and mounting layout (108×92×30.5mm).
User Manual
Installation guide, configuration, IMU calibration, peripheral connection.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (108×92×30.5mm).
