Jumpstar P16 RTK Smart Safety Helmet – 4G Cat.1, Centimeter-Level Positioning, Intelligent Safety Terminal for Construction & Engineering
Centimeter-Level RTK Positioning
BDS-3 high-precision module; static 2cm, dynamic <10cm accuracy.
4G Cat.1 Full Network
Supports JT/T 808 protocol, seamless platform docking.
4000mAh Large Battery
18-20h working time, Type-C fast charging.
Multi-Alarm System
SOS, fall, helmet-off, silent, electronic fence & height alerts.
Rich Functions
LED lighting, TTS voice broadcast, public network intercom, trajectory playback.
Smart Low-Power Mode
Vibration detection auto-switches work/sleep mode.
IP54 Protection
Industrial-grade dust/water resistance for harsh job sites.
Remote Management
OTA upgrade, remote differential/platform configuration.
Multi-Constellation GNSS
BDS+GPS+QZSS+LBS, AGNSS fast positioning.
Public Network Intercom
Single/group call for team communication on job sites.

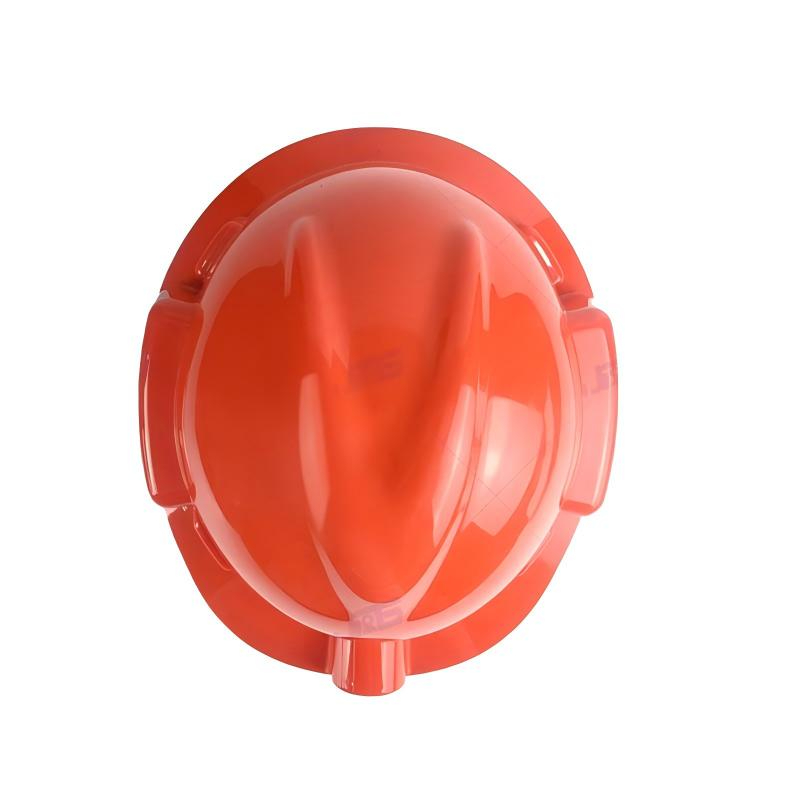

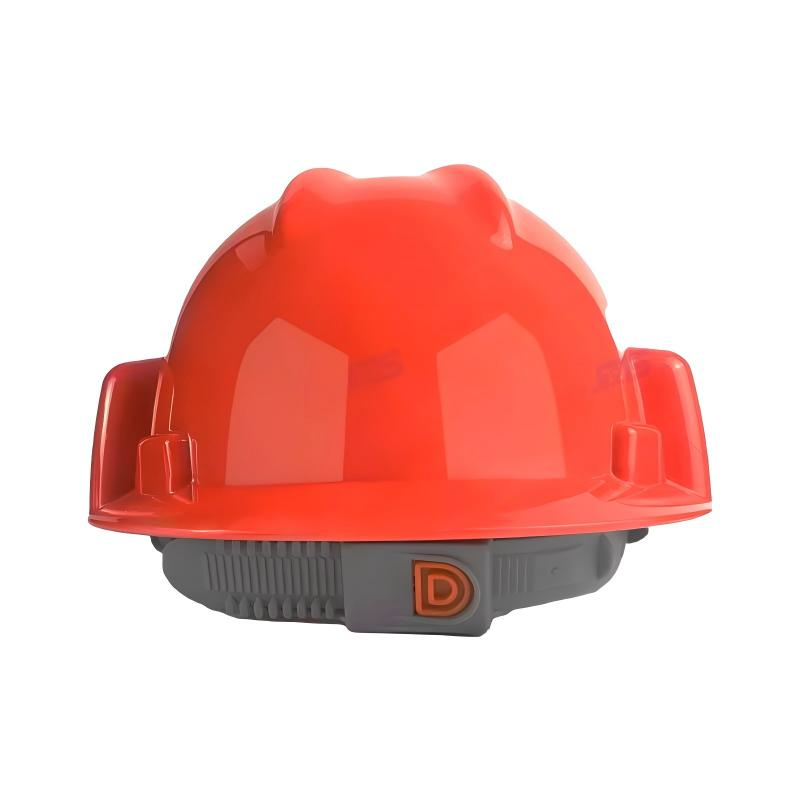

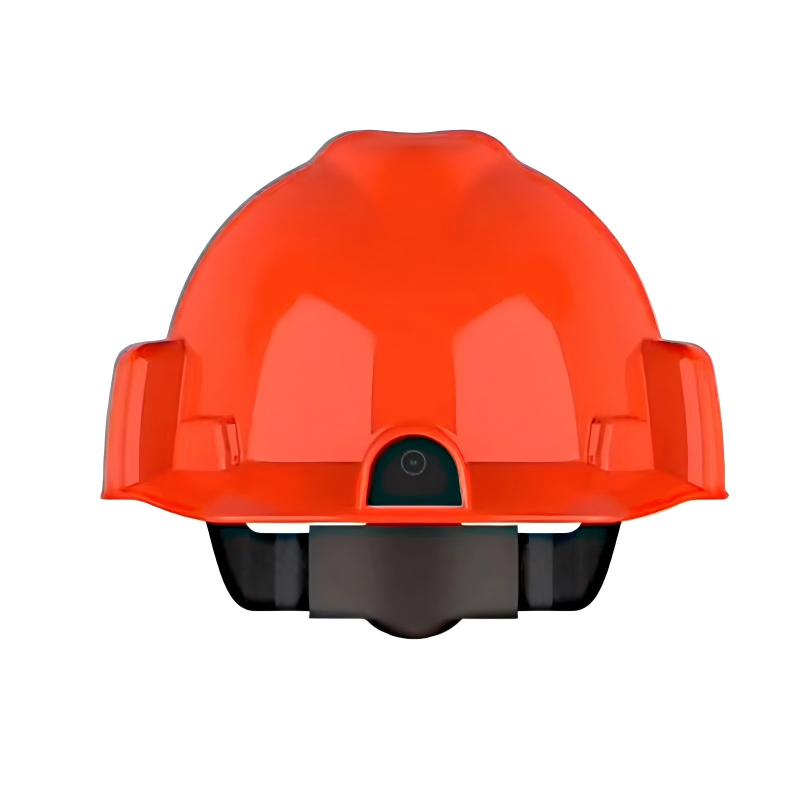

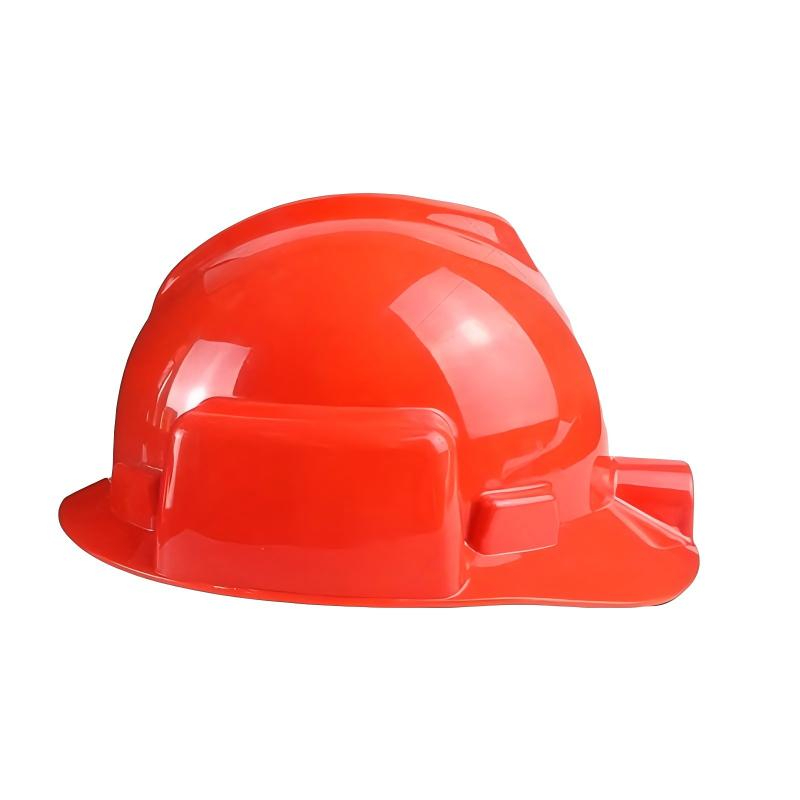

Jumpstar P16 RTK Smart Safety Helmet
4G Cat.1, Centimeter-Level Positioning, Intelligent Safety Terminal
The P16 RTK Smart Safety Helmet integrates a 4G Cat.1 communication module and a BDS-3 high-precision RTK positioning chip in an all-in-one helmet structure. It supports multi-constellation satellite positioning (GPS, BDS, QZSS) and delivers centimeter-level accuracy with differential services.
Built-in voice broadcast, gravity sensor and light sensor enable intelligent functions such as fall alarm, helmet-off detection and silent alarm. With a 4000mAh low-power battery and IP54 protection, it is widely used for smart construction, engineering supervision, mine operation and industrial personnel safety management.
RTK centimeter positioning, 4G Cat.1, multi-alarm system, long battery life — P16 is the ultimate smart helmet for worksite safety.
Key Features & Benefits
-
Centimeter-Level High-Precision Positioning BDS-3 RTK module; static 2cm, dynamic <10cm; AGNSS fast positioning.
-
Stable 4G Cat.1 Communication Full LTE bands; TCP/IP; JT/T 808 protocol for industry platform access.
-
All-Scenario Intelligent Alarms One-key SOS, fall impact, helmet-off, long-stay silent, electronic fence, height warning.
-
Long-Life & Low-Power Design 4000mAh battery, 18-20h working time; auto sleep by vibration detection.
-
Multifunctional Integrated Design 1W high-brightness LED work light, TTS voice broadcast, public network intercom (single/group call), real-time trajectory playback.
-
Flexible Remote Configuration Remotely set differential accounts, reporting frequency, platform IP/port; support FOTA remote firmware upgrade.
-
Industrial-Grade Reliability IP54 dustproof & waterproof; working temperature -20℃~+60℃; durable construction.
-
Smart Sensors & Monitoring G-sensor (fall/helmet-off), light sensor (auto lighting), intelligent alarms.
Technical Specifications
Communication & Positioning
| Network Standard | 4G Cat.1 |
| LTE Bands | LTE-TDD: B34/B39/B40/B41; LTE-FDD: B1/B3/B5/B8 |
| Protocol | JT/T 808; TCP/IP |
| Positioning Modes | BDS+GPS+QZSS+LBS; differential RTK |
| Single-Point Accuracy | 2.5m |
| RTK Accuracy | Static: 2cm; Dynamic: <10cm |
| First Fix Time | Cold start ≤32s; Hot start ≤2s; AGNSS ≤10s |
| Reporting Interval | Differential mode: 1s; Normal mode: 30s (customizable) |
Electrical & Physical
| Battery Capacity | 4000mAh |
| Charging Interface | Type-C |
| Charging Time | ≈3 hours |
| Working Voltage | 3.7V |
| Working Time | 18-20h (1Hz real-time reporting) |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+75℃ |
| Humidity | 10%~85%RH (non-condensing) |
| Protection Level | IP54 |
| Dimensions | 291×240×140mm |
| Weight | 485.5g (without lining); 576g (with lining) |

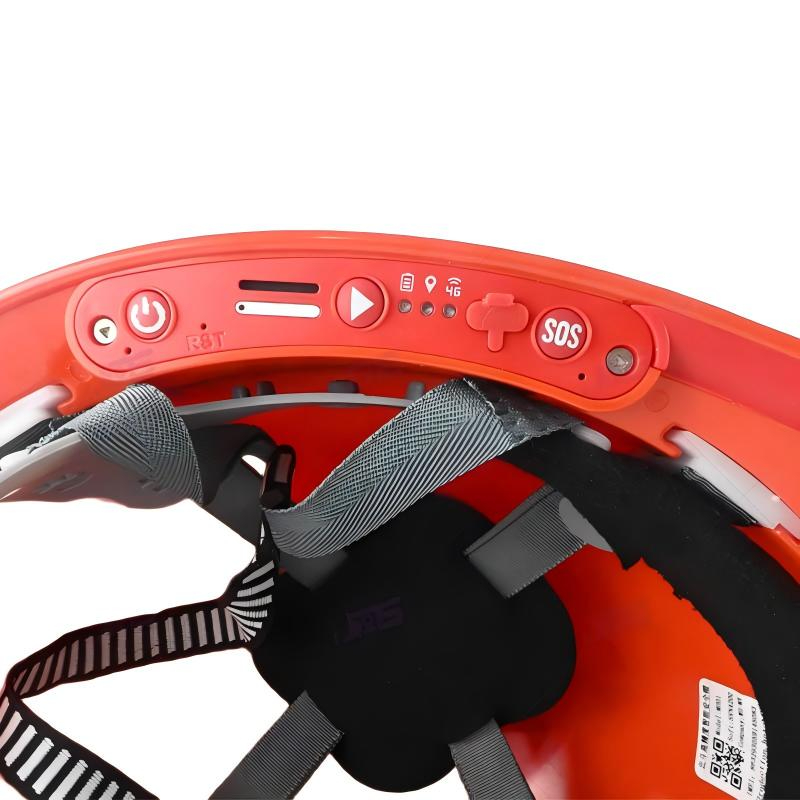

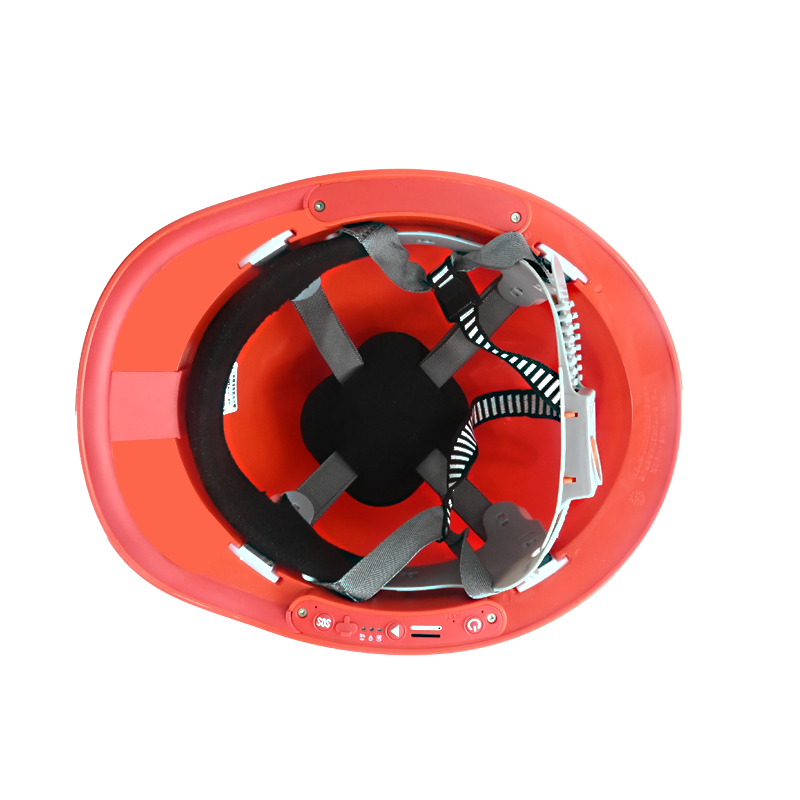

| Buttons | Power, SOS, Lighting/Voice (multi-function) |
| Lighting | 1W high-brightness LED |
| Sensors & Upgrades | G-sensor, light sensor; FOTA remote firmware upgrade |
Typical Applications
Smart Construction Sites
Personnel safety management, real-time positioning, fall/helmet-off alarms
Municipal & Road Construction
Engineering supervision, worker tracking, boundary alert
Mine & Industrial Operations
Personnel positioning, fall detection, hazardous area monitoring
Electric Power & Pipeline Inspection
Height warning, electronic fence, remote monitoring for utility workers
Railway & Tunnel Maintenance
Worker real-time location, emergency SOS, intercom communication
Emergency Rescue & Hazardous Areas
Real-time tracking, fall detection, SOS alarm for first responders
Oil & Gas Industrial Sites
Explosion-proof version available, anti-static, safety alarm for high-risk zones
Port & Dock Operations
Worker safety, high-precision positioning for container yards, intercom dispatch
Smart Logistics Warehouses
Staff positioning, silent alarm, area authority management
Solar & Wind Farm Maintenance
Remote positioning, fall detection, intercom for field technicians
Resources & Downloads
P16 Datasheet
Complete specifications, RTK accuracy, alarm functions, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and helmet structure (291×240×140mm).
User Manual
Quick start guide, alarm settings, remote configuration, and safety instructions.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (291×240×140mm).
