P9
Asset Trackers

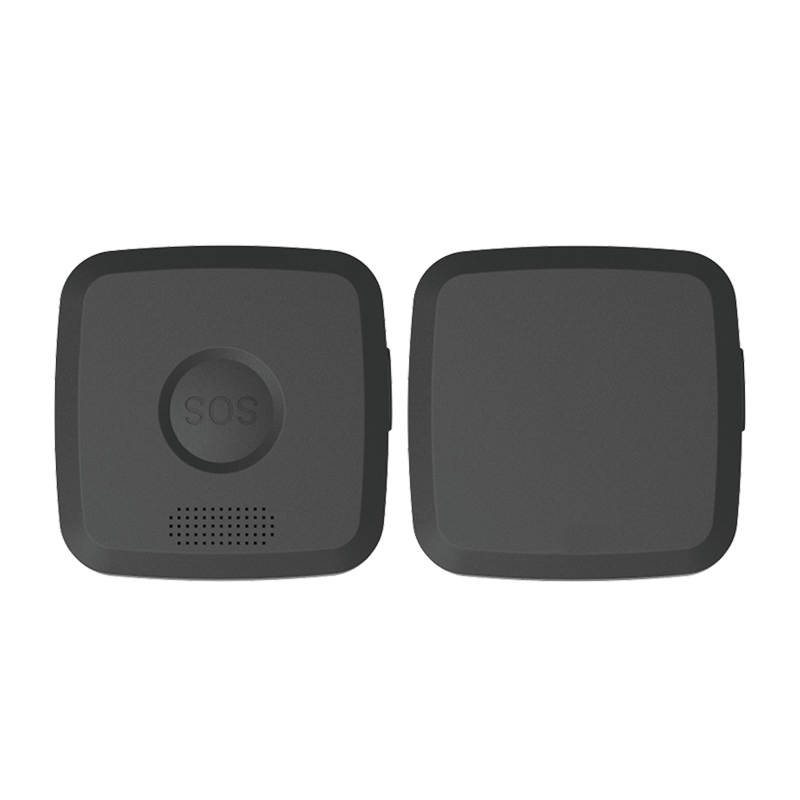

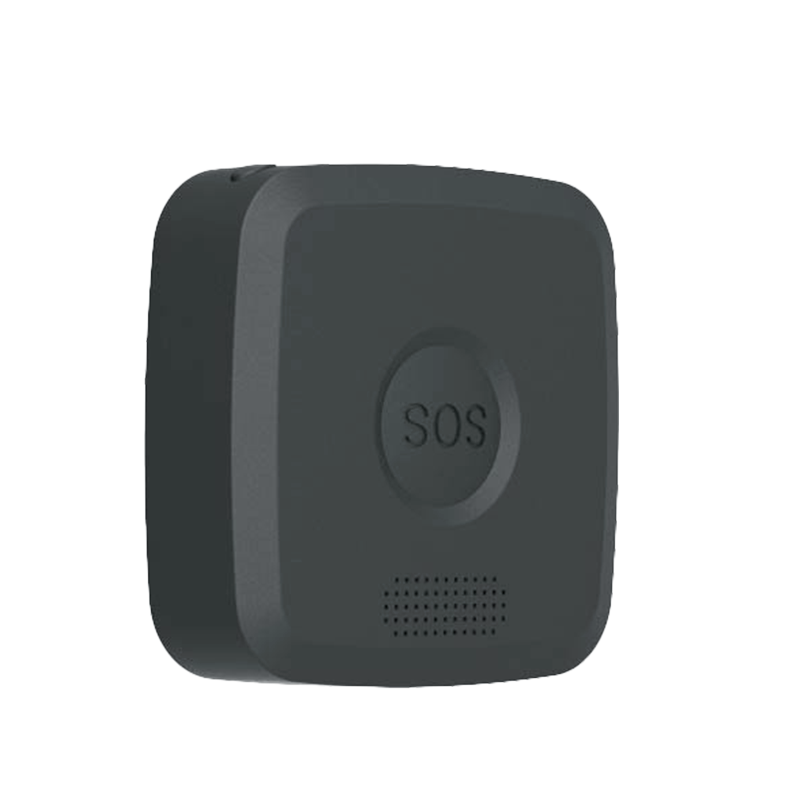

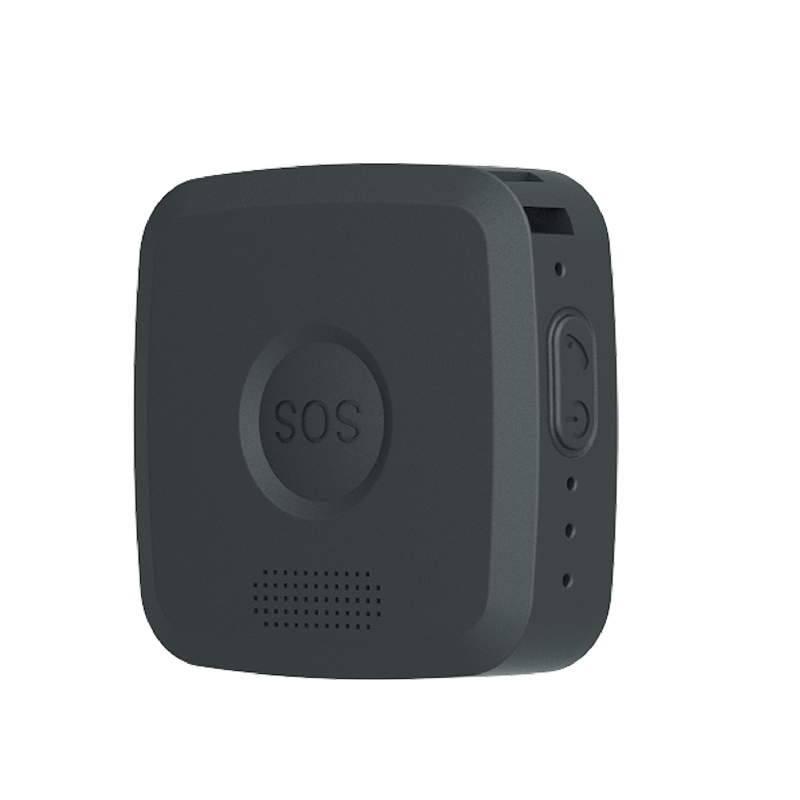

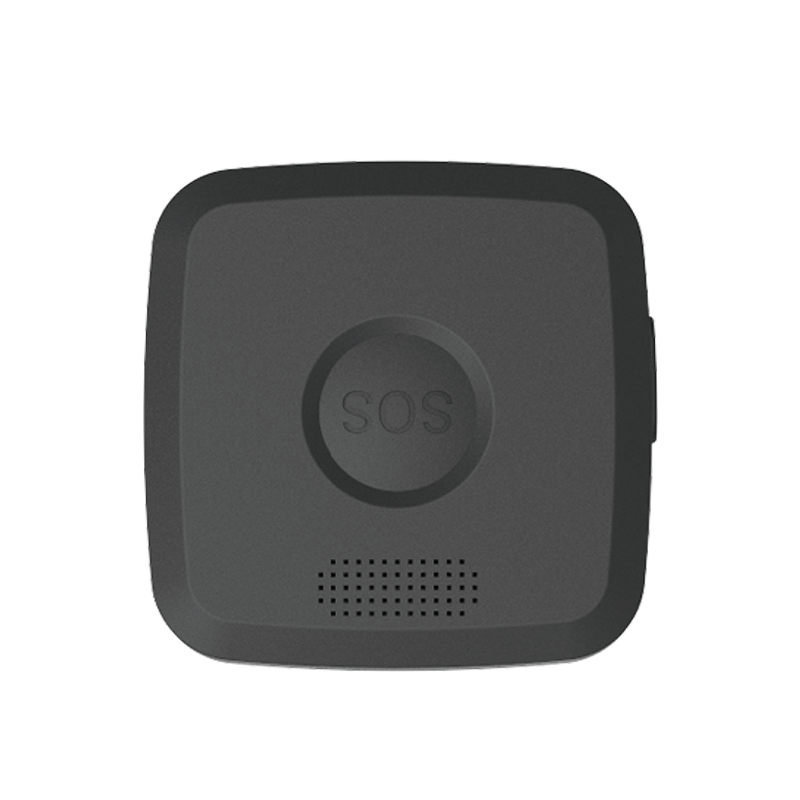

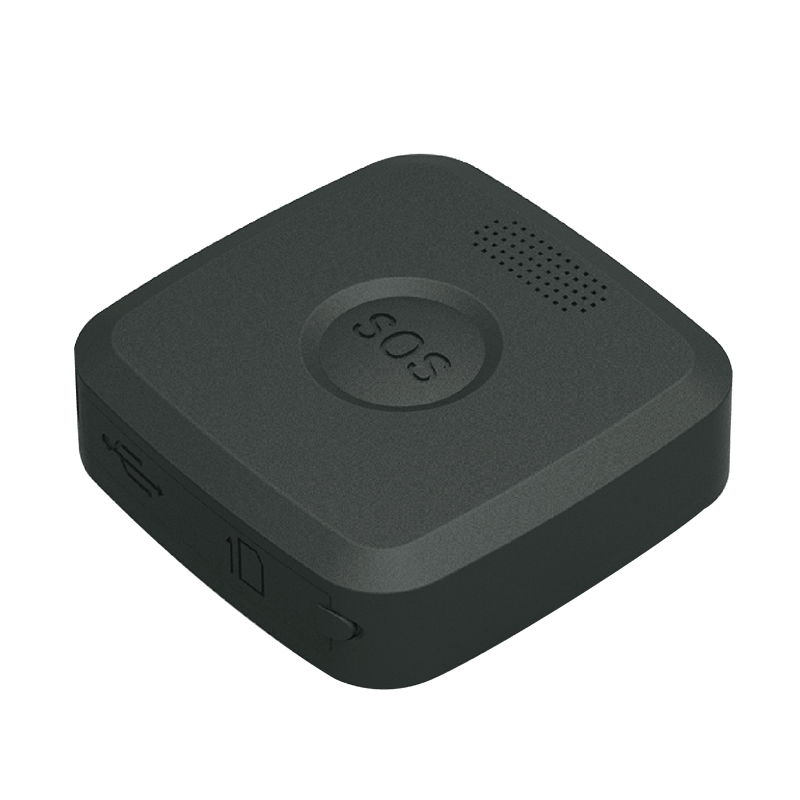

Jumpstar P9 4G Portable Personal Locator – Mini GNSS Tracker, One-Touch SOS, Low-Power Positioning for Personal/Asset/Pet Tracking
Ultra-Compact Mini Design
43×43×12mm, only 25g, portable & wearable.
4G Global Communication
Full 4G bands for stable worldwide connectivity.
High-Sensitivity GNSS Positioning
5m single-point accuracy, fast satellite acquisition.
One-Touch SOS Emergency Alarm
Instant alert to platform & contacts.
Low Power Consumption
600mAh built-in battery, long standby.
Multi-Function Support
Call support (3 contacts), SMS remote config, real-time location.
IP65 Waterproof
Dustproof & waterproof for daily outdoor use.
Remote OTA Upgrade
Firmware update online without disassembly.
Global Multi-Constellation Support
GPS/QZSS, GLONASS, SBAS for reliable worldwide positioning.
Explosion-Proof Support
Explosion-proof certification supportable for industrial use.
Jumpstar P9 4G Portable Personal Locator
Mini GNSS Tracker, One-Touch SOS, Low-Power Positioning
The P9 is a compact high-precision 4G portable positioning device integrating GNSS satellite positioning and 4G communication modules. It outputs real-time dynamic location data via satellite signals, dedicated to personal safety tracking (children, the elderly, individuals), asset supervision and pet tracking.
Featuring an ultra-small size, low power consumption, one-touch SOS and voice call functions, it provides stable remote positioning and emergency assistance for daily safety and outdoor scenarios.
Mini size, 4G global, 5m accuracy, SOS alarm, voice call — P9 is the ideal portable personal locator.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
Mini Portable & Wearable Ultra-compact size 43×43×12mm and lightweight 25g, with lanyard loop for easy carrying and wearing.
-
Stable 4G Global Connectivity Supports full 4G frequency bands (B1/3/5/7/8/20/28) for reliable global data and voice transmission.
-
High-Precision GNSS Positioning Supports GPS/QZSS, GLONASS, SBAS; 5m single-point accuracy; fast positioning (cold start ≤60s).
-
One-Touch SOS Emergency Help Long press SOS button to trigger alarm, immediately send alert to platform and preset contacts.
-
Smart Voice & Call Function Supports dialing up to 3 preset contacts; short press to answer/hang up calls for voice interaction.
-
Flexible Remote Configuration Adjust device parameters via SMS without internet; support remote OTA firmware upgrade.
-
Reliable Environmental Adaptability IP65 waterproof and dustproof; wide temperature range (-10℃~60℃) for daily outdoor use.
-
Low Power Consumption & Long Standby 600mAh built-in battery, optimized power management for extended usage.
.png?imageMogr2/format/webp)
Technical Specifications
Communication & GNSS Parameters
| 4G Frequency Bands | B1/3/5/7/8/20/28 |
| Communication Mode | GSM/GPRS, 4G |
| Supported Protocol | Enterprise custom protocol, JT/T808 (dual IP under development) |
| Supported Constellations | GPS/QZSS L1C/A, GLONASS L1OF, SBAS (EGNOS/GAGAN/MSAS/WAAS) |
| Positioning Accuracy | 5m (single-point) |
| Velocity Accuracy | 500m/s |
| Time to First Fix | Cold start ≤60s; Hot start ≤30s; Reacquisition ≤30s |
| Channels | 72 capture channels; 32 tracking channels |
| Sensitivity | Tracking: -166dBm; Acquisition: -160dBm |
| Update Rate | 1Hz |
| Data Format | NMEA 0183 |
Electrical & Mechanical
| Built-in Battery | 600mAh |
| Charging Interface | Micro USB |
| Charging Voltage | DC 5V, 330mA/h |
| Operating Voltage | 3.4V~4.3V |
| Dimensions | 43mm×43mm×12mm |
| Weight | 25g |
| Material | PC+ABS |
| Operating Temperature | -10℃~+60℃ |
| Storage Temperature | -20℃~+60℃ |
| Operating Humidity | 10%~85%RH (non-condensing) |
| Protection Level | IP65 |
| Special Functions | SOS alarm, call support (3 contacts), SMS remote config, OTA upgrade, explosion-proof certification supportable |
Typical Applications
Personal Safety Tracking
Real-time location monitoring for individuals, outdoor emergency positioning
Children & Elderly Monitoring
Real-time location tracking for children and elderly, SOS emergency help
Portable Asset Tracking
Supervision and tracking of valuable assets in transit
Pet Positioning & Anti-Lost
Real-time tracking and location monitoring for pets
Outdoor Sports & Adventure
Location recording and emergency SOS for hiking, camping, adventure activities
Staff On-Site Positioning
Personnel location management for field workers and remote staff
Travel & Group Tour Safety
Group member tracking, anti-lost protection, emergency assistance for travelers
Vehicle & Vessel Security
Portable anti-theft tracking for vehicles, boats, RVs and equipment
Industrial & Logistics Tracking
Container, cargo and equipment tracking in industrial and logistics environments
Emergency Response & Rescue
Personnel tracking and SOS alert for emergency responders and rescue teams
Resources & Downloads
P9 Datasheet
Complete specifications, communication details, electrical and mechanical specifications.
Mechanical Drawing
2D/3D mechanical dimensions and pad layout (43×43×12mm).
User Manual
Quick start guide, configuration, SOS operation, and call setup instructions.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (43×43×12mm).
