P7
Asset Trackers
Jumpstar P7 4G Smart ID Badge – Dual-Frequency RTK/UWB/Bluetooth Multi-Mode Positioning, SOS Emergency Alarm & Smart Personnel Management Terminal
Multi-Mode High-Precision Positioning
BDS/GPS dual-frequency RTK cm-level + UWB/Bluetooth indoor positioning, full-scenario coverage.
4G Cat.1 Full Network Compatibility
Supports all LTE frequency bands, compatible with JT/T 808-2013 protocol for seamless platform docking.
2500mAh Long-Lasting Battery
Intelligent vibration sleep, dual charging interfaces for extended usage.
One-Touch SOS Alarm
3-second long press for emergency help, real-time reporting to the platform.
TTS Voice Announcement
Remote text-to-speech broadcast for battery, time and status, intuitive interaction.
Industrial-Grade Protection
IP66 dustproof & waterproof, -20℃ to +75℃ wide-temperature operation.

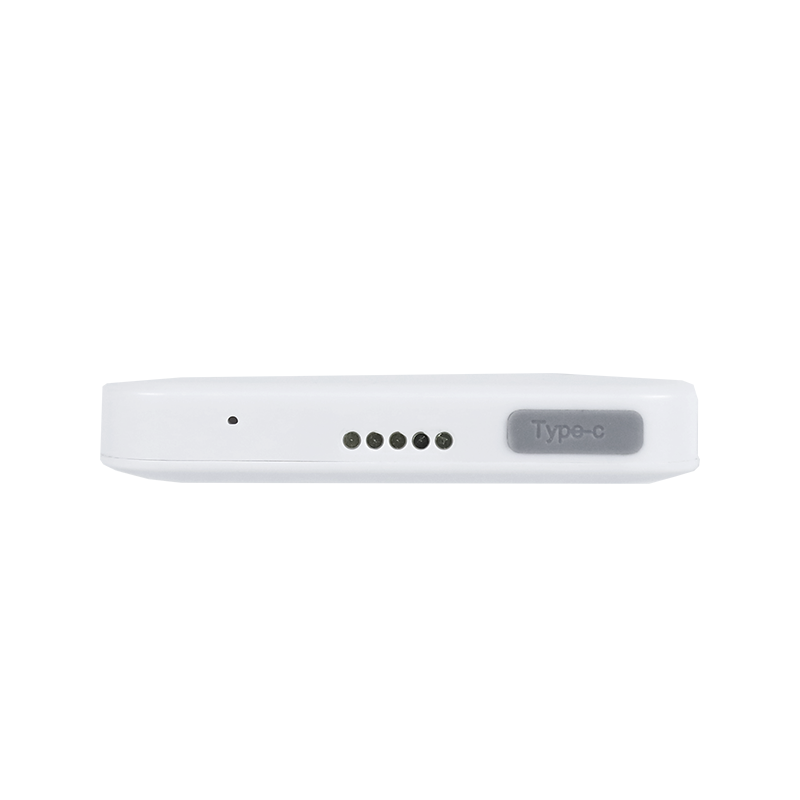

Dual Charging Modes
Contact charging + Type-C charging, compatible with charging cabinets and daily use.
Remote Management
SMS/serial port/platform remote configuration, OTA upgrade, blind zone data retransmission.
Intelligent Power-Saving Sleep
Auto sleep after 120s no vibration, wake by vibration/button press.
Blind Zone Data Retransmission
Local storage in signal blind zones, auto-upload upon network recovery.

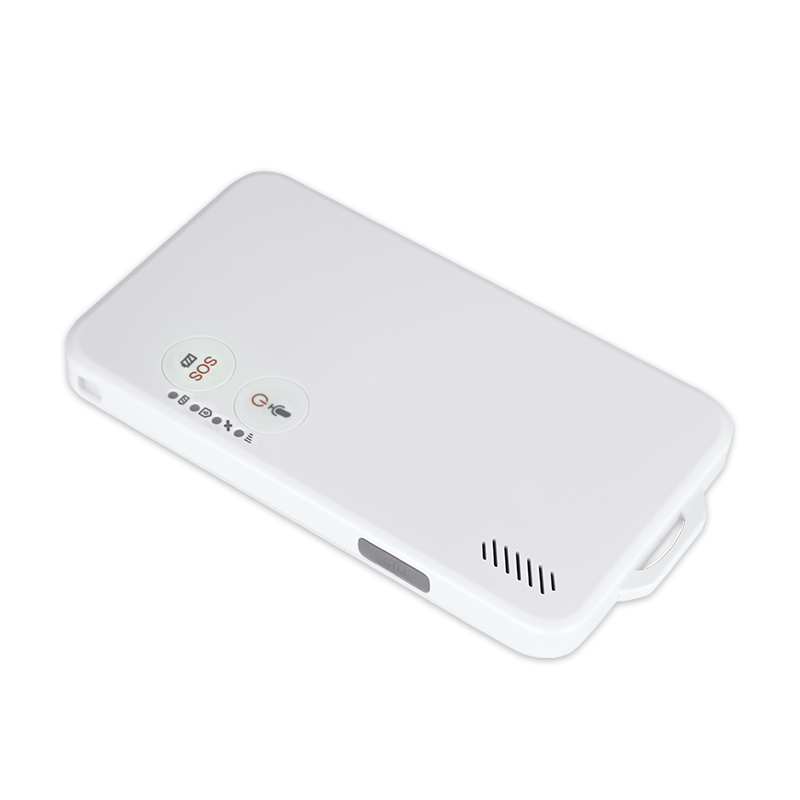

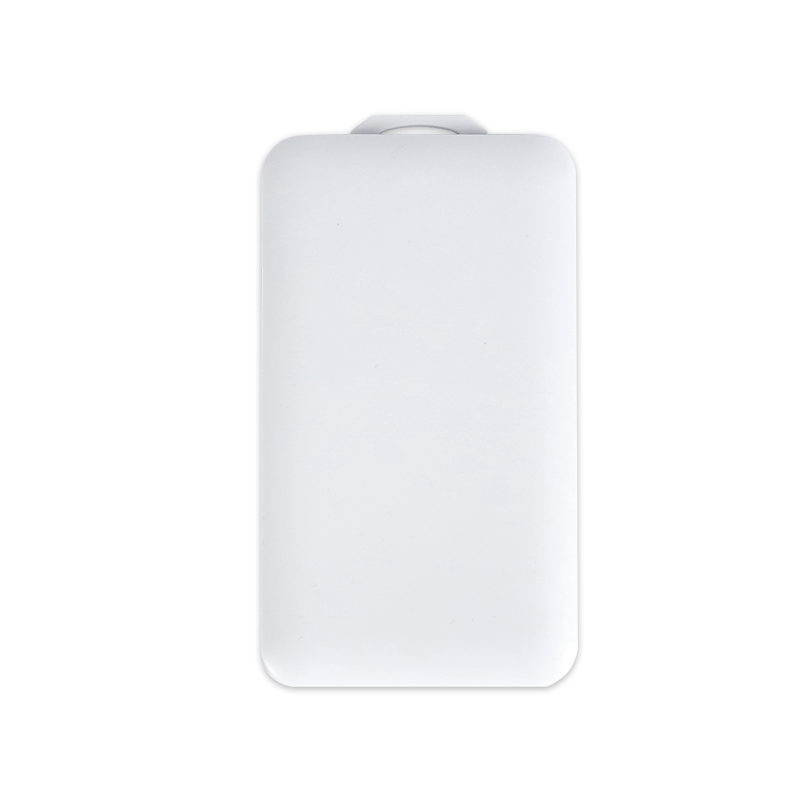

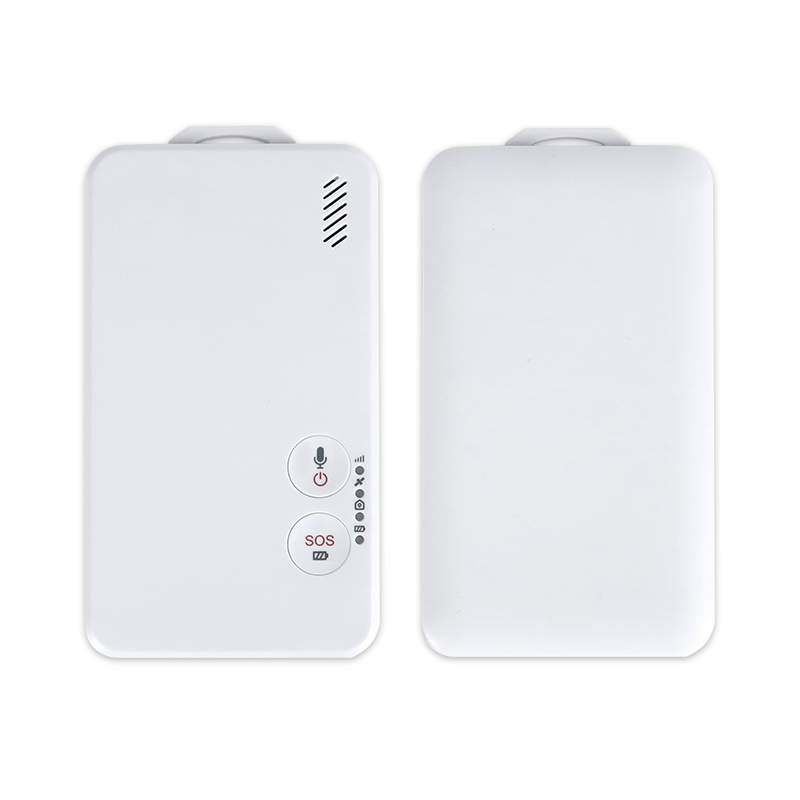

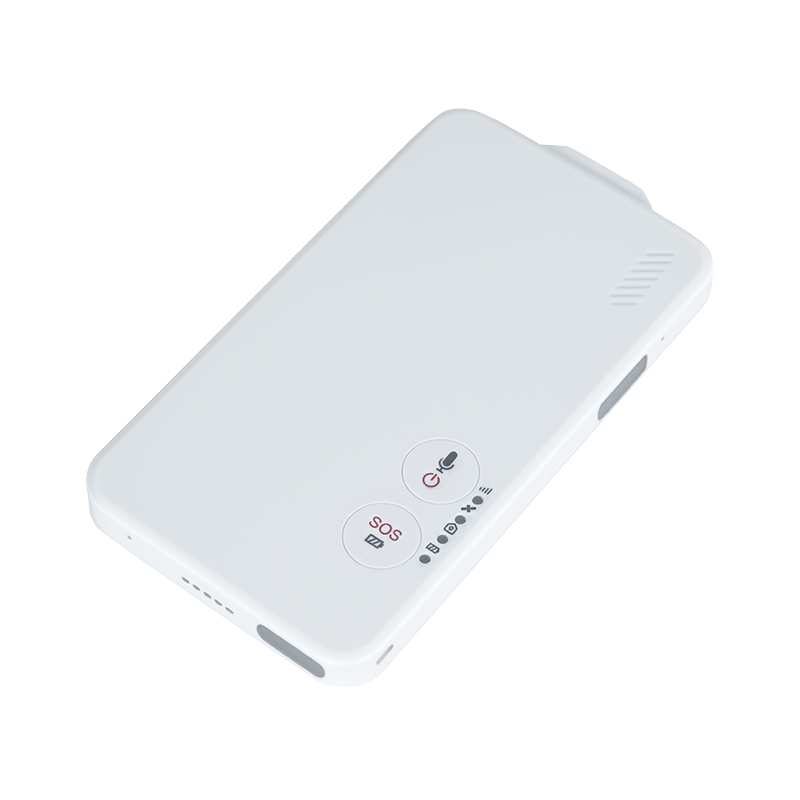

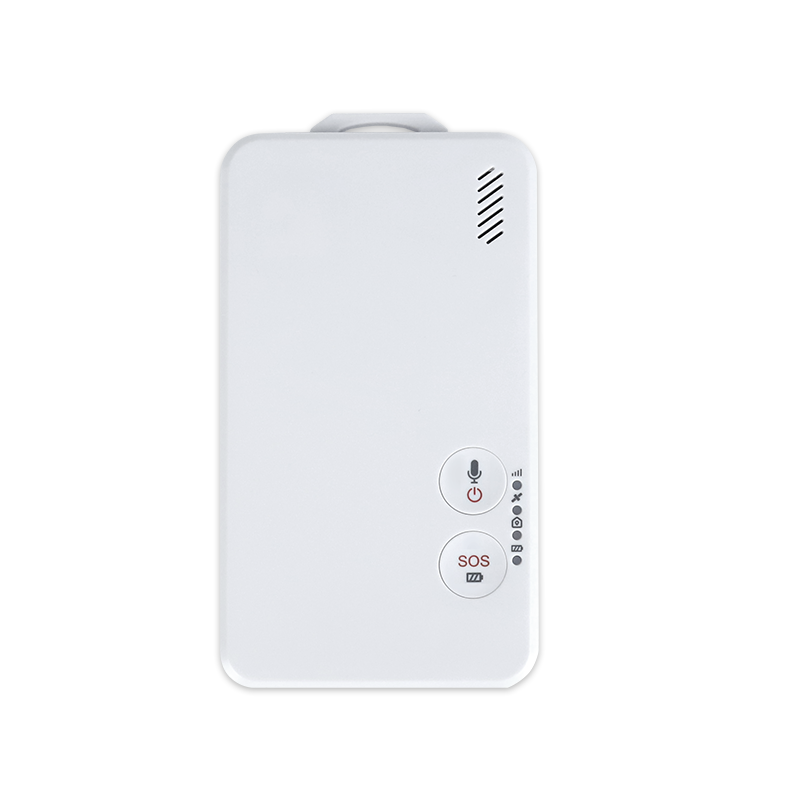

Jumpstar P7 4G Smart ID Badge
Dual-Frequency RTK/UWB/Bluetooth Multi-Mode Positioning
The P7 is a dual-frequency RTK high-precision positioning smart ID badge that supports BDS/GPS L1+L5 dual-frequency satellite positioning and optional UWB/Bluetooth indoor positioning, addressing personnel positioning needs in satellite signal-free environments. Transmitting data via 4G Cat.1 network, it is compatible with the national JT/T 808-2013 standard protocol and can be directly connected to industry-standard supervision platforms.
Equipped with a built-in vibration sensor, it automatically enters sleep mode to save power. Featuring SOS emergency alarm, TTS voice broadcast, remote configuration/upgrade, and blind zone data retransmission, it adopts IP66 protection and ultrasonic craftsmanship. Widely applicable to smart construction sites, campuses, sanitation, elderly care, scenic spots and other personnel safety management scenarios.
Multi-mode high-precision positioning, 4G Cat.1, long battery life, SOS alarm, TTS voice — P7 is the ultimate personnel safety terminal.
.png?imageMogr2/format/webp)
Key Features & Benefits
-
Full-Scenario High-Precision Positioning BDS/GPS dual-frequency RTK (≤1cm±1ppm); UWB ≤50cm; Bluetooth ≤5m — eliminating blind spots indoors and outdoors.
-
Stable 4G Communication & Transmission 4G Cat.1 full network, TCP/UDP, JT/T 808-2013 protocol compliance for direct platform access.
-
Intelligent Power-Saving Sleep Auto sleep after 120s of no vibration, wake by vibration/button; 2500mAh battery, standby extended.
-
Comprehensive Safety Alarms 3-second long press SOS, electronic fence breach, low battery, offline status alerts.
-
Intelligent Voice Interaction TTS text-to-speech remote broadcast; short press key to announce battery, time, signal status.
-
Flexible Charging & Management Contact + Type-C dual charging; triple remote config via SMS/serial port/platform.
-
Industrial-Grade Reliable Design IP66 dustproof & waterproof, -20℃~+75℃ wide-temp, PC+ABS material, lanyard-worn.
-
Data & O&M Support Local storage in blind zones, auto-upload on recovery; OTA remote firmware upgrade.
.png?imageMogr2/format/webp)
Technical Specifications
Positioning & Communication
| 4G Frequency Bands | LTE FDD: B1/B3/B5/B8; LTE TDD: B34/B38/B39/B40/B41 |
| Communication Modes | TCP, UDP |
| Communication Protocol | JT/T 808-2013 |
| Satellite Signals | BDS B1I/B1C/B2A/B2B/B2I, GPS L1+L5 (Dual-Frequency) |
| Tracking Channels | 150 channels |
| Single-Point Accuracy | Horizontal ≤1.5m CEP; Vertical ≤2.5m CEP |
| RTK Accuracy | Horizontal ≤1.0cm±1ppm CEP; Vertical ≤1.5cm±1ppm CEP |
| UWB Accuracy | ≤50cm |
| Bluetooth Accuracy | ≤5m |
| Time to First Fix | Cold ≤50s; Warm ≤10s; Reacquisition ≤10s |
| Sensitivity | Tracking -165dBm; Acquisition -159dBm |
Electrical & Mechanical
| Battery Capacity | 2500mAh |
| Charging Time | ≤2.5 hours |
| Operating Voltage | 3.4V~4.3V |
| Operating Current | Working ≤200mA; Standby ≤3mA |
| Charging Methods | Contact charging + Type-C (5V/2A) |
| Operating Temperature | -20℃~+75℃ |
| Storage Temperature | -40℃~+75℃ |
| Protection Level | IP66 |
| Dimensions | 127×67×12mm |
| Weight | 116g |
| Material | PC+ABS |
| Update Rate | 1~20Hz (Default: 1Hz) |
| Differential Data | RTCM3.3/3.2/3.1/3.0 |
Typical Applications
Smart Construction Sites
Personnel positioning, attendance check, emergency assistance
Smart Campuses
Student positioning, access management, safety monitoring
Smart Sanitation
Sanitation workers' operation tracking, task management
Smart Elderly Care
Elderly positioning, SOS emergency help, health monitoring
Scenic Spot Management
Tourist positioning, guide attendance, zone control
Enterprises & Factories
Employee area management, shift attendance, safety early warning
Logistics & Warehouse
Personnel tracking, zone access control, emergency alerts
Port & Power Plant
Worker real-time location, emergency evacuation, safety compliance
Emergency Response Teams
Real-time tracking, SOS alarm, remote dispatch for first responders
Smart Communities
Resident safety, property management, elderly/child care alerts
Resources & Downloads
P7 Datasheet
Complete specifications, positioning modes, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and pad layout (127×67×12mm).
User Manual
Quick start guide, configuration, operation and alarm settings.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (127×67×12mm).
