Asset Trackers
Jumpstar P3 Smart ID Badge – 4G Cat.1, RTK Dual-Frequency + Bluetooth Hybrid Positioning, SOS Emergency Personnel Terminal
Indoor-Outdoor Hybrid Positioning
Beidou+GPS dual-frequency RTK (10cm) + Bluetooth (3-5m) full-scenario coverage.
4G Cat.1 Full Netcom
Supports mobile/unicom/telecom, JT/T808 protocol for platform integration.
1800mAh Large Battery
Magnetic charging, standby ≥3 days for long-term use.
Smart Power-Saving Modes
Auto sleep by vibration detection, 4 working modes switchable.
All-Round Safety Alerts
One-key SOS, electronic fence, low-power alarm, track playback.
TTS Voice Broadcast
Remote text-to-speech & key voice feedback.
IP65 Protection
Dustproof & waterproof, explosion-proof customization available.
Ultra-Thin Badge Design
107.6×60×12mm, 74g, lanyard-worn for comfort.
Full Protocol Support
JT/T808 compatible, remote OTA & parameter configuration.
Professional Personnel Management
Track playback, intelligent attendance, remote configuration & OTA.

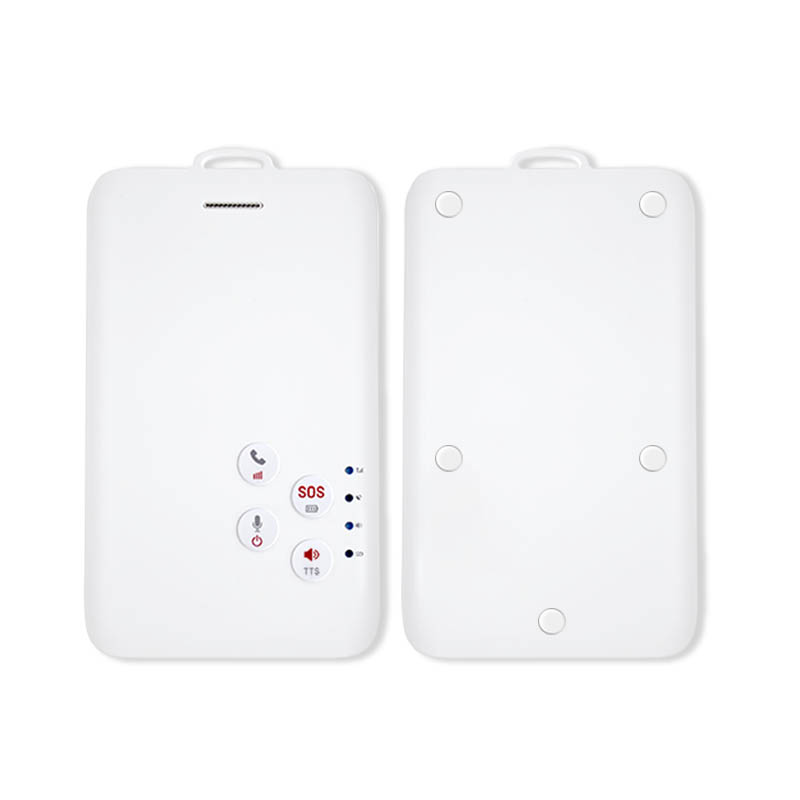

Jumpstar P3 Smart ID Badge
4G Cat.1 RTK Dual-Frequency + Bluetooth Hybrid Positioning
The P3 Smart ID Badge is an intelligent personnel positioning terminal integrating RTK dual-frequency multi-GNSS, Bluetooth hybrid positioning and 4G Cat.1 communication. It adopts an L1+L5 dual-frequency high-precision module, achieving ~10cm RTK accuracy outdoors and 3-5m accuracy via Bluetooth beacons indoors.
Equipped with a high-sensitivity gravity sensor, it automatically switches between working and sleep modes to maximize battery life. It supports 4G full network communication, TTS voice broadcast, SOS one-key alarm, electronic fence and track playback. With IP65 protection and explosion-proof customization, it is widely used in smart construction sites, campuses, sanitation, elderly care and other personnel management scenarios.
Hybrid positioning, 4G Cat.1, large battery, SOS safety, TTS voice — P3 is the ideal personnel management terminal.
Key Features & Benefits
-
High-Precision Hybrid Positioning Outdoor: Beidou+GPS L1+L5 dual-frequency, RTK ~10cm, single-point 3-5m; Indoor: Bluetooth beacon positioning (3-5m, optional).
-
Stable 4G Cat.1 Communication Full network access (mobile/unicom/telecom); compatible with JT/T808 protocol for seamless platform docking.
-
Intelligent Power Management Vibration-sensing auto sleep; supports real-time mode, power-saving mode, time-sharing mode, flight mode. 1800mAh battery, standby ≥3 days.
-
Comprehensive Safety Functions Long-press SOS alarm; electronic fence boundary alert; low-battery reminder; remote online monitoring; track playback.
-
Smart Voice & Human-Machine Interaction TTS text-to-speech broadcast; key-based clock-in, power check, signal query with voice feedback.
-
Convenient Charging & Reliable Protection Magnetic contact charging (matches charging cabinets); IP65 waterproof/dustproof; wide temperature -20℃~65℃.
-
Professional Personnel Management Full-time track playback; remote parameter configuration & OTA upgrade; intelligent attendance clock-in.
Technical Specifications
Positioning & Communication
| GNSS Signals | GPS L1/L5, BDS B1I/B2I, QZSS L1/L5 |
| Positioning Mode | BDS+GPS+BT (Bluetooth optional) |
| Positioning Accuracy | Single-point: 3-5m; RTK: ~10cm; BT: 3-5m |
| Cold Start Time | BDS cold start <30s (open sky) |
| Antenna | L1+L5 dual-frequency ceramic antenna |
| Network | 4G Cat.1 full netcom |
| Protocol | JT/T808 |
| SIM Card | Nano SIM |
Electrical & Physical
| Buttons | 4 keys (clock-in, SOS, power, reset) |
| Voice | TTS broadcast, loudspeaker |
| Detection | Vibration detection, battery level detection |
| Remote | Remote config, TTS push, OTA upgrade |
| Battery | 1800mAh Li-ion |
| Charging | Magnetic contact, 5V/1A+, full charge ≈3hrs |
| Working Voltage | 3.7V |
| Current | Working ≤200mA; Standby ≤3mA |
| Standby Time | ≥3 days (8hrs working per day) |
| Operating Temperature | -20℃~+65℃ |
| Storage Temperature | -30℃~+80℃ |
| Humidity | 10%~85%RH (non-condensing) |
| Protection | IP65 |
| Dimensions | 107.6×60×12mm |
| Weight | ≈74g |
| Material | PC+ABS |
| Wear & Certification | Lanyard type; explosion-proof customizable |
Typical Applications
Smart Construction Site
Personnel positioning, attendance, safety alert
Smart Campus
Student clock-in, location monitoring, safety care
Smart Sanitation
Worker operation track, task management
Smart Elderly Care
Senior positioning, SOS emergency help
Scenic Spot Management
Tourist positioning, guide attendance
Factory & Enterprise
Staff clock-in, zone authority management
Logistics & Warehouse
Staff tracking, regional access control, safety alerts
Port & Power Plant
Worker real-time location, emergency evacuation
Field & Outdoor Operations
Survey team tracking, emergency SOS, remote dispatch
Elderly & Child Care
Wander prevention, geo-fence, one-key SOS
Resources & Downloads
P3 Datasheet
Complete specifications, electrical and mechanical details.
Mechanical Drawing
2D/3D mechanical dimensions and pad layout (107.6×60×12mm).
User Manual
Quick start guide, configuration, and operation instructions.
3D CAD Model
STEP, IGES and STL formats for mechanical integration (107.6×60×12mm).
